.22-caliber Lightweight Disco Double: Part 7

by Tom Gaylord, a.k.a. B.B. Pelletier

Part 1
Part 2
Part 3
Part 4
Part 5
Part 6

Disco Double new stock
The Lightweight Disco Double in its new stock looks striking!

This is a third look at the Disco Double shooting at 50 yards. All I’ve managed to do so far is demonstrate the Disco Double is very consistently mediocre with the best pellets — JSB Exact Jumbo RS domes. However, the last time I was out at the range with this rifle, I finally did what the builder, Lloyd Sikes, has been telling me to do all along. He said to tighten the 6 screws on the 2 barrel bands or hangers, and this time I followed his directions. Guess what? Four of the 6 screws were loose! Imagine that! I tightened them and knew the rifle would reward me for the effort.

It was no surprise when shot the best 10-shot group ever with the rifle. Ten RS pellets went into 1.195 inches at 50 yards. But I was 3 shots into a second group when the bolt handle broke off in my hand during cocking. That ended the day for this rifle.

Disco Double new stock 50 yard group 1
Ten shots went into 1.195 inches at 50 yards. This is the tightest group this rifle has fired to this point, and all I had to do was tighten a few screws.

Disco Double new stock bolt broken
The bolt handle broke off during cocking. This isn’t common, but it can happen.

As soon as I returned home, I emailed Lloyd, who put a new bolt and handle in the mail right away. I really wanted to finish the test before leaving for the Ohio airgun show (which is this Saturday), so I disassembled the rifle. I ran into a problem getting the old bolt out, but a call to Lloyd set me on the right path and soon the job was done.

The new parts arrived the following week, and I had them in the rifle inside an hour — though another call to Lloyd was necessary. He was most helpful, and I resolved my problem with a minimum of fuss. The rifle went back together, and I was ready to return to the range.

This time, I took the opportunity to mount a new UTG 6-24X56 scope scope in place of the UTG True Hunter 3-9X40 scope I took off. Naturally, the target image was much larger with this scope, which just made my job easier.

I tried several pellets that I’ve tried before, but once more this rifle demonstrated that it likes the JSB Exact Jumbo RS pellets the best. Since the rifle had been taken apart for the bolt repair (i.e., both barrel bands had been removed), I was back at the beginning on the first group. I had the front band about where it had been before (from the screw marks in the paint), and the first group of 10 went into 1.28 inches at 50 yards. That was marginally better than the 1.317-inch group I’d gotten during the previous full test, but not quite as good as the one group I shot just before the bolt broke (1.193 inches). All the screws were tight, so now it was time to move the front barrel band.

Disco Double new stock 50 yard group 2
After the barrel bands were reinstalled but before the front band was moved, I put 10 JSB RS pellets into this 1.28-inch group at 50 yards.

Harmonics
In case you don’t understand what moving the front barrel band has to do with accuracy, it comes down to harmonics. By changing the location of where the barrel is anchored, I changed how the barrel vibrates during the shot. I did a huge 11-part test of this effect a few years ago. You can read about it here.

I moved the front barrel band backwards about a half inch and tightened the 3 screws once more. Then, I fired another group of 10 shots. This time, 10 RS pellets went into 0.816 inches. That’s pretty telling, don’t you think? Of course, I have no way of knowing if I have the barrel band adjusted perfectly — all I know is that it’s better than it was before.

Disco Double new stock 50-yard group 3
After moving the front barrel band, I put 10 RS pellet into 0.816 inches at 50 yards.

A second 10-shot group went into 1.506 inches. Oops! Was that supposed to happen? Its difficult to say, but perhaps I wasn’t concentrating while shooting this group. I simply don’t know. Stuff happens to me, just like anyone else!

Disco Double new stock 50 yard group 4
The next 10 RS pellets made this 1.506-inch group.

So I shot a third 10-shot group. This one measures 0.961 inches between centers. That’s better.

Disco Double new stock 50 yard group 5
A final 10-shot group of RS pellets went into 0.961 inches.

The results
What I can tell you now is the that Disco Double is able to put 10 pellets into less than an inch at 50 yards under ideal conditions. I’ve shown you everything that’s happened, and I could go on and continue to test this rifle until I have it shooting its best. I probably will, in fact. But the lesson is what I’ve shown you today.

The Benjamin Discovery is an inexpensive PCP that can put 10 pellets into less than one inch at 50 yards under ideal conditions. The Disco Double I am testing for you here has a lot of extra work done to it and is not as inexpensive as the basic Discovery. However, this is the air rifle I wanted. It’s small, it’s accurate, it has a wonderful trigger and this one gets a load of shots on a fill of just 2,000 psi. That’s everything I wanted in a PCP.

Best of all, this rifle weighs no more and is no larger than a standard Discovery. Despite the additional air capacity, I had to sacrifice nothing. That was the real reason I had this air rifle built. Lloyd Sikes has a wonderful thing going here. If you’re interested in what he can do for you, find him at Airgun Lab.

.22-caliber Lightweight Disco Double: Part 6

by Tom Gaylord, a.k.a. B.B. Pelletier

Part 1
Part 2
Part 3
Part 4
Part 5

Disco Double new stock
The Lightweight Disco Double in its new stock looks striking!

This is a second look at the Disco Double at 50 yards. On this day at the range, the wind was quiet, so it was a good day to test.

I didn’t do anything to the rifle before this test because I didn’t have any time to stop long enough to clean the bore. So, it went uncleaned. I may have promised to do certain things before the next test, but all I actually did when the time came was grab the rifle and go back to the range.

I used the same black single sandbag you saw in the Daisy model 8 test earlier this week. The Disco Double perfectly fits the long groove of that bag and feels more secure than if it was in a conventional rifle rest.

Beeman Kodiaks
The first group was made with 10 Beeman Kodiak pellets, and they were on target since I’d already zeroed this rifle at 50 yards for the earlier test. They initially stayed together, and I thought the rifle might have turned the corner. They then began to fly farther and farther apart. In the end, 10 pellets went into 1.837 inches — hardly a group worth mentioning. When I checked back to the previous test, though, I noted that this same pellet had made a group that was 2.458 inches at 50 yards; so as bad as it is, this was an improvement.

Disco Double Beeman Kodiak target
Ten Beeman Kodiaks went into 1.837 inches at 50 yards.

Okay, that wasn’t the brilliant opening I was anticipating. Even though the same pellet beat the last group by half an inch, it didn’t seem like the time to gloat. Next up were the JSB Exact Jumbo RS pellets — the most accurate pellets in the first 50-yard test.

The first group was another teaser. It looked small through the scope. It wasn’t until I measured it that I found out it went over an inch. Ten RS pellets went into 1.317 inches at 50 yards. That’s smaller than the smallest group from the previous test. There, 10 RS pellets went into 1.3418 inches at 50 yards. This group is similar, but it’s not crushingly better by any means.

Disco Double JSB E$xact RS target 1
Ten JSB Exact RS pellets went into 1.317 inches at 50 yards.

I now have 2 groups — each of which is better than the same pellet in the previous test. One is significantly better; the other is only better by a whisker. What does that mean? Rather than try to answer that question, I decided to shoot another group. Surely, this one would be conclusive!

The next 10 RS pellets went into a 1.773-inch group. That was the hands-down worst group of both days of testing for this pellet. On the same day, shooting under the same conditions with the best pellet, I got both the best and worst groups this rifle had fired to date.

Disco Double JSB Exact RS target 2
Ten JSB Exact RS pellets went into 1.773 inches at 50 yards.

I’m sure someone can make sense out of these results — but I’m not that person! After 2 days of testing at 50 yards, I had not proven anything except that I can’t make this air rifle shoot — yet!

I considered shooting some more groups; but after looking at these results, I thought this wasn’t the day. Sometimes, the bear gets you!

Future strategy
I think what I’ll do is drag the Disco Double to the range every time I go and try to shoot different pellets each time. Maybe then I’ll stumble across the magic pellet that turns this rifle into a shooter. After testing similar rifles, I’m convinced this gun can shoot — I just haven’t yet discovered how.

.22-caliber Lightweight Disco Double: Part 5

by Tom Gaylord, a.k.a. B.B. Pelletier

Part 1
Part 2
Part 3
Part 4

Disco Double new stock
The Lightweight Disco Double in its new stock looks striking!

Today, we’ll look at the Disco Double out at 50 yards. I used the best pellets from the 25-yard test to speed up this test. No sense going over the same ground twice.

The first pellet I tried was the JSB Exact Jumbo RS. It did the best at 25 yards, plus it’s so light, at 13.43 grains, that it gives the rifle a little extra zing.

The rifle arrived at the range filled to 2,000 psi, so I went right to work. I clicked the scope up 5 clicks in elevation to account for the greater distance and began shooting. The day was surprisingly cold — about 28 degrees F. My trigger finger had very little feeling, yet I was able to feel when stage 2 engaged on the trigger every time. That’s important on this rifle because the trigger is very light on stage 2.

There was no wind on the range, which made this a perfect day for shooting a pellet rifle. The first 10 shots went into 1.558 inches between centers. That’s not as small as many 50-yard groups you’ve seen me shoot, but let’s keep testing.

Disco Double 50-yard JSB RS group 1
This initial 10-shot, 50-yard group of JSB RS pellets measures 1.558 inches between centers. I’d hoped for something smaller.

Crosman Premiers
Next up were .22-caliber Crosman Premiers. The first 3 shots went into 2.269-inches and I stopped shooting. These pellets weren’t going to work at 50 yards.

JSB Exact, 15.89 grains
Next up were the heavier 15.89-grain JSB Exact Jumbos that looked promising at 25 yards. They produced a 10-shot group that measured 1.778 inches between centers. It was a little larger than the JSB RS pellet group at 50 yards, just as it was a 25 yards. So far, no prize.

Disco Double 50-yard JSB Exact group
This 10-shot, 50-yard group of JSB Exact pellets measures 1.778 inches between centers.

Beeman Kodiak
The last pellet I tried was the Beeman Kodiak, which just did fair at 25 yards. Here at 50 yards, they put 10 into 2.458 inches. That’s hardly accurate! I almost stopped shooting this group when I saw how the shots opened up; but I thought that after doing that with the Premiers, I ought to let one go the distance just to show you what it looked like.

Disco Double 50-yard Beeman Kodiak group
Ten Beeman Kodiak pellets went into 2.458 inches at 50 yards. Not a pellet for this rifle.

Back to the JSB Exact RS
I wasn’t finished with the testing just yet. The rifle was topped off at 2,000 psi again, and I went back to the pellet that was giving me the best results — the JSB Exact RS. The next group of 10 was the tightest of the session, at 1.318 inches between centers. I’d adjusted the scope for the Kodiaks, so this one landed below the bull.

Disco Double 50-yard JSB RS group 2
This best 10-shot group of JSB Exact RS pellets measures 1.3418 inches between centers.

I then shot 2 more 10-shot groups with the RS pellet. The first measured 1.522 inches, and the second measured 1.543 inches. When I examined the target after bringing it back from downrange, I saw a pattern. The RS pellet wasn’t giving tight groups, but they were very consistent. Out of 4 groups, the total variance was 0.24 inches — from 1.3 to 1.5 and change. That’s pretty consistent.

What do we know?
We know this Disco Double can put 10 pellets into 0.365 inches at 25 yards. And with the same pellet, we know that it opens up to about 1.5 inches when the distance is doubled. We know it was warm when the 25-yard target was shot and cold when the 50-yard targets were shot.

And that’s about the only difference — other than I did remove the TKO silencer after shooting 25 yards. I think what I will do next is the following.

1. Clean the barrel.

2. Shoot 5 groups at 25 yards with the JSB Exact RS pellet.

3. Clean the barrel again.

4. Shoot another 5 targets at 50 yards.

One last feature I want to show you is the special optional barrel band Lloyd makes for the Disco Double. It has a Picatinny rail on the bottom, allowing you to attach a bipod at just the right spot with very little extra weight added to the gun.

Disco Double barrel band
This optional barrel band has a Picatinny rail on the bottom to accept a bipod.

Disco Double on bipod
The Disco Double on its bipod. Photo provided by Lloyd Sikes.

Summary
When I originally tested the .22-caliber Benjamin Discovery rifle in 2007, it was a pre-production prototype that was made out of a Crosman 2260. I shot several approximately half-inch groups at 50 yards with Crosman Premier pellets, but they were 5-shot groups. Now, I’m shooting 10-shots groups that I know are going to be larger. I didn’t use the JSB Exact RS pellet because it didn’t exist back then.

I believe this lightweight Disco Double has more accuracy than we’ve seen to this point. I think it must be capable of shooting at least one 1-inch group out of 5 at 50 yards. So, the test continues.

.22-caliber Lightweight Disco Double: Part 4

by Tom Gaylord, a.k.a. B.B. Pelletier

Part 1
Part 2
Part 3

Disco Double new stock
The Lightweight Disco Double in its new stock looks striking!

Today, we’ll look at the accuracy of the Disco Double. Before that, however, I mounted a scope, a TKO airgun silencer that they call a muzzlebrake or a lead dust collector, and something I’ve never seen in print before but something I’ve used on many precharged air rifles over the years — a bolt keeper!

What’s a bolt keeper?
First, let me tell you that when I mounted the TKO silencer, it fit the barrel perfectly. There were no barrel alignment issues that I was warned about, and I checked closely. This unit is very well made and looks beautiful on the gun. The unit I’m testing is 8-1/4 inches long; and, yes, Lloyd, I checked that it indeed is a .22 caliber before mounting it. However, when the silencer is on, the top end cap does not fit.

Benjamin Discovert Disco Double TKO silencer
TKO silencer looks great on the rifle. The top plastic end cap doesn’t fit with the silencer installed.

When I shot the gun with it on the first time, I have to say I was underwhelmed. It was quite loud. A second shot confirmed this. Then, I held the rifle to my shoulder and fired a third shot. That’s when it hit me — a blast of air in the face not unlike the glaucoma test eye doctors do. The bolt was opening and discharging compressed air with each shot!

This happens a lot with precharged guns and it doesn’t matter how cheap or expensive they are. The bolt handle lifts up and air comes back through the action. On the lightweight Disco Double, it only begins to happen when the rifle is at the bottom of the power curve, which is where it was when I tested it this time.

A simple fix is to fasten a rubber band around the bolt handle to hold it closed during the shot — a bolt keeper. Once on the gun, I just leave it there. Even though it’s not needed until the end of the power curve on this rifle, I don’t want to worry about it. You can cock and load the rifle with the band in place.

Benjamin Discovert Disco Double bolt keeper
A rubber band “bolt keeper” holds the bolt handle down when it wants to flip up on the shot.

With the handle held closed in this fashion, the rifle suddenly became very quiet — as in Benjamin Marauder quiet! I now understand why shooters have been so excited about this unit. It really works!

NOTE: Due to several reader questions about this silencer, I am removing it from the rifle and returning it to Lloyd. Silencers are a very touchy subject, since owning one that will function on a firearm requires a license for each specific silencer. I don’t want to mislead any reader, so in the interest of clarity I am simply not going to use or possess this item any longer. I wrote an article on silencers that can be accessed here. If you have any questions on the subject, I recommend you read that article.

The rifle now weighs 6 lbs., 11 oz. with everything installed. That’s very light for a serious air rifle.

Scope
I mounted a UTG True Hunter 3-9X40 scope on the rifle. Since UTG packs rings with this scope, I used them, but they’re Weaver-style mounts. So, I had to use a UTG Weaver to 11mm dovetail adapter to make them fit the dovetails on the rifle’s receiver.

I’ll be shooting from a rest at 25 yards today. The range is indoors, so wind is not an issue.

Crosman Premiers
Sight-in was accomplished with .22-caliber Crosman Premiers; so after I was on the paper, I shot the first group of 10 shots at 25 yards. The hole they made is a little taller than it is wide, but it measures 0.569 inches between centers. While that’s okay for 25 yards, it isn’t great. I’d like to see something a couple tenths smaller.

Benjamin Discovert Disco Double Premier group
Premiers all went to the same place — more or less. At 0.569 inches between centers, the group could be smaller.

Beeman Kodiak
Next up were Beeman Kodiak pellets. They’re identical to the .22-caliber H&N Baracuda pellets that Lloyd tested the rifle with, and they were what I had available. They put 10 into 0.655 inches between centers. Like the Premiers, that’s not bad…but not as good as I’d hoped.

Benjamin Discovert Disco Double Beeman Kodiak group

Beeman Kodiaks opened up more, to 0.655 inches between centers. Only use them if you need a heavy pellet.

JSB Exact RS
I followed the Kodiaks with some JSB Exact Jumbo RS pellets. They’re even lighter than the Crosman Premiers, and sometimes they can be very accurate in precharged rifles. This was one of those times. Ten pellets went into 0.365 inches, which is exactly what I’d hoped for the Disco Double. This is the pellet for this rifle!

Benjamin Discovert Disco Double JSB Exact RS group
The JSB Exact RS is obviously a great pellet in the Disco Double. Ten went into 0.365 inches at 25 yards.

RWS Superdome
Nex, I tried the RWS Superdome pellet that’s always recommended. I don’t often have good luck with them, but a lot of shooters do. I stopped after just 4 shots, though, and you can tell from the lateral spread that measures 0.634 inches between centers that they weren’t going to perform.

Benjamin Discovert Disco Double RWS Superdome group
When the first 4 shots spread out like this, you might as well stop right there. RWS Superdomes went into 0.634 inches at 25 yards.

JSB Exact Jumbo
The last pellet I tested was the JSB Exact Jumbo. These are usually among the top pellets in .22-caliber precharged air rifles, so I felt they deserved a chance. The first 2 shots were on a fresh 2,000 psi fill, and I’m not sure the rifle wasn’t overfilled by a slight amount because they both landed away from the main group. Shot 9, however, was shot while the rifle was grouping well, and I have no idea why it’s above the main group. The 10-shot group measures 0.647 inches between centers, making this the second-best pellet I tested in the rifle.

Benjamin Discovert Disco Double JSB Exact Jumbo group
These 10 JSB Exact Jumbos measure 0.647 inches between centers. The first 2 shots are the holes at the right and bottom right of the main group. Then, the rest of the pellets went into the big group, except for shot 9 that went high. There is no explanation for that one. This is a pellet I would keep trying.

Filling from a hand pump
The biggest feature of the Benjamin Discovery, aside from the low price, is the fact that the maximum fill pressure is just 2,000 psi. It’s  full right where other PCPs have run out of air. And that makes the Discovery extremely easy to fill with a hand pump.

Using the Discovery factory pump, I began the fill at just under 1,000 psi and pumped until the onboard pressure gauge read 2,000. It took exactly 100 pump strokes to fill the gun; and, until the final 20, they were as easy as inflating a bicycle tire. Only when the pressure passed 1,800 psi did I notice an increase in pump handle resistance.

One tip when filling with a hand pump is to go slow. Allow time at the top and bottom of each pump stroke for the air to flow through the various stages inside. If you don’t, you just waste energy and heat up the pump unnecessarily.

Observations so far
So far, I’m thrilled by the performance of the Lightweight Disco Double. The number of shots I get on a fill is large enough for serious shooting before it’s time for a refill and the rifle’s performance leaves nothing to be desired. A glance at the onboard gauge needle, and I know the status of the fill.

When I tested the original Benjamin Discovery rifles in both calibers, the guns I used were pre-production prototypes. I shot groups under 0.6 inches with both calibers; but at that time, I was shooting only 5-shot groups. The JSB Exact RS pellet did not exist at the time of that test. So, it’ll be interesting to see what this rifle can do at 50 yards with 10 shots. Remember — this is the first Benjamin Discovery production rifle I’ve ever shot!

.22-caliber Lightweight Disco Double: Part 3

by Tom Gaylord, a.k.a. B.B. Pelletier

Part 1
Part 2

Disco Double new stock
The Lightweight Disco Double in its new stock looks striking!

Okay, all joking aside — today, we’ll look at the performance of the Lightweight Double Disco that Lloyd Sikes built. Lloyd tested this exact rifle when it was still in its factory original condition, so we can compare that to the performance of the rifle after the conversion. I was pleased to see that my chronograph results and Lloyd’s are very close.

Before the conversion, the stock Benjamin Discovery accepted a fill to 2,000 psi. From that fill, the rifle got 21 shots of .22-caliber Crosman Premiers at an average 845 f.p.s., which works out to an average 22.7 foot-pounds. Lloyd did get more shots in his string, but he discounted all those that were not within 4 percent of the average velocity. That’s a subjective choice, but it’s what drives the numbers Lloyd is giving us for the factory rifle. The maximum velocity spread in this string of 21 shots was 40 f.p.s., with a low of 820 f.p.s. and a high of 860 f.p.s.

After the Lightweight Double Disco conversion, Lloyd shot the same Crosman Premier pellets on a similar 2,000 psi fill and got a string of 33 shots at an average 849 f.p.s., for a muzzle energy of 22.9 foot-pounds at the average velocity. Again, this number includes all shots that fell within 4 percent of the average velocity. The maximum variation in this string of 33 shots was 34 f.p.s., with a low of 831 f.p.s. and a high of 865 f.p.s.

The shot count made possible by the Lightweight Double Disco conversion went from 21 to 33 shots. The average velocity did increase by 4 f.p.s., but I wouldn’t concentrate on that because these numbers will change a little each time you record them. Essentially, the gun shot this pellet the same before and after the conversion — it simply got more shots after.

What did I get with Premiers?
I filled the rifle to about 2,100 psi because I wasn’t sure that my best pressure gauge agreed exactly with Lloyd’s gauge. I wanted to start in a slightly valve-locked posture and move up into the power curve as I went, and that’s exactly what happened. Here’s my shot string.

1-20     21-40      41-end
802      856          836**
822      856          832
817       852          828
826      852          825
831*     857          824
831-     855          820
833      857          816***
837      853         STOP (47 shots)
842     853
842     860+
846     853
848     855
849     848
852     848
850     842
851      848
852     840
851     843
847     838
851     839

- Slowest shot in acceptable string
+Fastest shot in string
* First gauge photo
** Second gauge photo
*** Third gauge photo

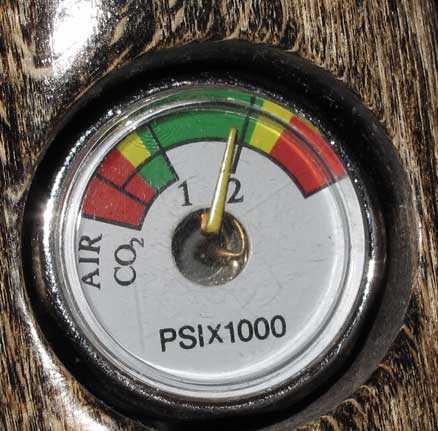

Disco Double first gauge photo
This is where the needle was just before the fifth shot in the string was fired.

Disco Double second gauge photo
This is where the needle was after 41 shots had been fired.

Disco Double third gauge photo
This is where the needle was after 47 shots.

If I accept the shots in this string starting at No. 5 and continuing through No. 41, I get 37 shots. They’ll have a maximum spread of 29 f.p.s., with a low of 831 f.p.s. and a high of 860 f.p.s. If I’m more critical and start with shot No. 8, which went 837 f.p.s., and still stop at shot 41, the total is 34 good shots, with a maximum spread of 24 f.p.s. The low in this string is 836 f.p.s. and the high is 860 f.p.s.

Do you see how this works? It’s entirely subjective. I’m deciding what to accept and what to reject. Once I start accepting shots, though, I keep on shooting until the last shot in my acceptable string has been fired. I can’t ignore any shots in that string because I won’t be able to chronograph my shots when I’m shooting in the real world, away from the chronograph.

You must pick the starting and ending points that you feel are best for what kind of shooting you want to do. That’s why a chronograph is so essential to the owner of a PCP. If I were to shoot this same string again with the exact same starting pressure, which is very difficult to control, I might get numbers that are similar but slightly different from these.

Baracuda/Beeman Kodiaks
Next we will look at the performance with .22-caliber H&N Baracuda pellets. Lloyd tested the rifle with them, but I didn’t have any .22-caliber Baracudas on hand, so I substituted the Beeman Kodiak, which is the same pellet under a different name.

With the Discovery in factory trim on a 2,000 psi fill, Lloyd got a string of 22 shots that averaged 717 f.p.s. They produced an average muzzle energy of 24.2 foot-pounds (compared to the 22.7 foot-pounds produced with Premier pellets in the factory trim). Heavier pellets will almost always produce more energy in a precharged rifle. The maximum velocity spread with the Baracuda pellet in the factory Discovery was 29 f.p.s. The low was 697 f.p.s. and the high was 726 f.p.s.

The Lightweight Disco Double conversion running on the same 2,000 psi fill with Baracudas gave a string of 38 shots that averaged 713 f.p.s. The low was 699 f.p.s. and the high was 729 f.p.s., so the spread was 30 f.p.s. The average muzzle energy was 23.9 foot-pounds.

Baracudas got more shots per fill than Premiers
With Baracudas, Lloyd got 22 shots per fill in factory trim and 38 shots with the Lightweight Disco Double conversion. In both cases, the rifle gave more shots per fill with the Baracudas than with the Premiers. My thinking is that the heavier, slower pellet holds the valve open a bit longer and is able to go to lower pressure before it falls off the power curve.

What did I get with Beeman Kodiaks on a 2,000 psi fill (refer to the first photo of the pressure gauge to see where I actually stopped the fill)?

1-20      21-40      41-end
702        712          701
699-      720          693
707        716          695
714        718          696
709       714           683
719       726           STOP (45 shots)
717       728
711        725
723       722
718       709
711        709
715       712
728+     708
728       716
712       721
716       711
717       718
719       715
724       715
718       707

- Slowest shot in string
+Fastest shot in string

While this string has fewer shots than the first one with the Premiers, there are actually more usable shots here because I learned where the needle on the gauge had to be in the first test. No air was wasted at the start of this string. I would accept everything from shot No. 1 through shot No. 41, giving me a total of 41 usable shots, with a spread of 29 f.p.s. The low was 699 f.p.s. and the high was 728 f.p.s.

I got more usable shots from Beeman Kodiaks than from Premiers, just like Lloyd did with H&N Baracudas. Our data seems to agree very closely. Lloyd’s low velocity was 699 f.p.s. and so was mine. Lloyd’s high was 729 f.p.s. and mine was 728 f.p.s. How is that for consistency? As I said, the H&N Baracuda and Beeman Kodiak are the same pellet.

Analysis thus far
The Lightweight Disco Double increases the useable shot string significantly, even though the rifle is no larger nor heavier than a factory Discovery. You can tell from a glance at the onboard pressure gauge if the rifle is still on the power curve, so there’s no need to count the shots.

All of what you have seen to this point was done with the stock Discovery striker spring (0.035″wire, 0.289″ OD, 1.99″ long , 16.5 coils) in place. But Lloyd also provided and tested a heavier striker spring (0.041″ wire, 0.300″ OD, 1.78″ long, 19 coils) that gives both the factory Discovery and the Lightweight Disco Double conversion more power.

To see what the heavier striker spring can do with Baracuda pellets in the Lightweight Disco Double, Lloyd recorded that the average velocity climbed from 713 f.p.s. to 764 f.p.s. That is an energy increase from 23.9 foot-pounds to 27.5 foot-pounds. The total number of shots dropped back from 38 to 25 shots. This shows how the Disco Double allows the power to be increased, and the total shot count to remain the same as the less powerful factory gun.

Trigger
I haven’t reported on the trigger, yet. You may recall that I had Lloyd install an optional trigger from a Benjamin Marauder. Lloyd told me in a message that it’s set for a light first stage, and then an extremely light second-stage pull. I found at first that it was so light that I pulled straight through both stages without recognizing stage 2. But when I adapted to it, it’s really not as sensitive as a 10-meter target pistol trigger. Stage 1 takes 14.4 oz. of effort; and stage 2, while recognizable, does not increase the number on the electronic scale. It’s on the order of 10 grams or less.

Summary
So far, I’m delighted with the Lightweight Disco Double. If it turns out to be accurate, it could become my go-to PCP!

Benjamin Marauder .25 caliber: Part 4

by Tom Gaylord, a.k.a. B.B. Pelletier

Benjamin Marauder .177 caliber: Part 1
Benjamin Marauder .177 caliber: Part 2
Secrets of loading the Benjamin Marauder magazine
Benjamin Marauder .177 caliber: Part 3
Benjamin Marauder .177 caliber: Part 4
Benjamin Marauder .177 caliber: Part 5
Benjamin Marauder .177 caliber: Part 6
Fixing a Marauder magazine
Benjamin Marauder .177 caliber: Part 7
Benjamin Marauder .25 caliber: Part 1
Benjamin Marauder .25 caliber: Part 2
Benjamin Marauder .25 caliber: Part 3

Benjamin Marauder
Benjamin Marauder

Wow! More than one month has passed since the last part of this report. I’ve been to the Roanoke airgun show and also out to the rifle range at least 3 times trying to get the data for today’s report, but what a quest it has been! It all boiled down to false confidence in my ability to get the job done. I’m used to certain rifles cooperating with me every step of the way, and this time I got called by the fates who expose pride for what it is.

I’m not going to bore you with all the details, but I will point out the most recent example of my stupidity because it’s a lesson for us all. When I went to the range last week, I thought I was ready to complete my 50-yard test of the .25-caliber Benjamin Marauder. I’d swapped the scope mounts from a previous test because they were too high. The new mounts were lower, and I didn’t have to hold my head as high on the comb. I knew this would help with the accuracy. But then I went to the Roanoke airgun show, and forgot that I’d made this change.

What’s most important about the change, though, are that the new mounts were vintage B-Square adjustable mounts. And the rear ring was jacked up higher than the front. I always liked that setup because it gets the drooper problem taken care of on the first shot — even if there isn’t one! But not if you forget that you did it!

And that’s why this report didn’t happen last week. I had the Marauder at the range with the TX200 Mark III, on which I reported last weekWhen I shot the Marauder, there wasn’t a pellet hole on the paper. And I’m not just talking about the target paper, either. I mean the 2-foot x 4-foot backer paper that I use whenever I have a rifle that’s not known to be sighted-in.

Naturally, I was disappointed. This was a Marauder after all, and I expected it to go right to the point of aim. After shooting just two 8-round magazines, I took the rifle off the line and put it away. I needed to look into the situation deeper and figure out what was wrong.

What was wrong, was that I had forgotten about the new scope mounts. When I looked at the scope back in my office, I immediately saw that the rear was higher than the front. Then I vaguely remembered something about changing the mounts before going to the Roanoke airgun show, so I reread the last report and discovered what had happened. The gun had not been sighted-in with the new mounts. It was obvious that the scope was set up for a rifle with severe barrel droop, and this rifle doesn’t have that.

I even went back to the rifle range last Friday and looked at the backer board where my target and backer paper had been stapled. Sure enough, above where the top of the paper had been there was a hole in the backer board. It had the appearance of a nice rifle group. And some of the holes in the group appeared to be .25 caliber.

Benjamin Marauder group in wood
This group in the backer board is just above where my target paper was stapled. I believe it’s the impact point of the 25-caliber Marauder from last week’s test!

Suspecting what happened, I started shooting at an aim point much lower than my anticipated target. Sure enough, my pellet was hitting the paper about 16 inches high and 6 inches to the left. That’s a problem I can deal with! All I had to do was adjust the scope down and to the right, and I was on target. It took me less than 10 minutes to get my groups landing where I wanted at 50 yards. Now, it was time to test the rifle.

The first group was shot with H&N Baracuda pellets. In the past, these were the most accurate .25-caliber pellets on the market, but they have since been replaced by several others, including one huge surprise that emerged in this test! The group measured 1.021 inches between centers. It’s a good group for any rifle at 50 yards, but I did think the Marauder might be capable of better.

Benjamin Marauder H&N Baracuda group
Eight H&N Baracuda pellets went into a 1.021-inch group at 50 yards.

I should mention that I was firing two magazines of eight shots each in this test. So the groups that you see have 8 pellets and not 10 in them. I recharged the rifle with air after every 16 shots because the reservoir pressure had dropped to around 2,100 psi by that point. That was as low as I felt it could go and still be accurate.

JSB Exact King
The next pellet I tried was the JSB Exact King, a .25-caliber pellet that’s shown a lot of promise in recent testing. The first group I shot measured 1.447 inches between centers. That’s not very good for a PCP rifle at 50 yards. Interestingly, however, 7 of those 8 shots went onto 0.719 inches, and that is good. I hoped that the one flyer was an anomaly, and that a retest of the same pellet would do better.

10-21-13-03-JSB-Exact-King-group1
Eight JSB Exact Kings went into 1.447 inches. That’s not very good, but 7 of the pellets went into 0.719 inches, which is promising.

The second group of JSP Exact Kings when into 1.094 inches. That’s a lot better, but it still wasn’t what I’d hoped for, so I left the Kings to try other pellets.

JSB Exact King group 2
Eight JSB Exact Kings went into 1.094 inches. It’s better than the first group, but still not thrilling. At this point, the .25 Marauder looks like a 1-inch rifle at 50 yards.

Benjamin domes
Another stunning pellet in .25 caliber is the Benjamin dome. It has no model name, but you could think of it as a Premier pellet because it looks similar to the other pellets in the Premier line. The first group of 8 pellets measured 1.226 inches between centers, which was again larger than I was looking for.

Benjamin Marauder Benjamin dome group 1
Eight Benjamin domes went into 1.226 inches at 50 yards. It’s larger than I would like.

The second group of Benjamin domes measures 1.06 inches. While that’s better, I still thought the rifle could do more.

Benjamin Marauder Benjamin dome group 2
The second group of Benjamin domes was better, with 8 in 1.06 inches. It’s good, but somehow not good enough.

Predator Polymag
The last pellet I tried was the .25 caliber Predator Polymag. It showed well in the 25-yard test and earned its place in this test. There really aren’t a lot of options when it comes to accurate .25-caliber pellets, and I think we’ve included all of them in this test. Yes, there are other brands out there, but do they perform? In my experience, they don’t.

The Predator is a hollowpoint pellet that has a red plastic tip in the center of the nose. Normally, hollowpoints fall off in accuracy at around 25 yards, but this pellet doesn’t. That tip seems to do its job.

Predator Polymag
The Predator Polymag pellet is a hollowpoint with a plastic tip in the center, and it really works at long range!

The first group of Predators measures 1.121 inches between centers. Once again, that’s okay for 50 yards, but it’s nothing to scream about. But the second group measures 0.808 inches between centers. That’s what I was looking for! While the Marauder can’t be expected to shoot that well every time, this group proves that it has the potential. And it does it with a pellet that is acknowledged to be a great hunting pellet!

Benjamin Marauder Predator Polymag group 1
The first 8 Predator Polymags went into 1.121 inches at 50 yards. That’s not bad, but not what I was hoping for.

Benjamin Marauder Predator Polymag group 2
Now, that’s a group! The second group of 8 Predators measures 0.808 inches. This is the accuracy I was looking for from the Marauder.

Observations
No .25-caliber airgun has ever been as accurate as the best .22 or .177 guns. What we see from this test is a range of results that represents what the .25-caliber Benjamin Marauder can do at 50 yards. I think these groups show what this gun can do very well. Sure, if you shoot more there will be some smaller groups. But there will also be many more groups that are larger than those shown here. I think we can safely say the Marauder in .25 caliber is capable of putting 8 shots into one inch at 50 yards when you do your part.

The .25-caliber rifle uses a lot of air! I was getting just 16 good shots in this test on a 3,000 psi fill. Compare that to the 32 good shots I got in the test of the .177-caliber rifle filled to the same pressure.

From a handling standpoint, there isn’t a nickel’s worth of difference between the .177- and .25-caliber rifles. The trigger can be adjusted to operate virtually the same, and the stocks feel the same. The one small difference is the .25-caliber gun does move back slightly with each shot. I didn’t feel that with the .177, but I definitely felt it in this test.

If you want a .25-caliber hunting air rifle, I think the Marauder is a good candidate for your short list. It’s powerful, accurate, quiet and reliable. How much more can you ask?

Benjamin Marauder .25 caliber: Part 3

by Tom Gaylord, a.k.a. B.B. Pelletier

Benjamin Marauder .177 caliber: Part 1
Part 2
Secrets of loading the Benjamin Marauder magazine
Part 3
Part 4
Part 5
Part 6
Fixing a Marauder magazine
Part 7
Benjamin Marauder .25 caliber: Part 1
Benjamin Marauder .25 caliber: Part 2

Benjamin Marauder
Benjamin Marauder

I told you this report was going to be a different kind of test, and today I’ll prove it. I shot the .25-caliber Benjamin Marauder off a rest at 25 yards, but the purpose was not to learn if the rifle is accurate — I already knew it is. And 25 yards is hardly long enough to show the accuracy potential of this powerful PCP.

No, I told you that I would be searching for the most accurate pellets in this rifle. You see, unlike .177- and .22-caliber guns, the big .25 doesn’t have that many accurate pellets. Going into this test, I only knew of 3 — the H&N Baracuda (also branded as the Beeman Kodiak), the Benjamin dome and the JSB Exact King. Other .25-caliber pellets I’ve tested were not accurate enough to be considered. Today’s test is to establish that the 3 good pellets are still good in this test rifle and to see if there’s another good pellet or 2 out there.

The rifle is now scoped with the UTG 6-24X56 AO scope with illuminated reticle, which I’m also testing for you. I won’t get into that evaluation in this report, but I will use this test to report on that scope. This scope has high rings that come packaged with it.

Testing pellets rapidly
Time is a commodity in short supply around here. It takes a long time to test something, then pictures have to be taken and it takes even more time to write it up. Normally, I shoot 10-shot groups for accuracy, but I told you I was going to do things differently today, and this is where it starts. Instead of shooting 10-shot groups (or 8-shot groups because the .25 Marauder circular magazine only holds 8 pellets), I decided to shoot 4-shot groups. The results of those groups would tell me which pellets were worth testing more closely. But testing more closely won’t be at 25 yards. It will be out at 50 yards.

H&N Baracuda
Since I’d just mounted the scope, I had to sight-in the rifle, and for that I loaded a full magazine with 8 H&N Baracudas. Sight-in took just 2 shots, so the first group for the record was 6 shots instead of 4. As predicted, it was a tight 0.376 inches at 25 yards. Of course, some of that is due to the lesser number of shots, so bear that in mind. Also, bear in mind that a group of .25-caliber pellets will look much larger than the same size group of .177-caliber pellets.

25-caliber Benjamin Marauder 25 yard target Baracudas
Six H&N Baracudas went into 0.376 inches at 25 yards. This pellet is on the list for 50 yards.

JSB Exact King and Benjamin dome
Next, I shot 4 each of the JSB Exact Kings and Benjamin domes. Both performed exactly as expected. The 4 Benjamin domes went into 0.196 inches. Of course, I would expect this group size to double with 10 pellets, but it’s still the kind of accuracy I was looking for.

25-caliber Benjamin Marauder 25 yard target Benjamin dome
Four Benjamin domes went into 0.196 inches at 25 yards. They made the list, as well.

I shot the first 3 JSB Exact Kings into a very tight 0.11-inch group, but the fourth shot was a called pull to the left. It opened the group to 0.383 inches; but since I know that I pulled the shot, it doesn’t phase me. This pellet also made the cut for more testing.

25-caliber Benjamin Marauder 25 yard target JSB Exact Kings
Three JSB Exact Kings went into 0.11 inches at 25 yards. That’s the larger hole on the right. A pulled fourth shot that was called opened the group to 0.383 inches, but that doesn’t bother me. This one is a keeper, as well.

Predator Polymags
The only other pellet that showed promise in this test was the Predator Polymag. Four of them went into 0.274 inches at 25 yards. That’s good enough to earn a chance to shoot at 50 yards in my book.

25-caliber Benjamin Marauder 25 yard target Predator Polymag
Four Predator Polymag pellets went into 0.274 inches at 25 yards. That was enough to make the cut.

The other pellets
As I said before, the .25-caliber pellet is not as uniformly accurate as the .177 and .22. Until this test, only the first 3 pellets I shot had shown any promise. Now, we have a fourth. To show you what some other pellets look like in comparison, here are 3 more that didn’t make the cut.

RWS Superdome
The results of 4 RWS Superdome pellets tell the story of the .25 caliber very well. Four went into a group that measured 1.378 inches between centers. You can clearly see there’s no need to shoot 10 pellets, when just 4 make a showing like this.

25-caliber Benjamin Marauder 25 yard target RWS Superdome
Four RWS Superdomes made this 1.378-inch group at 25 yards. It was the largest group of the test.

Diana Magnum
Next, I tried the pellet that was the best .25-caliber pellet for many years in the 1990s. Until the H&N Baracuda came out in .25 caliber, the 20-grain Diana Magnum was the pellet people chose for accuracy. Certain individual guns may have done better with other pellets, but the Diana Magnum was considered the best all-around .25-caliber pellet of its day.

Not surprisingly, Diana Magnums turned in the smallest group of the three pellets that were not selected to go on to longer-range testing. Four went into 0.588 inches at 25 yards.

25-caliber Benjamin Marauder 25 yard target Diana Magnum
Four Diana Magnums made this 0.588-inch group at 25 yards. Fifteen years ago, this was the best pellet we had in .25 caliber.

Beeman Ram Jet
Another pellet that has left the stage is the .25-caliber Beeman Ram Jet. It was supposed to be a domed pellet that also performed like a wadcutter, but accuracy was never this pellet’s strong suit. Four of them made a 0.769-inch group at 25 yards.

25-caliber Benjamin Marauder 25 yard target Beeman Ram Jet
Four Beeman Ram Jets made a 0.769-inch group at 25 yards. This pellet was also never in the running.

Summary
I hope from these results that it’s clear why I went with 4-shot groups instead of 10-shot groups. I never planned on testing the .25-caliber Marauder at 25 yards, except to prepare for the 50-yard test, which will be next. I think you can see the clear differences between the pellets that were selected and those that missed the cut. More than any other caliber, the big .25 is an all-or-nothing caliber. And there aren’t that many pellets to choose from.

Trigger
One more thing I want to report today is how the trigger now performs. I adjusted it before this test and got it exactly where I want it. I won’t say that it’s better than the trigger on my .177 Marauder, but it’s just as good. The Marauder trigger is something Crosman can be proud of, for it surpasses most PCP adjustable triggers I’ve tested. This one now has a positive stop at stage 2, followed by a very light, crisp break. It allowed me to hold very precisely and know when I pulled my shots, which only happened once during this session. This trigger will certainly do!

Next, I plan to shoot the rifle at 50 yards with these 4 pellets. That should give us a good idea of the long-range capability of the rifle. If the results suggest it’s capable, I may attempt a 100-yard test, as well. I need for the shooting conditions to be perfect to do it; but if they are, we may see the real potential of the big Marauder.

Top-notch springer
Air Arms TX200 air rifle

When it comes to spring-piston air rifles, the Air Arms TX200 Mk III is a favorite of many airgunners, including airgun writer Tom Gaylord. His favorite caliber is .177. While the gun will initially impress you with its beauty and superior craftsmanship, you'll be even more impressed with the incredible accuracy! Tom claims this is "the most accurate spring gun below $3,000." Beech or walnut, left-hand or right-hand stock. Isn't it time you got yours?

All the fun, none of the hassles!
Uzi CO2 BB submachine gun

You've seen tons of movies with guys spraying bullets from their Uzi submachine guns and probably thought it would be a blast. Except for the cost of ammo! You can have all that fun with this Uzi BB submachine gun at just pennies a round. Throw shots downrange for hours on end with all the fun, none of the firearm hassles and a fraction of the cost.

Archives
