by Tom Gaylord, a.k.a. B.B. Pelletier
It’s been a while since I wrote about this gun, I know. Airgunner Larry Hannusch told me how to disassemble it, and I started…only to stop when I encountered a barrier. I’ve resolved that barrier, and today I’ll show you the inside of my gun to the extent that I’ve disassembled it.
Larry told me to remove the screws on top and beneath the action that were obvious, then separate the two parts — action and stock. I removed 4 screws, and the action came loose from the stock a little bit. Then, it stopped cold. That was where I stopped working and set the gun aside. Yesterday, I picked it up and began from that point.
A bugelspanner (actually, correctly spelled buegelspanner or bügelspanner since the u has two dots — called an umlaut — over it) translates to a triggerguard-cocker. The triggerguard is pulled down to retract the piston and set the sear for firing.
Triggerguard is up in the shooting position.
The triggerguard lever is fastened to a pivoting axle bolt located in the back of the stock. The bolt shows in the photos above. Since this lever is connected to a linkage that’s connected to the back of a piston held under tension by powerful mainsprings, it made sense to me that it had to be disconnected from the piston for the stock to separate.
I removed the bolt that screws into a very long bushing inset into the opposite side of the butt. Then that bushing was tapped out the other side of the stock. But the cocking lever wasn’t quite free. At the top of the triggerguard lever, the cocking linkage passes through the lever and is prevented from coming free by a small screw that passes through one end of the linkage. I have arranged the two parts and their screw below for you to examine.
The triggerguard and cocking linkage, arranged as they are in the gun — I think! Until I assemble the gun, again, I won’t be sure of the correct orientation of the cocking link.
That tiny handmade screw goes through the hole in the cocking link and prevents it from slipping through the triggerguard when the gun is cocked. Notice that it has two smooth bearing surfaces — one on either side. As the gun is cocked, the cocking link moves up and down in the cocking slot that’s in back of the triggerguard. It’s a moving fulcrum.
This is the triggerguard lever pivot bushing and screw on which the lever pivots when during cocking. Note the smooth band around the base of the bushing. We may assume that’s where the pivoting happens.
The screw and pivot bushing have been removed from the stock.
The entire underside of the stock is open, allowing room for the cocking linkage to move.
When I removed the cocking link from the back of the piston rod, I found the screw that attached the link to the piston rod was sheared in two, plus the rest of the screw was very mangled from pressure and work. Clearly, this part is too soft and also overworked.
The screw that holds the cocking link to the rear of the piston rod is mangled and galled from too much strain. The threaded portion remains in the back of the piston rod and needs to be removed. This part may need to become a roller bearing.
The first part to come off the gun was actually the top action plate that also holds the rear sight. It is the anchor plate for 2 long screws and one short one that holds the action together. Once they were out, the plate didn’t come off without a lot of wiggling and some prying.
Three screws, and the top plate came off with the rear sight attached.
This is where the top plate came from.
The gun is now partially disassembled. The double-set trigger mechanism is exposed and can be disassembled and cleaned, but the piston is still under compression inside the compression chamber that hasn’t yet been separated from the barrel. To see the piston and mainsprings, The backplate that the piston rod passes through has to be drifed down out of its dovetail
The double set trigger assembly is now exposed for cleaning and possible disassembly. To remove it from the gun, it’s tapped down, freeing its front dovetail.
The double-set trigger assembly must now be removed downward from the cylinder dovetail, freeing the trigger plate and back plate from the cylinder and relieving tension on the mainsprings.
I found the number 80 on many of the larger, unique frame parts. I believe that’s either a serial number or an assembly number to keep all the parts together because this gun shows a lot of handmade parts and hand-fitting.
When I open the barrel, I see some dark particles that I believe are small chunks of leather that have broken off the piston seal, so it may be deteriorating. And I need to look at the condition of the mainsprings, plus probably lubricate them just a little.
The bottom plate on which the double-set trigger sits is dovetailed into the frame (the rear of the compression/spring tube). It has to be pushed straight down to relieve tension on the mainsprings, and I do this with by tapping with a rubber hammer. The plate comes out of the dovetail easily enough; but the double volute mainsprings are under considerable tension even at rest, and the trigger plate and separate backplate fly off the gun along with the volute springs.
The trigger plate has a dovetail at its front that grabs the rear of the cylinder and holds the powerplant together. The cylinder back plate (left in the photo) is held between the 2 parts. The black part that’s flopping down on the back plate is the sear.
The piston can now be withdrawn, and I can see that the leather seal has, indeed, deteriorated. The part that comes in contact with the air transfer port is damaged from repeated impacts. I think I’ve found the reason the gun fired so roughly.
Bugelspanner piston at the top is much fatter than the Beeman R1 gas-spring piston unit below, but the stroke is also shorter. The notch in the bugelspanner piston rod is the cocking notch.
The leather piston seal has deteriorated. It looks okay, but it’s crumbling and flaking off. This is why the gun fires so harshly.
Double volute springs attached to a central guide for the mainsprings of the bugelspanner. They’re in good condition but very dirty and dry.
The double-set trigger has a weak front trigger leaf spring, which accounts for it not setting well and firing too easily. That will also have to be corrected.
The inside of the compression chamber is filthy, but it doesn’t seem to be damaged. A good cleaning is all it needs.
For many of you, looking inside this airgun is probably like looking at the dark side of the moon. So many of the parts appear foreign to your eyes. All that has really changed over the years, though, is how the parts are designed. They work in the conventional way that modern spring-piston parts work, so they must be corrected in the same way that a modern spring-piston powerplant would need to be.
There are numerous major repair jobs that must be undertaken before this airgun will shoot again. There’s certainly lots of cleaning, which is followed by careful lubrication of many of the parts.
Some new parts have to be fabricated, as well. That will not be an easy task, but it’s worth the effort. I know you were hoping to see a test real soon, but that’s not going to happen. I have to feel my way around this gun carefully; because if every job isn’t done right, the gun won’t work when it goes back together. I’ll go about the work methodically and take some pictures as I go, but I probably won’t report on the gun again until all the work is completed.
by Tom Gaylord, a.k.a. B.B. Pelletier
Today, I have a story for you. A couple weeks ago, one of our blog readers — a man named Eric — emailed me a link to a local craigslist.com posting. Eric met me at a gun show last year, and I sold him a Winchester model 427 (Diana 27) air rifle. He already knew about fine vintage airguns, and the 27 had been on his wish list for a while, but I don’t think he was a blog reader. Well, we fixed that right away! Since then, he’s been reading the blog and becoming more familiar with his new rifle and airguns in general
The listing he sent me showed a Tyrolean air rifle with the traditional high-cupped cheekpiece and hooked buttplate. What was even more fascinating were the double-set triggers and the large aperture sight located at the rear of the receiver, as well as the sporting sight mounted on the barrel.
The gun was a bügelspanner, or loosely translated, a triggerguard (lever) cocker. I’ve owned 2 bügelspanners in the past, but neither was as nice as this one. And the funny thing is that this was posted on craigslist! That’s funny because guns are sold on gun websites — not on a general website like craigslist.
But this posting had lasted for a minimum of 2 weeks before I saw it. So, I contacted the seller and, glory be, he still had it! We met last Sunday, did the transaction and this was one of those rare times when the gun was exactly as represented.
The gun is a smoothbore .25-caliber gun. The seller, named Joe, told me he had owned it for the past 34 years and had gotten it at the age of 8 as a gift from his father. The gun is much older — probably dating back to around the 1920s or ’30s.
It’s a spring-piston gun that has 2 opposed volute springs that compress against each other. They push a leather-covered piston in the same way that a coiled steel mainspring does in a conventional spring-piston gun, so this is just an odd form of spring-piston airgun.
Two volute springs push against each other when compressed.
The volute spring is a flat spring that’s been coiled and stretched into this shape.
I was attracted to this airgun because of a long, abiding interest in zummerstutzens — indoor gallery or parlor guns used for target shooting. I’ve been fascinated with them since I was a teenager and first read about them in Guns & Ammo back in the early 1960s.
The zimmerstutzen rifle is usually found in the Tyrolean style, but not always. It’s nominally 4mm, but there are more than 20 specific calibers for which the guns were bored. They fire either fixed ammunition (a cartridge) or separate ammo with a percussion cap and round lead ball loaded separately. Rather than get into the full description here, I invite you to read my full article about them. I normally don’t like giving homework assignments; but if you read that article and look at all the pictures, you’ll have a much better understanding of the gun we’re examining today.
The subject gun
I was inclined to believe the subject gun is a dart gun, but what little historical documentation there is mentions using pellets as well. I thought it was a dart gun because it’s set up for extreme accuracy, and I didn’t think that pellets could be that accurate in a smoothbore barrel. But we did do a test of the Diana 25 smoothbore at 10 meters and established that it is, in fact, very accurate at that distance. So, I really don’t know if I’m supposed to shoot darts or pellets in this gun. For the present, I only have pellets because .25-caliber darts are not that common. But I could certainly make some.
This type of gun either fits or doesn’t fit — there’s no in-between. I’m lucky that it fits me pretty well. But that sporting rear sight does get in the way of seeing the front sight. I would have to remove it to use the rear sight.
Why a sporting rear sight? Shooters in the US are not familiar with how European airgunners view target shooting. They use their guns for both precision target shooting and also for sporting use. I guess the best comparison would be to the Hunter Class of field target. Therefore, European target guns often have both a precision rear peep site and a second sporting rear sight located somewhere on the barrel. The subject gun has both.
The front sight is a fine post and bead, which is typical of all zimmerstutzens and, indeed, of many target guns from the 19th century. This sight is very fragile, so it’s protected by steel “ears” on both sides.
The sporting rear sight is adjusted in both directions by a clock key.
Rear peep sight is also adjust by a clock key and can be removed to use the sporting sight, only.
Front post-and-bead sight is delicate, so two steel ears protect it.
The gun has an octagonal barrel, which dates its manufacture to before World War II. It’s impossible to get a more precise date than that because these guns were made from the beginning of the 20th century until the early 1950s. The octagonal barrel also suggests a time before 1940. Most likely this gun was made in the 1920s or 30s, but I have no way of proving that.
The name Original is engraved on the barrel. Several sources say that this is a name used by Oskar Will in Zella Mehlis, Germany; but one source says that name, by itself, was used only by his competitors, and all of his guns also have the word Will on them, as in Original Will.
The name Original may mean this gun was made by Oskar Will of Zella Mehlis.
The gun is cocked by pressing down on the triggerguard, which is actually a long lever pivoted near the bottom rear of the butt. You can see the pivot pin sticking through the rear of the buttstock. A linkage pulls the piston back, compressing the two springs. To load the gun, you press a catch forward on the right side of the forearm, and the rear of the barrel can then be tipped up. You could call this a breakbarrel, but the barrel doesn’t have anything to do with cocking the springs. In that respect, the gun is like the breakbarrel Whiscombe rifles.
The cocking effort is pretty demanding. It’s on the order of 40 lbs., at least. I can’t see how a boy of 8 was able to cock this gun, but maybe his father cocked it for him until he grew into it.
Triggerguard is shown up…in the firing position.
Triggerguard is pulled down to cock the springs.
Push the catch forward, and the barrel can be tipped up for loading.
The double-set triggers on this gun are interesting. They work in the normal way — the rear trigger is pulled to set the front trigger and the front trigger fires the gun. However, there’s one difference. Many guns with double-set triggers will also fire when the front trigger is pulled without being set. This gun will not. If the trigger is not set, the gun cannot be fired.
Double-set triggers function normally, except the gun won’t fire unless the trigger is set. Many double-set triggers will fire when the front trigger hasn’t been set, but not this one.
Joe told me he shot the gun, so I figured it would be okay for me to do, too. First I dumped about 20 drops of 3-In-One oil down the air transfer port and gave it an hour to soak into the leather piston seal. The, I loaded an obsolete 20-grain Diana Magnum pellet and shot it into the trap from just a few feet away. The firing cycle was very harsh, so I won’t be doing that, again, until I can examine the condition of the powerplant. I could hear how slow the pellet moved, which leads me to suspect I’m right about this being a dart gun.
The gun is stocked with a light-colored walnut that’s checkered on the straight pistol grip. Also typical of the Tyrolean stock is the thumbrest that protrudes from the right side of the grip. That makes this a definite right-hand rifle!
This top view shows how thick the buttstock blank had to be to begin with!
The gun’s metal is finished with a combination of heavy nickel plate and hot-tank bluing. I would put the finish at 80-85 percent, which is to say…a lot! There are pepper tracks of rust scattered around the blued barrel, but an application of Ballistol and steel wool has begun to remove them. I’ll keep this up for as long as it takes to get down to smooth metal.
This report will not follow the traditional pattern of velocity testing followed by accuracy testing. For starters, I think the gun is too fragile to shoot that much, plus it does fire harshly. I need to find out what’s going on inside before I do much of anything.
I made this Part 1 so I could come back to it with a second report, though I have no plans for that right now. But as I learn more about it, there will be enough information to make an interesting Part 2.
by B.B. Pelletier
The FWB 300S is considered the gold standard of vintage target air rifles.
Some more history
The first part of this report was certainly met with a lot of enthusiasm, so I think I’ll add some more history today. In the comments to Part 1, we had a discussion of the sport called Running Target. Some called it Running Boar, which it was for several decades, and long before that it was called Running Stag.
The sport originated in Germany, I believe, though it was probably popular in Austria and perhaps even in Switzerland. It existed at least as far back as the mid-19th century and was shot outdoors at a target pulled on tracks by human power. The original target was a male chamois made of wood with a target where the heart of the animal would be. But that target evolved into a male red deer, called a stag. The stag was exposed to the shooter for a specific number of seconds.
In time, the stag was replaced by a running boar, because the stag was thought to be a noble animal and the boar wasn’t so highly regarded…though in England they did have a similar sport called Running Deer.
As the match evolved, it picked up rules. There was a slow presentation of the target (5 seconds) and a fast presentation (2.5 seconds), and the shooter was supposed to shoot one shot on each pass. The target was engaged in both directions during the match. It wasn’t long before the wooden animals were switched for paper targets that were both cheaper and easier to score.
The Running Boar target was double-ended so it could be used in both directions on the same track.
The aim point was usually the animal’s nose, but that was the choice of each shooter.
Over the years, the rifles they used changed from muzzleloaders to centerfires, and eventually to rimfires and airguns, because of the increased opportunities for range safety. Today, both rimfires and airguns are still being used at the World Cup level.
The guns have traditionally used sights that account for the movement of the target and allow the correct amount of lead. When scopes came into the event, they were specialized with reticles that allowed for the lead to be dialed in. Anyone who owns an FWB 300S Running Target rifle with the correct scope has something to prize.
Gary Anderson brought a running target range to the Roanoke Airgun Expo back in the late 1990s, giving many airgunners the opportunity to closely examine the target setup. By the 1970s, the sport had become Running Target — to assuage those who felt shooting at boars was not politically correct. The sport was part of the 1992 Olympics, but was dropped after the 2004 games. It’s a sport that goes in and out of fashion as the years pass; but it’s still a World Cup event, so we may see more of it in time.
When the change was made to Running Target, the target was changed to a target with one central aim point and two bulls — one for each direction.
Velocity of the FWB 300S
Today is the day we check the velocity of this FWB 300S, so let’s get to it. When it was new, the 300S was advertised with a velocity of 640 f.p.s., though the pellet they was used to get that number was never specified. I will use a range of pellets I believe are appropriate to the power level of a spring gun like this. And, in a departure for me, one of the pellets I test will be domed.
Air Arms Falcon
I tested the Air Arms Falcon pellet even though it’s a domed pellet that’s not appropriate for target shooting, because many readers use these rifles with scopes for plinking and other pursuits. So, I’ll also shoot this pellet for accuracy — just to see what it can do.
This was the first pellet I tested, and I’m so glad I own a chronograph, because I learned something valuable about the 300S in this test. This rifle needs to warm up before it’ll shoot with stable velocity. Think of an older car from the 1950s that had to be warmed up for a minute or so and then driven slowly for the first mile to allow the parts to expand and start sealing as they should. Heck — most car engines from that era developed leaks pretty quickly, and you did whatever was necessary to keep them from wearing faster than they should. Well, this FWB 300S needs the same kind of warmup. Let me show you the first 9 shots.
So, if you shoot a 300S — or any of its derivatives — for score, maybe you better shoot about 10 shots just to warm the action before expecting the rifle to do its best.
After shot 9, the rifle became very stable and averaged 658 f.p.s. with the Falcon pellet. The low was 655, and the high was 671 f.p.s. At that speed, this pellet generates 7.05 foot-pounds. That’s pretty brisk for a 300S; but Mac, who traded the rifle to me, said it had just been sealed and overhauled by Randy Bimrose, so it’s performing at its best.
A couple observations
Before I move to the next pellet, I’d like to make a few observations. First, I said in Part 1 that the 300S action doesn’t need to be levered forward at the end of the cocking strike like the action of an RWS Diana model 54 Air King, but that was incorrect. It does have to be levered forward into lockup in just the same way, but the 300S action is so smooth that I didn’t notice it until now. With a Diana 54, you always notice it.
I mention this because, like the Diana 54, the 300S uses the sledge-type anti-recoil system; and even though it’s a gentle rifle, it has to operate in the same way as the more powerful Diana. Moving the action forward into lockup prepares the action to release when the gun fires and to move on the steel rails in the stock just a fraction of an inch, canceling the feel of recoil.
The second thing I noticed this time is that I can feel the cocking link bump over the mainspring coils as the cocking lever moves back to the stored position. I sometimes feel that same roughness in other spring rifles, where the tolerances are tight, and I thought I’d mention that this one does the same thing.
RWS R-10 Pistol pellets
Next, I tried the RWS R-10 Pistol pellet, which weigh 7 grains, even. I tried them because of their weight — not because I think they’ll be the most accurate pellet. I just want to show the rifle’s velocity with a reasonable range of pellet weights.
This pellet averaged 658 f.p.s. with a low of 640 and a high of 664 f.p.s. The low shot was the only one that went slower than 656 f.p.s. At the average velocity, this pellet generates 6.73 foot-pounds of muzzle energy.
H&N Finale Match Rifle pellets
The final pellet I tested was the 8.18-grain H&N Finale Match Rifle pellet. It averaged 609 f.p.s. and ranged from 597 to 616 f.p.s. The average velocity generated a muzzle energy of 6.74 foot-pounds
There you have it. This 300S is extremely healthy and ready to go target shooting in the next report! It’s still a joy to shoot and is a rifle that you should continue to covet if you’re so inclined.
One additional thing. There has been some talk of how accurate these rifles are at longer range. If you want, I’ll schedule a special fourth report in which I shoot this rifle outdoors at 50 yards. I’ll have to wait for a calm day, of course, but wouldn’t it be fun to see how this rifle shoots at that range?
by B.B. Pelletier
The FWB 300s is considered the gold standard of vintage target air rifles.
I’ve danced around writing this report for the better part of a year, and some of you have asked me when I was going to get around to it. Well, today is the day we’ll begin looking at Feinwerkbau’s fabulous 300S — considered by many airgunners to be the gold standard of vintage 10-meter target air rifles.
Today’s blog is an important resource for those who are interested in fine vintage 10-meter target rifles, because I’m going to give you the links to all the other reports I’ve done.
There are plenty of vintage 10-meter rifles that I haven’t tested for you yet. The Diana 75, the Anschutz 380, the Walther LGR, the Anschutz 250 and the Gamo 126 all come to mind; but if you want to split hairs, there are numerous similar models like the Walther LG55 and the Diana 65 that also belong to a very long list of classic oldies. But the guns we’ve looked at thus far are a fair representation of the classic era of target air rifles. Today, we’ll look at the rifle many consider to be the pinnacle of achievement during that period.
You probably know the history, but if you don’t — first there was the FWB 110, a sidelever target rifle that recoiled! Yes, it recoiled. What’s more, Feinwertkbau didn’t make too many of them. The 110 is considered to be a very desirable airgun collectible today, and many advanced airgunners, including me, have never even seen one. According to the Blue Book of Airguns, fewer than 200 were made from 1962-1964.
The FWB 150 followed the 110 and introduced Feinwerkbau’s anti-recoil system. I reviewed the FWB 150 for you last June. I found it to be easy to shoot and compellingly accurate, but it wasn’t everything it could be. That honor awaited the 300S that I’m reviewing for you today.
The FWB 150 is the predecessor of the 300S. It shares a more sporterized stock profile with the interim FWB 300.
A footnote deserves to be inserted here, as the first edition of the Beeman catalog, a collectible in its own right, also mentioned an FWB 200 model, existing at the same time as the 300. A short line in the Blue Book says the model 200 was similar to the model 300 but lacked the recoil-compensation system. Until I researched today’s report, the model 200 was unknown to me and I’ve certainly never seen one. Is it as rare as the model 110? Has anyone ever seen one? These are the curious things that pop up as we research this fascinating hobby, and they’re what keeps the collector in me in a permanent state of anticipation.
The model 300 was much like the 150, in that it has a single coiled, steel mainspring and a thinner, more sporterized stock, yet it was definitely labeled a 300, rather than the 150. You don’t see as many straight 300 rifles as you do 150 rifles these days. Perhaps that’s because when the 300S came out it overshadowed the 300 and drove it from the marketplace in fairly short order. The 300S was a very different gun.
If you’re like me, you never paid much attention to the difference between a 300 and the 300S. What’s in a letter designation, after all? A lot of things, as it turns out.
Let’s start with the mainspring. The 300S has two coiled steel springs that are wound in opposite directions. It’s said they cancel the slight amount of torque at firing, though I cannot say that I’ve ever noticed any torque in my 150. The RWS Diana 48 sidelever does have noticeable torque upon firing, and you’ll feel a definite rocking to the right after the trigger is pulled. Since the sidelever already unbalances that rifle, the feeling is magnified; but the 150 doesn’t have the same feeling. At least — my rifle, which was recently tuned by Randy Bimrose, doesn’t.
The 300S stock is shorter than the stock on the 300/150. It also has a more vertical pistol grip to enhance the offhand hold. A slight flare at the bottom might go unnoticed in the catalog photos; but when you hold the rifle, the pistol grip grabs you right back.
So, how does this rifle block the recoil? Well, for starters, it actually doesn’t! All the FWB spring-piston target rifles do recoil; but in the 150 models and the 300-series there’s a special system in the stock that isolates the shooter from the movement. A set of steel rails set into the stock allows the action to move while the stock remains still. The shooter doesn’t feel any recoil and only the slightest vibration in some guns. But you do notice the movement of the action, because of the eyepiece that’s close to your sighting eye. The movement is very short — on the order of a quarter-inch or so — but if you’re close to the rear sight you’ll notice it. A rubber eyecup helps take up the shock and prevent your eye from banging into the rear sight disk, and I find it necessary to use this accessory with this model rifle.
This system is called the sledge system, after the name for a dry-land type of sled whose runners make it easy to drag heavy loads. It’s completely different from the Giss anti-recoil system, in which a counterweighted piston actually has no discernible recoil.
This mechanism is very refined compared to a similar system found on the RWS Diana model 54 Air King. Of course, that magnum spring-piston rifle has to deal with three times the power in a rifle of similar weight, so it’s actually doing quite a good job of canceling the recoil. Still, when the 300S lever is retracted, there’s no “levering” of the action required at the end of the cocking stroke like you have with the Diana 54. The ratcheting anti-beartrap safety that prevents the sliding compression chamber from smashing your thumb during loading does not need a separate button to release the cocking lever after you’ve loaded. The only extra step the 300S does have is a small locking latch on the sidelever that unlocks the lever at the start of the cocking stroke. The 150 and 300 cocking levers both have an end section that pivots outward to unlock the cocking lever and achieve the same thing.
Press down on the cocking lever latch to release the lever for cocking and loading.
The sidelever on a 300S is also much shorter than the one on the 150, yet the cocking effort remains as light. Obviously, some geometry was changed when the model was updated.
My 300S is a Daisy gun. While many were imported and sold by Beeman, many more came into the U.S. through Daisy when the company was trying to establish itself as a target gun company. The FWB name trumped the Daisy name, however, and a Daisy FWB is exactly the same as one from Beeman or one imported directly from Europe.
This 300S came from Daisy.
No piston seal
Another odd but not unique feature of these rifles is the lack of a conventional piston seal. Instead of a traditional seal, they use a metal ring much like those found on an automobile engine’s piston. These rings will last for millions of cycles, as some club guns have demonstrated, though other parts like the breech seal will eventually have to be replaced. And the coiled steel mainspring set needs occasional replacement, as well.
Many Webley pistols and a couple of the older Webley rifles have the same design, so piston rings are not unique in the airgun world. They are, however, features that are found only on guns of quality.
When the 150/300 was new, American airgunners were not used to light target triggers as a rule. They were accustomed to a 3-lb. pull being considered light. So, when they encountered the FWB trigger that releases at ounces rather than pounds, they were astounded. In fact, if they’d been accustomed to shooting the older target rifles from the 19th century, like Ballards, Maynards and Winchesters, all of which had fine double-set triggers, they would have been less impressed.
The 300S trigger has a nominal pull weight ranging from 3.5 oz. to 17.7 oz. (an optional trigger spring boosts that range from 10.6 oz. to 52.8 oz.). In target rifle terms, even the lighter range is not very light, though I find it just right for me. The trigger on my rifle releases at a satisfying 4.4 oz. It’s a two-stage pull with stage two being very definite. With practice, you can get on target and “think” the trigger off as the sight picture becomes perfect.
The 300S trigger also adjusts for position, cant and first-stage travel — all things that the 150 trigger does not do. Although the 150 trigger is just as light and crisp as the one on the 300S, you can’t reposition it. It’s also curved like a sporting trigger instead of straight like the target trigger found on the 300S.
The trigger of a target air rifle has no lower limit, the way a target air pistol does. In the ISSF rules for air pistols, a match pistol trigger must break at more than 500 grams (17.64 oz.). This is done in the interest of safety, as the muzzle of a pistol is too easy to move while on a firing line. But a rifle like the 300S is more obvious and easier to control, so there’s no lower limit. Some target air rifles today are releasing at less than 50 grams (1.76 oz.) of force.
The stocks of the vintage target air rifles show a fairly broad latitude of design, but they stop short in a few important areas. Tyrolean stocks are not permitted in World Cup and Olympic matches, nor are butt hooks. Today’s rifles are studies in ergonomics applied against these rules. Today, a 300S looks fairly normal to eyes that are accustomed to wild aluminum stocks with numerous adjustments; but when it was new, it seemed to push the envelope of possibility. I suppose it’s equivalent to how the finned cars of the late 1950s appeared when they were new compared to how we see them today.
Another drastic measure was taken at the World Cup level in the realm of target sights. For a brief time, the tube-type rear aperture sight was used, but complaints that it gave an unfair advantage caused a ruling that it was no longer permitted. This is very odd, since tube-type sights have been in use since at least 1776 and were in widespread use in target matches throughout the 19th century. But the ruling was made, and today’s rear sights cannot use tubes to enhance the sharpness of the sight picture.
FWB target rear sights looked as exotic as a Rolex watch when they were new in the 1970s. Today, they seem almost simple, but they still do the job. The click detents are nowhere close to the thousandth-inch measurements of the Vernier scale peep sights I showed you recently; but since you’re shooting 10 meters instead of 1,000 yards, they’re more than adequate for the job.
Unfortunately, these rifles were also sold without sights for a slightly reduced price, and many buyers mounted short scopes on their 11mm sight dovetails. While they may have been pleased with the gun that way, they created a shortage of sights for the future that is difficult to resolve. Until five years ago, you either had to install a hoplessly crude rear sight made either in Spain or China and live with the problems of adjustment backlash, or you had to pony up almost as much money as you paid for the entire rifle just to buy a set of precision sights.
AirForce corrected that lack for you with their adaptive rear target sight that fits most 10-meter guns. For about a third of what a German rear sight costs, you get a unit that’s the equivalent of the vintage FWB rear sight; and as a bonus, it looks at home on any rifle. An additional feature that never seems to get mentioned is this sight can be removed from its base and installed in a standard one-inch scope ring — multiplying the possible applications greatly.
The front sight looks more conventional and is of the globe design with replaceable inserts. On the 300S, it’s part of a larger aluminum barrel sleeve that makes it proprietary. When the globe on an Anschütz or Weihrauch target rifle slides onto a dovetail, this globe actually fits only the 300S barrel.
The front sight on this HW55 attaches to two dovetails of standard width. All Weihrauch rifles that have dovetails can use this sight.
The FWB 300S front sight globe is integral with an aluminum sleeve that fits over the barrel. It’s either this or nothing!
The front sight is pinned to the barrel through the sight base. On some versions of the 300S, like the Universal and the later Match, this pin is at the bottom of the barrel. On my rifle it’s located at the top.
You may have also noticed that the 300S has a blued barrel sleeve that’s slenderer than the one on the 150. Only toward the end of the barrel does it swell a bit. That’s because the 300S barrel is longer than the one on the 150, so there has to be less sleeve material to balance the weight correctly.
But the real test of this airgun comes with shooting. I’ve already shot this rifle several times, so I know what’s in store. You should feel eager expectation for the next two installments, because this rifle wants to shoot!
by B.B. Pelletier
Photos and test results for the Diana 60 by Earl “Mac” McDonald
The Diana model 60, which is a Hy-Score model 810 in this case, is a breakbarrel target rifle from the 1960s and ’70s.
That’s right, sports fans, today you’re getting a twofer. For the benefit of our readers outside the U.S., a twofer is slang that means “two for the price of one.” I decided to report on both Mac’s Diana 60 velocity test and my HW 55 Custom Match velocity test for reasons I will explain in each part. Grab a large cup of coffee and an extra Danish and sit back!
The Diana model 60 target rifle
We’ll look at Mac’s rifle first. Today, I’ll reveal the one thing that’s been troubling Mac about his rifle, so it doesn’t take a detective to know that it has to do with velocity.
The cocking effort of his breakbarrel rifle is 28 lbs., which seems high to me. Mac says it doesn’t feel that high because, for some reason, it gets lighter toward the end of the cocking stroke. He also cautions us to beware of the rack-and-pinion noises that these guns have when they’re cocked. To all that I have to say this.
There shouldn’t be any noises when this rifle is cocked. I’ve owned several Giss-system rifles and pistols and shot a lot more, and none of them made any extra noise when they were cocked. That’s clue No. 1. And, I’ll explain how the Giss system works next.
Clue No. 2 is the lighter cocking effort toward the end of the stroke. That’s atypical for a breakbarrel, but Diana has the reputation for breaking mainsprings. When they do, they get smoother. They don’t make any noise, nor do they bind during the cocking stroke. I’ve certainly seen a half-dozen Diana rifles with broken mainsprings and they all acted this way.
How the Giss contra-recoil system works
The Giss contra-recoil system consists of two pistons connected to each other. The real one goes forward when the gun is fired, and a dummy travels to the rear at the same time. The real piston is the only one that has a piston seal, and it’s the one that compresses all the air for the shot. The dummy piston has no seal and is just there to provide an equal and opposite reaction to the real piston. When the real piston slams to a stop, the dummy piston does too at the same instant. The EFFECT of this is that the impulse of each piston cancels the other. The first time an airgunner experiences it he’s usually blown away because, when the gun is timed right, absolutely no firing pulse can be felt.
Of course, timing is the principal concern in a gun that uses the Giss system. That’s why I never recommend a person try to repair his own gun. Sometimes, a mechanical genius like Nick Carter who writes Another Airgun Blog will be able to dive right inside a Giss gun and find no obstacle he cannot understand and overcome, but the average person will just create a basket case.
Looking straight down on the top of the model 60 action, we can see the two telltale caps that cover the gears connecting the two pistons to each other. All Giss-system guns have these caps.
This simple graphic shows how the two pistons oppose each other.
I’ll tell you right now that Mac experienced lower velocity than he expected from this rifle. An Air Rifle Headquarters catalog (the original company) from 1973 gives the velocity of the model 60 as 546 f.p.s., without specifying what pellet was used. That would probably translate to about 550-570 f.p.s. with the pistol-weight target pellets we use today. Mac wasn’t getting that.
He asked me what I thought about putting a drop of silicone chamber oil through the air transfer port to lubricate the piston. We know that these older target spring guns came with seals that dry-rotted over the years, and chamber oil will speed up their demise, but I figured he had to find out somehow, so he did it. But it didn’t cause the seal to destroy itself. It simply boosted the velocity about 12 f.p.s. with no change in how tight the velocity spread was.
The first pellet he tried was the H&N Finale Match Rifle pellet that weighs 8.18 grains. They averaged 457 f.p.s., with a 22 foot-second spread from 445 to 467 f.p.s. The average muzzle energy was 3.79 foot-pounds.
Next, he went with a domed pellet. JSB Exact Diabolos are domed pellets that would not normally be fired in a target rifle unless the target was something other than paper. But Mac also uses his target rifles for mini sniping, so he tested this 8.4-grain pellet anyway. It averaged 474 f.p.s., with a 16 foot-second spread from 465 to 481 f.p.s. The average muzzle energy was 4.19 foot-pounds.
The final pellet Mac tried was the old standard RWS Meisterkugeln pistol-weight wadcutter. Today, they only weigh 7 grains, but Mac had some older ones that weighed 7.7 grains. They were a very loose fit in the breech and averaged 458 f.p.s., with a whopping 37 f.p.s spread from 442 to 479 f.p.s. The average energy generated was 3.59 foot-pounds.
Both Mac and I think the rifle isn’t performing up to spec. Mac found some stated velocity figures of 460 f.p.s. in print somewhere, but he thinks it’s a transposition of 640 f.p.s., which is where a few of the 1960s and ’70s-era target rifles were.
I now believe the rifle has a broken mainspring. Mac thinks it’s just a tired one. Either way, the thought that his gun isn’t performing up to snuff is getting under his skin, so I advised him to have it repaired by either Pyramyd Air or Umarex USA so he’ll know for sure.
Nevertheless, the rifle still shoots as it should and there will be a part 3 coming soon. Let’s go to Part 2 of the other target rifle on today’s menu.
The HW 55 CM target rifle
Is this Custom Match the best HW 55 ever made? Read the report to find out.
I’m putting this additional report here for a couple reasons. First, I didn’t want to go too long without reporting on it. More importantly, I thought I might have to do an extra report on this rifle. As luck would have it, that’s how it turned out. While this is Part 2 and a velocity test, the next part will also be about velocity.
Remember that the HW 55 CM was the rifle that I felt had a harsh firing cycle back in Part 1. After I tightened the stock screws, some of the harshness went away. Even after that, the rifle was still feeling harsher than I felt it should for what it is.
Several of you readers thought that when the gun went back to Beeman for a rebuild, they probably installed the upgraded HW 50 sporter mainspring that would have boosted the power. The only way to find that out is with a chronograph, so that’s what I did. According to Air Rifle Headquarters catalog data, once again, a regular HW 55 should shoot H&N pellets at 650 f.p.s. Unfortunately, they don’t give a lot more data about the specific pellets they used for the test.
The rifle does still shoot a little harsh. When you’re peering through a peep sight, the smallest recoil becomes instantly noticeable. In this rifle, it’s unpleasant. The peep comes straight back and bumps into my skull when I fire. My Ballard rifle does the same thing, only its peep is on a tang sight that collapses forward when it contacts my eye. The HW 55 sight, in contrast, remains rigid and allows me to absorb all the impulse of each shot. Well, I’ll be danged if I’m going to put up with that!
The plan is to quiet the shot cycle with black tar, if possible. If the gun has extra velocity it doesn’t need, I’ll be only too happy to do that.
The cocking effort is just 20 lbs. on the nose, and the ARH catalog says to expect a weight of just 15 lbs. There’s another small deviation from what would be expected. Even the HW 50 mainspring isn’t that powerful, and the long almost-18.5-inch barrel may be providing the extra leverage to reduce the force.
The first pellet I tested was the RWS Hobby, that standard candle of high-velocity lead pellets. At just 7 grains, it’s not only light, but often it turns in surprisingly good results downrange. Hobbys averaged 694 f.p.s., with a 17 foot-second spread that went from 684 to 701 f.p.s. The muzzle energy is 7.49 foot-pounds. I would love to say that this speed wasn’t expected, but it wasn’t far enough out of line to be definitive.
Next, I tried H&N Finale Match Pistol pellets. They weigh 7.56 grains. They averaged 632 f.p.s., with a 14 foot-second spread from 625 to 639 f.p.s. The average muzzle energy was 6.71 foot-pounds. That seems right on the money for a stock mainspring.
The final pellet I tried was the RWS R-10 Match Pistol pellet. Although they’re just as light as the Hobbys, they go the same speed as the heavier H&N Match Pistol pellets. That would indicate a bore-fit issue.They averaged 632 f.p.s., with an 18 foot-second spread from 619 to 637 f.p.s. The average muzzle energy was 6.21 foot-pounds.
I can’t tell for certain that the mainspring has been upgraded, but I do know that the rifle has way more velocity than I need. The next step is to lube the spring with black tar to see what EFFECT, if any, that has on the shot cycle. While Mac wants more velocity, I’m looking to get rid of some for the sake of smoothness.
I’ll break these two reports into separate reports for their respective accuracy tests. But before I do the accuracy test with the HW 55 CM, I’ll lube the spring and retest the velocity results, giving this rifle one extra report.
by B.B. Pelletier
Is this Custom Match the best HW 55 ever made? Read the report to find out.
Today, we’ll begin a look at a variant of the HW 55 that was not produced in great numbers. It was supposed to be the high-water mark of the HW 55, and it came into being just after the end of the era when recoilling spring-piston target rifles had dominated the world stage. Shooters were moving en mass to the newer recoilless designs like the Diana 60-series, the FWB sidelevers and even the single-stroke Walther LGR.
An HW 55 won the gold medal at the European Championship in 1969. When the Custom Match hit the market in the 1970s, it came just after the summit of success. Little did they know at that time that there would be no more major championships for recoiling air rifles of any make. It was similar to the last gasp of the Offenhauser front-engine Indy cars when Ford got into Indy racing in 1963.
Like the proverbial tale of the last buggy-whip maker that made the finest buggy whips ever created, the HW 55 CM was the finest spring-piston 10-meter target air rifle Weihrauch ever produced. In this report, I hope to show you a few of the innovations they built into the gun to make it all that it was.
What about the Tyrolean?
Before we continue, you might be wondering what ever became of the HW 55 Tyrolean model and why I don’t refer to it as the finest target rifle Weihrauch ever made. The Tyrolean is, without question, the most beautiful air rifle ever made by Weihrauch, and it’s so perfect for offhand shooting that a different style would scarcely be needed, but a change in the rules outlawed the Tyrolean stock for international competition. Not only Weihrauch, but also Feinwerkbau, Walther and perhaps others already had Tyrolean models in production when the rules changed. Weihrauch continued making the model because of demand from private shooters everywhere. But its days of competitive shooting were over. I reported on the Tyrolean extensively back in 2008, and you can read that report here.
Today’s report is about the gun that was supposed to restore the HW name to competition — the Custom Match. Collector Mike Driskill has written that the CM was first offered in 1974. My own information on the subject is very sketchy, but the earliest date I can prove that it was available was in 1979. I trust Mike to have the data to back up his date, so let’s accept that as the starting point for this model. As far as the end date, it’s anyone’s guess. The HW 55 line simply petered out in the 1990s, mostly because worldwide sales had dropped off so much.
This much I do know — the CM model wasn’t made in great numbers. It was the most expensive of all the 55-series guns when it was being sold, selling for about $50 more than the Tyrolean, which was already $110 higher than the beech-stocked SM. Air Rifle Headquarters (the original one) sold the Tyrolean for $389.50 and the CM for $438.50 in 1979. At that price, the model was quite exclusive, though the Anschutz and Walther target models were hundreds of dollars more. But this was an outdated recoiling spring-piston rifle and the others were all the more desirable recoilless models.
The HW 55 CM appears to be a large air rifle of approximately the same size as the FWB 300S, but that appearance is deceiving. Inside the deep forearm of the stock is a large hollow chamber for lead weights, and that void lowers the weight of the rifle to one ounce under nine pounds. That’s considerably lighter than the similarly sized FWB 300S that weighs 10 lbs., 12 oz. For shooters of average strength, the CM is a wonderful offhand shooter that happens to have a nice target stock.
An optional barrel weight in the form of a steel jacket was also available to add even more weight to the rifle. So, although it’s basically light, the CM can quickly gain several pounds when called upon.
A large cavity in the forearm is for adding lead weights.
The HW 55 CM (bottom) looks as large as the FWB 300S. It’s almost two pounds lighter, though, due to a hollow forearm.
The stock is made of straight-grained walnut, and the well-shaped almost-vertical pistol grip is deeply stippled for a good handhold. As far as I know, the CM does not have the same reputation for breaking at the pistol grip as the FWB 150/300 and the Anschutz 250, which are all very prone to breakage. There’s an accessory rail inlet into the bottom of the forearm, to the delight of serious target shooters.
The HW 55 CM is a breakbarrel like all the 55-series guns. And, all of them except the extremely rare SF model have a positive barrel lock located on the left side of the action at the breech. The barrel will not open until this latch is rotated forward, but when the barrel is closed there’s enough residual force in the tiny spring-loaded detent to hold the barrel shut without latching it. Not that you would want to do that, of course.
When the barrel locking lever is back like this, the barrel is positively locked closed.
Rotate the barrel locking lever forward to unlock the breech. This is how far the barrel will open before encountering spring tension.
The trigger deserves special mention. Not only is it a Rekord trigger, but it’s a target version of that famous trigger. Several years ago, I asked Hans Weihrauch, Jr. why other Rekords were not as sensitive as this one. He told me they put a special light trigger return spring in this model, plus you can see in the photo that the pull adjustment screw that’s a plain aluminum screw on other Rekords is actually a thumbscrew on this rifle. Inside the thumbscrew, there’s a locking screw that must be loosened before the trigger can be adjusted. After that, you adjust the pull with the thumbscrew; and when you get it where you like it, tighten the locking screw to lock it in place.
The trigger-pull adjustment is a thumbscrew located behind the trigger blade. The locking screw is visible inside. This adjustment is found on the special target version of the Rekord trigger.
I don’t have a trigger-pull gauge light enough to measure this trigger, but I would estimate that it releases with around 4 oz. of pressure. While that is considerably heavier than the triggers on my FWB 150 and 300S, it’s in line with the trigger on my Walther LGV Olympia — another recoiling spring-piston target rifle from approximately the same timeframe. As an offhand trigger, it’s fine because you don’t want something so light that you set it off before you’re ready. It also stops at the point of release, and that could be because of the trigger blade hitting the adjustment thumbscrew; but my HW 55 SF, which has the identical target trigger, has greater clearance between the trigger blade and the adjustment thumbscrew and stops before contacting the screw. There doesn’t seem to be a way to adjust this overtravel; or if there is, I haven’t found it yet.
All HW 55 rifles came with target aperture rear sights and globe front sights that had a set of inserts. My gun came to me with one front aperture insert. The rear peep is very small, and I might exchange it with the one I used on my FWB 150 for the accuracy test. Weihrauch peep sights changed many times over the approximately 40 years they were in production, and the one on my rifle appears to be one of the last versions made.
The front sight is a standard Weihrauch globe with replaceable inserts.
The rear sight on the Custom Match is one of the later HW 55 aperture sight designs.
To be perfectly honest, the firing behavior of my CM is harsh and not at all in keeping with the rest of the rifle. I will test the rifle for velocity in the next report, but I think I’ll also lubricate the mainspring or perhaps replace it if necessary to smooth out the firing cycle.
Any HW 55 is a desirable air rifle, but the Custom Match is special even within the category of HW 55s. I hope to show you as much of this rifle as you wish to see; and even if you never see one in person, you’ll know they’re out there and what they look like.
by B.B. Pelletier

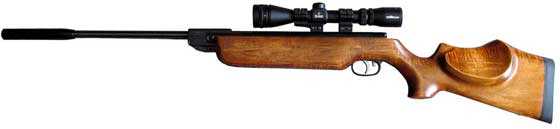

My new R8 made me sit up and take notice!
Today, I’ll look at the accuracy of my new Beeman R8. I waited until now to do this test because I wanted to be off the IV and be capable of doing my best with this rifle. Along that line, I have some good news to share about my condition.
Last Thursday, I went for a walk outdoors. It was about a half mile or less around my housing subdivision, but it was all I could do at the time. When I finished, I was tired for about an hour, but then something wonderful happened. I awoke out of the fog I’ve been in since this thing began in March. My head cleared and I was able to think clearly for the first time.
The next day I stretched the walk and the day after that I went about one mile. I’m doing that every morning now and it gets my blood flowing for the day. I have jump-started my metabolism with the result that I’m able to eat all I want (though not to excess) and I’m losing weight, because I’m building muscle to metabolize the fat. I feel wonderful, which is why I felt I was ready to give this rifle a fair test.
This R8 was represented to me as a very accurate air rifle. Well, I hear that a lot in my job, and it doesn’t always work out. Often, what someone else thinks is accurate is different from what I expect. Then, there are other times when my technique can drag out a decent amount of accuracy from just about anything (except for the B3-1). But it’s a real strain.
Then there are those very rare occasions when I get a rifle in my hands that does everything the owner has told me it could do. Those rifles are the natural shooters of this world, and they’re as scarce as hen’s teeth. I think this R8 is one of them.
I shot this rifle at 25 yards, which is the longest range I can get at my house. I’m not yet able to drive to other ranges, so I have to work with what I have at home, but 25 yards is a good test for a spring rifle.
It always takes me some time to get familiar with every new rifle, so the first 20 shots or so are not for record. Fortunately, last weekend, we were all advising reader rikib of the need for repeatable head placement to cancel parallax, so the lesson was still fresh in my mind. The Tyrolean stock on the R8 seems perfect for benchrest, because I can feel the spot weld precisely. It took a while to get into the groove. Once I did, I simply could do no wrong with this rifle. I actually had to adjust the scope off the aim point to leave a spot to put the crosshairs, because this gun wants to throw every pellet into the same hole! I knew where every pellet was going, and they all went where I expected them to go.
The first pellet
I had been told that this rifle really likes JSB Exact RS domes, and they should be seated deep in the breech. That’s what I started with. The scope needed some adjustment to shoot where I wanted, and that allowed me to get comfortable with the rifle. I found my lips kissing the front edge carving of the high cheekpiece, which gave me the perfect repeatable feel shot after shot.
The first group I fired for the record was unnerving! I stopped at just five shots, because I just didn’t want to screw up that group. I wanted to have something good to show you even if I couldn’t hold 10 shots for a group.
Five JSB Exact RS pellets shot into this group at 25 yards.
But I needn’t have bothered, because it was easy to group 10 shots. This R8 groups like a fine PCP, and that’s no exaggeration. If you do your part, you’ll get a screaming group at 25 yards.
Ten more JSB Exact RS pellets went into this group at 25 yards. This rifle just puts them in there!
Crosman Premier lites
The next pellet to be tried was the Crosman Premier 7.9-grain dome.
Ten Premier lites were just as tight as the JSB RS pellets at 25 yards.
H&N Field Target
The final pellet I tried was the H&N Field Target pellet. At 8.5 grains, these are from half to a full grain heavier than the other pellets I tried. They printed a slightly larger group at 25 yards, though it was all one hole, too.
H&N Field Target pellets went into a slightly larger group at 25 yards.
The Burris 4.5-14x32AO scope is quite a piece of glass. Because of a bad experience I had with a Burris compact scope years ago, I’ve been off this brand, but the Timberline scope on this R8 has turned me around. This glass has the timeless quality of the old Beeman SS2 scope that still commands a place in airgunners’ hearts and gun racks. It’s clear, sharp and focuses as close as 21 feet on high power.
This Beeman R8 is a natural shooter. Hold it correctly, and you won’t miss your target. This particular rifle is beyond the norm because of the excellent Tyrolean stock. Normally, a Tyrolean stock restricts the rifle to just offhand use, but this stock allows for a good hold off the bench, too. That means it would probably work well in a number of hunting holds.
Besides being a knockout for looks, the stock complements the accuracy potential of the basic rifle. Lastly, kudos to whoever tuned it, because it shoots like a dream. A springer that’s as accurate as a PCP doesn’t happen every day.
