From perfection to perfection

By Dennis Adler

Sig Sauer designed the M17 CO2 pistol and it is an actual Sig Sauer product, not a licensed design for another company to build and sell, but, unlike the Beretta 92FS, which is still made in Germany, the M17 is built for Sig Sauer in Japan. That, combined with a less expensive to produce polymer frame and integrated grips, as opposed to a cast alloy frame with wood grips, makes the 92FS more expensive to build no matter where it is manufactured.

It was just 23 years ago that Umarex introduced the first semi-auto style pellet pistol, the Walther CP-88. It is still manufactured. In 1999, Umarex developed its second semi-auto style pellet pistol, the Beretta 92FS, which was introduced at the turn of the new century, becoming what remains, 19 years later, the best built CO2 pistol of its kind, still handcrafted and manufactured in Germany. Two remarkable guns that launched a generation of rotary magazine semiautomatic pellet pistols, but were they true semi-autos? The answer then and now is no. The Umarex Beretta 92FS looks, feels, and handles like its centerfire Beretta counterpart but its internal operation is that of a revolver with the cast alloy 8-round rotary magazine turned from chamber to chamber by pulling the trigger. It was a beautiful deception.

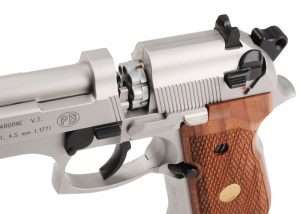

A semi-auto on the outside, but with a flick of the disassembly lever the slide separates and reveals the rotary magazine chamber. The slide release was non-functional, there was no blowback action, the ambidextrous safety did work and the gun could be manually cocked and de-cocked. Combined with superb construction, fit and finish and real checkered Beretta medallion hardwood grips, this was as good as it got 19 years ago. Of course, Umarex had already broken this ground in 1996 with the Walther CP-88, but the Beretta was a better looking gun.

And generations followed

The concept pioneered with the CP-88 and 92FS continues to this day, it is a design that works, is reliable, and allows a CO2 pistol to shoot lead pellets through a rifled barrel with precision accuracy. While the majority of air pistols built today using this system, like the Umarex Beretta PX4 Storm, are either built in Japan or Taiwan, in its day, a generation ago, the “Made in Germany” models were the foundation for using CO2 pistols as training guns; the 9mm Walther P-88 and Beretta 92FS and then the Walther P99 were at the time, among the most popular handguns in the world, in use by law enforcement and military.

And thus it began with an 8-shot rotary pellet magazine. The irony of this image is that the gun that started it all when there were only lead pellets, can also load the very latest alloy pellets made by number one competitor Sig Sauer.

For all intents and purposes these CO2 copies were the best multi-shot pellet-firing air pistols you could own for quality of construction, fit, and exceptional finish.  And in all honesty they have never been surpassed in that respect, since many of even the finest new models, like the centerfire guns they are based upon, use polymer frames, which were introduced by the Umarex Walther CP99. Still the technology of the rotary magazine, even when updated with 8+8 rotary stick magazines in guns like the Umarex Beretta PX4 Storm were still revolvers at their core.

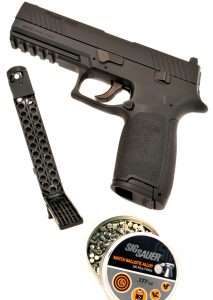

It took until 2017 for anyone to find a better way to load pellets into a pistol than either 8-shot or reversible 8+8 shot rotary stick magazines. Sig Sauer innovated the loading process with a rotary stick magazine that allowed the 30-shot (later reduced to 20-shot) stick magazine to operate in a blowback action CO2 pistol. Sig took a lot of liberties with the design though, making most of the controls inoperative, except for the safety, as they served no function on the pistol. It could not lock back on an empty magazine so Sig saw no reason to have a functioning slide release, or to cut an actual ejection port into the slide. As well priced as the polymer-framed pistol was, the cost-saving measures Sig Sauer took with the P320 ASP turned more than a few potential buyers away. But at the time no one knew what Sig Sauer was developing for its next P320 air pistol.

But technology finally overtook them in the last year and of all the airgun manufacturers in the world that could have done it, it was a company that had only started designing and offering their own brand of air pistols in 2016, Sig Sauer. The P320, introduced in 2017, became the first rifled-barrel, pellet-firing semi-auto pistol that was, in its operation, a true magazine-fed semiautomatic and not an internalized revolver.

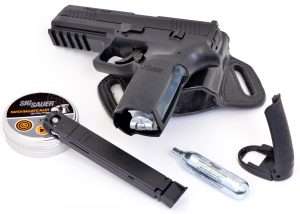

The second drawback to the P320 ASP was that Sig Sauer had resorted to a very conventional and slow method of loading the CO2, actually taking a step back from the earlier P226 ASP which had used an 8+8 rotary stick magazine. This, too, confused the market. But again, no one knew what was coming the next year from Sig Sauer.

Sig’s technology is as yet unchallenged by other air pistol manufacturers, but has this new higher level of authenticity surpassed the original rifled barrel semi-auto style pellet pistols? To find out, the very latest example, the Sig Sauer M17, with a 20-round self-contained CO2 pellet magazine, goes head-to-head with the best of the original multi-shot pellet pistols, the Umarex Beretta 92FS. It is not only a comparison of airgun designs but a comparison of handgun evolution.

What you get from different technology

We begin with the Beretta and how this German-crafted airgun is put together for its suggested retail price of $300 with nickel finish and real hardwood Beretta grips. This is the way things were done in the 1990s when realistic-looking air pistols were few in number and Umarex built them is Germany. And the 8-shot rotary pellet magazine was the new technology. In 20-year old dollar values, the Beretta was top price for quality at $258 in nickel with wood grips when it came out.

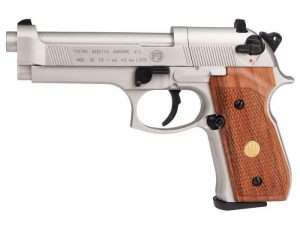

Going back almost 20 years when you look at the Umarex Beretta 92FS you see an all metal gun with a striking fit and finish that is still handcrafted in Germany. Price has its privileges even if the gun is outmoded by the M17 CO2 model. And for the most part everyone agrees the same goes for the 9mm P320 M17 vs. the Beretta 92FS M9 military guns.

At 2 pounds, 15 ounces, the 92FS air pistol remains a hand-filling gun that was scaled to the dimensions of the 9mm 92FS. Where Umarex cut the smallest corner was in not having the optional (for the 9mm model) white dot sights. For holstering, drawing, sighting and firing the first shot double action, the CO2 pistol delivered the accurate feel right up until you pulled the trigger. Then it was a soft report and no recoil. The slide didn’t move and the gun stayed solid in the hand like a single shot target pistol. It was all show and accuracy, and little more in terms of actually handling a centerfire Beretta 92FS. It was good enough for the time and despite all the technology that has followed, still good enough to remain one of the best selling multi-shot pellet pistols in the world almost 20 years later.

Time and technology will win out

That is not always a given. Simple solutions to operation for the 92FS were to locate the CO2 into the pistol grip (by removing the right side grip panel) and incorporate a built-in seating screw and piercing mechanism in the base of the grip frame. This system is still used on a number of much newer CO2 models, including the Sig Sauer P320, which, while it improved the operation, remained the same idea; two separate procedures for loading the pellets and CO2.

To use the word “groundbreaking” for the P320 M17 ASP is diminishing what the company achieved in three steps from the P226 ASP to P320 ASP to the M17 ASP. Here was almost everything blowback action air pistol enthusiasts had been begging for in a pellet-firing semi-auto. Almost, because even Sig Sauer couldn’t find a practical way to make a pellet-firing semiautomatic with a slide that could lock back on an empty magazine.

The breakthrough of incorporating the CO2 and the pellets into a single magazine was not a solution anyone had worked out until last year when Sig Sauer developed the P320 M17 CO2 model. This third solution to increasing pellet capacity from 8 to 16 and then to 20, had also achieved a means of creating a self-contained CO2 pellet magazine. Using a two-piece design, the M17 magazine holds a 20-round pellet clip and CO2 in one.

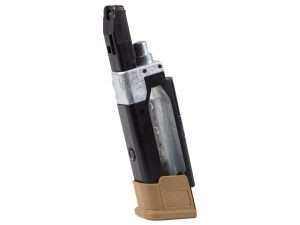

The evolution of the P320 ASP rotary pellet magazine from 2017 to the magazine portion of the 2018 M17 self-contained CO2 pellet magazine was about as fast as an idea can go from concept to production.

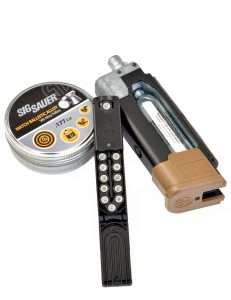

The pellet clip locks into the CO2 magazine (which loads the CO2 in one step) to form a self-contained magazine that allows reloading at the speed of a centerfire pistol. For BB guns, no big deal, for a pellet-firing pistol, the most totally innovative gun since the Umarex Walther CP-88 and Beretta 92FS.

And thus we arrive at the greatest total number of improvements from the first Beretta 92FS pellet model to the innovative Sig Sauer M17; a near 20-year journey. But, along the way, blowback action was also developed for pellet pistols like the Beretta PX4 Storm and the Sig Sauer P226 (and P250) designs. Essentially Sig rendered the 8+8 rotary stick magazine obsolete with the P320, but still with separate CO2 and pellets.

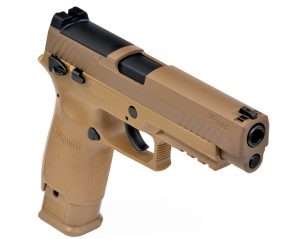

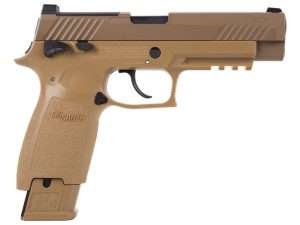

The M17 CO2 model almost duplicates the centerfire guns with some very minor exceptions. There is no serial number window in the frame (the serial number plate is on the fire control housing inside the frame), the trigger contour is slightly different, and of course, there are no molded-in warnings on the frame and the guns are not marked made in Japan.

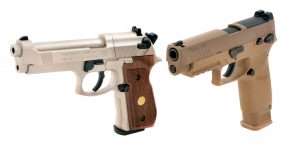

The M17 in turn makes the P320 obsolete in that same respect. We have before us the two ends of the design spectrum, the 92FS and the M17. The question that needs to be asked now is “will the M17 (like the Beretta 92FS pellet model) still be in production 20 years from now?”

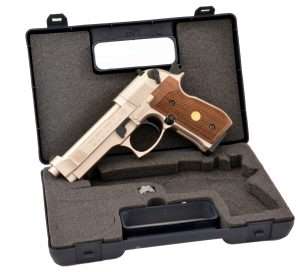

Another thing that time changed as prices for air pistols, pellet-firing air pistols in particular, came down was the level of packaging with the gun. Back in the day of the Umarex Beretta 92FS, a hard plastic, fitted Beretta carrying case, with two rotary magazines and a wrench to loosen the set screw and adjust the rear sight for windage, was standard practice.

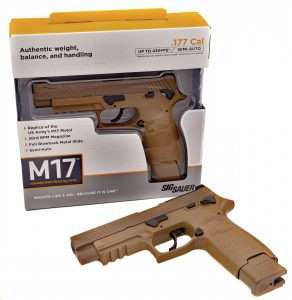

Today the Sig Sauer M17 ASP comes in a reusable package that serves to display the gun and allow for storage in a molded two-piece clear plastic liner. This is better than a blister pack by leaps and bounds. But for a retail price of only $139.99 you’re not getting a hard case equivalent to usual centerfire Sig Sauer cases. On the bright side, the M17 centerfire guns for the military come in a cardboard box.

In Part 2 we see if technology can create a gun that will outshoot an established design.
