Match Pistols – Detailing the Weihrauch HW 75

By Dennis Adler



One of the finest single stroke pneumatic 4.5mm air pistols you can own today, the Weihrauch HW 75 has been around for 17 years and before that as the Beeman P2 for a decade. The high quality walnut grips provide an ambidextrous hold for right or left-handed shooters with an easily activated ambidextrous manual safety.

Unlike the spring piston P1, the Beeman P2 and HW 75 are totally recoilless pneumatic designs, which makes the Weihrauch-built models ideal 10-meter Match Pistols. While the Beeman P2 has taken that long journey into the secondary market, the HW 75 has never left the building and remains one of the best, if not the best, single shot pneumatic target pistols on the market, and also one of the most expensive. Back in 2001 when the First Edition Blue Book of Airguns was published, the Beeman P2 had been in production for 10 years and the MSRP was $385. If you wanted the walnut Match Grips used on the Weihrauch HW 75 (introduced in 2000) it was an additional $70. The Weihrauch had an original MSRP of $495. So it was always more expensive than the P2.

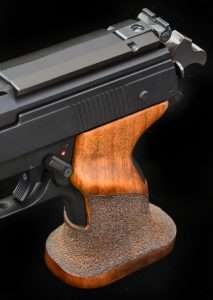

The grips provide a thumb rest on both sides and a full surround palm shelf for a secure hold whether fired in a classic one-hand shooting stance, or with a two-handed hold. The grip is a medium-large size that fits the average hand. The stippled finish on the lower portion of the grip aids in a secure hold and support of the hand as it rests on the palm shelf.

The Beeman P2 tried more closely to emulate the lines and grip profile of a Colt Model 1911 (albeit on a larger scale), whereas the Weihrauch HW 75 M (as it was then listed) had no such pretense, stepping up to its large competition grip design to provide shooters with an almost unrivaled hold on this 4.5mm model. The HW 75 M grip contours were similar to centerfire match pistols with flared grips and thumb rests. Many of today’s centerfire competition pistols have extended magazine wells with a similar contour to the base of the HW 75 (some integral to the grip frame, others attached around it), that provide a similar level of support for the shooting hand, as well as speed up reloading. Unfortunately there is no grip design that can speed up reloading a single shot pneumatic, but the Weihrauch’s grip soundly performs its job, whether from a classic one-handed target shooting stance, using a two-handed hold, left-handed or right.

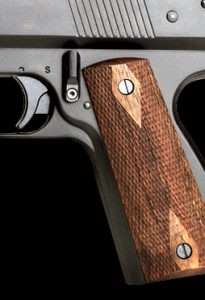

The Beeman P2, predecessor to the HW 75, used a traditional 1911 style wood grip like the Beeman P1 Magnum. Aside from the grips, the basic design of the P2 has been around for 27 years, either as a Beeman or Weihrauch model.

Full ambidextrous handling is another of the HW 75’s best characteristics, even the barrel assembly release is at the rear of the frame making it easy to use with either hand. The thumb safeties are also easy enough to operate with the shooting hand thumb, though some shooters will have to rotate the pistol just slightly to reach it with their thumb (if shooting one-handed, otherwise the support hand thumb does the job). However, as I discovered, since the safety is ambidextrous it is actually easier and faster to set and release with the trigger finger.

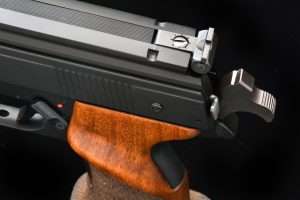

The HW 75 has an easily adjusted windage and elevation target rear sight with a wide square notch. As a hammer-fired pistol the HW 75 can be dry fired by simply cocking the hammer. There is no need to open the action to stage the trigger.

Back in 2001, in my Introduction for the First Edition Blue Book of Airguns I commented that “….there are more air pistols and air rifles manufactured for the adult market (and this includes a very strong youth market for education and competition training at the Olympic level), than at any time in the recorded history of airguns.” That statement not only remains true to this day but the number of airguns and their use for training at all levels, has multiplied every year since. The fact that the Weihrauch HW 75 still ranks among the finest single shot 4.5mm pneumatic air pistols you can own today truly underscores what a great job Dr. Robert Beeman and the Weihrauch engineering department did in 1991 with the P2 (the HW 75 M’s predecessor).

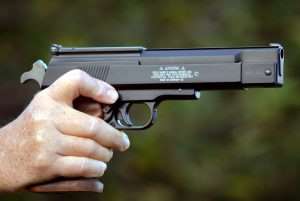

For some the safety may be too far forward to reach with the shooting hand thumb. I found it easier to use the shooting hand trigger finger since the gun has ambidextrous safeties. Here I am using my right hand trigger finger to release the right hand safety, which would normally be for left-handed shooters. The same applies to left-handed shooters who can use the left side safety with their trigger finger. A very well thought out design courtesy of Dr. Beeman and Weihrauch.

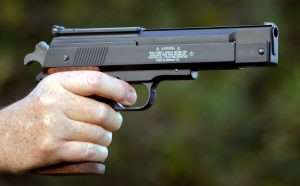

From safety release to trigger is a quick move for taking the shot.

Today’s Weihrauch HW 75

The HW 75 is not quite as big as a 10-meter pistol with an overall length of 11.0 inches (and 6.7 inch match grade rifled steel barrel), a height (base of grips to top of rear sight) of 6.125 inches, frame width of 1.125 inches, sight radius of 9.5 inches, and weight of 2 pounds, 6.5 ounces.

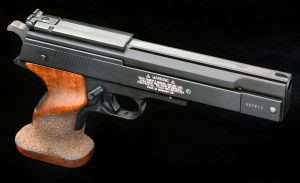

The full ambidextrous design of the HW 75 will be explored in Thursday’s 10-meter shooting test. Here the safety has been released and is shown in the FIRE (forward) position. The small hole in the triggerguard is to allow the hex-head wrench to pass through to the trigger adjustment screws. Also note that the top of the barrel assembly is fully grooved to reduce glare.

In Thursday’s conclusion of this series, the Weihrauch HW 75 hits the 10 meter firing line.

Special thanks to Steve Fjestad, Bluebook Publications and the Blue Book of Gun Values.
