Black Arts Design: Part One
by Ian McKee
Additive Manufacturing – Part 1
This report covers:
- Black Arts Design
- No compromise in quality
- Accountability
- How things are made
- Keeping things close to home
- Summary
Today we are going to look at one of the vendors that provides airgun parts and accessories to Pyramyd AIR for us — the airgunners of the world. I will give you a little background of the company and in subsequent reports go into more detail about some of the products they produce. We will even peek into how some of those products are made.
Black Arts Design
David Bleakley started 3D printing in 2017 and used it as a prototyping medium for composite materials. Before starting his company Black Arts Design, he was a composites technician in the aerospace industry.
No compromise in quality
Many of his parts are made with FDM (Fused Deposition Modeling) 3D printing. He does everything possible in-house in order to maintain absolute control of the quality and tolerances. If something is out of spec he can identify and correct it. And if there is ever a problem, he can back trace to where it originated.
Accountability
All of his products are printed, assembled, and inspected for quality control by his hands only. He takes great pride and care in every part he makes and sells.
In his own words, “If a customer is spending their money on my products, I owe it to them to provide the best I can. This is why my slogan is ‘There’s no such thing as good enough’.”
‘It isn’t meant to be a catchphrase. My slogan is there to hold me accountable for doing the best I’m capable of and to never settle for good enough.’
How things are made
He uses a Carbon Fiber Filled PETG (Polyethylene terephthalate glycol) for rigid parts like barrel bands, magazine closures, grip adapters and scope side wheels. The combination of the PETG and carbon fiber greatly increases the strength of the material, while keeping it lightweight. The rubberized parts that are used in some of the accessories are printed with TPU (ThermoPlastic Polyurethane).
When he started printing commercially, he tested over 40 different filaments before settling on the type and brand he found to be the best for the job at hand. Every material he uses in his shop, 3D print filament, adhesives, and the carbon fiber used in his new tri-rail adapter must have a TDS (technical data sheet) provided by the manufacturer.
A TDS signifies the material has been sent out for standardized testing by a 3rd party and allows him to contrast and compare mechanical properties. It also helps to ensure consistency of the material from batch to batch.
The filament he uses is not cheap, it is quite expensive compared to other brands. But unlike many other carbon-filled filaments he knows how much carbon fiber is in the material and even the length of the fibers and the mechanical properties of the material.

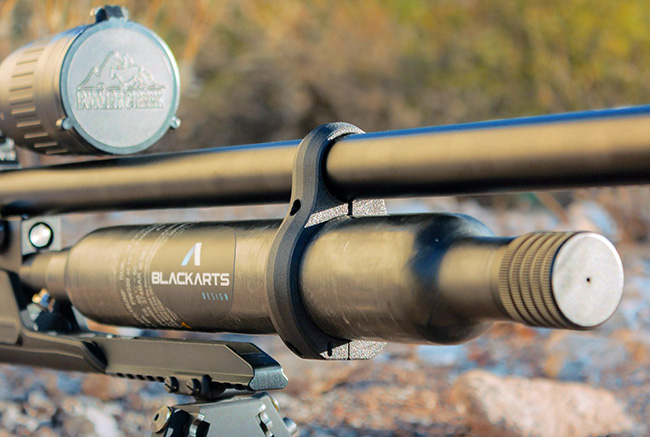

This barrel band is one of many Black Arts products for the Air Venturi line of airguns.
From its flexural modulus (a material’s stiffness and resistance to bending) to its glass transition temperatures (a reversible change in the state of an amorphous material from a hard, brittle “glassy” state to a more flexible, rubbery state as the temperature increases).
Note: (I had to look up the definitions of those terms to include them here.) [BB’s note: I checked too and he got them right.]
He tested 6 different adhesives for use with the magnetic closures before settling on the final one. The parts being bonded, the magnets and the 3D printed items are treated using the same processes used in aerospace assemblies.
Proper bond prep, solvent clean, abrade, solvent clean again, and bond. All his work is done with gloved hands. It isn’t complex but it takes time. This level of effort is why he has never had a magnet come out of one of his parts. The part would have to be broken apart to remove the magnets.
Keeping things close to home
The machined metal parts that he sells are machined in the USA from 6061-T6 aluminum. He works hard to do as much business with companies in his home town of Tucson AZ. That allows him to work closely with the machinist and anodizing company to maintain better quality control during the manufacturing process.

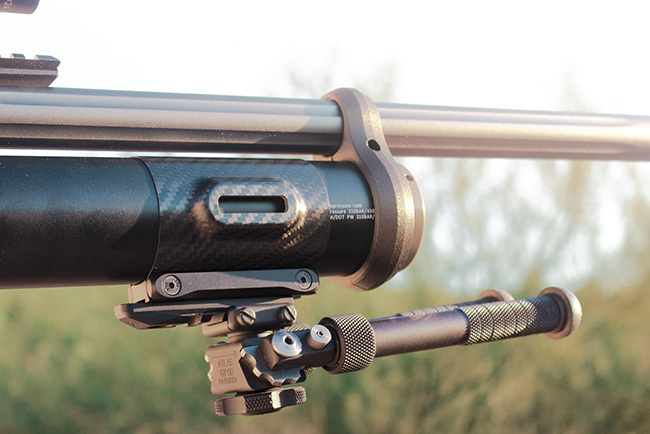

A 52mm tri-rail made from actual carbon fiber and aluminum, complete with M-lok slots.
Black Arts Design also makes parallax adjustment wheels that fit several different scopes. Also an extensive line of other accessories including grip adapters, barrel bands, gauge protectors for Air Venturi, RAW and other popular brands of air rifles.

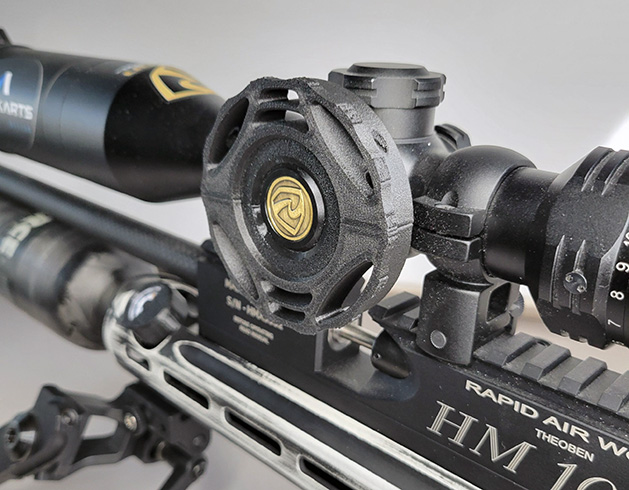

One of the parallax adjustment side wheels.
Summary
David is very passionate about what he does, and brings the same level of thoroughness, and dedication to precision of the parts and accessories for the airgun community.
In a future report we will delve deeper into some of the individual products he produces.
Shoot safe, have FUN!
Ian
