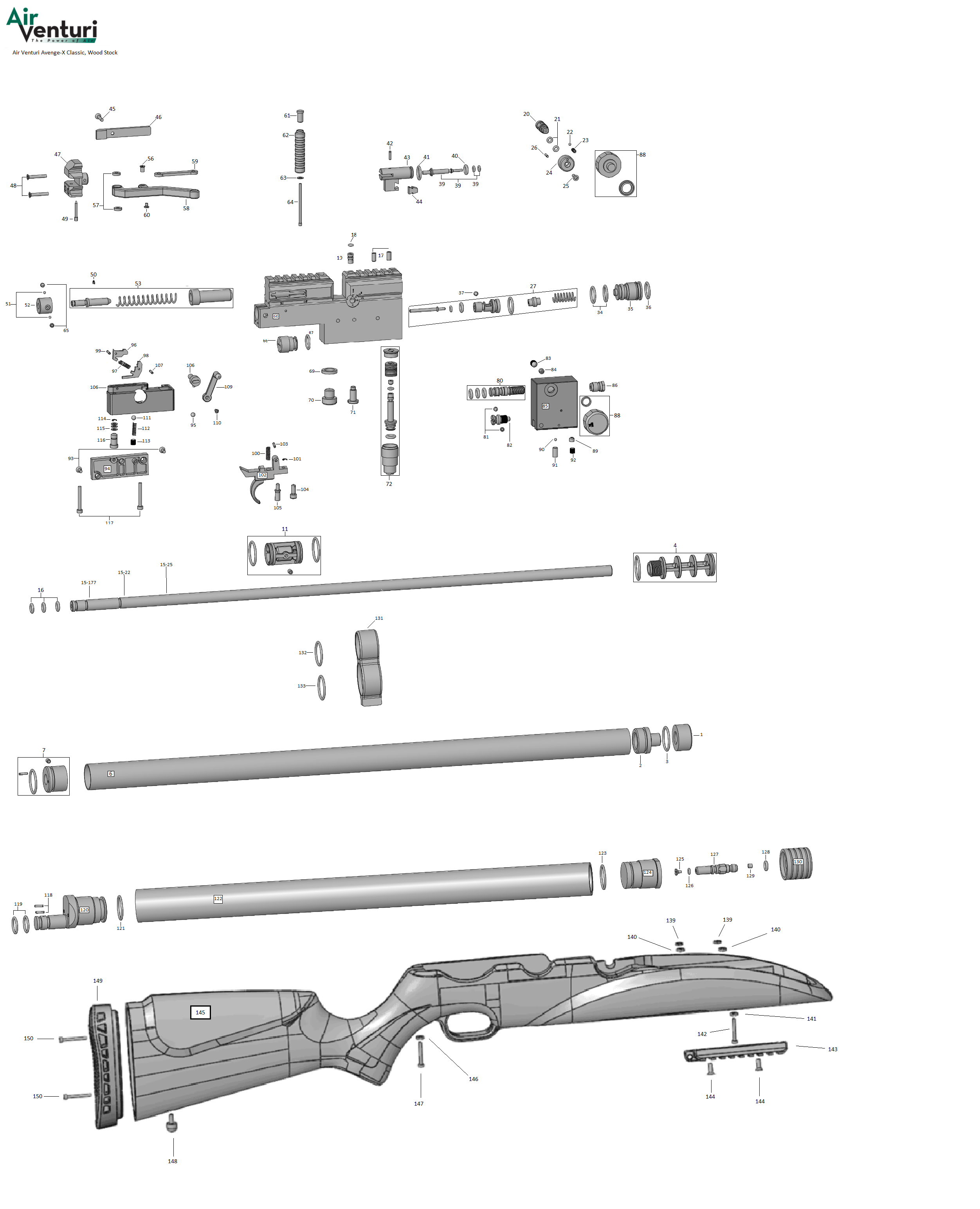

Product Schematics for Air Venturi Avenge-X Classic, Wood Stock
Click a Air Venturi Avenge-X Classic, Wood Stock part number to check availability and price
Available Parts
Click to select part(s)
- AVENGX AS/AT/AW Connecting Seat
- Avenge-X Air Reservoir Plug 1
- Avenge-X BT 2x5mm O-Ring, 90
- Avenge-X 1.5x9mm Pellet Probe Rear O-Ring, 70°
- Avenge-X 1.8X2.4mm O-Ring, 90°
- Avenge-X 2.38 Bearing
- Avenge-X 2x12mm O-Ring, 90°
- Avenge-X 2x20 O-Ring
- Avenge-X 4 Steel Bearing
- Avenge-X Air Release Plug
- Avenge-X Air Reservoir Plug 1 O-Ring
- Avenge-X Air Reservoir Plug 2 O-Ring
- Avenge-X Air Reservoir Plug 3
- Avenge-X Air Reservoir Plug 3 O-Ring
- Avenge-X AS/AT/AW/AAW 3x14 Pin
- Avenge-X AS/AT/AW/AAW M6X16 Cone Point Allen Screw
- Avenge-X AS/AT/AW/AAW Release Washer
- Avenge-X AS/AW/BS/BW M4 Stock Screw
- Avenge-X AS/AW/BS/BW Rear Stock Screw
- Avenge-X AS/BS/BW Front Rail Screw
- Avenge-X AW/AAW/BW/BBW Butt Pad Screw, M5x30
- Avenge-X AW/AAW/BW/BBW M5 Stock Washer
- Avenge-X AW/BW M4 Washer - Stock
- Avenge-X AW/BW Swivel Stud
- Avenge-X Axle
- Avenge-X Barrel Band O-Ring, 1.5x34mm
- Avenge-X Barrel Band O-Ring, 2x27mm
- Avenge-X Barrel O-Ring
- Avenge-X Barrel Screw
- Avenge-X Barrel Set Screw
- Avenge-X BW Front Stock Screw
- Avenge-X Cocking Handle Screw
- Avenge-X Cocking Lever Front Plug
- Avenge-X Cocking Lever Handle
- Avenge-X Cocking Lever Handle Washer
- Avenge-X Cocking Lever Linkage
- Avenge-X Cocking Lever Rear Pin
- Avenge-X Cocking Lever Rear Screw
- Avenge-X Cocking Lever Side Cover
- Avenge-X Cocking Lever Side Cover Screw
- Avenge-X Cocking Lever Washer
- Avenge-X End Bracket Pin
- Avenge-X End Bracket Screw
- Avenge-X Filter Element
- Avenge-X Fixed Axis
- Avenge-X Hammer Spring Bracket
- Avenge-X Hammer Spring Bracket Clamp Spring
- Avenge-X Long Air Tank O-Ring, 2x10mm, 90°
- Avenge-X Long Air Tank O-Ring, 3.53x20.22mm 90°
- Avenge-X M3x25 Screw
- Avenge-X M3x4 Socket Cap Screw
- Avenge-X M3x8 Screw
- Avenge-X M4x6 Cone Point Allen Screw
- Avenge-X M5x6 Flat Point Screw
- Avenge-X M5x6 Screw
- Avenge-X M6X8 Cone Point Allen Screw
- Avenge-X Non-Return Valve Screw
- Avenge-X Pellet Probe Butterfly Spring
- Avenge-X Pellet Probe Seat
- Avenge-X Pellet Probe Seat Insert
- Avenge-X Pellet Probe Seat Pin
- Avenge-X Power Adjustment Axle O-Ring, 2x5, 70°
- Avenge-X Power Adjustment Knob
- Avenge-X Power Adjustment Pin
- Avenge-X Power Adjustment Screw
- Avenge-X Power Adjustment Valve Bearing
- Avenge-X Power Adjustment Valve Spring, NON-BULLPUP
- Avenge-X Regulator Screw
- Avenge-X Shroud End Cap
- Avenge-X Shroud Front Connector Cap
- Avenge-X Shroud Rear Connector Kit
- Avenge-X Baffle Kit
- Avenge-X Front Barrel Support Kit
- Avenge-X 6K Safety Valve
- Avenge-X Air Reservoir Plug 2
- Avenge-X AS/AT/AW Barrel Band
- Avenge-X AW/AAW/BW/BBW Butt Pad
- Avenge-X End Bracket
- Avenge-X Fill Probe
- Avenge-X Left Bracket Cover
- Avenge-X Long Tank Fill Cap Cover
- Avenge-X Long Tank Front Plug
- Avenge-X Power Adjustment Axle
- Avenge-X Right Bracket Cover
- Air Venturi Avenge-X Firing Valve Kit
- Avenge-X .177 Pellet Probe
- Avenge-X .22 Pellet Probe
- Avenge-X Hammer Kit
- Avenge-X .25 Pellet Probe
- Avenge-X Cocking Lever
- Avenge-X Long Tank Rear Plug
- Avenge-X Shroud
- Avenge-X Gauge Kit
- Avenge-X AS/AW/BS/BW Picatinny Rail
- Avenge-X Complete Regulator
- Avenge-X .177 Barrel
- Avenge-X .22 Barrel
- Avenge-X .25 Barrel
- Avenge-X Long Tank
- Avenge-X BW Stock
