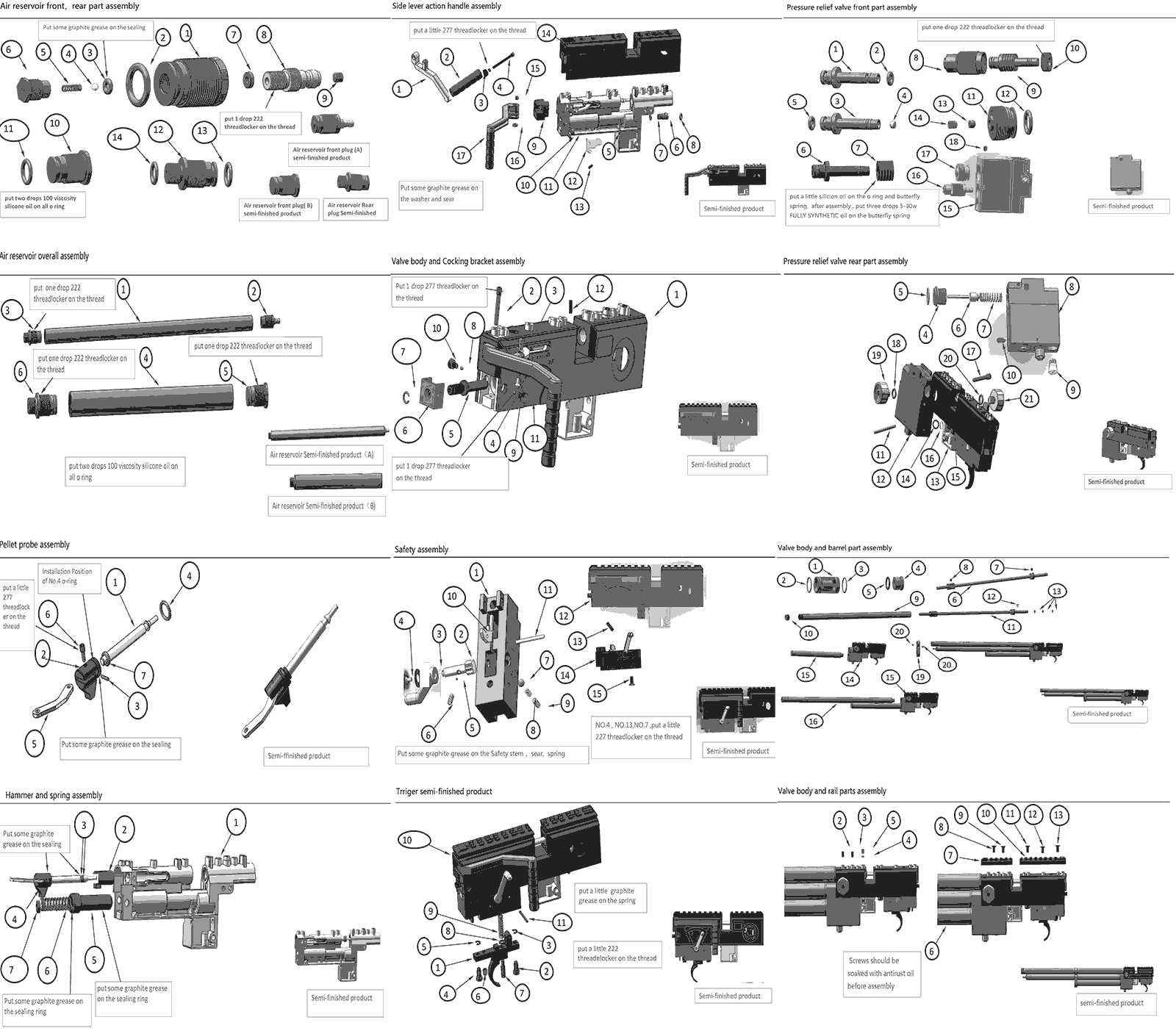

Product Schematics for Air Venturi Avenger, Regulated PCP Air Rifle
Click a
Air Venturi Avenger, Regulated PCP Air Rifle
part number to check availability and price

Available Parts
Click to select part(s)
- Air Venturi Avenger Bolt Probe O-Ring, .25
- Air Reservoir Front Plug A
- Air Venturi Avenger 3MM x 13MM O-Ring
- M5X14 Flat Head Allen Screw
- Connecting Rod Washer
- PS-R Fill Probe
- Air Reservoir Front Plug B
- Air Venturi Avenger Air Tube, 140cc
- Air Venturi Avenger Air Reservoir, 40cc
- Side Lever Action Connecting Rod
- Side Lever Action Connecting Rod Front Pin
- 2.5MM X 10MM O-Ring 70
- Bearing - Steel Ball
- Air Reservoir Front Plug Check Valve Spring
- PS-R Check Valve Screw
- Filter Element
- .177 Pellet Probe
- .22 Pellet Probe
- .25 Pellet Probe
- 2.5MM x 9MM, 70
- Side Lever Action Pull Rod
- Side Lever Action Handle
- Standard spring washer M4
- M4X45 Round Head Allen Screw
- Side Lever Action Pull Rod Rear Screw
- Flat Head Philips Screw
- Air Venturi Avenger Regulator
- Air Venturi Avenger Barrel, .177 cal
- Air Venturi Avenger Barrel, .22 cal
- Air Venturi Avenger Barrel, .25 cal
- Air Venturi Avenger Shroud Ring
- 1MM x 2MM O-Ring, 90
- Short Rail
- M3X6 - Flat Head Allen Screw
- Long Rail
- Front Support Sleeve
- Rear stock
- PS-R Air Reservoir Rear Plug
- .177 Pellet Probe Cap
- .22 Pellet Probe Cap
- .25 Pellet Probe Cap
- Air Venturi Avenger Bolt Probe O-Ring, .177
- Air Venturi Avenger Bolt Probe O-Ring, .22
- Cocking Bracket Pin
- Shroud Barrel Rear Support Sleeve
- M4X6 Cone Point Allen Screw
- Seneca Aspen Barrel Shroud
- M4X8 Cone Point Allen Screw
- M5X8 Cone Point Allen Screw
- Rubber
- M5X40 - Flat Head Allen Screw
- Cover
- Hammer Spring Adjustment Screw
- Hammer Spring Adjustment Screw
- Pressure Relief Valve Body Semi-Finished
- Air Venturi Avenger Seal Kit, .177 Caliber
- Air Venturi Avenger Seal Kit, .22 Caliber
- PS Zinc Alloy Valve Body
- Air Venturi Avenger Seal Kit, .25 Caliber
- Hammer
- Air Venturi Avenger Gauge Kit
- Air Venturi Avenger Hammer Spring .177 Caliber
- Air Venturi Avenger Hammer Spring .22 Caliber
- Air Venturi Avenger Replacement Burst Disk
- Hammer Spring Washer (.25)
- Valve Body Pin - Horizontal
- M6X6 - Cone Point Allen Screw
