Bullseye ZR 1-Pc Mount, 30mm Rings, 11mm Dovetail, 0.04" Droop Compensation, Recoil Compensation

Bullseye ZR 1-Pc Mount, 30mm Rings, 11mm Dovetail, 0.04" Droop Compensation, Recoil Compensation

Roll over image to zoom in

Share your images

PY-A-5497

1-year limited warranty

$59.99

List Price $79.99 Save $20.00 (25%)

Pre-order

Out of Stock

Click to get email when it's in stock!

Estimate Shipping

Estimated in-stock date 08-04-17
Place your order now for delivery priority!

Earn 60 Bullseye Bucks

Add to Compare
Add to Wish list

  • Description
  • Customer reviews
  • Q & A: 4 answered questions

This product is out of stock.
Estimated in-stock date 08-04-2017.
Place your order now for delivery priority!

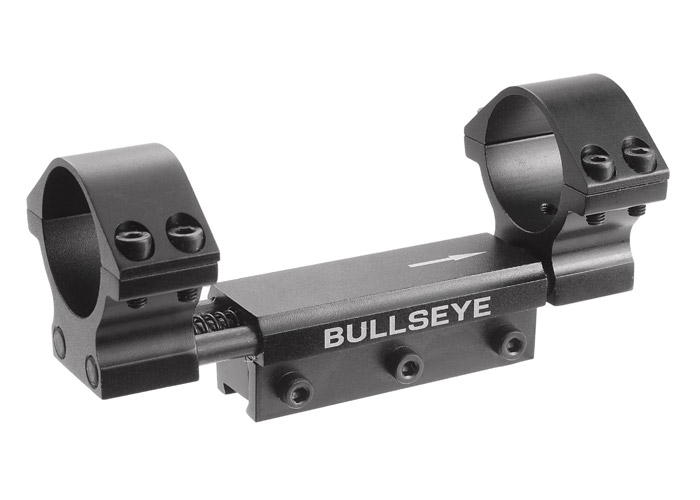

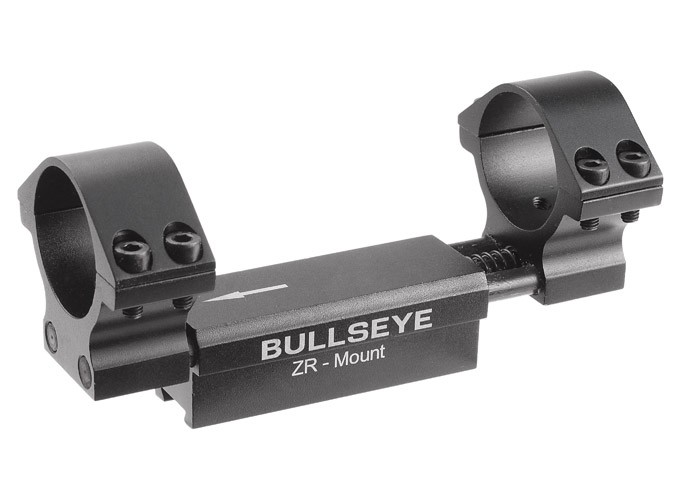

Diana Bullseye ZR (zero recoil) mount

  • Fits 11mm dovetail
  • 30mm rings
  • 4.75" Long
  • 4 hex screws per ring secure optics
  • 3 hex screws fasten the base
  • 0.04" droop compensation (approximately 1mm)
  • 100% recoil compensation
  • Vertical scope stop pin

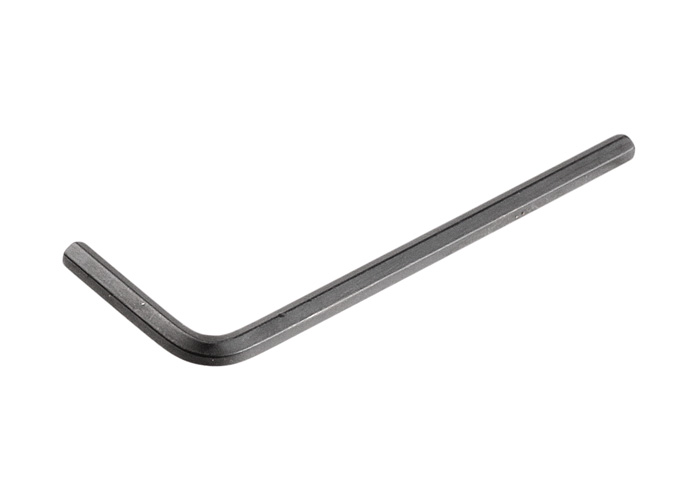

  • Includes hex wrench


Your Diana Bullseye ZR mount is quite rigid and has significant holding power, so the manufacturer says you'll get 100% recoil compensation and can safely mount budget scopes on high-power air rifles. Finally, your scopes won't have to cost more than your rifles!

Don't forget the benefits of the ZR mount's built-in droop compensation (0.04"/1.016mm). With that feature, you won't have to use shims for those guns that have some droop. Each mount is 4.75" long.



Item Code: DIA-41200410 [PY-A-5497]
youTube video

other products by Diana

Create an online review and share your thoughts with other customers

1.0 1.0

1.0 1.0

By Winfred from USA on 2017-03-13
See all my reviews
Was this review helpful?
0.00 ratings

Verified Purchase

Things I liked: Not sure yet, bad low rating explained below.

Things I would have changed: This mount has problems. It is all related to the front scope ring. When you mount the scope and with ordinary and no excessive torque tighten the scope rings the front ring as it is tightened binds the whole assembly by butting stress on the spring rail pins and the assembly locks up and will not freely slide. So you have to very lightly secure the front rings. I have seen this complaint about this mount by others, and have now experienced it myself.

What others should know: I was having trouble keeping a scope on a Diana 350 Panther Magnum. Even the six screw BKL or BLK mount kept walking off the back of the gun. This one stays put, seems to be accurate, and I guess time will tell if the lightly secured front ring screws vibrate out and fall out. I am getting very, very, very tired of air gun products lately. Seems many of them have problems in some way or the other. Problems we are left to resolve on our own. This is not the only product I have had trouble with lately. In any event the metal casting for this one needs to be beefed up, the alloy changed or something to make it withstand the normal torque we dummies use with intelligence such as using only the short side of the allen key and using only your hand to secure the screws. I did that and then had to loosen the screws about 1/4 turn to allow the mount mechanism to slide.

5.0 5.0

5.0 5.0

By Winfred from USA on 2017-03-08
See all my reviews
Was this review helpful?
0.00 ratings

Verified Purchase

Things I liked: It is a long story, but yes I like it a lot.

Things I would have changed: The mount could stand some improvement as when you mount the scope and tighten the rings, the FRONT ring will bind the slide bars to the point it will not move. You can secure the rear ring like normal, but the front ring has to be left a bit not as tight or it will seize up the entire assembly. So they need to beef up the metal around the ring areas so normal(not excessive torque) doe not seize up the whole assembly. So far so good, scope has not moved away from my pencil marks in 200 shots. I think it will hold.

What others should know: This is mounted on a Diana 350 Panther Magnum. Only thing that will not walk backwards. I tried the BKL six screw mount and it would just walk backwards no matter how tight you tightened the fasteners. So it was either a scope stop behind the BKL or another solution, and this works very well on the 350 magnum. Simply put, I have as much invested in mounts for this gun as the price of the gun and this is the only mount that holds. I am sure the Leapers one piece mount with stop pin would work also, whatever you put on this Magnum it has to have a stop pin, as not even the famous BKL will hold. So if you purchase a magnum this is an excellent mount for that situation.

3.0 3.0

2.0 2.0

By LARRY from USA on 2017-01-28
See all my reviews
Was this review helpful?
0.00 ratings

Verified Purchase

Things I liked: this mount works well on one out of three guns that I have tried it on. The problem is the built in droop correction makes it impossible for me to use it on my AA Pro Sport or my Walther LGV. Evidently my TX 200 has some droop and I can use it. I get very good accuracy with it. It goes back in to register very accurately for each shot and is very solidly built. I wish they had a zero droop compensation version. I Could use the Weaver version and use a UTG droop base in reverse to cancel out the droop compensation but that would result in an excessively high scope.

Things I would have changed: offer a version that is not droop compensated.

What others should know: you cannot shim this mount. It will lock the slide.

Show Other ReviewsCreate an online review and share your thoughts with other customers

  • Nurzilya from Russia asked:

    Hi! I'm from Russia.Can I order from U this devise? Is free delivery to Russia? Thanks!

    • Tyler from USA:

      They should be able to ship the mount to Russia. Shipping is not free.

  • Sim from USA asked:

    So, could this be mounted backwards on a PCP I wonder? PCP doesn't have the dynamic forward force followed by rear recoil (forward movement coupled with recoil is what really kills scopes on springers) I just think it's cool and a great idea, but really $100 could be difference from a springer AirGun scope, to a really high end Nikon or Leupold

    • Tyler from USA:

      Sure. You could mount it however you like on a PCP so long as the gun has an 11mm dovetail

  • Sal from USA asked:

    Whats the difference? DIA-2169103 [Bullseye ZR 1-Pc Mount, 30mm...] Which one will fit a 42mm scope? Is there Medium or High profile.

    • Tyler from USA:

      This mount is for 11mm dovetails. The one you linked is for weaver rails. They will both fit a 42mm objective lens scope.

See all discussions
