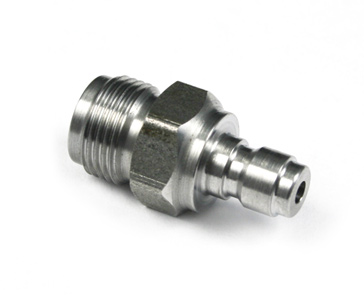

Installation instructions: THERE IS NO NEED TO RELEASE THE AIR PRESSURE FROM THE RESERVOIR. To start the old fill port turning, insert the round shaft of a punch or screwdriver into the fill port hole and turn the port counterclockwise. Once the port loosens, you can take it off by hand the rest of the way. After you've unscrewed your old fill port from the end of your tank, place the new o-ring in the female thread on the gun and thread in this quick-disconnect fitting. Tighten well to seal the connection. No need to depressurize the tank because the tank has a check valve.
other products by Air Venturi
Things I liked: Metal Durable
Things I would have changed: The picture..the one in got is shorter tappered and has a skinny o ring.
What others should know: The one i received had a tappered end and the o ring was way skinner than shown it has the same threads as the original that comes on the Sumatra 2500 but is almost half a inch shorter this added with the skinny oring made it so that I was un able to fill my rifle. PA is mailing me replacement though.
Things I liked: This item was received in a timely manner and in it self is a well made part. It installed easily and works well with a standard Parker Female coupling, However the Air Venturi Inline pressure Gauge, 0 to 4500 psi would Pop off at 2300 psi and I would Not recommend using that combination of parts
Things I would have changed: Nothing
What others should know: Do Not use the Air Venturi Inline Pressure Gauge, 0 to 4500 psi item no.(AV-00031) with this part. the Coupling Pops off at 2300 psi and permanently Damages the Coupling Sleeve
Things I liked: Easy installation on the Sam Yang 909.
Things I would have changed: A threaded cap would be a nice addition. I am not sure how long the rubber cap will stay on while hunting or doing field work.
What others should know: Pyramid Air is a top notch company to do business with, all of the people that I have talked with over the phone have been most polite and very helpful.
Will this fitting fit the Hill MK4 hand pump air-output to use it with a Foster QD micro-bore hose fror quick attach/detach storage/portability?
Dose installing this void the rifles warranty ?
yes, installing it yourself would void the warranty
According to Pyramyd Air, no.
Can i use airforce hand pump with this?
