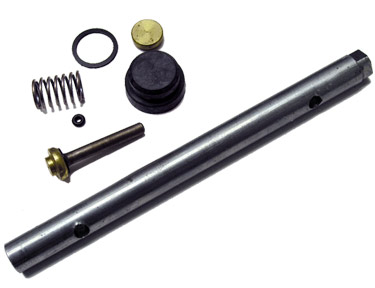

Benjamin & Sheridan Repair Kit, Fits Some Pre-1995 Multi-Pump Guns w/Soldered Valve

Benjamin & Sheridan Repair Kit, Fits Some Pre-1995 Multi-Pump Guns w/Soldered Valve

Roll over image to zoom in

See 5 customer imagesShare your images

PY-A-624

1-year limited warranty

$27.95

List Price $39.95 Save $12.00 (30%)

Add to Cart

In-stock

Estimate Shipping

Earn 28 Bullseye Bucks

Add to Compare
Add to Wish list

  • Description
  • Customer reviews
  • Q & A: 9 answered questions
Repair kit fits these multi-pump guns made before 1995 (they have a soldered valve): Benjamin 397, 392, 340, 342 & 347 guns as well as Sheridan C9 (Silver Streak) & CB9 (Blue Streak). To determine if this kit is for you:
  • Remove the screw in front of triggerguard to remove rear part of the stock
  • Remove the pins or screws that hold the retention cap at the rear of the receiver
  • Remove the guide pin, spring & hammer to reveal the compression tube
  • If the compression tube appears to be brass & is one piece with a pin protruding from it, you'll need the other kit (CR/RepairKitC9) instead of this one
  • If your gun has a rounded square hole with a valve stem sticking up through it, then the kit shown on this page will fit your gun. The included valve tool (pictured on this page) is needed to remove the parts from the soldered valve body (directions included with kit).

This kit includes parts that are still available from Crosman and may require slight modification. If your gun is very old and has been treated with any petroleum distillates and/or solvents that damage rubber seals, the removal of the old parts can be challenging. The obsolete gasket that seals the valve guide to the compression tube can normally be reused. If you used petroleum products, it may be irreparably damaged and will need to be replaced by a thin o-ring.

If you need assistance, contact our technicians at 888-262-4867, ext. 244.

In stock


Item Code: CR/RepairKit [PY-A-624]
See manual
See full schematics for:

other products by Crosman > Benjamin

Create an online review and share your thoughts with other customers

3.0 3.0

5.0 5.0

By Alejandro from USA on 2017-01-24
See all my reviews
Was this review helpful?
0.00 ratings

Verified Purchase

Things I liked: Well, the kit is excellent, the parts are the correct ones (despite the change in materials in some of them)

Things I would have changed: My rifle is a 1973 Benjamin T342, and the piston cap included didn't fit, i send a inquiry but haven't had a response yet

What others should know: If you are looking for a repair/rebuild/disassembly kit for a Benjamin.. this is it, the tool alone is a must if you want to disassembly the rifle, the valve and the coil are brand new

5.0 5.0

5.0 5.0

By Cameron from USA on 2017-01-24
See all my reviews
Was this review helpful?
0.00 ratings

Things I liked: Took me a while to figure it all out. Taking it all apart was quite a challenge. Luckily I had all the tools, including a bench vice to assist. All the parts were correct. Directions were pretty good, but had to use some common sense. Had a few questions, called, Stacey was very polite and helpful. Put it back together, "IT DID NOT WORK"! Thought about it for a few days, took it apart again, reset everything, added a small rubber seal I was not sure about, "NOW IT WORKS LIKE "NEW"! Now I can go back to 'shootin them squirrels' for another 25 years, thanks Pyramyd Air!

Things I would have changed: 1.Crisper exploded view (although I assume that is all they have.) Go the the website and download their .pdf and zoom in and print it. 2. Add a warning that this is no job for someone with little skill or short on tools. 3. Include a small tube of lubricant for the rubber parts. (Sure charge for it, but useful). 4. Have a tech to a short take-apart video, that would be extremely helpful.

5.0 5.0

5.0 5.0

By Paul from USA on 2016-12-12
See all my reviews
Was this review helpful?
0.00 ratings

Verified Purchase

Things I liked: Glad that the rebuild kit is available with the wrench. Good tip on wrapping duct tape around the wrench when reassembling the parts. Gun works fine now. Good set of instructions included with parts. Great help from customer service with my questions.

Things I would have changed: Had a question on which way one of the parts went in, not addressed in the instructions. Found out that it doesn't matter.

Show Other ReviewsCreate an online review and share your thoughts with other customers

  • Bob from USA asked:

    Where is the serial # on a C Series Sheridan?

    • Bob from USA asked:

      Will this product work with a C Series Sheridan?

      • damon from USA asked:

        i have no idea what the retention cap or reciever is. i have a old sheridan c-series i got from a family friend; however, it will no longer hold any pressure. i think it ius beccuse the valve has warped because he left it sitting for almost 15 years. can someone please let me know thier opinion and what the retention cap looks like. thank you
