Black Bunker BM8 survival air rifle.
This report covers:
- The breech and transfer port
- Breech and muzzle covers
- Cocking is strange
- Is the assembly switch plastic?
- Threaded muzzle
- The purse
- Rear sight
- That’s it
I’m doing something different today. I usually space the reports out so people don’t get bored, but there is so much interest — both good and bad — in the Black Bunker BM8 survival air rifle that I’m running the rest of the introduction today. I will start right away.
The breech and transfer port
Reader shootski asked to see the breech and air transfer port. Here you go.

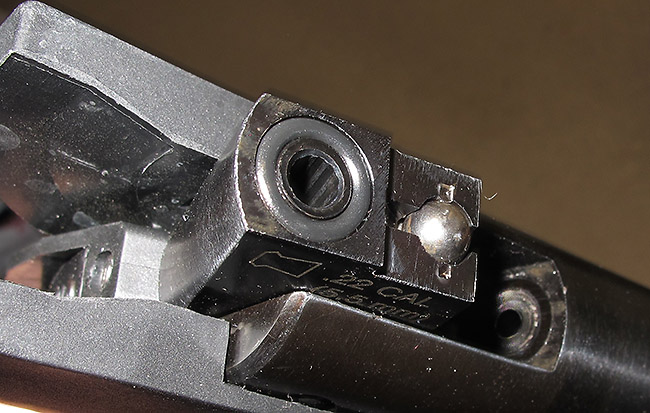

There is the breech and the transfer port.
Breech and muzzle covers
Another new and different thing are the rubber covers for the breech and muzzle. Since they are exposed when the rifle is in the stowed configuration, they are necessary. They are at opposite ends of an elastic string, much like scope caps.
The BM8 Breech cover is for when the rifle is in the stowed configuration.
And there’s the muzzle cover.
There is no cover for the transfer port and I think there should be. It is also constantly exposed when the rifle is in the stowed configuration.
Cocking is strange
Naturally I have cocked and fired the rifle several times and I must say — the cocking stroke is very strange. The barrel doesn’t break open before cocking. It just moves halfway. The muzzle moves an inch — perhaps, and the barrel is still under spring tension. So you grab the muzzle and pull down without bothering to open the breech. Because there is a gas spring the resistance is constant all the way through the cocking stroke. I will measure the effort for you in the velocity report.
The barrel moves a little past 90 degrees when the rifle is fully cocked. I took a picture for you to see.
When the BM8 is cocked the barrel only goes a little past 90 degrees.
Naturally I loaded and shot the rifle after cocking it. The safety comes on automatically, so there is no de-cocking. The single stage trigger is long and creepy, but very light. And after 10 shots so far I have no idea where the rifle lets off.
Is the assembly switch plastic?
Someone somewhere asked if the assembly/disassembly switch (the round one that goes from Locked to Unlocked on the left side of the rifle) is plastic. Yes, it is. Will it hold up to use? Probably — about as long as the control knobs on your kitchen range.
Threaded muzzle
I noticed that the round cap on the muzzle has two flats on opposing sides. A Cresent wrench took it off to reveal threads. Now I doubt a spring-piston rifle can be helped that much by a silencer, but it’s something more to test. It’s also a reason to own the bayonet/knife because I see a cutout in the blade that looks like several wrenches. I bet one is the right size for the muzzle cap.
The muzzle cap has flats for a wrench.

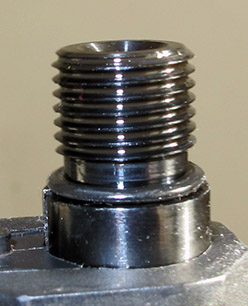

Threads for a silencer.
The purse
Okay, wise guys, there is a purse that sits inside the triangle. I hear that the knife is stored inside, but also pellets? Other survival tools and supplies?
The purse is closed.
Purse opened.
Rear sight
Even the rear sight is different. It adjusts in both directions and offers a strange sight picture.
Rear sight adjusts in both directions.
The sight picture is a little strange. Obviously the front sight needs to come down.
That’s it
Well — it took two full reports just to introduce the BM8 rifle. I have never seen so many curious things in a single airgun! This will be a fun gun to test.
From what I see it’s obvious someone gave a lot of thought to the design of this air rifle. I’m not even certain I have found all the strange things yet.
About half of you are intrigued by the BM8 while the other half are totally turned off. I was in the latter camp before actually holding one and examining it in detail. I have a few questions — the chief of which is how accurate this rifle is with the open sights. If it’s a survival rifle that’s how it has to be tested
