Umarex Komplete air rifle.
This report covers:
- JTS Dead Center 18.1-grain domes
- Why?
- Adjusted the scope
- JSB Hades
- Air Arms 16-grain dome
- What I suspect
- What’s next?
- Summary
Today we finish the 21-yard / 19.2 meter accuracy test of the Umarex Komplete rifle running on nitrogen. Because this is the second part of what we started on Wednesday, I won’t be repeating all the introductory stuff. Read Part 4 if you want clarification. Let’s get right to the additional accuracy tests.
JTS Dead Center 18.1-grain domes
The second most accurate pellet from Part 3 was the JTS Dead Center 18.1-grain dome. Today I shot 10 at 21 yards and a very strange thing happened. All the shots went low and left—WAY left! In fact it took me several minutes to even find the first pellet hole.

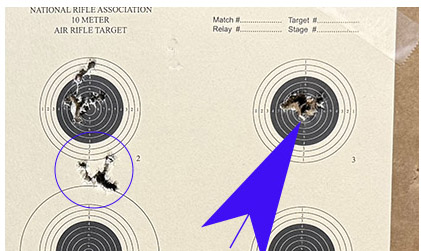

See the group in the circle? The aim point for that group was the center of the bull the arrow is indicating. The group in that bull hadn’t been shot at this time.
The Komplete put ten 18.1-grain JTS Dead Center domes into a 0.675-inch / 17.145 mm group at 21 yards.
Why?
Why did the impact point of the pellet move so far with this pellet? There could be a couple reasons—two of them are pretty obvious. One, I could have bumped the scope after shooting the last group. Two, the pellet could have hit the side of one or more of the baffles.
I did not remember bumping the scope at any time since I just shot the first group, so I looked inside the muzzle and saw a couple shiny spots of shaved lead. I think that’s the cause. That means that the group size of 0.675-inches / 17.145 mm is not correct because one or more pellets were thrown wide by hitting the baffle. Maybe all of them hit, because why else would they move so far from the aim point and yet all be so close togerther?
I will note that this pellet did load into the breech much harder than the other pellets shot in today’s test. I remember that from the Part 3 test as well.

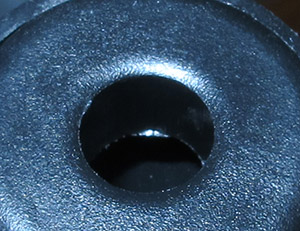

There is a spot of shaved lead at the muzzle and also one on a baffle deeper inside that I can’t photograph.
Seeing this condition also throws doubt on the groups that follow, though they aren’t that bad. But I will press on and complete the report.
Adjusted the scope
I did adjust the scope after seeing this new impact point. I hadn’t examined the rifle yet and thought the scope had been bumped during the NitroAir cartridge swap (mentioned at the end of Part 4).
JSB Hades
Next to be tested was the JSB Hades hollowpoint. Ten made a 0.649-inch / 16.49 mm group at 21 yards. It’s not a horrible group, but given what we now know about the baffles it may not represent the best the Komplete can do.
Ten Hades pellets made a 0.649-inch group at 21 yards.
Air Arms 16-grain dome
The last 21-yard target was shot with the 16-grain Air Arms dome. Ten pellets went into a group measuring 0.402-inches / 10.21 mm between centers. That is so close to the Falcon group in Part 4 (0.4-inches / 10.16 mm) that they may be the same because errors in measurement are larger than the differences. And this tells me something—I think.

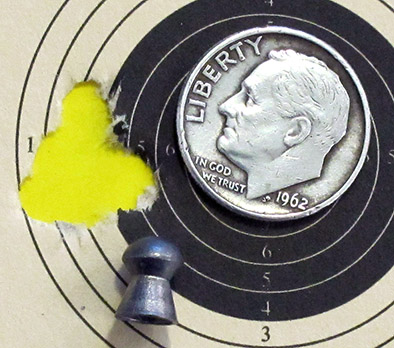

Ten Air Arms 16-grain domes went into 0.402-inches at 21 yards.
What I suspect
I suspect some pellets clear the baffles and others do not. Those that don’t are causing problems as the distance to the target increases.
What’s next?
There are two schools of thought about what to do next. We could try to ream out the baffles slightly so other pellets would clear and possibly be accurate. Or we could test more pellets and look for the ones that don’t have a problem. I will do the latter.
Summary
I find the Umarex Komplete rifle to be a best buy and the best entrance into the world of PCPs for the shooter who isn’t sure whether they want to go that way. Yes the NitroAir cartridges are prohibitively expensive, but the Komplete gets you into the “dark side” of PCPs without any additional investment. And, with the right pellet it is quite accurate!
Air Venturi has brought out a high-pressure air tank for this rifle! I’ll have more on that soon because they are sending me one to test. Enable, enable.
Now—why hasn’t some 3D print shop given us a single-shot adaptor?
I am in no way finished with this rifle. My plan is to do one more 21-yard accuracy test—looking for some more good pellets that have no problem with the baffles. Then I plan to test it a LOT more!
B.B.
