The FATS by itself.
This report covers:
- JSB Exact Jumbo Heavy—no silencer
- JSB Exact Jumbo Heavy—Ronin silencer
- JSB Exact Jumbo Heavy—TalonP silencer
- My observation
- JSB Jumbo Monster-no-silencer
- JSB Jumbo Monster-Ronin
- JSB Jumbo Monster-TalonP
- What have se learned?
- A little surprise
- How much power?
- Summary
Today we’ll pick up the test of the Condor Fast Attachment Thread System (FATS) where we left off. This will be another larger report, so let’s get started.
We will look at the two other pellets that were tested and how the silencers affected accuracy. We already know this rifle is very accurate.
JSB Exact Jumbo Heavy—no silencer
The next pellet I tried after the 18.1-grain JTS Dead Center Dome was the 18.13-grain JSB Exact Jumbo Heavy. With no silencer the Condor put 5 of them into a 0.123-inch group at 25 yards. It was the smallest group of this test by far, but I used the dime comparison coin when I should have used the gold dollar.

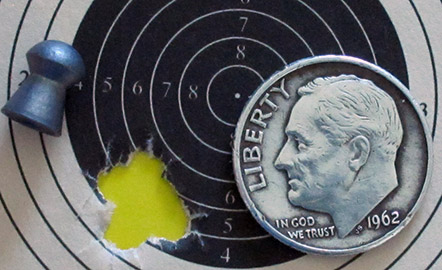

When no silencer was used the Condor put 5 JSB Exact Jumbo Heavy pellets into a phenomenal 0.123-inch group at 25 yards. This Condor is extremely accurate! Now let’s see what the silencers do.
JSB Exact Jumbo Heavy—Ronin silencer
With the Ronin on the rifle the group opened up to 0.451-inches between centers. Wow! What a difference. I did not expect that!

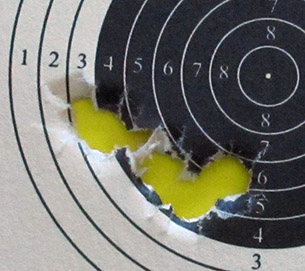

With the Ronin attached the Condor put 5 JSB Exact Jumbo Heavy pellets into 0.451-inches at 25 yards. It’s almost 4 times larger than the group shot with no silencer.
JSB Exact Jumbo Heavy—TalonP silencer
Now I removed the Ronin and the FATS threaded bushing and attached the TalonP silencer. Would it be better than the Ronin? It wasn’t.
With the TalonP silencer attached the Condor put 5 JSB Exact Jumbo Heavy pellets into a group that measured 0.636-inches between centers. It’s larger than the Ronin group. What’s happening?

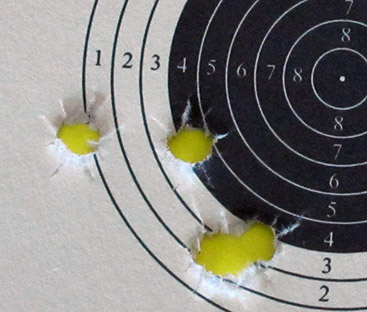

With the TalonP silencer attached the Condor put five JSB Exact Jumbo Heavy pellets into a 0.636-inch group at 25 yards.
After this test I examined both silencers for signs of lead clipping the edges on the bodies but none were found. The TalonP silencer can doesn’t even have real baffles—it’s filled with open-cell foam.
My observation
I’ve only tested two pellets thus far but the results tell me that not all pellets are suited to be shot through a silencer. Many years ago when I tested the accuracy of .22 rimfire ammo shot through a silencer I found the same thing—sometimes the groups got smaller and other times they grew.
JSB Jumbo Monster-no-silencer
The Condor is a powerful air rifle so I figured the 25.39-grain JSB Jumbo Monster pellet might be worth a try. When I shot five in the Condor with no silencer they made a 0.286-inch group at 25 yards. That’s not bad.

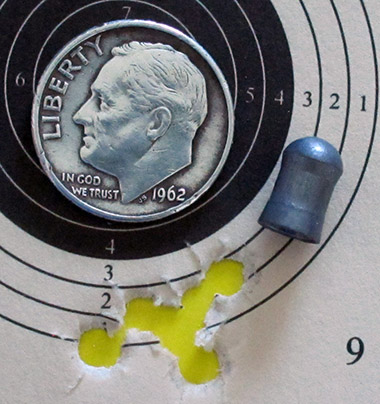

When fired with no silencers the Condor put 5 JSB Jumbo Monster into a 0.286-inch group at 25 yards.
JSB Jumbo Monster-Ronin
Next was the Ronin silencer. With it the Condor put 5 into 0.841-inches at 25 yards. It’s the largest group of the test.

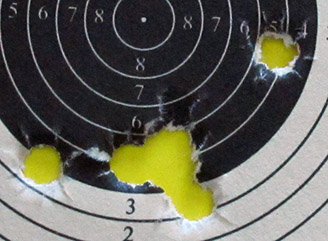

With the Ronin mounted the Condor made a 5-shot group of JSB Monsters that measures 0.841-inches between centers
JSB Jumbo Monster-TalonP
And when the TalonP was mounted the group came in at 0.295—the smallest group with this pellet.
With the TalonP silencer the Condor put 5 JSB Monsters into 0.295-inches. That’s not that bad!
What have we learned?
We’ve learned that the FATS works well with these two silencers. We have also learned that these two silencers do different things, depending on the pellet being shot.
In addition we have also learned that this AirForce Condor is extremely accurate at 25 yards. And there is one more thing.
A little surprise
The AirForce range is set up with a chronograph in line with the rifle being tested. I was able to test the velocity of my 21-year-old Condor that still has the original air tank and valve with the original o-ring.
So here is the velocity of the JTS pellet for the first 19 shots (includes some sight-in shots), on power setting 10.
JTS 18.1-grain dome
Shot…….Vel
1………….1099
2………….1102
3………….1097
4………….1095
5………….1075
6………….1066
7………….1060
8………….1042
9………….1034
11………..1028
12………..1023
13………..1019
14………..1019
15………..1015
16………..1016
17………..1010
18………..1007
19………..1005
Well, a velocity spread of 97 f.p.s. over 19 shots doesn’t look like the good air management I remembered! So I ran the test again when the JSB Jumbo Heavy pellet was fired.
JSB 18.13-grain dome
Shot…….Vel
1………….1086
2………….1103
3………….1104
4………….1108
5………….1101
6………….1106
7………….1101
8………….1103
9………….1107
10………..1103
11………..1096
12………..1095
13………..1095
14………..1097
15………..1089
But a spread of 22 f.p.s. over 15 shots is about what I remembered. My Condor tank that has held air for 21 years had not been used for at least 6 years but more probably over 8. I think my valve needed to “wake up” after being unused for so many years. Isn’t it nice that an American-made air reservoir still holds air after 21 years and still work after a wake-up?
How much power?
With the JTS pellet at around 1100 f.p.s. the Condor was developing 48.64 foot pounds of energy. The 18.13-grain JSB was in the same ballpark. This is not atom-smashing energy, but it is all you need for a great hunting rifle.
Summary
Now I have the Condor paired with a good scope and I know a couple good pellets. Guess what I can do? Yep—I can either shoot groups at 100 yards or I can swap out my old tank and valve for a new one. Whadda ya think?
