A little about o-rings

by Tom Gaylord
Writing as B.B. Pelletier

An assortment of o-rings.

This report covers:

  • History
  • Flexibility is key
  • O-ring failure
  • O-rings as a face seal
  • O-ring-assortments
  • Hardness
  • Some o-ring facts
  • The seats or channels they sit in help o-rings work!
  • O-rings used other ways
  • Summary

An o-ring is a donut-shaped elastomer (pliable) seal that performs sealing functions for hydraulics and gasses. Airguns use o-rings a lot, and for different purposes. They help us enjoy our hobby with a minimum of fuss. But what do we know about them?


The first patent for an o-ring was by the Swedish inventor, J.O. Lundberg. It was granted in 1896. Not much is known about him, but Danish machinist, Neils Christensen who came to the U.S. in 1891, patented the o-ring in this country in 1937. No doubt his work originated from his development of a superior air brake that Westinghouse, a leader in air brake technology since George Westinghouse invented the first fail-safe railroad air brake in 1869, gained control of. In World War II the U.S. government declared the o-ring a critical mechanical seal technology and gave it to numerous manufacturers, paying Christensen a stipend of $75,000 for his rights. Long after the war was over and he had passed away his family received another $100,000

Flexibility is key

For an o-ring to work it usually needs to be flexible. One of the most noteworthy failures of an o-ring that was not flexible was the space shuttle Challenger disaster in January, 1986. Caltech physicist and Nobel laureate, Richard Feynman demonstrated that the cold experienced during launch as the rocket rose had hardened the large o-ring that sealed the right solid rocket booster to the point that it crumbled in failure. Let’s see why flexibility is so important.

An o-ring sealed two adjoining parts (top and bottom)

o-ring under pressure
When under pressure (gas is coming from the left in this drawing), the o-ring deforms and presses against the tiny opening at the upper right, sealing it tight.

In both drawings I have made the clearances between the parts larger than it should be, to make it easier to see.

O-ring failure

O-rings don’t just fail in aerospace applications. We have seen them fail from rigidity in airguns, too. Read the report titled Crosman Mark I and II reseal to learn a lot more about them. In those two reports we saw how a hardened o-ring crumbles when it’s removed, and how a fresh one reseals the airgun instantly.

Another way an o-ring can fail is if it extrudes (gets squeezed through) the opening it is trying to seal. That happens when the ring material is too soft for the application or the tolerances between parts are too great or the o-ring channel is cut improperly.

O-rings as a face seal

We also see o-rings used as face seals in some airguns. One common use is as the breech seal of a breakbarrel airgun. I have shown you this many times as I rebuilt Diana air rifles over the years. The most recent was the Diana 27S, whose breech seal had hardened from the passage of time. When I replaced it with a fresh o-ring the rifle gained some velocity, though not the 300+ f.p.s. I initially thought.

Diana 27S breech seal
Diana breech seal.

Not all breakbarrel breech seals are o-rings, even though they may look like they are. Weihrauch has used specially designed breech seals that appear to be o-rings when they are installed, but when you examine one outside the airgun you see a big difference.

Weihrauch breech seals
Weihrauch breech seals look like o-rings when they are in the gun, but they are not.

Shop Outdoor Gear


Beware, because here comes The Great Enabler! Several months ago I realized I was buying o-rings one at a time for projects as I needed them. That’s not the wisest thing for a dedicated airgunner to do. So I went online and searched for assortments of o-rings. I found many and it came down to two things — what did I need and how much did I want to spend? For me this is a business expense, so yes it comes out of my pocket — sort of. But when I buy something like this I get to spend it before Uncle Sam can.

When you need an o-ring they are specified by their internal diameter (ID) and the diameter of the ring material. The outside diameter (OD) of the o-ring is just given for informational purposes, because when you think about it, the ID and ring material size determine the OD automatically.

I bought an SAE assortment and a metric assortment, but because they are pliable , they will interchange if they are close. If you want to get really picky, o-rings come in aerospace standard 568 (AS568) and ISO 3601 sizes. They also come in a wide variety of materials with Buna (Nitrile), Neoprene, Urethane, Viton, Teflon (PTFE) and Silicone being some of the most common. Airgunners tend to use Buna, Teflon and Urethane. Buna is more pliable and Urethane is more resistant to tearing and abrasion.


A lot of people use the term durometer when referring to o-rings without understanding it. A durometer is a test instrument that measures a nonmetallic material’s resistance to puncture and abrasion. The Shore scale is used. When we talk about o-rings I see the term 90 durometer tossed around a lot. A 90-durometer rating only has real meaning when matched to the Shore hardness scale to which it applies. On the Shore 00 scale a 90 rating is medium hard, while on the Shore D scale a 90 rating is extra hard — almost as hard as it gets! Your car’s tires are a zero to 10 on the Shore D scale and a 90 on the Shore 00 scale.

Some o-ring facts

1. To perform correctly, a hard o-ring needs tighter tolerances than a softer o-ring.
2. An o-ring usually needs lubrication to do its job – but not always.
3. When an o-ring seals something, it only needs to be finger-tight.
4. An o-ring can look fine yet hide a tear or a puncture that will leak under pressure.
5. An o-ring can look ratty yet still seal perfectly.
6. The durometer rating of an o-ring can change over time, as it hardens.

The seats or channels they sit in help o-rings work!

If the seats are too wide or too deep, the o-ring will not seal the joint as intended. Also, the shape of the o-ring seat or channel is somewhat important. While there is a lot of room for slop with an o-ring (that is one of their endearing qualities), you can’t get away with murder. A perfectly square channel with no radius in the corners may present sharp edges to the o-ring under pressure. It can cut the o-ring, causing it to fail quickly!

O-rings used other ways

Besides seals we find other uses for o-rings in airguns. Sometimes they are used to hold things together — sort of like precision rubber bands. I find that a lot in silencers. And a number of rotary magazines use o-rings to hold the pellets inside in place. I’m sure they are used in other ways, as well. We owe a lot to the common o-ring


There is a lot more to know than what I have presented today. These have just been some of the basics about o-rings. We deal with them so much I thought it would be nice if we knew a few things about them.

author avatar
Tom Gaylord (B.B. Pelletier)
Tom Gaylord, also known as B.B. Pelletier, provides expert insights to airgunners all over the world on behalf of Pyramyd AIR. He has earned the title The Godfather of Airguns™ for his contributions to the industry, spending many years with AirForce Airguns and starting magazines dedicated to the sport such as Airgun Illustrated.

53 thoughts on “A little about o-rings”

  1. BB,

    Now I know who I need to contact!

    As you have noted, sometimes a little lubrication can help an o ring immensely. With most PCPs I like to put a couple of drops of silicone oil on occasion in the foster fitting when I fill them. This will enter the air reservoir and disperse throughout the air rifle, many times refreshing the sealing capabilities of o rings. If there happens to be a slight leak at a particular o ring, the silicone oil will migrate to there, lubricate the o ring and usually help seal the slight leak.



  2. BB,

    A little more on lubrication of o rings. With my RAW, the manual says not to lubricate the o rings, so I have not. I guess I have broken The Golden Rule of Guydom. I hope that I can be forgiven.

    • RR,

      That is quite odd. I wonder why? Maybe they think that people are not smart enough to use the correct oil? Personally,… I would, at the least, would want something at the probe/breech area where there is a lot of action going on with loading of each shot.


        • I’m fortunate to have one of the worlds largest distributors of o rings 15 minutes from my home. Rocket Seals carries AND MAKES all types of o rings:
          Viton (FKM)
          EPDM (EPR)
          Silicone (SiR)
          Highly Saturated Nitrile (HSN)
          PTFE (a generic compound of Teflon™, a trademark of The Chemours Company)
          PTFE Coated (PTFE coated, usually Silicone or Viton)
          PTFE Encapsulated (Usually Silicone or Viton covered with a PTFE tube)
          Kalrez, Chemraz, Simriz (FFKM)
          Aflaz (TFE/P)
          and even make Custom compounds and formulations.

          They also carry Quad rings, X-rings, and Square Cut O-Rings
          Back-up rings
          Cord stock
          Spliced and Vulcanized O-Rings

          They told me long ago that all O-Rings benefit from lubrication. The problem is that most people use the wrong lubrication, apply it incorrectly, use too much, etc. The second biggest problem of O-Ring failure is over tightening.

          Here are some of the things regarding lubrication of O-Rings that they told me that I remember:

          1-never use petroleum based lubricants

          2-silicone grease or silicone oil is preferred in most applications. Silicone grease stays in place and keeps the O-Ring in place better for assembly-reassembly but for lubing large amounts of o-rings silicone oil is ok. NEVER use silicone oil sprays since they typically contain petroleum based products as carriers. Quit using Vaseline.

          3-Food grade silicone grease for many applications is paramount when contact with humans is expected, i.e., scuba diving regulators, medical breathing devices, food production, etc.

          As to how much lubricant to apply use common sense. Are you reassembling a watch or are you a plumber putting together a 12″ connection? BTW, silicone grease is so common with plumbing it’s often called and labeled Plumbers Grease.

  3. BB

    Useful topic. I had a common garden hose connection that seemed to disdain common “rubber” washers. A new one leaked as much as the old one. O ring to the rescue!

    I have a Beeman AR2078A, a descendant of the Crosman 160 family, that uses three O rings where the barrel breech connects to receiver. Some torn places are evident. I replaced those but later discovered I scraped the new ones when connecting the barrel. My bad! Yet the rifle seems to not care. Accuracy is quite good even at 25 yards.


  4. BB ,

    Most important topic when repairing guns is sizing the seals . There are 2 sizes

    SAE which are #009 etc.

    METRIC which is ID and DIAMETER so a 7 x 2.5mm is 7mm on the ID and has a Diameter of 2.5mm

    Keep in mind when repairing a gun with dried out seals sometimes they will look square ! Measure the seats and OD to help match up . I would say on average a reseal will last about 5 years with Buna . The longevity of the seals is dependent upon the manufacturers keeping the tolerance tight so the seals will not extrude.


  5. My Benjamin Marauder was not holding pressure. I traced the leak to the pressure guage bolt hole but after further attempts to seal that, I realized the leak was coming along a path from one of two interior o rings that were on the aluminum(?) block that the pressure guage screwed into. Two new o rings from my assortment and all was right with the world again.

    Fred formerly of DPRoNJ now Happily in GA

  6. BB ,

    Did that o-ring kit come from NAPA ? I have a Metric and SAE set at home also for tinkering, problem is the assortments miss allot of the needed sizes . They go off of AC and Air Tool sizes that are commonly encountered in Automotive work . Not a bad kit for the money , my kit is older and seals are of US mfg. , my friend bought the same kit recently to redo some air tools and they are Chinese seals ! Watch out for the Harbor Freight kits , I have redone allot of customers guns from those soft seals ! Source them from Grainger or McMaster save yourself some frustration and time. My 2 cents for now .


  7. Fred ,

    In Marauders You need (4) #118 in the tank unit and (1) #009 for the gauge block seat . Hopefully this will help out the Marauder owners . First and Second Generations use the same seals .


  8. B.B.,
    Ok now I’m confused. I always use Crosman Pelgun oil on my C02 and Pump pellet/bb guns. They don’t have the high pressure that a PCP has (I think C02 is around 900 psi?) so I was told it was ok. But I never though about Pelgun oil being from Petroleum. So in time, does this hurt the O rings/seals? Would Silicone (like RWS Brand) be a better choice for longevity.


      • B.B.,

        Ever since this craziness started worldwide I’ve managed to pick up a new hobby of shooting with my air rifle. I picked up a crosman nitro piston .177 break barrel and I love it. I’ve done research on a lot of your videos and such and have seen that to properly lubricate my piston seal i should be using silicone chamber oil only and a very minimal amount (1 drop) through compression chamber. I’m struggling to find reliable info on the correct oil that should be used to lubricate the remaining portion of the gun (if anything else should even be lubricated? ie. outside the piston, hinges, and other places I maybe unaware of?). I’ve read online that pellgun oil should not be used in break barrels air rifles. Manual says no petroleum based oils and only specifies to lubricate the piston seal via the compression chamber. (Also wondering if it is better to lubricate through compression chamber or to manually apply oil on piston seal with a brush after disassembly of air rifle?)
        I apologize for the length of this and number of questions in advance. Any help on this would be greatly appreciated. 🙂

        Joe S

        • FirstTimeShooter/Joe S,

          Here are some links:

          Hope this clears up some of the questions you posted. Welcome to the blog.


          • B.B.,

            I have just read them and gotten more useful information, but my beginner knowledge is preventing me from being confident on understanding the smaller parts that need to be lubricated. I would again like to apologize in advance for the length of this comment just want to get everything in this. Going to use quotes from those articles to help:

            1. “Synthetic seals come in all modern airguns, but since most of them shoot faster than 600 f.p.s., I advise everyone to use silicone chamber oil for their seals.”
            I understand silicone chamber oil for piston seal.

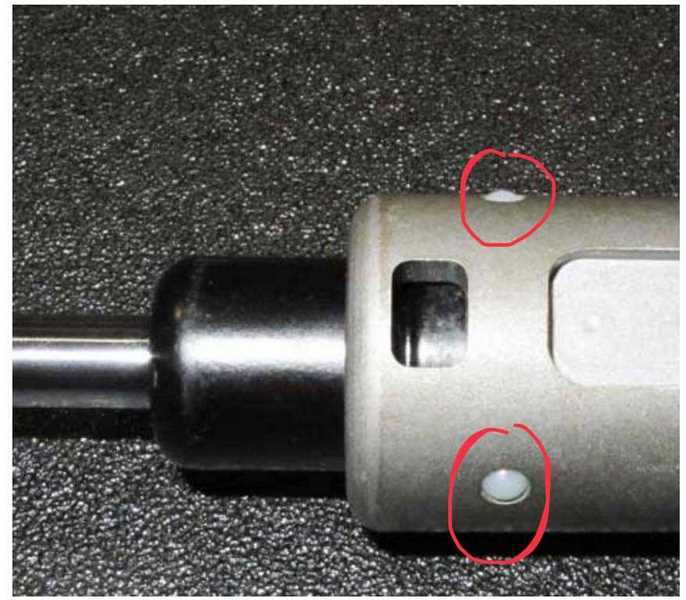

            2. for the bearings/buttons on the piston that suspend the piston in the gun:
