Does size matter?

CO2 capsule lineup
Common small CO2 capsules. Left to right — 8 gram, 12 gram, 16-gram and 20 gram.

This report covers:

  • 1930s
  • I940s
  • 1950s
  • Advancement gap!
  • Your thoughts?

Airgunners think they have cornered the market on CO2 cartridges, but actually the world doesn’t know we even exist. Today I want to discuss CO2 cartridges and where we’ve come from, plus a little on where we have yet to go. I would tell you that the Crosman Fortify inspired this report, but the truth is, you readers inspired it. I almost couldn’t get Part 3 of the Fortify report out fast enough because you were all talking about CO2 guns.

The picture above says a lot, but it doesn’t say it all. The next one says more.

CO2 truck
CO2 transport truck.

That truck transports CO2 from the manufacturer to locations where the gas is dispensed. It holds a lot more CO2 than a 12-gram capsule. But if this truck’s output were somehow connected to a Crosman Fortify pistol, the velocity would remain the same. The pistol would get a lot more shots (no kidding!) but no change in power. And the point? The amount of CO2 only affects the number of shots — not the power of the gun! That said, let’s look at some CO2 gun history.

1930s

CO2 use in guns dates back to the 1870s with the Giffard guns. But the first practical use of the gas was in the 1930s when Crosman tethered their model 117 repeating pellet rifles to large CO2 tanks so the rifles could be used in shooting galleries.

I940s

After World War II Crosman bought up many (tens of thousands?) 4-ounce (113.4-grams) CO2 tanks that were used to inflate large life rafts. They modified their multi-pump rifle to use the gas and attached a tank to the bottom of the action, giving hundreds of shots

Crosman CG rifle
Crosman model 101 CG (compressed gas) rifle. That tank held 4 ounces

This was viewed as an advance, since the rifle was no longer tethered to the gas supply. While shooters found it advantageous, shooting gallery operators found it dangerous because the rifles could now be fired in any direction.

1950s

In 1952 Crosman also converted their tethered model 117 rifle to the model 118 that was filled from a separate 10-ounce CO2 tank. Like the 101 CG rifle this one also freed the rifle from the tether, plus it didn’t have the large tank hanging below the receiver. But they weren’t alone. The Benjamin Air Rifle Company that was a separate company at that time also brought their model 250 CO2 pistol out in 1952. That one used an 8-gram soda siphon CO2 cartridge, making it free from tethers and also from bulk tanks. And the airgun race into CO2 cartridges was on!

8-gram cartridge
The 8-gram soda siphon cartridge was the first CO2 cartridge on the market.

In 1956 Crosman brought out their model 150 CO2 pistol. It was a landmark advance because it held a 12-gram cartridge that has 50 percent more gas than the one with 8 grams. And by the way, though the Blue Book of Airguns says the cartridge has a 12.5-gram capacity, it’s really just 12 grams.

12-gram cartridge
The 12-gram CO2 cartridge came to market with the Crosman 150.

Advancement gap!

From 1956 until the  2004 the 12-gram cartridge was the most popular cartridge for airguns with the 8-gram still being offered but in models that were not as well-known. Then in 2004 Crosman brought out several AirSource models that used 88-gram cartridges. That kicked off another round of airgun creations that we are still seeing. But between 12-grams and 88-grams there has been no activity. That leaves a gap that hasn’t been explored yet but could be.

While the 12-gram cartridge is probably the best for handguns, is it also best for rifles? Has anything been done to investigate this large middle-ground?

88-gram cartridge
This Air Venturi cartridge holds 90 grams but the threads on the neck allow for a small variation in the capacity.

If you look at the two larger cartridges at the top of this report (16 gram and 20 gram) you’ll see that they could be used in at least some airguns. Perhaps not air pistols but certainly some air rifles could hold them, and they offer much more capacity. That means more shots.

There are even larger cartridges that lie between the 20 and 88-gram size, so clever airgun designers need to at least consider them. Who knows, maybe they already have and didn’t find anything worthwhile. All I’m saying is that on the consumer side, we aren’t aware of anything that’s been tried. This gives us food for thought.

Some of you readers may be ahead of me on this. For example, bicycle riders probably know about the tire inflators that use 16-gram cartridges. Homeowners may be aware of the Gallo flush system for air conditioning drain lines that take the 20 gram cartridges. So, it’s not like these things are hidden.

Stock up on Air Gun Ammo

Your thoughts?

What do you think? Is the cartridge size gap an area that needs to be explored by airgun developers. If so — why? And if not, why not?

author avatar
Tom Gaylord (B.B. Pelletier)
Tom Gaylord, also known as B.B. Pelletier, provides expert insights to airgunners all over the world on behalf of Pyramyd AIR. He has earned the title The Godfather of Airguns™ for his contributions to the industry, spending many years with AirForce Airguns and starting magazines dedicated to the sport such as Airgun Illustrated.

108 thoughts on “Does size matter?”

  1. BB,
    Great info here; I knew about the 8, 12, and 88-gram CO2 cartridges; yet I had no idea about the 16-gram or the 20-gram ones…I learn new stuff here all the time…very cool. 😉
    Blessings to you,
    dave

  2. Tom,

    Commercially I cannot think of a reason to fill in the gap between the 20 and the 88/90 gram CO2 cylinder. Hammerli used to sell (maybe they still do) the Hammerli 850 that was powered by the 88 gram cylinder. There are more than enough shots inside a 12 gram cylinder before requiring reloading the rifle. Anything bulkier you pay the price of the rifle being heavier than it needs to be. The best niche of the CO2 cartridge lies in look alike pistols where you definitely do not need a bigger cartridge.

    Siraniko

  3. B.B.,

    Size does matter!
    It may not matter for the first few shots but if the liquid CO2 is made to switch state to gas too rapidly it will lower the temperature of the liquid as well as the containment vessel and eventually the shooting devices valve/barrel as well. With a larger cylinder the cooling process is slowed down by an amount based on MASS of the contained CO2 as well as the surface area of the containment vessel.
    Gaseous CO2 can be liquefied under pressure provided its temperature is below 31 °C (87,8 °F), this temperature being referred to as the CRITICAL POINT. If compressed and cooled below the critical point, a colourless fluid, approximately the same density as water, is produced.
    CO2 will remain in the liquid form as long as its temperature remains below the critical point but will return to the gaseous state if its temperature rises above this point, regardless of the pressure applied.
    There are formulas and hodographs that explain it all if someone is interested in the exact amounts.
    Start here: https://www.eng-tips.com/viewthread.cfm?qid=240434

    shootski

  4. Nah, I don’t see a gap between the 12g and 88g, as guns that may play in that gap can be designed to take multiple 12g cylinders or an adaptor that takes multiple cylinders. Some design that better (eg, Beeman QB78) and others not so well (Diana Trailscout with their iffy o-ring seal on the CO2 chamber plug). That area could use work, a little engineering to keep the CO2 pressure even more constant (eg, an upright tilting cylinder, a CO2 cylinder heater or at least a “cold radiator”), and good seals so one can keep the cylinder(s) loaded indefinitely.

    Shootski, I use “Magic Heat” pads, the kind that you click a metal bit inside and some chemical precipitates in the pad to warm it up (it can be boiled later to regenerate). I stuff one or two in a sock covering the CO2 paintball tank on my Condor if I’ll be shooting for a bit. They keep the tank warm on a cool day. Keeps my cheek warm too.

    Mike

    • Mike, glad you chimed in here. Been thinking about you back to your comments on pumps and the bicycle pump you use(d)? I wanted to remark that I had given up on manual pumps (have two) and use CO2 cartridges to fill my bicycle tires when I get a flat. One 12 gram cartridge does the trick. For my motorcycles, tubeless at least, I now use 16 gram cartridges (3 to 4 to fill) because I couldn’t find a 12 gram dispenser. The dispensers seem to run from $14 up to $30 and 16 gram cartridges about $2.50 per. Still, beats waiting for a tow truck or walking. Just plug the hole in the tire and fill.

      The other day, I happened upon a sale at Harbor Freight for a battery powered pump for $10. One flat and it will equal the outlay for 3 CO2 cartridges and the dispenser! Hopefully it will last for one fill.

      Fred formerly of the Peeples Demokratik Republik of NJ now happily in GA which is definitely south of the Mason Dixon line!

  5. I could see “in between” cylinders useful for full-auto guns. As for the rest, no. 30ish shots out of my Sheridan (rebrand 2260) is enough. You can get 70 decent and 2 lousy shots out of a 1077. Do we really need more shots than a 12-gram provides for those guns? No; after all, can’t buy an 88-gram 1077 anymore.

  6. Not being into CO2, this is indeed a subject I have very little experience in. I have played with it before with a Crosman bb/pellet revolver/semiauto pistol a while back and I still have a 2240 I pull out on occasion, but the truth is I am underwhelmed.

    More than half of my shooting season it is a little too chilly for me to effectively use CO2 as a propellant. The capsules also cost a considerable bit. I have a hand pump, an air compressor and a carbon fiber tank to fill my PCPs and I have a fair collection of sproingers with the odd SSP and multi-pump thrown in.

    I have entertained the thought of a bulk fill CO2 airgun, but unless the right one comes along, that is not likely going to happen.

    As is mentioned above, there are CO2 airguns that use multiple 12 gram capsules. I have seen after market valves that are available for the 88 gram capsules. Now that is intriguing to me. That combined with a top shelf airgun just might get my attention.

    P.S.
    Advancement gap!
    All I’m saying is that on the consumer side, we aren’t aware of anything that(’s has) been tried. (delete the ‘s or has)

  7. Speaking of sproingers, that airgun company in the SW that deals in almost exclusively high priced airguns finally has the BSA Meteor Super at a reasonable price. I guess they could not sell them at what they were asking.

  8. I would like to see better management and options for use of the CO2 in the airgun. The current cartridge sizes are fine with me.
    Dump the CO2 into a cavity inside the airgun to avoid the rapid cool down with use, and offer an adjustable hammer spring for optional power levels.
    The Healthways Plainsman is a perfect example of a high capacity, variable power, repeating BB pistol that does not rapidly cool down and lose power under rapid fire like those that take CO2 directly out of the cartridge as needed through the small puncture hole.

    • Bob, so you are theorizing that the cooling effect comes from the CO² escaping from the pierced capsule, and doesn’t happen from a bulk filled CO² reservoir? I thought that the cooling effect occurred just from the conversion if the liquid CO² to a gas. So every time you take a shot, some gas is allowed to escape, lowers the pressure in the reservoir, which allows some liquid CO² to change to gas until the pressure builds back up to stop the conversion. Doesn’t that change from liquid to gas cause the cooling effect? I thought that is why folks put their bulk fill guns in the freezer, to lessen the amount of liquid flashing to gas when it touches the warm sides of the reservoir so they get more liquid CO² on each fill.

      The gun you describe sounds like the vintage Crosman 111, 112, 115, 116 pistols and the similar 113 and 114 rifles (I hope I have those model numbers correct) that were all bulk-filled from a larger CO² tank. You may also find a CO² gun that can be converted to bulk fill by simply replacing the piercing cap with a foster fitting. You can search B.B.’s prior posts about bulk fill.

      • Me thinks that I will be investigating all of this in the near future as I will likely have a bulk fill CO2 air rifle soon. Likely you are more correct than Bob M. He is probably “dumping” a 12 gram cartridge into a larger reservoir which is allowing the CO2 to become a gas before it is used.

        Sorry folks, I am “speaking” out of total ignorance as I have had very little experience with CO2 and have no experience at all with a Plainsman.

        • If you just put gas in, it will run out of shots rather quickly I would guess, because there would be no liquid CO² to keep the pressure up.

          I am looking into this too because I want to play with my Crosman 111 and 112 before I make the decision to sell them or not.

        • RR, I have three rifles based on the QB series. Two are in the “target” series, a thumb hole stocked .22 , a side lever cocking .177 and a standard model .177. I modified the piercing caps so they could use bulk fill or powerlets. I built a bulk fill “tree” with a gauge and bleeder to fit the bigger paintball tanks and the fun began. Twelve years down the road and bulk fill being harder to source I am back to using powerlets when I do shoot the QB’s but that is rare because I now am a convert to PCP rifles which are so much more convenient than bulk fill C02. You can purchase and fill tanks at restaurant supply and welding supply stores but I choose not to.

      • Roman,
        Yes, Co2 absorbs heat from its surroundings, as it transitions from liquid to gas turning things cold, but like the expansion valve in an air-conditioning system if the rate of expansion into a gas can be controlled you can increase or decrease the rate of temperature change. Dumping the CO2 into a larger cavity provides more area for the CO2 to absorb heat from and slows down the rate of expansion by having more CO2 available to convert to gas and build up pressure. The best I can make of it.

  9. For so long I was beyond the CO2 capsules topic at all. Now the time came for me to discover a great area of replicas, BB’s and general plinking-for-fun stuff. After years of shooting springers I made first steps to the dark side (first PCA and then PCP) to discover this new way of airgunning. The last two years actually – my step into CO2 powered systems. First I had CP99 compact with blow back, first time shooting BB at all. At the moment I have really much fun with Umarex Legends S25, Makarov, Winchester (cowboy rifle). Experience only with 12g capsules so far. I learned so far how it is to shot at cold ambient and how it is to miscalculate how much 12g capsules and BB’s you need for a vacation with pilnking. 🙂
    What I think is 12g capsule makes sense, when it is too small you can expand to 2 capsule system (like UX cowboy rifle), but do you really need 88g big one? Perhaps, but not so often as this 12g standard. It is enough to have some fun, it is small to fit pistol design, it is easy to handle.

    Now the most important thing: 12g CO2 capsules are cheap! You can buy a lot of them and don’t have to worry about supply. If I can get like 30 – 40 shots (or more) from one capsule – I’m fine with it. S25 revolver will get you to 70 shots+ with one capsule. 100 shots in warm conditions is normal. That is a lot shooting!

    88g capsule delivers much more shot count but it has the biggest disadvantage compared to 12g capsule – it is relative expensive. It is also not so common (can’t buy everywhere). Not so easy to handle

    Everything counts in great amounts. I think the 12g capsue will stay for a long time as a prime power source for CO2 guns.

    • For economy plinking the 12g capsule is a winner. Buying on sale for $.40 each and getting at least 40 shots, at good velocity, per capsule equals cheap plinking with my replica revolvers, blowback pistols and Crosman 2300T. Using the Umarex 12g adapter instead of 88g tanks with my 850 M2 still saves a bit : 8ea 12g – $3.20 vs 1ea 90g – $8.33.

    • I bought the”Cowboy” smoothbore “rifle” four years ago. I immediately drilled and tapped the side plate in the standard Marlin/Winchester pattern and installed a Williams peep sight. So much fun. The .177 cartridges made for the Umarex pellet revolvers work and wadcutters shoot amazingly well in it. Last month mine developed a leak. Thus far I have not had the time nor courage to get into it. This design troubled me when I bought it, lots going on in it. I own lots of lever action rifles and used to shoot Silhouette with them so this was a natural analog for practice but the novelty soon wore off. Do not stand on Saint Augustine grass and eject the cases, very hard to find. I do plan to look into fixing the leak but not any time soon.

      • Singleshotcajun,

        It is amazinlgy accurate with pellets, also the revolver S25/40/60 cartridges work (bit more difficult to load). As usually I shot some soft blancket to catch the pellet and see how it deforms and fit the barrel, you can see the pellets are very well pushed through the barrel and it seems that the inner diameter is a bit smaller than 4.5mm. At 10m distance it is not very pellet picky! My wife tried it and she could hit every thing on my shooting gallery – great way to come down after hard day at work, she admitted.
        Most common leak is the seal on the 8A part (Umarex original schematic) – this green seal directly on the capsule screw. Each time you change to a new capsule you have to unscrew and screw it tight again. Always use some silicone oil on it – after few hundret times it might get damaged.
        If the leak is not there you may try to put few drops silicon oil directly into the transfer port, where the CO2 is hiting the pellet (or BB) in the back of the cartridge – and let the gun stay for some time straight up (barrel up), then shot few times dry without CO2 to let the oil go through the valve O rings inside it. Here there is not directly possible to just put some oil on the CO2 capsule to force the oil to go throught the valve – because of the capsule loading compartment design.

        • The leak is in the receiver. I watched a you tube video on sealing the “Cowboy” rifle of which there is very little info and fewer parts to be found. I believe the leak is an o-ring where the brass tube goes into the power valve. I will try a silicone IV via full cartridge and manually pressing in on the poppet.

  10. I have wondered about the possibilities of more sophisticated CO2 guns. The PCP guns have gauges, adjustable regulators, adjustable hammer springs, etc. Would any of those types of items make sense for CO2 guns? Sometimes basic simple guns are all we need. But other times the bells and whistles offer some advantages such as adjustable power, more consistent velocity, more shots, knowing how much gas remains, etc. Has anyone explored this idea?

    • Elmer,

      At the beginning my advanture with CO2 powerplant I asked the same question. Now I think it would have happen if it would be a real concern. Most of the CO2 powered stuff is plinkers. There is no need to now all the details, it has to work relative stable and be easy to handle.
      Some of the match guns were driven with CO2 – which was not used for a long time. These were really sophisticated and had solutions similar to PCP.

      The big difference is also the pressure. You get depending on ambient temperature pretty constant pressure from the CO2. You will get like 50 – 75 bar pressure, usually in this range, out of it. There is no need to use regulator for this – compared to 200bar or 300bar PCP max pressure value. So alone based on the narrow pressure range you will get out from this “power cell” there is not much to do.

      What would be nice is some cavity filled with gas CO2 to avoid liquid coming up to valve etc. which causes velocity differences. Also to avoid lowering the system temperature rapidly, especially during fast shooting. This causes design issues and usually cost some shot count.

        • EF,

          As tomek and RG state, CO2 is self regulating. The problem I have with CO2 is with the ambient temperature and the low pressure. I cannot use CO2 in the winter around here and the lower pressure limits my ability to shoot long ranges.

          Another thing I have a problem with is many CO2 guns will not stand up to what I will put them through. Most are cheap bb plinkers. There are very few high quality CO2 powered airguns made anymore.

          Mike Reames is someone who makes big bore CO2. He makes CO2 pistols and CO2 rifles that are most definitely top shelf. I often see him and his wife at airgun shows. He often has a table or two of his various models for sale at these shows.

    • Because of the relatively constant pressure of liquid CO² under pressure, it is self-regulating. The way you know how many shots you have left is knowing your gun and filling consistently, then counting shots. The other way is to weigh the gun. Liquid CO² has mass that can be weighed on a simple digital kitchen scale.

      • Thanks, that makes good sense. And it works well for shooting targets in the basement. Shoot 10-shot groups and keeping track of the number of shots is relatively easy. Don’t need any more power. And the temperature isn’t too cold.

    • Yes, tinybobh, I do remember those engines! They’re still used in lightweight free-flight model airplanes. I still keep one up as an item of visual of interest in my shop, mounted on its very crude test stand. I think this one was made in Czechoslovakia.
      The tiny tank in the stand is filled from the 8-gram bottles, using the black fixture that has a ball bearing valve at the top. The coils of brass tubing between the tank and the engine assists in heating the CO2 to a gas before it arrives at the top of the cylinder.
      Do you see that tiny white piston standing on the base? That fits this engine. While at the top of the stroke, the pin at the top of the piston pushes against a ball bearing valve in the cylinder head, This admits a puff of CO2 into the cylinder that pushes the piston down for one rotation cycle. The CO2 exhausts through ports in the cylinder near the bottom of the stroke, like a regular 2-cycle engine. Momentum in the system keeps the crankshaft turning and the piston comes up for another puff of fresh CO2, and the beat goes on. They can be tuned for power or efficiency by moving the head valve up or down. Very fun.
      Regards,
      Will

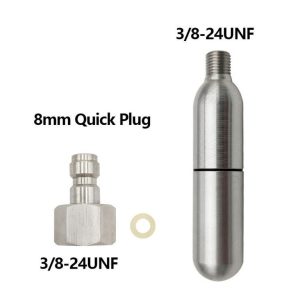

  11. Anyone have experience of these refillable 12g cartridges?
