Today reader Ian McKee, whose blog handle is 45Bravo, tells us more an unusual airgun that many of us know, but this version is different. It’s a Sheridan model 190B.
If you’d like to write a guest post for this blog, please email me at blogger@pyramydair.com.
Take it away, Ian
A Sheridan 190B: Part Two
by Ian McKee
Sheridan 190B.
This report covers:
- What it has going for it
- Velocities and weights
- The test
- BB responds
We last looked at the Sheridan 190 which is a .50 caliber smooth bore, multi pump air pistol. Designed as a “projector,” meaning it is a dart gun meant to deliver medications and sedatives to animals that are either:
A. Too skittish to let you get close to them, or
B. Too dangerous for YOU to get close to!
There were several comments from you readers about alternative projectiles other than the darts they were designed for. That was my whole intention for buying the airgun — trying different things to shoot out of it.
What it has going for it
If you look at it as a recreational airgun and not a tool for biologists, veterinarians and ranchers, it is the ultimate big bore airgun. I will list some of the attributes.
It is easy to fill, (somewhere between three and nine pumps.)
It has two ways to adjust the power. (Number of pumps and a transfer port adjustment.)
It is lightweight, and reasonably accurate out to 30 yards. As a projector, your target is normally pretty big, think the rump of a 1000 lb. animal.
And you are not limited to one type of projectile, if it will fit in the barrel, you can send it down range.
Velocities and weights
Today we look at the velocity of several projectiles. These are all available online, or in some retail outlets.
The test
I will start with its intended ammo. I have a couple of practice darts, the ones I have on hand are made to replicate the weight and flight characteristics of a dart filled with 5cc of liquid. They have steel points a little over an inch long, an aluminum head, a plastic body, and a soft pliable skirt to give a good seal in the barrel.
This could be very dangerous if used wrong.
The practice dart weighs 104.6 grains. With 9 pumps and the chronograph set 10 feet in front of the barrel, it gave a velocity of 247 f.p.s. over my Caldwell chronograph. I am using that instead of my FX Radar Chronograph because most of the projectiles I am shooting for today’s tests are non-metallic and do not give a good radar return.
I purchased some hard plastic balls intended for the .50 caliber less-lethal personal defense guns on the market. They weigh 22.1 grains and they performed quite well, turning 323fps over the chrono with 9 pumps.
I zeroed the scale with the rubber band on it, before adding the ball. The band is to keep it from rolling off the scale.
Next I tried Nerf Hyper rounds. They are soft solid balls made from TPE (ThermoPlastic Elastomer). They feel like soft rubber, are very squishy, and have a slightly tacky feel. They are dimpled like a golf ball for better flight characteristics. They are actually .55 caliber, and weigh 20.7 grains but do squeeze into the barrel easily, give a good seal, and shoot very well. They gave a velocity of 255 fps at 9 pumps. I attribute the lower velocity to the slightly tacky feeling of the TPE and tight bore fit.
Even though they are slightly oversized for the bore TPE balls load easily and perform very well.
I also ordered a pack of precision aluminum balls intended for the less lethal weapons. They weigh 41.7 grains, like the yellow plastic round they are slightly loose in the bore, but the ball detent in the chamber area holds the ball in place until fired.
Being slightly loose in the bore, and almost twice the weight of the hard yellow plastic balls, they only gave a velocity of 153 fps.
Almost twice the weight, but solid aluminum.
I did try patching the aluminum ball with cloth of varying thicknesses. Much like you would with a muzzleloading rifle, but patched and inserted from the breach end.
That did not work like I thought it would as the pistol lacks the pressure to push the patched round down the bore.
I think the reason the practice dart worked so well is the small contact area with the bore, and the pliable skirt that expands to seal the bore when pressure is applied behind the dart.
I also ordered some stainless steel balls, and some Umarex Glass marble slingshot ammo, but with the low velocity of the aluminum balls, I decided not to test the steel or glass projectiles as they are a lot heavier than aluminum.
Next I tried the other end of the quality spectrum. I made some “spitballs”, from wet 20 lb. copy paper. I reduced the size until they fit the bore well, and they weighed in at 20.8 grains. Try as I might, with different numbers of pumps, I could not get them to shoot the entire 10 ft to the chronograph. They would open up after leaving the barrel, and stop before getting to the chronograph.
Spitball.
The last projectile to chrono today is the one that started me down this path. The standard Nerf dart. It weighs 15.7 grains. And fits the bore slightly snug. I lightly lubed it with silicone oil, and it chambered much easier.

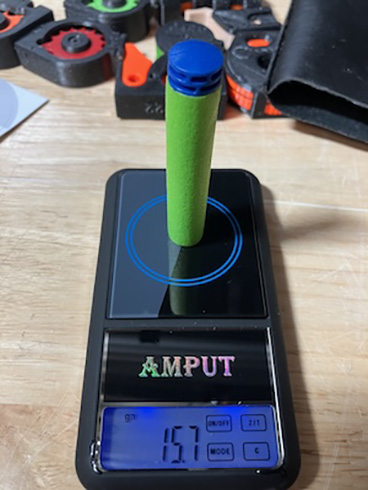

Nerf dart.
Four pumps gave it a velocity of 159 fps. Anything past four pumps while the dart was exiting the barrel faster, they became unstable. The faster you shot them, the more unstable they became. In fact they became so unstable that I will venture to say that nothing in the room is safe, including things behind you. It was like shooting a fireworks “bottle rocket” without the stick to guide it.
In Part Three we will look at 3D printed and other homemade projectiles. Part Four will be accuracy testing with the projectiles that perform well.
Shoot safe, and have FUN!
Ian
