All American Target Concepts 503-1 action target: Part 1

by Tom Gaylord
Writing as B.B. Pelletier

503-1 target
The All American Target Concepts 503-1 target is like nothing you have ever seen.

This report covers:

  • Big target
  • Tough
  • Safe
  • Portable
  • Assembles without tools!
  • Paddles of two different thicknesses
  • The secret
  • How large is it?
  • Knockdown
  • Many patents
  • Test

You may not remember me telling you about this action target in one of the reports on the 2017 Texas airgun show. Today I start my report about it.

Big target

The manufacturer does not call this a Texas Star, but they acknowledge that it works like one and most people will call it that. But if our sun is a star, this target is Betelgeuse! That’s a red supergiant start that, if it was in the same place as our sun, its rim would extend past the orbit of Mars! I’m saying the 503-1 is BIG. You might plink at regular Texas Stars at 35 yards — this is one you can move out to 75 and even 100 yards!


Besides being big, this target is tough. It will work with your 65-foot-pound AirForce Condors and 100 foot-pound Escapes, yet the same target will function with a puny Diana model 27. It will work with a .22 rimfire (long rifle) and handgun cartridges up to the power of .380 ACP. At the show I watched the inventor knock the paddles down with a child’s beanbag from 3 feet. When I tell you how it works you will understand how this is possible.


This target has been designed to deflect every bullet and pellet away from the shooter. All the angles are set to make that happen. The inventor also stressed safety when he showed me the operation.


The materials the target is made of are very rugged, yet also lightweight. It all fits into a rugged box that’s about 3/4 the size of a military foot-locker. The box has a rope carrying handle to make it extremely portable. That should appeal to clubs that have to set up their ranges on somebody’s property and knock them down after the event is over.

503-1 target box opened
Open the box and remove the top foam layer and this is what you see. Each layer is precision cut to fit the parts that go in it exactly.

I can see one of these being used for a big bore airgun match at a future Texas airgun show. Yes, the maker says it will handle big bores that don’t exceed 500 foot-pounds at the muzzle and use lead bullets. It would just be positioned far enough away that the bullet’s energy would diminish to around 300 foot-pounds.

Assembles without tools!

He sold me when he showed that it went together and comes apart without tools! And it goes together fast — about two minutes when you know what you’re doing. Actually let me refine that. I put it together the first time in under two minutes by referring to the instructions twice.

Paddles of two different thicknesses

The 503-1 comes with two sets of paddles. They are the targets at the end of the arms. They are all the same diameter. The thin ones are for airguns and the thicker ones are for rimfires, handguns and big bores. It takes just seconds to make a chance, because each paddle is held on my a magnet.

503-1 thick paddles
These five paddles are for the firearms and big bore airguns.

503-1 thin paddles
These thin paddles are for airguns rated to 1,000 f.p.s.

The secret

Magnets are the secret to how this target system works and why it works with such a broad spectrum of guns and power levels. The paddles are held in place by strong magnets, yet once moved slightly away they release freely.

503-1 paddle and arm
The paddle is held to the arm by one of those two magnets in the arm.

503-1 paddle on arm
Once the paddle is on the arm the magnet holds it securely until a pellet or bullet moves it.

How large is it?

I took the target outside and set it up, which is how I know how fast it goes. Then I took a picture with me standing next to it for perspective. As you can see — this ain’t no little job!

503-1 Tom with target
Yeah — it’s THAT big! This is a serious action target.


I broke it down and put it away almost as fast as setting it up — maybe three minutes, tops. Surprisingly, there were no parts left over! As a father who has assembled toys and bicycles on Christmas Eve, I was so glad there were no Tab As and Flange Bs. The guy who designed this target designed it for himself to put together, take apart and store easily.

Prior to writing this report I stared at that big box for weeks with trepidation. I knew I could get it out and assembled, but would I ever get it back inside? In fact that box with the layers of precision-cut foam are part of what makes this target so easy to assemble and to pack up again. I know the box cost thousands to design and I’m guessing each one costs $50. You would need to buy them by the thousand to drop by some amount, but not by that much (is my guess).

Many patents

The inventor was wise to protect his design with many patents, so it isn’t likely that you’ll see this one being knocked off anytime soon. I say that so none of you get any bright ideas. Build one for yourself if you want, but forget production.


The cost hadn’t been determined the last time I checked. I will tell you when I find out. But it isn’t going to be cheap.


I haven’t told you about the bearing in the hub of this target yet. It allows the target to spin for minutes if it is balanced. Or, once one paddle falls, it begins swinging from imbalance. I will learn more when I start shooting it.

You do have to go downrange once all the paddles have been knocked off, so there is that to consider. I will soon be showing you some smaller Texas Stars that you don’t have to go downrange to reset — you can shoot the paddles back up.

At any rate, I do plan on testing this one thoroughly.

111 thoughts on “All American Target Concepts 503-1 action target: Part 1

  1. B.B.,

    That was smart of him to use magnets to keep his plates in place, especially the part where the thicker plates (3/8″ mild steel?) are held by two magnets instead of only one. How heavy is it? Wouldn’t it be better to use FPE to determine what paddle you should use as a target instead of the FPS?


    PS Some edits needed.
    Paddles of two different thicknesses section last sentence: “It takes jkust (just) seconds…”
    How large is it? section first sentence: I took the target outside and set it up, which is n=how (how) I…”

  2. B.B.,

    I like it. It definitely looks like a club oriented target. The magnets are a great tool/idea. Your one picture shows you mounting a target, but still leaves 1 magnet exposed. What is the other one for? How thick are the paddles and what diameter?

    Most of all, I like seeing someone have an idea, make it materialize and do so in an easy to construct and well packaged product. Some careful thought went into it. I do admire that a lot.

    Good Day to you and to all,… Chris

  3. B.B.,

    That’s big enough to double as a Wheel of Fortune mechanism. The magnets would be excellent for holding the wheel in place, too. We often figure out how to make household items useful for airgunning, but here we might have an airgun product that can serve double duty.

    Very nice.


  4. What an innovative take on something that didn’t seem improvable. Most airgun targets are scaled down versions of firearm designs, to be able to scale something up and still be a functioning airgun target is fabulous. And with so many options powerwise with airguns this seems like a very versatile and fun target. My only concern is that the legs seem to be in the line of fire, however I’ve not used this type of target yet to really understand it’s function.

  5. BB,

    I just recieved from a LG cal 4,5 mod 55 walther’s patent air rifle. It’s a great gift, and I would like to keep it in good condition. I live in Europe though, And like most Europeans, I know almost nothing about guns.
    Could you write an article about basic airgun maintenance and important things to check when laying hands on an old gun?
    Thanks in advance for any help,


  6. What a well thought out shooting target.

    I’m a sucker for reactive targets. This reminds me of the most popular target on my range with all airgun shooters, the motorized Caldwell Shootin Gallery. I replaced the paddles that came with the target with ones that were made for airguns and wired a remote control so it can be turned off and on without going downrange. Great competition for two shooters that try to hit the emerging paddle before the other guy does.

        • Kevin,

          Here’s a target that is also fun to shoot with a buddy. You’ll have to make one yourself though because its for bbs ( and it’s safe ) not powder cartridges, and I couldn’t find one anywhere on the web. If you or anyone else would be interested in making one I can provide some details and pics to help you out, but I made it in my head as I went along ,so I don’t have plans, per say.

          I think you probably can tell how it works and that it is modeled after the Dueling Tree, but for others, I will explain. Two shooters stand side by side at 7-10 yards facing the “tree”. At the count of three they both begin shooting the paddles on their side of the tree.The paddles will flip to the other side and display your opponent,s color. He is trying to flip them back onto your side and on it goes until one of you manages to get all the paddles on his opponent’s side and becomes the winner. If you use all the paddles and play against someone of similar skill it will take several fast mag reloads to finish a game. The flags lift out so you can shoot at fewer for a shorter game if you don’t have extra mags.

            • Coduece,

              If you like shooting action type BB pistols, you can’t beat it. I spend hours just shooting it by myself, alternating from on side to the other, bottom up , top down, flip each over, then immediately back,always trying to increase speed with accuracy. I am planning to build another one from materials that are cheaper ( I sound like an air gun bean counter) and more readily available to the average guy. This one uses some aluminum and steel parts that some people may not have access to or would deem too expensive. I would like to design one that any “handy” person could build, because it is so much fun, and I couldn’t find one online anywhere for sale or as a DYI project. I’ll give it away once I get it developed but I can’t believe one of the low cost airgun makers hasn’t built one for sell yet. I buy two BB guns at a time so I’ll have one for me and one for a friend to use, and I use a boatload of CO2 and BBs because I want to practice,practice,practice. It would be a moneymaker for someone IMHO. It’s just really FUN.

      • Halfstep,

        Bought the targets from Ben at Steelplinkers. He makes a variety of them to replace those heavy ones that come with the Caldwell Shootin Gallery. As you can see in the youtube video I linked, it’s easy to change out the target paddles. You just remove a carter pin.

        The remote is a garage door opener type. You can buy them at any auto parts store. A buddy of mine wired it in. Took him about 10 minutes. Works great

  7. I definitely like the target.

    Would be fun with the Wildfire up close. And could have some fun plinking with the HW30s.

    But would be real cool with my .22 Maximus out at a hundred yards.

    Just need to know how much and when they are available.

  8. I have shot a lot of Texas Stars in Cowboy Action. The trick is to shoot the top one first, then the next one to the right. The star then turns and brings the next one on the right up right to where you shot the second one. Next you shoot the bottom left star and then the last one remaining on the right as it moves to the bottom. With that method, you get very little movement of the star which makes them easier to hit! It is a lot of fun. But, don’t miss or you will have problems.


  9. For those that expressed an interest in Blaster plastic BBs, I have done some shooting with them and have some information to report.
    I was firing them from an Umarex XBG CO2 BB pistol. I have 10 magazines for this gun and have had reason to believe that this and other
    mag fed BB guns group differently depending on which mag you use and was testing that theory as well as trying out the Blasters. I have
    engraved each mag with it’s own number for that reason and may refer to the numbers as I go along here, so that’s what I mean if I say “mag 4″etc.
    I used this gun because I get over 150 useful shots with steel bbs. I mounted a cheap and inoperable laser to the Piccy rail at the front of
    the gun and clamped that in a Jaw Horse vise, then I set up a target holder at 7 yards and fired each mag with first, 10 Hornady Black Diamond BBs,
    then changed targets, reloaded the same mag with Blasters and repeated this until I had fired ten of each brand out of ten different mags.
    The firing was done to a cadence of “Fire,2,3,Fire,2,3…”,so about a 3second interval. I was also firing, indoors at 70 F, over a PACT
    Precision Chronograph using infra red sensers. So that gave me 10 shot accuracy and velocity data to show you. If all goes well, you should see a chart of the results in a photo below. I’ll pass on more info in further comments.

    • Halfstep
      I see something I like already with the Blaster bb’s. They group better. And the fps is higher.

      Do you plan to see if you can push the distance on the Blaster bb’s. I had a air soft rifle some years back that actually shot cans out at 35 yards consistently. And even a 1 gallon plastic milk bottle out at 50 yards.

      So would definitely be interested in some longer distance shooting with maybe a smooth bore air gun if you have one to try out with the Blaster bb’s.

      • GF1,

        I plan on shooting at longer distance as part of my testing, but If you look at my 12 yard test farther down, you will see why I don’t hold out much hope.

        I have all kinds of guns to shoot them from, including a Crosman MKII, Crosman Model 73, Crosman 1377, and Colt Python BB. Because they are plastic I’m even going to try my Daisy 777. Honestly, I’ll probably end up shooting them from everything I own in .177. 😉

  10. BB
    That sure is a nice looking target – would look good on my range.
    I have 2 questions.
    The airgun and firearm paddles have a single and double mount tab and it looks like the paddles would hinge back and fall when hit. More so with the firearm paddle leaving the outboard magnet really exposed. What are the chances of shrapnel causing damage to the magnets. Are spare parts going to be available
    How is the target finished. Paint or powder coat? Does it look like it will stand up to harsh outdoor conditions?

    • Dave,

      The magnets are on the back side of the arms, so they are shielded. It looks like a powder coat to me. Yes, it is made to withstand range conditions. I wouldn’t leave it outside when not in use because there is a bearing in that hub.


  11. For those that expressed an interest in Blaster plastic BBs, I have done some shooting with them and have some information to report. I was firing them from an Umarex XBG CO2 BB pistol. I have 10 magazines for this gun and have had reason to believe that this and other mag fed BB guns group differently depending on which mag you use and was testing that theory as well as trying out the Blasters. I have engraved each mag with it’s own number for that reason and may refer to the numbers as I go along here, so that’s what I mean if I say “mag 4″etc. I used this gun because I get over 150 useful shots with steel bbs. I mounted a cheap and inoperable laser to the Piccy rail at the front of the gun and clamped that in a Jaw Horse vise, then I set up a target holder at 7 yards and fired each mag with first 10 Hornady Black Diamond BBs, then changed targets, reloaded the same mag with Blasters and repeated this until I had fired ten of each brand out of ten different mags. The firing was done to a cadence of “Fire,2,3,Fire,2,3…”,so about a 3second interval. I was also firing, indoors at 70 F, over a PACT Precision Chronograph using infra red sensers. So that gave me 10 shot accuracy and velocity data to show you.

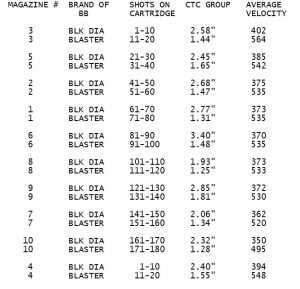

    If all goes well there should be a chart below showing those results. I’ll pass on more info in further comments.
