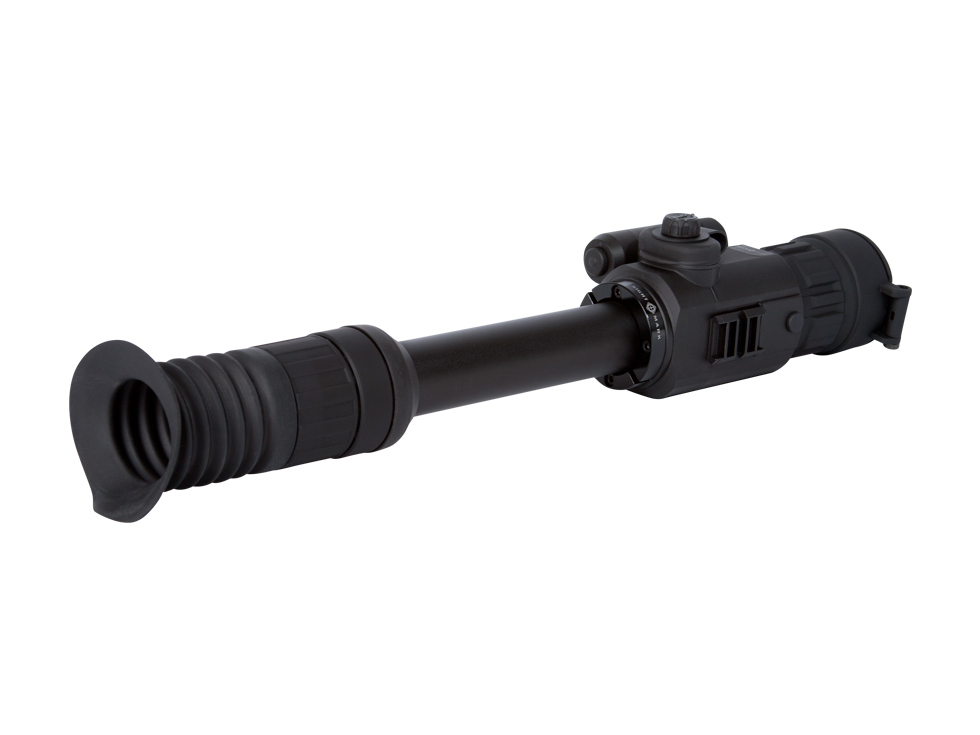

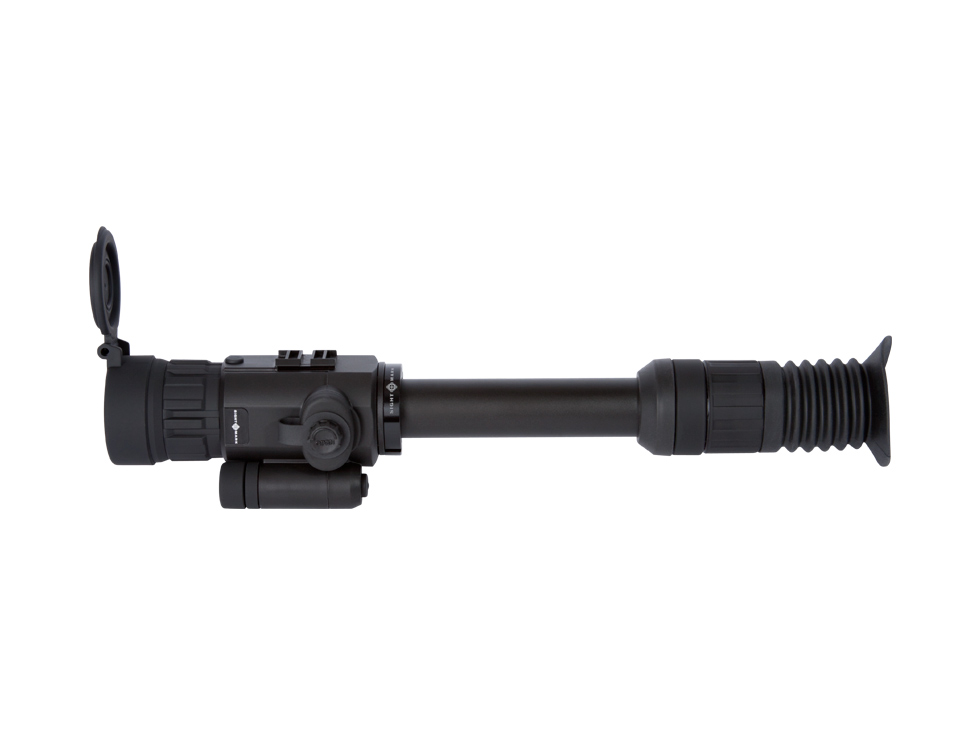

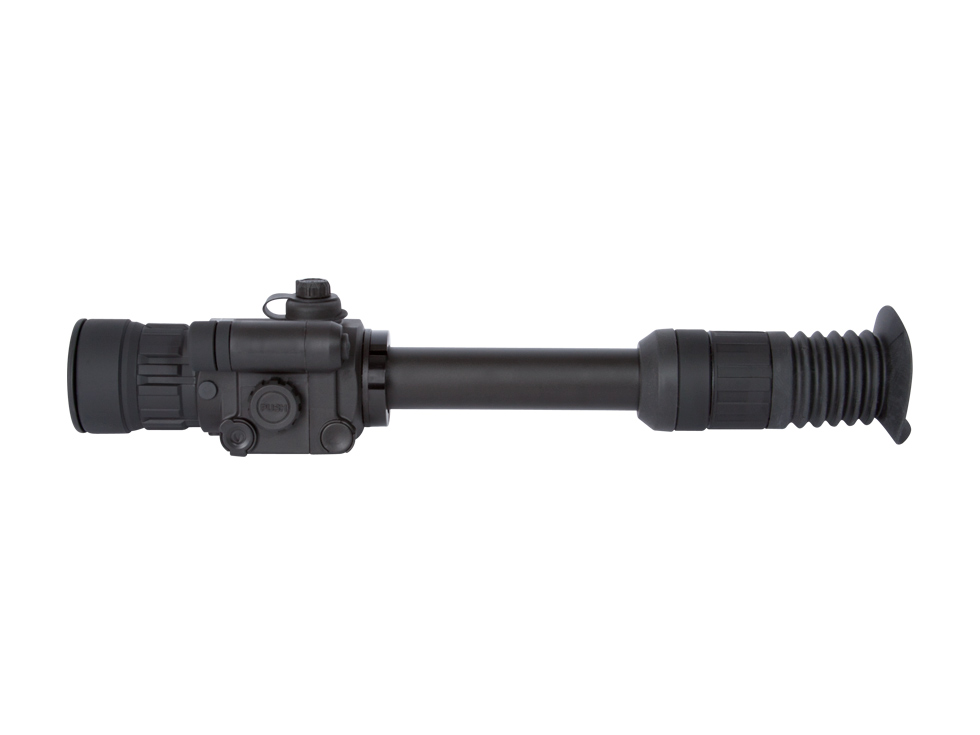

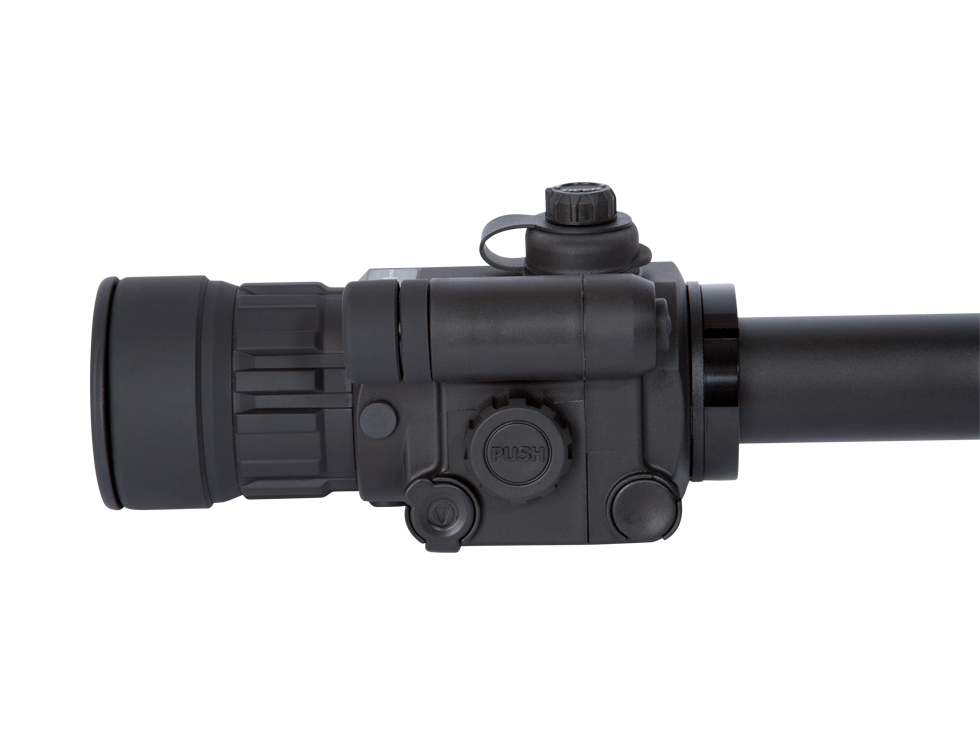

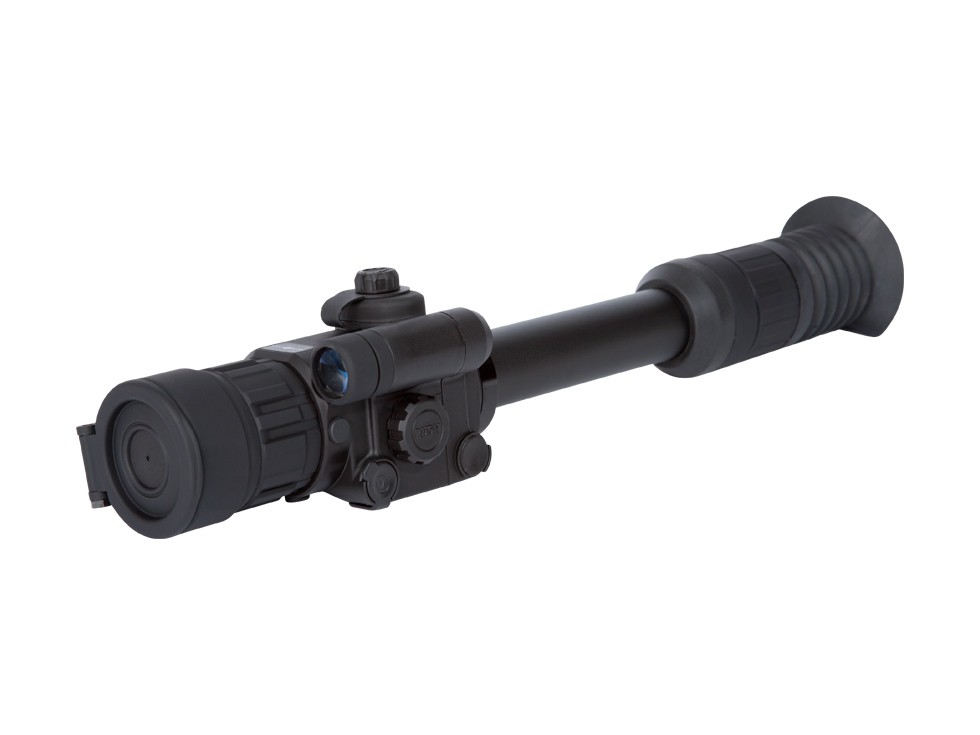

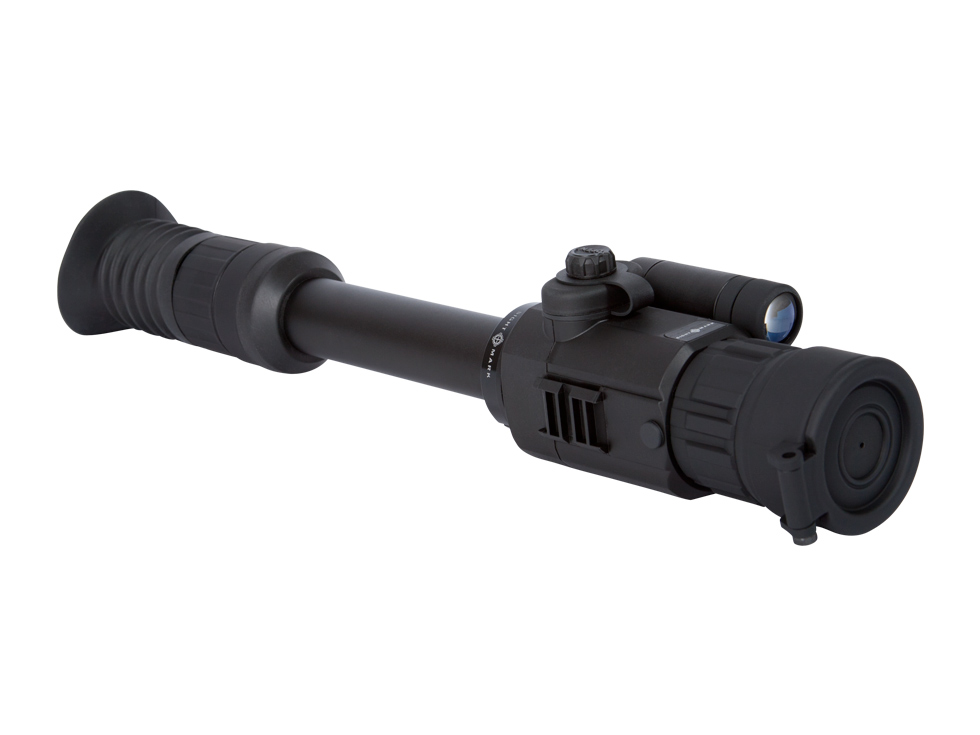

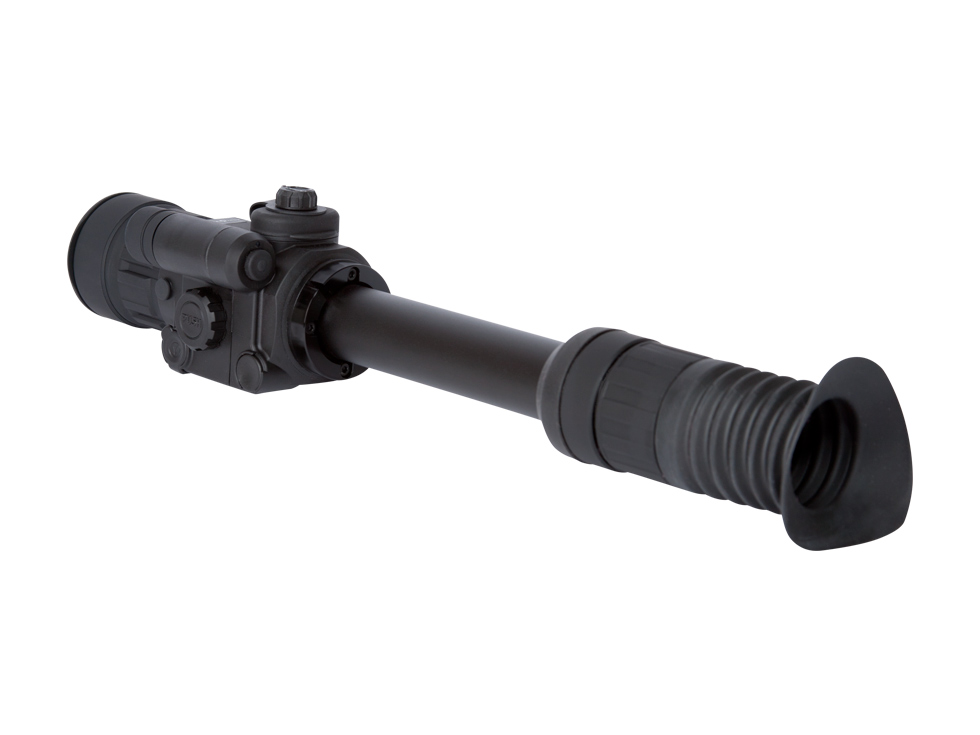

Sightmark Photon XT 4.6x42S Digital Night Vision Rifle Scope
PY-A-6654
Not Available
View more products from Sightmark
Description
The Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope is the scope for the shooter who wants all the bells and whistles. Designed for optimum precision at medium range, this intricate scope from Sightmark is the perfect scope for shooting in all lighting conditions. Equipped with windage and elevation adjustment as well as six digital reticle options, the Sightmark Photon XT 4.6x42S Digital Night Vision Multiuse Riflescope has a vast amount of options. The scope attaches to your Weaver rail mount in seconds. At a 30% lighter weight than most riflescopes on the market, the Photon XT is a lightweight riflescope that will meet all your needs.
Sightmark Photon XT 4.6x42S Digital Night Vision Rifle Scope
Electronic Components
- CMOS sensor
- Camera resolution 656x492 pixels (EIA)
- LCD display
- Resolution 640x480 pixels
- Video IN/OUT availability: No/Yes
- Pin type of video output: RCA
Optical Characteristics
- Magnification 4.6x
- Objective lens 42mm
- Lens focus 50mm
- Relative aperture, D/f 1:1.2
- Field of view, horizontal 4.3 degrees
- Field of view 7.5 m@100m
- Minimum focusing distance 10m
- Eye relief 2.4 in
- Diopter adjustment: +3,-3
- Resolution 38 lines per mm
- Tube 30mm
Integrated IR Illuminator
- Emitter LED
- IR wavelength 810nm
- Equivalent IR power 100mW
- Beam divergence: ≥ FOV degrees
Power Supply
- 2.0-3.3
- Battery type 2xAA
- Battery life (with IR) 4 hours
- Battery life (w/o IR) 5 hours
Reticle
- Windage and Elevation, 1 Click (H/V), mm@100m 25/25
- Number of clicks, (H/V) 60/60
- 6 Preloaded Reticles
- Illuminated red-green duplex
- IR illuminator effective distance (yd): up to 100
- Detection range (yd): up to 230
- Recognition range (yd): up to 120
- Relative aperture 1
Specs
- Glass lens
- Glass-Nylon Composite/Metal body
- Weaver mount
- Operating temperature: +5 to +122 (F)
- IPX4 Weatherproof
- Shockproof
- Maximum recoil 1000 G's
- Weight 1.475 lb
- Dimensions: 15.6" x 2.95" x 3.15"
- Reticle windage/elevation adjustment 1/2 MOA per click
Features
- Day and night use
- Range of detection 130 yards
- Digital reticle with option of 6 reticle styles
- High resolution display

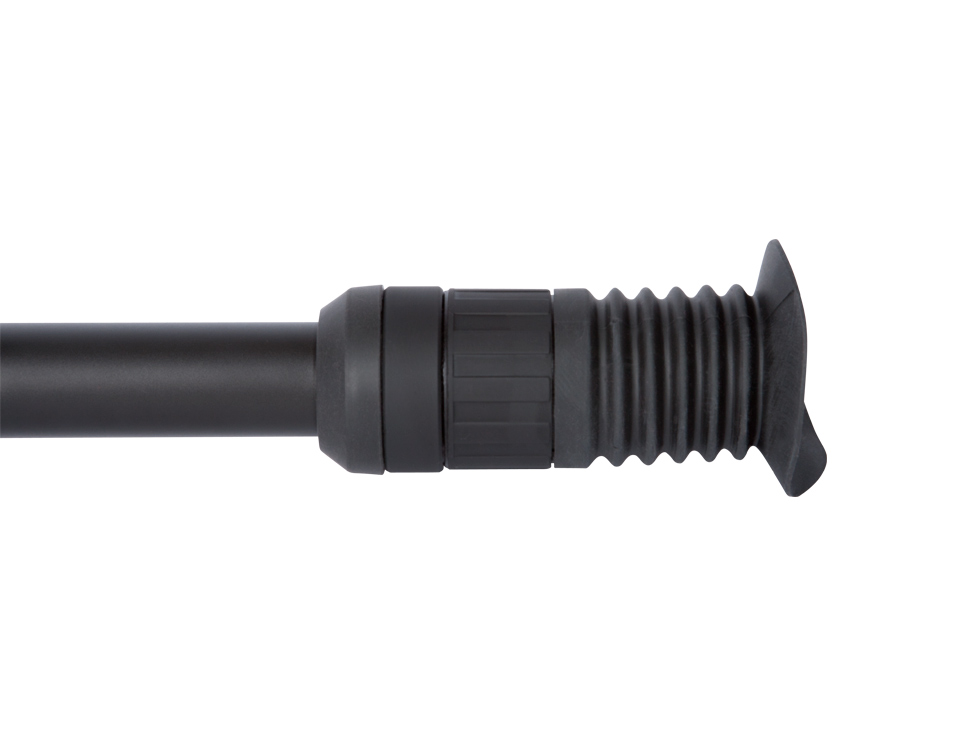

- Long eye relief

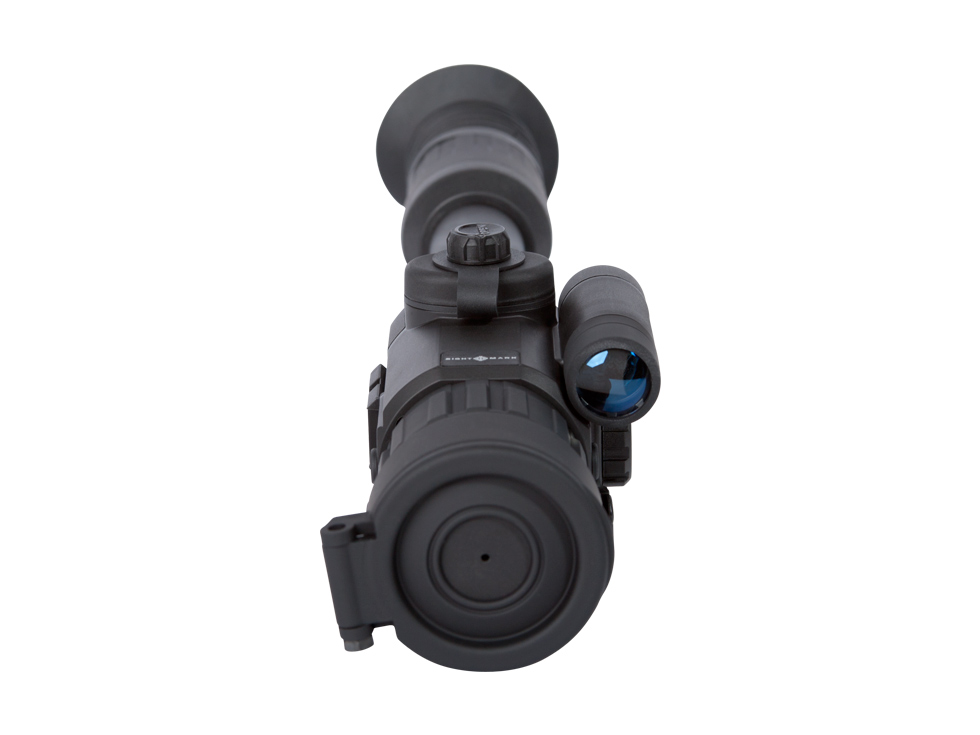

- Built-in 810nm LED IR Illuminator
- Resistant to bright light exposure
- Shockproof and weatherproof
- Additional weaver for rail accessories
- Video output enables video recording
(We suggest choosing high rings for the Sightmark Photon XT.)
Specifications
Overall Rating
Review This Product
Tell us what you think
2 of 2 Sightmark Photon XT 4.6x42S Digital Reviews
This scope is quite a bargain for what it does. It turns moonlight and dusk conditions into essentially daylight, and one can use it in daylight as well (with the front lens cap in place; it has a pinhole to let in a little light). It has an adjustable objective, which is quite stiff, but it does work. With the front lens cap in place, the AO is not needed as much; it focuses over quite a large range (10-50 yds). This probably has something to do with the pinhole acting as an additional lens. Zeroing the scope is straightforward, and the batteries last several hours. Picture quality is good, not great. Quite sufficient for rabbits at 10-25 yds. Not sure of clarity at longer ranges.
Things I Would Have ChangedThe scope contains an IR illuminator that I am sure could easily light up targets 100 yards away. If you are contemplating shots in the 10-25 yard range, it is almost too bright, even on the lowest illuminator setting (there are three brightness levels. It would be nice to have a very low intensity setting, which would be more useful for those of us with air rifles. It is pretty heavy, so adding this to a Marauder makes for quite a load.
What Others Should KnowYou will need 30 mm rings for this. Medium rings worked on my Marauder. Picture displayed through the scope is black and white. Several reticle designs to choose from and reticle color choices are red, and green and I think white is an option. Green works very well for me.
Get FREE shipping on qualifying orders! Any order $150+ with a shipping address in the contiguous US will receive the option for free ground shipping on items sold & shipped by Pyramyd AIR during checkout. Certain restrictions apply.
Free shipping may not be combined with a coupon unless stated otherwise.
View Shipping Info
During busy holidays, we step our efforts to ship all orders as fast as possible, but you may experience an additional 1-2 day delay before your order ships. This may also happen if you change your order during processing.
View Shipping Times
U.S. federal law requires that all airsoft guns are sold with a 1/4-inch blaze orange muzzle or an orange flash hider to avoid the guns being mistaken for firearms.
View Shipping Restrictions
If you're picking up a new air gun, our team can test and tune the equipment before it leaves the warehouse. We can even set up an optic or other equipment so you can get out shooting without the hassle. For bowhunters, our certified master bow technicians provide services such as assembly, optics zeroing, and full equipment setup, which can maximize the potential of your purchase.
By leveraging our expertise and precision, we ensure that your equipment is finely tuned to meet your specific needs and get you ready for your outdoor pursuits. So look out for our services when shopping for something new, and let our experts help you get the most from your outdoor adventures.
View Service Info
A warranty is provided by each manufacturer to ensure that your product is free of defect in both materials and workmanship.
View Warranty Details
If you need to return an item please read our return policy.
Learn About Returns
Get FREE shipping on qualifying orders! Any order $150+ with a shipping address in the contiguous US will receive the option for free ground shipping on items sold & shipped by Pyramyd AIR during checkout. Certain restrictions apply.
Free shipping may not be combined with a coupon unless stated otherwise.
View Shipping Info
Join the Pyramyd AIR mailing list: Our e-mails are filled with new products, deals, sneak peeks, tips and tricks, contests and more - sign up today!
Text JOIN to 91256 and get $10 OFF Your Next $50+ Order!
* By providing your number above, you agree to receive recurring autodialed marketing text msgs (e.g. cart reminders) to the mobile number used at opt-in from Pyramyd AIR on 91256. Reply with birthday MM/DD/YYYY to verify legal age of 21+ in order to receive texts. Consent is not a condition of purchase. Msg frequency may vary. Msg & data rates may apply. Reply HELP for help and STOP to cancel. See Terms and Conditions & Privacy Policy.
Apr 02, 2017
By Dustin
Everything is good, easy to learn & figure out, I think some are like a book?
Things I Would Have ChangedIts in black n white ( the view) but that's ok the sight is in white, green & red whichever you chosen, the rings are 30mm so you'll have to get rings to match.
What Others Should KnowThis won't fit all rings like a bullseye ZR mount and this scope is not to go on a springer break barrel rifle & this is a long scope 15"+ I got it on my Benjamin Discovery & its a great scope.
