This report covers:
- Case-hardened parts
- Polishing parts
- A polishing tale
- Gamo triggers
- Single stage — two stage
- Do all triggers wear out?
- Stay safe
- Summary
In Part 1 we looked at triggers that were adjusted too light and the danger that can possibly arise. Today we look at triggers that wear in through abuse such as aftermarket “gunsmithing” and through use, becoming too light all on their own. We got a start on that in Part 1 with the discussion of the BSF trigger that does exactly that, so let’s begin there.
Case-hardened parts
It is possible to harden a steel part only on its surface. The process is called case-hardening and it allows manufacturers to make parts from low-carbon steel and then harden them to do jobs that require hard surfaces.
The parts in triggers are one place where case-hardening is done. Low-carbon steel doesn’t just cost less to purchase, it’s also easier to machine, which means more parts can be made in a shorter time. Also the tools needed to make parts made from low-carbon steel will last longer and break less often, which means more savings for the manufacturer.
Case-hardened parts can be just as reliable as high-carbon steel parts, as long as they are used correctly — where the hardened surfaces are all that are contacted and the parts aren’t compromised in any way. If the case-hardening is removed by stones or files during polishing, the soft inner core of steel gets exposed and wear will start immediately. This is where non-professional modifications can become liabilities.
Polishing parts
One of the worst problems with triggers and other parts is polishing. When parts that engage get polished they often no longer engage as they should. This goes two different ways — either through use or by intentional polishing.
Reader LFranke talked about parts that get worn in and polished through many thousands of operations — in other words through use. That is the problem the BSF trigger parts have. When that happens the user needs to adjust the trigger to a heavier release. That keeps things safe. Properly designed triggers should last for many decades of heavy use if this is done.
The other danger from polishing comes when the owner polishes his own trigger parts, or allows someone else to polish them and the angles of engagement get changed. Triggers can be made unsafe in a short time this way. Reader Ian McKee has recently seen this firsthand — not necessarily with just triggers but with other critical gun parts.
Many people feel they must polish trigger parts. I cringe when someone tells me they have polished their trigger and/or sear to a mirror finish because in my experience they do it wrong most of the time.
A polishing tale
The following story is apparently true, though I doubt either party will admit it. Many decades ago (1953-1978), Rolls Royce used an outsourced automatic transmission for their cars. They settled on the Hydra-Matic made by General Motors. In their investigation they found a pump piston head inside that transmission that was not finished to Rolls Royce standards, so they polished it and put it back. The transmission stopped working. When they asked GM what the problem was they were told the roughness of that piston head was essential to its operation. Sometimes polishing doesn’t help.
Gamo triggers
I don’t know if this is true for the triggers in Gamo rifles made today but there was a time several decades ago when a new Gamo trigger started out hard and creepy and wore in to become beautiful and smooth. It took around 3,000+ shots for this to happen. As best I recall these were single-stage triggers and the blade did move, but the pull was absolutely smooth. Since Gamo came out with their adjustable triggers I’m not sure where they are today.
Single stage — two stage
Trigger adjustments are a big reason I prefer two-stage triggers over single-stage triggers. I don’t care how much travel stage one has — AS LONG AS IT’S INTENTIONAL TRAVEL AND NOT JUST CREEP! What I want is a definite place where stage two starts. If the trigger gives me that, the release can be as heavy as five pounds and it won’t matter.
Are there single-stage triggers that are okay? Yes, I’ve seen some. The trigger on the Webley Senior straight-grip pistol I used to own had one. It had a lot of trigger blade travel, but it was smooth and reasonably light. My Crosman 600 bulk-fill pistol has one that’s fine and light. That one doesn’t travel too much. And I once had a Beeman C1 that had a wonderful single-stage trigger.

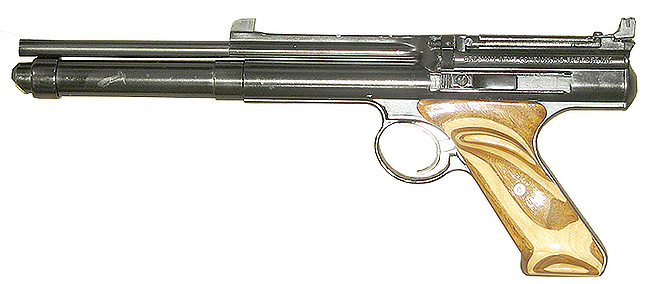

My Crosman 600 bulk-fill pistol has a very nice single-stage trigger.
My Beeman C1 also had a good single-stage trigger.
Do all triggers wear out?
In my limited experience, not all triggers wear in or wear out. But the ones that don’t are only found on military arms or on the finest civilian models made. In the airgun world I would say the TX200 is one that won’t wear in or out. Rekord triggers are there, as well.
In the firearms world the triggers in S&W and Colt double action revolvers fall into this category — as long as they remain factory. But most other triggers are suspect. The vintage Colt Single Action Army trigger wore out quickly.
LFranke told us his HW45 trigger had to be adjusted heavier to remain safe. I once had a Sako Vixen centerfire rifle whose trigger wore too fine and had to be adjusted heavier. That one fired a round when I chambered it during a hunt and I thank the Lord I was pointing it at the ground when I closed the bolt!
Stay safe
LFranke asked me to tailor this report for seniors, hence the title. The last point I’ll make today is to keep your finger off the trigger until you’re ready to shoot. This is something that applies to any and every shooter
An acquaintance of mine couldn’t do it. Whenever he held a gun of any kind his finger went to the trigger. One day he called to tell me he’d shot himself while holding a carbine. I’m not sure but I think that was the incident that caused me to invent the term “stupident” to replace the word accident. It was bound to happen because he always rested his trigger finger on the trigger.
Summary
In these two reports we have looked at triggers from a safety standpoint. We know why they shouldn’t be adjusted too light and today we see they can wear to the point they need to be adjusted to release heavier.
As shooters we are the first line of protection from accidental discharges. It may not be easy but we owe it to our hobby to be both vigilant and safe.
And yet people firing the gun will want to have the lightest trigger possible so they don’t struggle with the trigger when they want to shoot. They think a light trigger is the best for them until a “stupident” happens.
