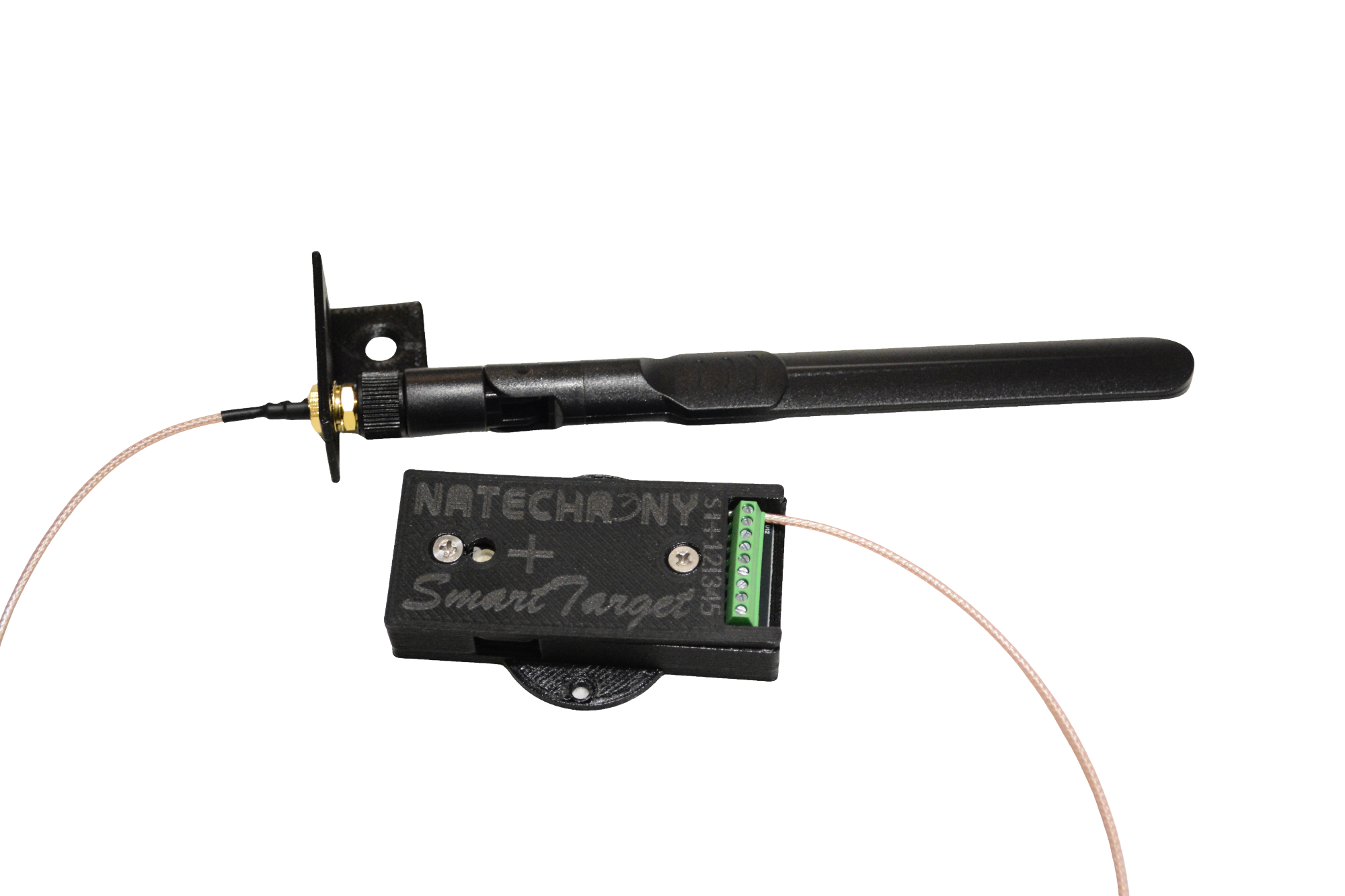

NateChrony SmartTarget External Antenna

SmartTarget
The NateChrony SmartTartget has an inbuilt motion sensor that detects movement, by analysing this movement it can detect being hit, and also the possible location of that hit. Mounting to a free moving target such as a hanging gong is highly recommended - as it can freely move in left-right and up-down directions.
The SmartTarget can be mounted to any surface, and used to detect any object - airguns, firearms, baseball If you need to detect movement and strike location, the SmartTarget is for you.
(The features will be rapidly improving as we get customer feedback and develop additional features.)


Features
Internal Antenna: Range ~65m on 10cm diameter 5mm thick steel, ~35m on 20cm diameter 10mm steel target
Mounts to any target with double sided tape, or screws
Center hole on case to assist with accurate placement

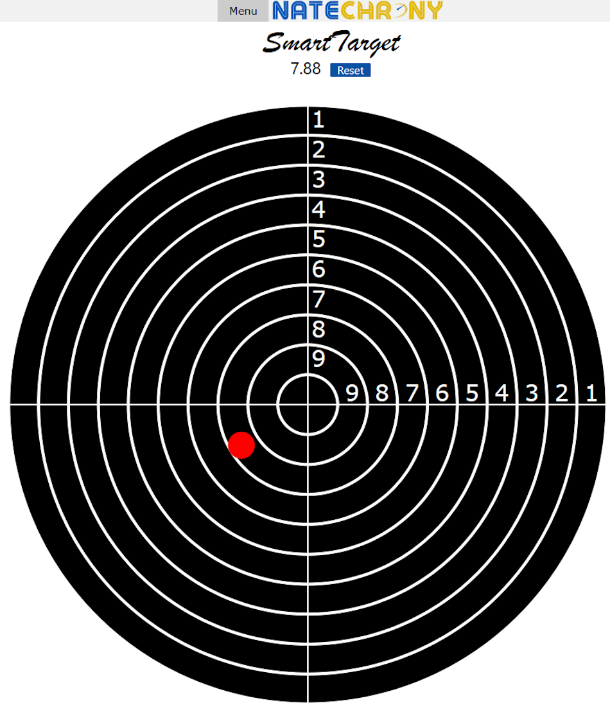

Standard 10 ring target face display for shot placement
Score display
Match Mode: Track and save multiple shots
Calibration: can be adjusted to match every unique targets movement
Sensitivity: can be adjusted for low/high power on target surface
Highest Sensitivity: Can detect 5fpe on a 25cm diameter, 20mm thick, 5kg steel plate
External Lights: ultra high brightness LED accessories available, so superb visibility at range
Programmable Lights: we can program any lighting effects you can imagine

Optional Accessories
Short Range/Cross: 5 LEDs in a cross with 60mm spacing for 50-100m range
Long Range LEDs: 4+2 or 10+2 LEDs that can be spaced at 600mm
DIY Lighting Kit: 10+2 LEDs that you can wire together to create custom designs Note: Accessories are optional

Requirements
Youll need this stuff to use the SmartTarget - typically if you have a mobile phone youre set!
Target (minimum): A 10cm diameter 5mm plate for 20fpe will not cause sensor overload
Target (maximum): A 25cm diameter 20mm plate (5ks) for 5fpe will provide hit indication but not reliable shot placement
Target (recommended): 5-10mm thick plate, the minimum mass required to give 25-45 degree rotation when shot at the extremities
A 5v USB power source: we recommend a quality USB power bank, 1x28650 will last ~8hrs
Solar panel (recommended): add a small ~2-5W panel to charge while its in the field
If using a mobile phone/tablet, it should be less than 5 years old & up to date
Working knowledge of your device, including browser and internet technologies
Working knowledge of any additional security software installed on your device
A device (phone/tablet) that can connect to a Wi-Fi hotspot, that does not have internet access
A web browser that can connect to a HTTP (not HTTPS) web page and run JavaScript
You can test your device here, ensure the page loads and displays a speed and power value, and when clicking on Menu - Shoot, you hear the speed and power readout


Specifications
Accuracy: Approx 5% with target calibration values of 20,000+, 10% with calibration values of 10,000
Outputs: Addressable LEDs (WS2812 compatible, 30mA max output), 5 additional programmable outputs - 3.3v logic @30mA
Power: USB C, 160mA consumption
Range: approx 65m when behind 5mm steel plate, long range version with external antenna ~500m
