Morton-Harris-Marksman.
This report covers:
- Pellets
- Velocity with unflared pellets
- Flared pellet skirts
- Discussion
- Aiming
- BBs
- Velocity with BBs
- Darts
- Next
Today we look at the velocity of my Morton Harris Marksman air pistol. As a reminder, Ian McKee and I are “writing the book” on the Morton Harris Marksman pistol, since not much documentation exists.
And know that I oiled the leather piston seal liberally several weeks ago. That oil is still showing, so today’s velocities should be as good as it gets.
Pellets
I’ll start with pellets. I only tested one pellet because this air pistol isn’t one you will leave as a legacy, unless you don’t shoot it. The zinc metal parts and the hammering design of the piston conspire to beat the pistol apart over time.
I tested it with the H&N Excite Econ. I tested that pellet both as it comes straight from the tin and again with its skirts flared the way I explained in Part 1.

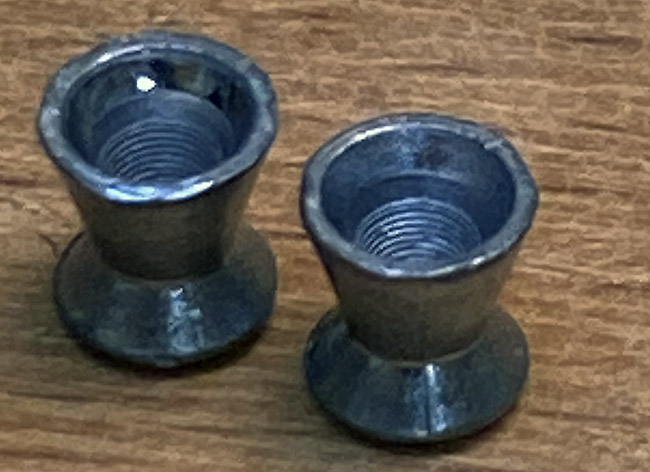

Pellet on the left was flared with the pin pinch I showed in Part 1. Pellet on the right is straight from the tin.
A pellet that isn’t flared seats itself deep in the barrel.
The picture is blurry but you can see that the flared pellet didn’t drop into the barrel as deeply.
Velocity with unflared pellets
I shot a 13-shot string because the first three shots seemed to be needed to wake up the piston seal.
SHOT………….Vel.
1…………………189
2…………………176
3…………………189
4…………………200
5…………………212
6…………………211
7…………………211
8…………………215
9…………………211
10……………….201
11……………….199
12……………….200
13……………….196
Can you see that the pistol seems to need three shots before it is warmed up? I must remember that, but it is pretty common for a lower-velocity airgun that has a leather piston seal to need a few shots before it settles down.
The pistol seems to shoot this un-flared pellet at around 200 f.p.s. At this point I wondered if flaring the skirts would speed them up. I decided to shoot a string of five of the same pellets to find out.
Flared pellet skirts
SHOT………….Vel.
1…………………178
2…………………179
3…………………166
4…………………189
5…………………184
That was a surprise. I expected the flared pellets to shoot faster than the un-flared ones but as you can see — they didn’t. So I shot two more un-flared pellets.
SHOT………….Vel.
1…………………172
2…………………180
The pistol seems to be loosing velocity when the pellet fits the bore tighter. Or at the very least it doesn’t seem to benefit from flaring the pellet skirts. Also I noted that the slide catch on the left side of the pistol backs out of its notch every time the pistol is fired.
The pistol is cocked and the side latch is as far up as it will go.
Just after the pistol was fired the side latch has slipped down.
Discussion
It would seem that this pistol shoots this pellet around 200 f.p.s. or slightly faster when they are straight from the tin. It also seems that flaring the pellet skirts is a waste of time.
Aiming
Remember how slanted down the barrel is? Look at the first picture if you can’t remember. Well, the pellet goes out the same way the barrel is looking. In other words, this pistol will shoot way low with the sights. And the design of the pistol leaves no option to correct it.
Like pellets I only tested the pistol with a single brand of BB. Since flaring isn’t possible with a steel BB, this is just a string of ten. I shot the ASG Blaster BB that I know to be on the larger side and also very uniform. As a bonus, they are also a bargain.
BBs aren’t loaded into the barrel. Do that and they roll straight through. Instead, press the BB into the rubber seal when the barrel is open.
Press BBs into the rubber seal behind the barrel.
Velocity with BBs
Since the pistol was already warmed up I just shot a 10-shot string.
SHOT………….Vel.
1…………………213
2…………………212
3…………………209
4…………………210
5…………………204
6…………………221
7…………………220
8…………………220
9…………………213
10……………….217
I will accept this string as typical for this pistol. That means the average velocity of this BB is about 214 f.p.s. That seems okay to me. The aiming situation remains the same as for the pellet, of course. And the side latch doesn’t move when BBs are fired.
Darts
I only shot one dart for velocity and I’ll tell you why. Most of my .177-caliber darts have a very tiny ridge on the rear of their metal bodies and they will not enter the barrel of this pistol. If it turned out to be an accurate dart shooter I would go to the trouble of removing that ridge from several darts, but since the barrel slants down so severely I don’t think it’s worth the effort.
The one dart I shot went out at 76.7 f.p.s. and stuck in the cardboard rubber mulch box. I think that’s all I’ll do with darts in this pistol. The side latch remained where it should be.
Next
I do plan on shooting the pistol for accuracy with BBs and pellets, but with the downward-slanting barrel it might prove to be a wasted effort. But since Ian McKee and I are writing the book on this little pistol I will at least try to shoot it for accuracy. Then we will all know.
