Air Arms S510XS Ultimate Sporter with Laminate Stock.
Part 11 where there are links to all the previous reports
This report covers:
- Fill
- The test
- JTS 18.1-grain domes
- H&N 23-grain slugs
- JSB Hades hollowpoint
- Benjamin Single Die dome
- H&N Baracuda Match with 5.51mm head
- What I don’t like about the rifle
- What I like about the rifle
- Summary
Today we look at the accuracy of the .22-caliber Air Arms S510XS Ultimate Sporter with Laminate Stock with some premium pellets that have not yet been tried. I’m also going to tell you some of the things I like and some I dislike about this air rifle.
Fill
I filled the reservoir at the start of this report. I had not shot this rifle since April of 2023 — a full 16 months ago, so I scanned all past reports to see what pellets I’d shot and to see any of the rifle’s quirks. I do remember that I had left the Meopta MeoPro Optika6 3-18X56 scope on because this is my go-to .22 pellet rifle. I considered that it was still sighted in for 25 yards, so after filling I went straight to the test.
The test
I shot the rifle off a sandbag rest at 25 yards with the rifle rested directly on the sandbag. I shot five different premium pellets with each group containing 10 shots. The power was set on high except for the first group, when the power was set two clicks down. After reading the past reports I refilled the rifle after 30 shots.
JTS 18.1-grain domes
In the past JTS 18.1-grain domes were the most accurate pellet in the rifle so I started the test with them. In Part 11 the best group with this pellet was 10 in 0.113-inches, which is the best this rifle has ever shot. Most groups in the past have measured just over a quarter-inch. Today ten went into 0.294-inches between centers.

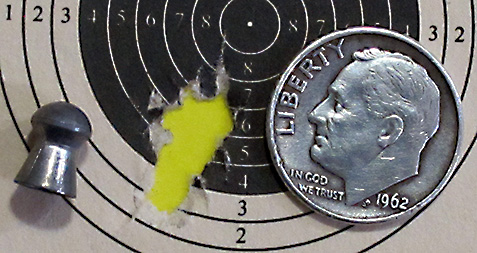

The Air Arms S510XS put ten JTS 18.1-grain domes into a 0.294-inch group at 25 yards.
H&N 23-grain slugs
Next up were ten H&N 23-grain slugs that measure 0.218-inches wide. For this group and for the remainder of the test the power was set on high. These slugs went into 0.619-inches at 25 yards, making it obvious that this is not a good pellet for the S510XS.

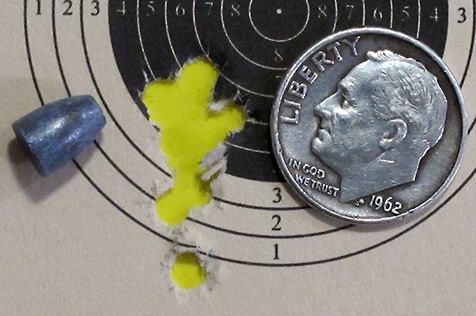

Ten 23-grain H&N slugs went into 0.619-inches at 25 yards.
JSB Hades hollowpoint
The third pellet I tested was the JSB Hades hollowpoint. These have been very accurate in other airguns in the recent past. The S510 put ten into a 0.316-inch group at 25 yards.

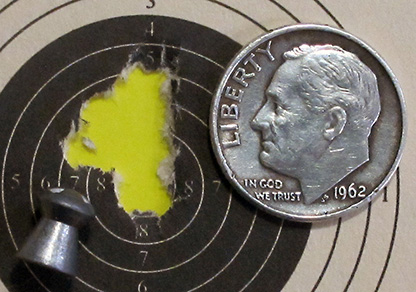

Ten JSB Hades hollowpoints went into 0.316-inches at 25 yards.
After this group I filled the rifle again.
Benjamin Single Die dome
Next to be tested was the new Benjamin Single Die domed pellet that I like to call the Benjamin Bullseye. So far these are accurate in almost all airguns. And the S510 is no exception. This was the most accurate pellet in today’s test and also the only one that grouped in less than 0.20-inches for 10 shots, with ten going into 0.187-inches at 25 yards.

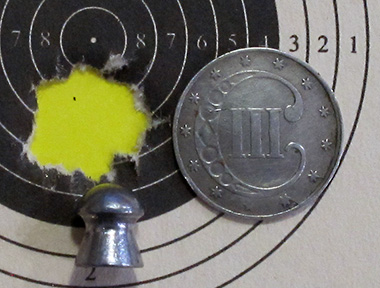

The S510 shot ten Benjamin Bullseyes into a 0.187-inch group at 25 yards.
H&N Baracuda Match with 5.51mm head
The last pellet I shot was the H&N Baracuda Match with a 5.51mm head. I had tried the same pellet with a 5.50mm head previously, so this was something different.. Ten of these went into 0.598-inches at 25 yards, making this a non-starter for this rifle.

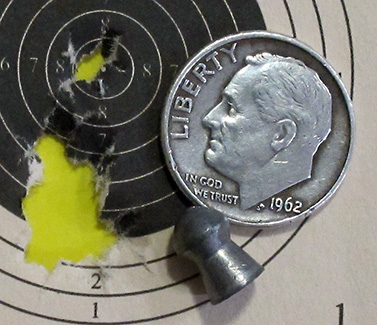

Ten H&N Baracuda Match pellets with 5.51mm heads made a 0.598-inch group at 25 yards.
What I don’t like about the rifle
I don’t like the Air Arms fill adaptor. Not only is it unlike any other fill adaptor, it is also difficult (for me) to attach to the rifle. The male Foster fill fitting used on other pneumatics is nearly universal and I wish Air Arms would get on board.
I don’t like the circular magazine. Yes, it never locks up at the end of the shots, but besides allowing you to lower the striker manually, it also causes you to shoot blanks or to count your pellets. Even while shooting a 10-shot group (the mag’s capacity) I removed the mag twice in five groups with a pellet still in the mag. Reader Yogi has a point about not wanting to count his shots.
The rifle is extremely difficult to load singly.
What I like about the rifle
I like the trigger. It’s two-stage, positive and crisp.
I like the power adjuster. It adjusts immediately — not requiring a shot to settle in at the new level.
The sidelever works smoothly.
The rotary magazine feeds many pellets smoothly and without disruption — meaning misaligned chambers. It also removes and installs easily.
The rifle is extremely quiet when firing. Even on high power it is just a whisper.
Summary
It was nice to shoot this old girl again. I have to figure ways to do it more often.
