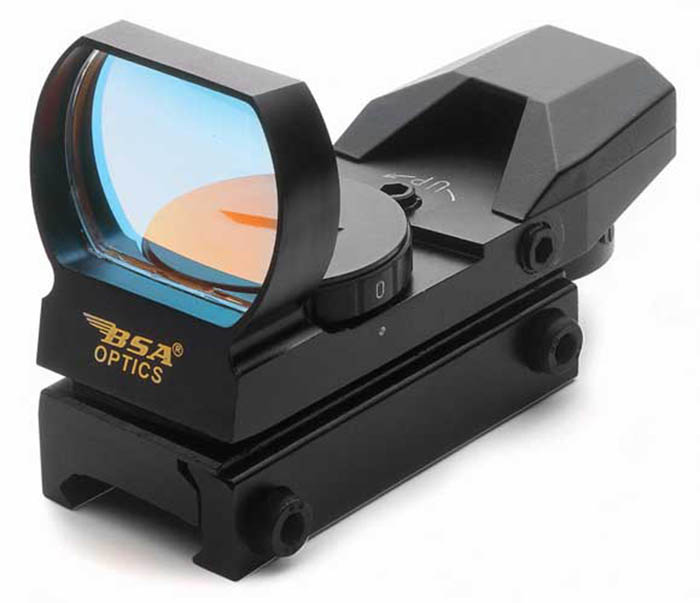

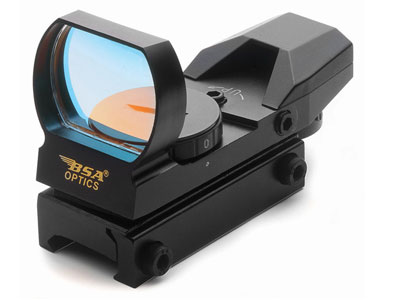

BSA Panoramic Multi-Reticle Sight, 4 Reticles, Weaver Mount

rating
4.011 reviews
4 answered questions

PY-A-1983

Not Available

View more products from BSA

rating
4.011 reviews
4 answered questions

Description

Many shooters prefer dot sights to scopes because they can more easily see their targets and the surrounding environment. Combine that with the choice of 4 reticles and 5 brightness levels for use in dim or bright light, and this may become your favorite optic!

If you sight-in your gun with a reticle, there is a very good chance that it will not be sighted-in when you change to another reticle. You will probably need to sight-in, again.
  • 1x magnification
  • 33mm objective aperture
  • 1 MOA click value

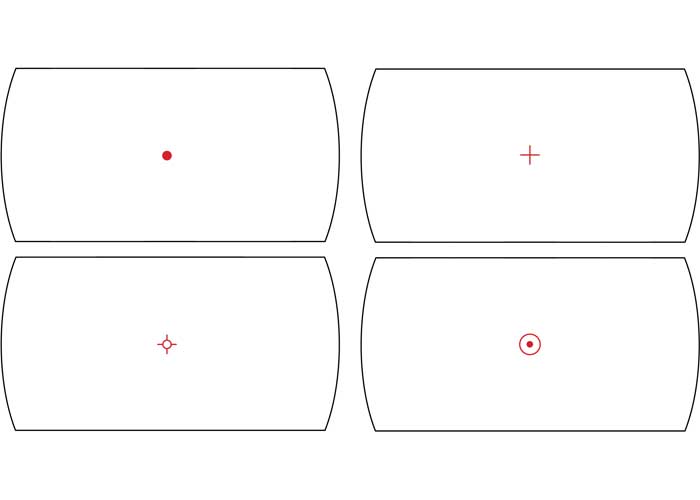

  • 4 reticles: 3 MOA dot, 3 MOA crosshair, 30 MOA dot crosshair, 10 MOA crosshair, 60 MOA circle with 3 MOA dot
  • Red reticles
  • 5 brightness intensities for each reticle
  • 3" to infinity eye relief
  • Elevation and windage adjustments
  • 50 yds parallax setting
  • 15.7m field of view at 100m (17.17 yds @ 109.36 yds)
  • Waterproof
  • Shockproof

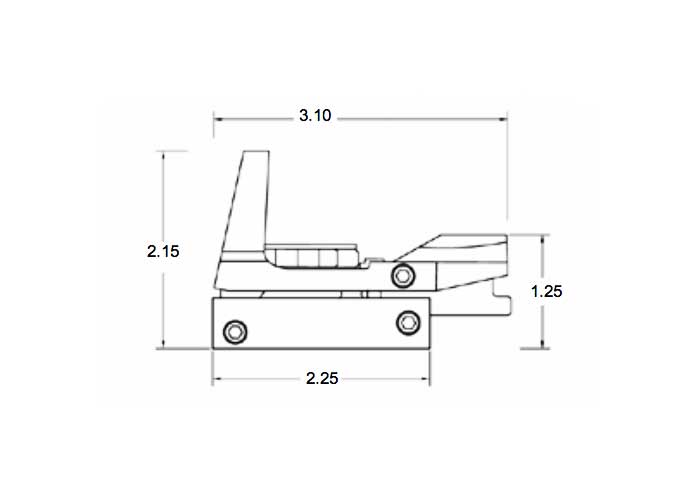

  • 3.23" long
  • 4.06 oz.
  • Integral Weaver mount
  • Shadow Black finish
  • Includes a CR2032 3-volt lithium battery and lens cap

The manual states there are 5 levels of intensities for green and red dots. This dot sight comes with red reticles only. The same manual is also used for the sight that comes with both red and green reticles.

Overall Rating

rating
4.011

Ratings

5 star
7
4 star
1
3 star
2
2 star
0
1 star
1

Review This Product

Tell us what you think

10 of 11 BSA Panoramic Multi-Reticle Sight, 4 Reviews

Sort By:
Most Recent
Overall rating
rating
4
Value for money
rating
5

Fairly low profile, o.k. sight , on my highly modified 1322, 1"1/2 groups at 40y, with dot, everything else is to big at arm's length. I had to paint top of batt. cover & up ,down arrow flat black because it reflects on the optical glass in red & you cant find the dot in bright light. The dot is very hard to see in bright sunlight, o.k. ,. in shade & eve. It should be brighter on 7 .seems to be holding up well with pumping 13 to 17 times each shot, & shooting about 150 rounds so far.

A non reflective top surface. A lock symbol or something to let you know were the d___n thing is (nothing in instructions to let you know) had to you tube it !

Works very well for the price.
Use a dove tail adpt. when needed .

t.b.c. Jul 22, 2016

after a few weeks of shooting, I had to readjust some & the lockdown screw galled in place . I found out that the piece of crap base had cracked & thats why I had to readjust it . It took me forever to drill it out & tap bigger threads for a larger screw , & drill & tap a screw all the way through to grab other side of base to give the poor design enuff strength to be able use lockdown screw to hold sight in place , once I got it re zeroed . Dont tighten lockdown screw very much ,because it will split the rear of the mounting frame causing the sight to be unstable & unaccurate ! Not what I thought I was getting. I guess that's why the real things cost 4 or 5 times more . Im just glad I had the skills to make it workout.

Add a Comment
Helpfull Review?
Overall rating
rating
1
Value for money
rating
1

View is nice

Set screw is terrible. Doesn't hold settings. Every time you take cover off, settings need to be reset. Don't buy this site.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5

This is a great sight! I put it on a Crossman Silhouette. Clear picuture through the lens, easy target aquisition and the brightness controll works well.

It would be great if it was available with a 3/8"/11mm dove tail mount. The required adaptor makes the sight line higher than what I would prefer. That being said I am planning to get another one with the same adaptor for my P1.

Buy it, you will like it.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5

Everything about this optic is great.

Nothing at all.

Get one, you will love it.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5

Very well built and sturdy. Very clear optics for this price range. I was looking at the Burris red dot for $200, but tried this BSA first....I will stick to the BSA. For the money it's perfect. I put it on my Beeman P1 .20 cal with the BKL 3/8" or 11mm Dovetail to Weaver Cantilever Adapter, 4" Long. SEE PIC ABOVE

Only one thing. The brightness on the first setting or 1 at night, is just a bit to bright for my likings. But during the day I use setting 2 or 3.

Buy it, you will be happy you did....I am!

Add a Comment
Helpfull Review?(1)
Overall rating
rating
5
Value for money
rating
5

Easy to set up and use. Very clear and well built. Very light. I'm using it on my Beeman P1 .20cal pistol. I set it up and have put 800 rounds thru it so far....hasn't budged. I'm very pleasantly pleased with the BSA Multi-Reticle Sight.

Maybe have the option for a dove tail base so I wouldn't have to buy an adapter for my 11mm Dove tail.

As I said I'm using it on my Beeman P1 .20cal pistol. I first bought the cheaper UTG 11mm-to-Weaver Adapter for $ 9.99 which will work just fine...but because I wanted the scope to sit as level as possible, and back further on my pistol, I bought the $38.00 BKL 3/8" or 11mm Dovetail to Weaver Cantilever Adapter, 4" Long, Matte Black. see pics

Add a Comment
Helpfull Review?(1)
Overall rating
rating
5
Value for money
rating
5

well made, good price, stays on target

MOA crosshairs

I have this on an IZH 46M and it works well. It allows me to stay inside a circle the size of a quarter at ten meters.

Add a Comment
Helpfull Review?(1)
Overall rating
rating
3
Value for money
rating
3

it is made well. and worksjust fine.

lower the cost

it does not work well on a Droze Blackbird

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5

High quality construction. The reticle seven levels of brightness. Works in all levels of light. Holds its Zero with great precision. I use it on my air rifle. Now the rats dont stand a chance.I would recommend it to all, it works great on my Mini-14.

I wouldn't change a thing.

The farther away from your eye,the bigger the red dot appears. So keep that in mind when mounting it. You dont want to blot out your target.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
4

The different laser sights you can choose. the ease it is to use(sighting), great quality, mostly metal and it has a cover for the lens.

When you sight it, the more you go in one direction the tighter it gets, I used a rail on the top of an mp5 and the sight is a good 4 inches above the barrel so it was hard to sight it so far down to compensate the change.

This thing is awesome! i can do a 30 round burst on a circular saw from 40 feet and they all hit the saw blade itself! I am now able to snipe with my gun a little bit. This is great for any gun that your going to be in somewhat close quarters combat and if you like a little sniping. I'm saying like only a 40 foot away snipe if you want to call it that.

Add a Comment
Helpfull Review?
