RAW HM1000x Mini Chassis PCP Air Rifle

Be the first to review!
RAW HM1000x Mini Chassis PCP Air Rifle

RAW HM1000x Mini, Image 1RAW HM1000x Mini, Image 2RAW HM1000x Mini, Image 3RAW HM1000x Mini, Image 4RAW HM1000x Mini, Image 5RAW HM1000x Mini, Image 6RAW HM1000x Mini, Image 7RAW HM1000x Mini, Image 8RAW HM1000x Mini, Image 9RAW HM1000x Mini, Image 10RAW HM1000x Mini, Image 11RAW HM1000x Mini, Image 12

Share your images

$1,799.95

List Price $1,899.95Save $100.00(5%)

Select caliber:
.22 (5.5mm)
.25 (6.35mm)
  • 1-year limited warranty

  • 60 day money back guarantee
  • Estimate Shipping

Add to Compare
Add to Wish list

Excluded from coupons

Earn 1800 Bullseye Bucks

Please Note:

Updated selection based on available products

Add to Cart

Only 2 left in stock


Sold & shipped by Pyramyd AIR


  • FeatureIcon
    WARNING WARNING This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

See other products by AirForce > RAW Rapid Air Worx

Item details
RAW-RMI22ARH [PY-4701-12772]

RAW HM1000x Mini Chassis Rifle, .22 caliber



Sold & shipped by Pyramyd AIR


RAW Rapid Air Worx HM1000x Mini Price

$1,799.95

Caliber.22 (5.5mm)
Max Velocity850 fpsMeasured with 25.39 ammo
Muzzle Energy40 ft/lbsMeasured with 25.39 ammo
GripAmbi
ColorBlack

This item is not eligible for coupon discounts

The RAW HM1000X Mini Chassis Rifle features the same incredible accuracy as its larger counterpart, as well as the quality and reliability of a tested, made-in-America platform. Capable of power up to 50 FPE in .25 and 40 FPE in .22, it provides similar performance to the bigger model but in a form factor that is lighter and more maneuverable because of its efficient design.

This airgun utilizes an updated dual-ported barrel design to deliver excellent power despite its shorter length. The sidelever action is remarkably smooth and notably reliable, and the accuracy of the Lothar Walther polygonal barrel is something shooters have come to rely on. In addition, the two-stage adjustable trigger is light from the factory and can be made even lighter, and it provides an incredibly sharp and repeatable break.

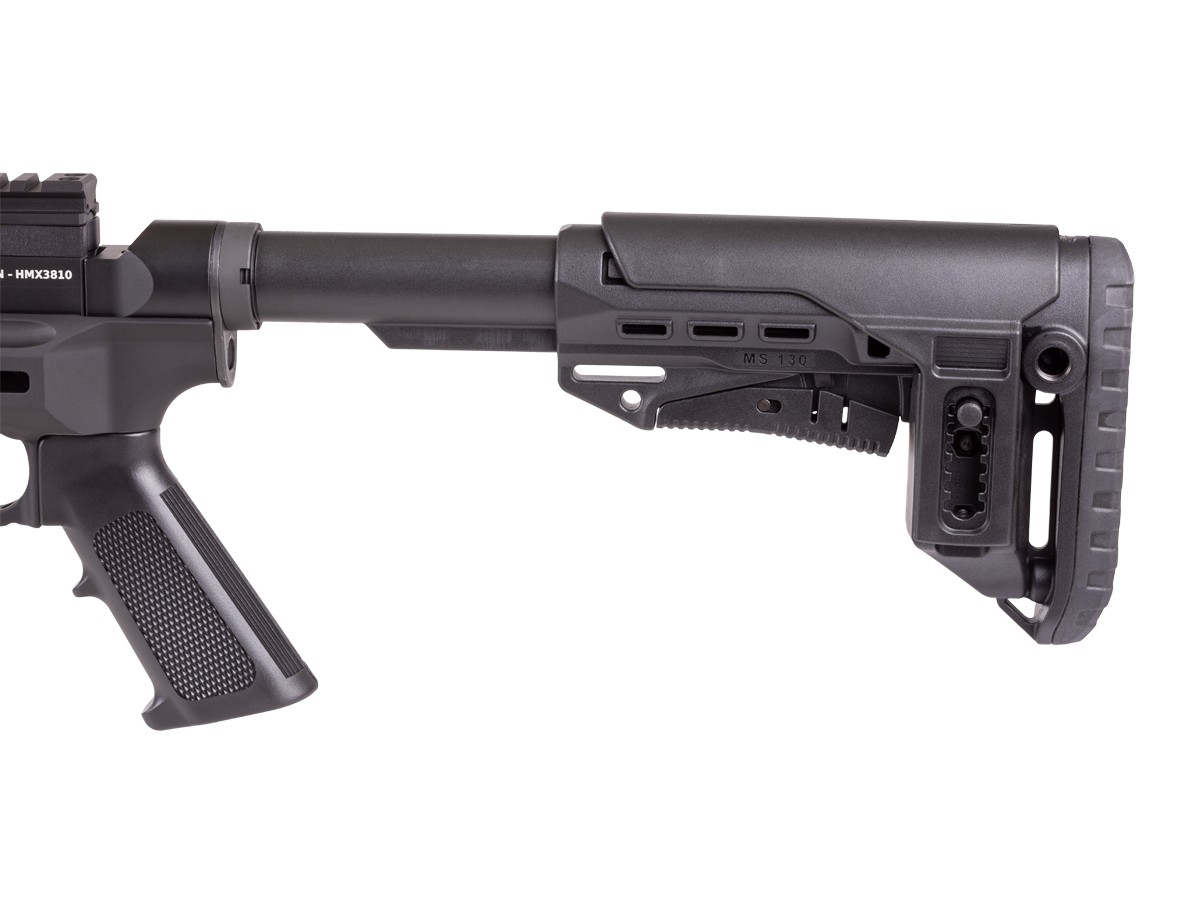

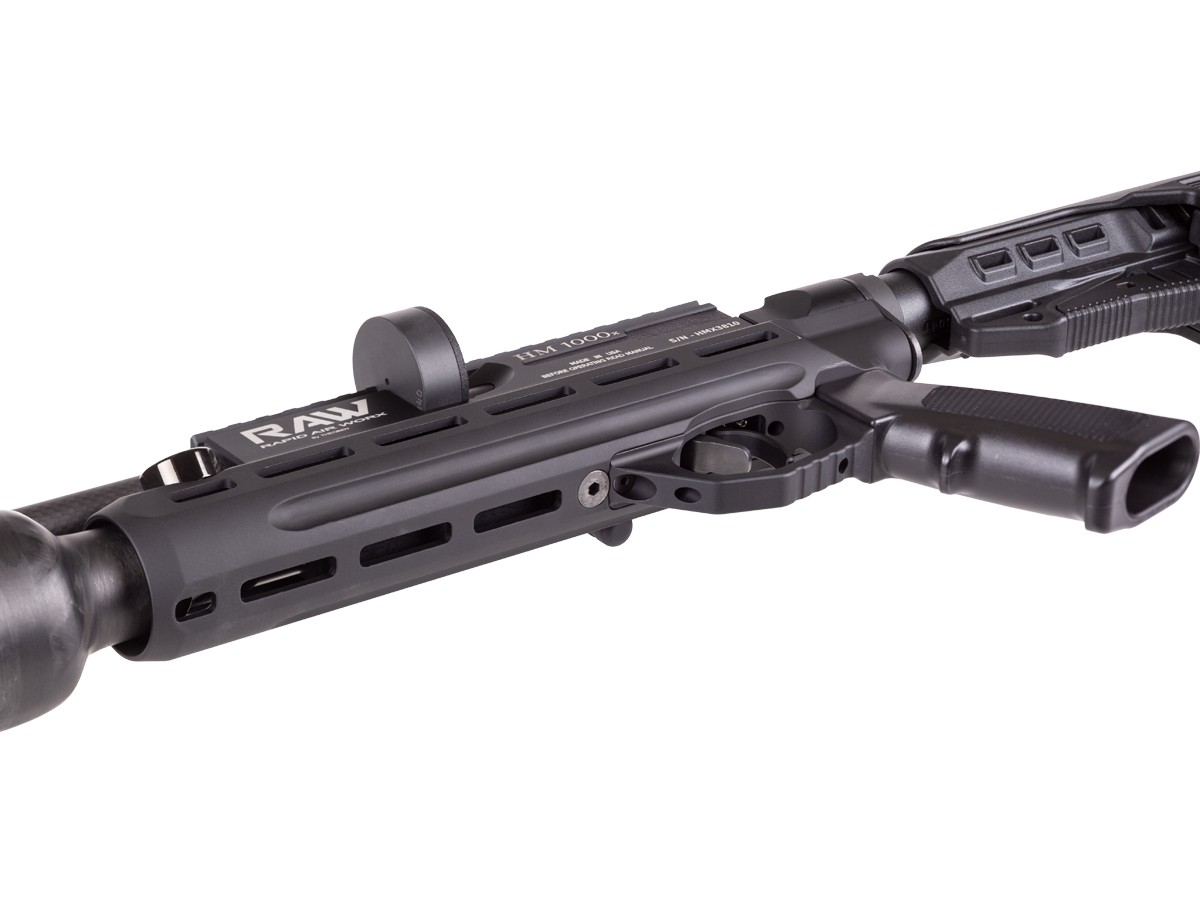

The Rapid Air Worx HM1000X Mini Chassis offers the same action as the larger airguns in the successful HM1000X series and puts it into an aircraft-grade aluminum chassis with tactical features and styling. The stock features an adjustable A-B Arms buttstock with ridged rubber buttpad that yields a variable length of pull, as well as an AR-compatible stock and grip for interchangeable flexibility.

For adding a scope for maximum long-range accuracy, this air rifle offers a Picatinny optics rail, and the chassis features M-LOK accessory rails on all three sides of the forend for attaching items such as bipods, lights, and lasers that improve the stability and increase the functionality of the airgun and shooting experience.

To get a shorter and lighter option in this legendary line of air rifles with the same features and surprising performance for its size, buy the RAW HM1000X Mini Chassis Rifle from Pyramyd AIR today.



RAW HM1000X Mini Chassis PCP Air Rifle

  • Improved dual-ported barrel
  • Lightweight and rigid aircraft-grade aluminum chassis
  • M-LOK rails on three sides for accessories
  • AR-compatible A-B Arms grip and buttstock
  • A-B Arms buttstock adjusts for length of pull and cheek weld
  • Length of pull adjusts from 11.75" to 16"
  • Reversible cheek riser accommodates right or left-handed shooters
  • Sidelever can be swapped from Right-Hand to Left-Hand
  • Male quick-connect fill fitting
  • 490cc carbon fiber air bottle
  • Fill pressure: 250 BAR (approx. 3,625 PSI)
  • Max. shots per fill: 60 (.22, w/25.39gr pellets), 45 (.25 w/33.95gr pellets)
  • Fully adjustable, match-grade trigger
  • Lothar Walther polygonal rifled barrel
  • Fully moderated, carbon fiber-wrapped barrel w/ two piece shroud
  • Fully regulated
  • Precision side-lever cocking mechanism
  • Max. power: 40 FPE (.22), 50 FPE (.25)
  • 12-shot rotary magazine (.22/.25)
  • Easy access hammer spring adjustment
  • Max. velocity: 850 FPS (.22), 820 FPS (.25)
  • Barrel length: 15"
  • Overall length: 32"-34"
  • Includes one magazine
  • Made in the USA

See other products by AirForce > RAW Rapid Air Worx

Item details
RAW-RMI22ARH [PY-4701-12772]

RAW HM1000x Mini Chassis Rifle, .22 caliber



Sold & shipped by Pyramyd AIR


RAW Rapid Air Worx HM1000x Mini Price

$1,799.95

Caliber.22 (5.5mm)
Max Velocity850 fpsMeasured with 25.39 ammo
Muzzle Energy40 ft/lbsMeasured with 25.39 ammo
GripAmbi
ColorBlack

RAW Rapid Air Worx HM1000x Mini Specs

Max Velocity850 fpsMeasured with 25.39 ammo
Overall Length34.0"
ButtplateRubber
FunctionRepeater
Weight7.8 lbs
ScopeableWeaver/Picatinny
SafetyManual
Suggested forSmall game hunting/target practice
Caliber.22 (5.5mm)
Muzzle Energy40 ft/lbsMeasured with 25.39 ammo
Loudness4-Medium-High
Barrel Length15.0"
Shot Capacity12
BarrelLothar Walther
Front Sightnone
Rear Sightnone
TriggerTwo-stage adjustable
ActionSidelever
PowerplantPre-charged pneumatic
Max Shots per Fill60
Body TypeRifle
Fixed/adj. powerMultiple settings
Cylinder Size490 cc
ShroudedYes
Operating Pressure3625 PSI / 250 BAR
