by Tom Gaylord
Writing as B.B. Pelletier
This report covers:
- FX radar chronograph
- The test
- Sight-in
- Premier Lights
- Premier Heavys
- Trigger
- RWS Meisterkugeln Rifle
- JSB Exact Heavy
- Stop the train!
- Adjusted sights
- Second group
- What about the paint?
- Discussion
- Summary
Today we start looking at the accuracy of this new Benjamin 397 multi-pump rifle. I say “start” advisedly, because I have a feeling we are going to spend some time with this one. You will too, after you read this report.
FX radar chronograph
Yesterday when I first looked at the FX Radar Pocket Wireless chronograph I figured it would be a problem getting it to work with a multi-pump like the 397. Well it is and so far I am unsuccessful. I figured if I laid it on the shooting bench in front of the rifle and pointed at the target but also underneath the rifle, because the 397 was on a sandbag, it would “look” downrange and see the pellet flying. No such luck. The chrono was in line with the rifle’s barrel (to within about one inch of either side — I couldn’t see it) and about 8 inches below the muzzle. But my smart phone remained quiet for maybe five or six shots.
I then turned the chronograph off and continued shooting the rifle because that was the focus of this report. It seems that if I could pump the rifle and load it, then quickly attach the chrono, but not on top because that’s where the sights are, it could work. I need a way to mount it to the barrel quickly because the current rubber band method is cumbersome unless you only want to get one shot. Maybe attach it to a tripod and shoot over it? This is more of a note to myself, because I intend to keep trying.
The test
I shot the 397 off a sandbag rest with the rifle rested directly on the bag. I shot from 10 meters. The groups were five shots due to the slowness of preparing the pneumatic powerplant. Every shot was on four pumps. The open sights that came on the rifle were used.
Sight-in
I sighted in with the Crosman Premier Light pellet. Shot one landed low on the paper and to the right of the bull. I adjusted it higher (by going the wrong way) and shot two missed the paper altogether. Then I figured out how to adjust the sights and got on target (that’s a pellet hitting inside the bull) in 6 more shots. I left the sights where they were for the remainder of the test. I’m shooting pellets that are both light and heavy and I can accept changes in the point of impact — as long as they land reasonably close to the aim point.
Premier Lights
The first target was shot with Crosman Premier Light domed pellets. I checked to make sure the first shot landed in the bull and didn’t look again until all five shots had been fired. When I looked I saw a vertical group, which probably means I’m not getting the elevation right. If I can mount a peep sight on the rifle, that should take care of it.
The group measures 0.673-inches between centers at 10 meters. That’s not too bad.
The Benjamin 397 put 5 Crosman Premier Light pellets into 0.673-inches at 10 meters on 4 pumps.
Premier Heavys
Next to be tried were five Crosman Premiers Heavy domes. The first shot was a 10 and I got excited. When the shooting was over I saw another vertical group measuring 0.825-inches between centers. It’s nicely centered in the black, side-to-side, but it’s very vertical.
Five Crosman Premier Heavy pellets made this 0.825-inch group at 10 meters.
Trigger
I want to report that the trigger of the test rifle is very repeatable and easy to work with. It is on the heavy side, but the stage two break is clean. That’s what matters the most to me when shooting for accuracy.
RWS Meisterkugeln Rifle
Next up were five RWS Meisterkugeln Rifle wadcutters. I knew these would be easy to measure because they cut such clean sharp holes. The first shot was in the black at 11 o’clock so I shot the rest without looking. Five shots made a group that measures 0.97-inches at 10 meters. It looks like the Meisterkugeln Rifle pellet is not for this 397!
The 397 put five RWS Meisterkugeln Rifle pellets into a 0.97-inch group at 10 meters. This doesn’t look like a good pellet for this 397.
JSB Exact Heavy
Next to be tried in the Benjamin 397 was the JSB Exact Heavy, a 10.34-grain dome. I saw the first pellet go high and left of the bull, but it was close enough, so I fired four more with out looking. Then I looked and — OH, MY! Five pellets were in 0.261-inches at 10 meters! At the time I had no way of knowing the exact size of the group and I thought it could be worthy of a trime (a group smaller than 0.20-inches between centers). But when I took pictures for the blog I measured it and discovered that it wasn’t quite that small. But — GOLLY!
The Benjamin 397 put five JSB Exact Heavy pellets into this 0.261-inch group at 10 meters.
Stop the train!
After seeing this group I changed my test plan. I had planned to shoot a group of RWS Superpoints next, but instead I wanted to see how I did with a second group of these JSBs.
Adjusted sights
Now that I had a really good pellet it was time to adjust the sights for it. I moved them down and to the right and shot a second group
Second group
Could I do it again? I didn’t know. I tried my best but this time five pellets went into 0.568-inches. It’s over twice as large as the last group but it’s still the second-smallest group of this test. It told me I was tiring out, but it also told me this pellet is indeed a great one for this 397. I decided to call it quits for this day.
On the second try the 397 put five JSB Exact Heavys into a group that measures 0.568-inches.
The sight adjustment I made didn’t go quite far enough for this pellet. The sights still need to come a little to the right and a little more down. Well, next time.
What about the paint?
What about the black paint overspray in the muzzle? I think the first group of JSB Heavys puts that concern to rest — however — I did take a Q-Tip loaded with acetone to the muzzle and…
Nothing! As I suspected all along, the paint is not affected by the acetone. It’s still there and the accuracy we have seen in today’s test proves that it has no affect on accuracy. But I’m not finished testing the 397, so we shall see all that she has to offer.
Scrubbing the muzzle for several minutes with a Q-Tip soaked with acetone had no affect on the black paint inside the muzzle. Nor do I think the paint has any affect on the accuracy of the rifle.
Discussion
I’m spending time on the new Benjamin 397 because it’s a very worthy airgun. It’s also considerably less expensive than it used to be. The new synthetic stock is disappointing because it doesn’t allow for the use of the sights that the rifle comes with, nor would a peep sight work, if mounted. The high cheekpiece and comb put the shooter’s head too high. But today’s test shows that if the stock comb can be lowered the 397 is everything it is cracked up to be. I have no complaint about using synthetic material for the stock, but I wish whoever designed it had field tested it with knowledgeable airgunners.
The new valve gives more power from fewer pumps, which is great for a multi-pump. In no way does the test rifle come close to the advertised velocity, but the velocity it does reach is right where it needs to be. And it is no harder to pump than any of its predecessors.
Summary
Today was round one of accuracy testing for the Benjamin 397. I plan to return many times to see just how accurate this rifle really is!
I have one of the new ones, but it’s a 392. I am getting similar results. I put a Donnyfl Tatsu on mine. JSB exact are the best so far.
Are you having the same issue with the raised cheekpiece not allowing for accurate use of the open sights?
Yeah. It is not a go. I put a scope on it. I’ll post a pic tomorrow.
Thanks. I have a wood-stocked 392 with peep sight which I love. Any idea if the hump on the cheekpiece could be sanded down? Not sure if the stock is solid or hollow. Would love to get this to work with a peep sight for my kids.
CO Hunter,
I think the synthetic butt is hollow, so no sanding. Or did you mean the wood butt, which of course can be sanded?
BB
Thanks B.B. I meant the synthetic; wanted to get a new setup for my kids. You said you used open sights for this test and “that if the stock comb can be lowered the 397 is everything it is cracked up to be.” What did you do to make them work?
CO Hunter,
I showed this in Part 2.
BB
CO Hunter,
We had the discussion of whether a wood stock from a previous 392/397 would fit and I tried it. It does and everything is hunky dory.
BB
Thanks. Ahh the franken gun. Thought that was just for the photos to see if it could be done; didn’t realize you continued testing it like that. Now I’m heartbroken I can’t buy a few of these rifles for my kids!
Is it fair to shoot it for accuracy in a way almost no purchaser will be able to?
CO,
I have modified hollow synthetic stocks by filling the stock with urethane foam (available in cans sold for weather sealing/insulating gaps around window frames and such), then reshaping with a sanding block and then patching the repair with epoxy. A bit of final sanding and some paint finishes things up.
For large mods it is best to patch the (filled) hole with fiberglass cloth.
Hank
Thanks for the tip. I don’t have the time to do a stock mod job I’d be proud of. I may just get the baker mount for a red dot.
CO Hunter
Cut the but stock off for a shorter length of pull. I done it on a 760 and Discovery and 1077 for my girls when they was learning to shoot when they was young’ns.
It gets them farther up on the comb so the the cheek weld can work for them.
It sounds like you was adamant about making something for your kids to shoot and I know what I described works.
Maybe not what your looking for but jist a suggestion.
CO Hunter,
The part number for an earlier wood stock is in the parts diagram (link below). I have no idea if that is the same one that B.B. used, if additional parts are needed to install it, or if it is available. To order parts from Crosman, contact Customer Service at 1-800-7AIRGUN (724-7486), Monday – Friday 9:00 am – 4:30 pm ET.
https://support.crosman.com/hc/en-us/article_attachments/201668944/B397-EVP___PL4__MFD_10-07.pdf
Other manuals:
https://support.crosman.com/hc/en-us/categories/200223634-Owner-s-Manuals-and-Parts-Diagrams
– Don
Thanks Don. That’s my favorite solution yet. Maybe I’ll do that if I can swallow my disappointment at rewarding Crosman for their poorly designed 397/392 remake with a sale AND an additional purchase to make it work as it should.
CO Hunter,
Glad to help. Either way, let us know how it goes. – Don
CO Hunter
I bet the length of pull will still be long for your kids from what I remember with my earlier 397 and 392.
But I’m sure you will find out soon enough.
I believe it’s a mistake for Crosman to have dropped the wood stock on the 397 and 392. Better to have made a modification so owners could more easily and cheaply mount a scope.
Birdmove
I believe I have to agree.
B.B.,
I assume you are using an old wood stock attached to the new Benjamin to allow you to use the iron sights for the test. Could you possibly put a short section of 1 1/2 inch diameter pipe where the barrel should be and shoot through that? Would the FX radar work that way?
Comparing the muzzle in Part 1 with Part 3 it looks like the muzzle is in better condition now than when you first received it. Then again it may all be just how the photo was taken.
Siraniko
Attached photo
Siraniko,
The crowns on my 392s look totally different. That rounded look tells me Crosman has stopped cutting the crown!
shootski
That’s a fairly sharp corner on the crown! If it were mine, I’d put a smooth, even chamfer on it.
Siraniko,
I know the acetone did clean up the barrel at the muzzle, so yes, something did happen. But I also think the difference could be how the pix were taken. The same camera was used for both.
BB
Just a thunk.
Since it is meant to be attached to the gun, could the chronograph have an accelerometer inside that senses a vibration when the gun is fired then briefly turns on the radar far that shot?
It seems like it could eat batteries quickly if it was on all the time,
And could pose a possible health hazard from radar emissions if it was on all the time.
During the early 90’s there were cases of police officers developing cancerous cells in areas where they had rested the radar guns between “shots”.
Just exploring possibilities….
Ian
B.B.,
Do you have any Velcro tape?
It would make a faster on-off for the FX then the rubber band(s)
Did you have the FX unit pointed down range?
Is their an arming function on he FX with a timeout? The LabRadar has one and is also a selectable duration of transmission after the LabRadar “hears” the acoustic signature of a shot report. A selectable secondary trigger is when the projectile enters the RADAR beam.
Check the orientation of the unit! I’m going to guess it was not looking down range.
shootski
shootski,
The first thing I did was check the orientation. There is no arming function of which I am aware. But of course there is also no manual.
I think a tripod mount will be the best bet with a multi-pump.
BB
BB, normally the Chrono should have been delivered with a second bottom plate replacing the v-shaped one which attaches to the barrel.
The replacement plate has a hole for a photo tripod to be attached. This way you can place the chronograph on the table under the muzzle end of the barrel, aligning the barrel with the grove on top of the chronograph housing facing down range. Keep the muzzle close to the top, nearly touching and it will work fine.
Image is a screenshot from the FX YouTube video.
That is the way to use the FX chrony! Anything that attaches temporarily to the barrel is just plain STUPID!
The Darkside rears its ugly head again….
-Y
Yogi
So why only the dark side and not a springer?
You can use a barrel mounted crony on a PCP. On a springer not so much…..
And as B.B. is figuring out, they do not work real well on a pumper either…
-Y
Yogi
That’s what I’m getting at. You said so the dark side rears its ugly head again.
Looks like a springer has some dark side effects too.
You know by now it’s always easy to find a problem with something. That seem’s to be a normal trait of a human.
Papa,
There is no plate and also no way to remove the mount legs attached to the chrono. It’s cast as one piece.
BB
I believe I would glue a couple magnets to the saddle. Neodymium would be my choice.
Paco,
Now THAT is a good idea! Very good!
You don’t think they will mess with the electronics?
BB
No way.
Well, I would use a small dot of hot glue to affix the magnets. If there is a problem with the electronics, it’s a simple matter to pop them back off.
Paco,
Gotcha!
BB
Please don’t use hot glue to attach magnets to anything. Heat, and especially hot glue reduces the power of magnets. We use neodiums on R/C airplanes for access hatches and hot glue is a no-no in that case. Cyanoacrylates are good but brittle and fail with shock. I think a little dab of epoxy’ll do ya best.
Will
CA gets hot when it cures to.
And epoxy too come to think about it.
I fly RC planes too. For many years.
Now I wonder what glue doesn’t get hot that would secure the magnets?
Hi Gunfun1,
It’s about how hot the magnet gets. Hot glue as it comes out of the glue gun will burn layers of skin from your finger if you get it on you. I found that out all by myself! Epoxy and Ca get a little warm while they cure. Same for iron-on covering materials, if you heat the magnet to the same temperature as your hot iron as you cover over it, your magnet will become substantially weaker. How much weaker, I don’t know, I’m sure we can look that up.
Will
Right.
And tell me what kind of rc planes do you fly?
Thanks for asking! I started flying R/C model planes in 1984 and have been doing it since, but there have been ups and downs in my interest. I fly sport models and mostly bore holes thru the sky in the traditional manner: aerobatics, low and slow, flying to sharpen my skills and just flying for fun. No 3-D flying, which I think you have said you like. Here’s a picture of my planes. I build kits and also design and build my own. See the forward swept wing with googly eyes on the middle right! Elevator and ailerons, no throttle. Fly full bore all the time till you run out of fuel and then be able to make it back. I love those old Cox .049s. How about you, bud?
Will
That’s how my flying room use to look. I started when I was kid around probably 10 years old which was the early 70’s with gliders then moved up to powered flight. I got into it big time around 84 to about 94. Didlikeyou built all kinds of planes. And yep those cox engineswete cool. I use to pylon race scratch built planes with the TD .049 and .051’s. They was definitely little screamers.
And now I just have one electric 3D plane they call flat foamy’s. Its got a 40″ wingspan. It resembles a Extra 300. I scratch built it. And here is a picture of my pusher prop YF22. Itsa blast to fly also. It will slow down to pretty good and no tip stalling.
I got I bet a hundred of pictures of planes I had. I’ll have to dig them up and post some one of these days.
But here is the jet. It’s about a 30 inch wingspan.
Heyyy, good stuff, GF1! The desire to go far into one’s hobby whatever it is, is made better with hands-on skills and getting elbows deep in the innards of it. I wouldn’t like airguns half as much if I didn’t take them apart to find out how they work and then change them! Hopefully for the better…
I’m glad you like the .049s, most people think they’re too hard to work. The electrics have exceeded the power to weight of glow engines, but I fly what I got and it’s fun as heck. Your YF rolls like an eggbeater I bet! Nice work making something as fun as that one looks.
Will
Will
That’s the way I do it too. I like to dive in deep .
And the YF22 is a blast to fly. And yep a very fast roll rate.
What I like too is when you dive it and get your air speed high it whines.till you let off the throttle and it slows down. My regular prop electric planes don’t do that with the same motor and prop. Either way I like that it does. Definitely realistic when it flys. RC planes has for sure been one of my most favorite hobby’s throughout time.
GF1,
I wonder if the whine you hear when you’re gliding fast downhill with the YF above is created because the prop is in the middle of the plane and the air at the prop is disturbed by the shadow of the wing, like eddies in the paddle stroke, kinda. Just a thought. Model airplanes and what you can do with one motor and radio, installed into different air frames gives you completely different flyers, with one initial investment. That is, if you’re willing to build the planes! Nice to have a “cheers” with a fellow R/C builder/flyer on the best air gun blog ever!
Will
Yep not sure about what causes the whine.
And yep been good talking to you.
GF1,
I usually use a product called “Marine Goop”. There is also a “Plumber’s Goop” that is the same thing in a different package to appeal to a different market. It is a thick, clear, rubbery glue that cures by solvent evaporation. I’ve used it to attach magnets to the remote antennae of those early hand held GPS units so I could stick it to the roof of my truck. I never find that the magnets on whiteboards to be strong enough to hold the board to my fridge. I use Goop to attach stronger ones to the board and then a thin film on the refrigerator side of the magnet to make a non-marring surface. I use it for everything. It patches rubber boots and awnings and canvas, nylon tents, put it on electrical joints in a pinch, just all kinds of uses. It is thick as it comes out the tube, but levels out quit a bit. The thicker you apply it the longer the cure time. Good stuff to have on hand and I try to never let myself run out.
Half
Half
That sounds a lot like “Shoe Goo”.
tt
TT,
Same company, different product. Shoe goo gets hard when it sets up. This stuff is rubberier and more flexible. I tried patching a pair of waders once with shoe goo and it just flaked off like a big callus. Shoe goo is great for building up worn down hills on sneakers and running shoes.
Half
Halfstep
I will have to check out the Marine Goop. That sounds like it would work for the magnets.
B.B.
My FX Radar Chrony came with a metal plate threaded to attach to a tripod. There should be one in the box.
Hank
Hank,
No plate.
BB
BB,
I may be able to help you out with the FX Radar issues. I left a comment earlier today on the blog about the radar (I’m behind a few days) that warned you to watch for this and I assume you haven’t read it yet. The radar is set up for different ranges of velocities based on the type of gun you select in the parameters. In the photos from your first shooting session I can see that the range was 590 fps to 1099 fps and from part 2 of the 397 blog you got 582 fps on 4 pumps with Premier Lights. That’s too slow for the radar if it is set where you had it the last time you used it in a report. If what I propose is true, then you need to tap the rifle symbol in the center of the bottom edge of the app and then select “Airgun UK” which is 440 fps to 820 fps. After that you can just shoot over the center of the radar. It doesn’t need to be attached to the gun. I never attach mine unless I’m not at a table.
Now for the tripod mount, if you just insist on using one. I think my memory is correct on this but I may have it backwards. FX originally designed this with a 1/4-20 threaded metal plate in the bottom of the radar to allow for tripod mounting. Almost immediately they redesigned it to fasten on the barrel. Some of the folks like me that bought the unit with the less handy tripod mount raised hell because the barrel mount is better so they offered the mount to those buyers as an add- on replacement. It seems like there was a very short period where they sent it free and then at some point they charged shipping. At any rate I think they abandoned the threaded mount. I’m attaching some bad photos that I just took to show how the mounts interchange in case you get your hands on one of the threaded ones or if you want to make one.
Half,
Thank you.
BB

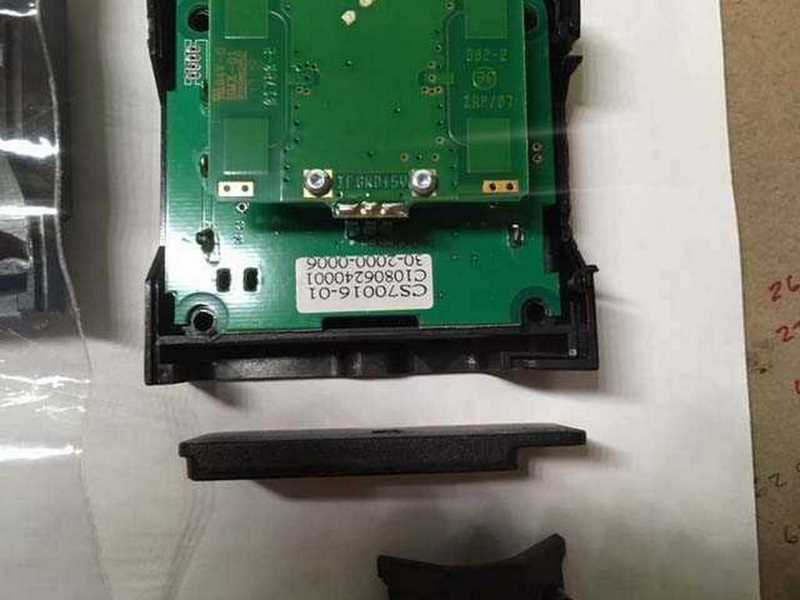

Remove 4 corner screws and lift off front of unit
