Diana model 30.
This report covers:
- History of the report
- Description
- Loading
- The balls
- Not a target gun
- Sights
- That’s it
- Summary
Today I revive an older report on the Diana model 30 gallery gun.
History of the report
When I first reported on the Diana 30 in 2018 I was using a borrowed rifle — and yes, this is a rifle. Even though it shoots round lead balls, the model 30 barrel is rifled. That borrowed rifle had not seen much use since new and the loading mechanism got jammed when I attempted to shoot it for velocity.
The owner of that rifle is a busy man and his airgun is still jammed six years later. But an opportunity to purchase a well-used model 30 popped up last year and I sprang for it. The rifle I purchased came in its original box with the instructions and all the tools needed to operate the rifle. Unlike the rifle I had borrowed, this one has almost 100,000 rounds on it. In other words, this one has been a working gun, and that means a lot — I hope!
The counters on my new/old rifle. The one on the right counts the number of shots since the rifle was loaded. The gallery customer pays for those shots. The counter on the left is the total number of shots on the rifle. It’s used for scheduling maintenance by the gallery operator.
Since the last report Diana has brought the Oktoberfest Gewehr to market in the United states and I have reported on it five times:
Oktoberfest Gewehr Part 1
Part 2
Part 3
Part 4
Part 5
While that rifle is similar to the model 30, there are differences. I won’t discuss on them in this report, but I linked to that five reports and you can read them if you are interested.
Description
Since it’s been a long time between reports I’ll describe the model 30 rifle for you again. It’s a bolt action repeater that feeds from a gravity-feed tubular magazine. The bolt operates similarly to that of the Oktoberfest Gewehr.
To cock the rifle the bolt is swiveled up…
… then rocked pulled back to cock the mainspring.
Loading
The 4.4mm lead balls are inserted into the front of the tubular magazine.
Balls are pushed into the front of the tubular magazine. The rifle comes with a ball pusher for this.
Tilt the rifle muzzle down and if there are balls in the magazine you’ll see them through the windows cut into the front of the tube.
The balls
Before we advance, a word about the ammunition. Since the last model 30 loading mechanism jammed, I want to be sure the balls I load into this one are not too large.
Some 4.4mm lead balls.
I measured all the balls before loading them into the first model 30 and all were smaller than 4.4mm. I did that because I had borrowed that rifle and didn’t want to cause any problems with it.
None of the lead balls I shoot are as large as 4.4mm.
While measuring lead balls in my inventory I discovered that all the European lead balls are smaller than what is printed on the tin. I guess that’s similar to American BB manufacturers calling steel BBs 4.5mmm when they are 4.2 to 4.3mm. At any rate, I know for a fact that nothing I put into that first model 30 caused it to jam.
Then someone contacted me and told me that a batch of model 30 gallery guns was made poorly and often had loading problems. That’s why it has taken me a long time to work up the nerve for this report. In the end it was the large number on the shot counter of my new/old rifle that pushed me over the edge. I figure if this rifle has shot almost a hundred thousand times it’s probably not a bad one. We shall see.
Not a target gun
The Diana model 30 is accurate as a shooting gallery gun, but it’s not a target rifle. A Daisy 499B BB gun will probably outshoot it at 5 meters. Maybe I will test that to see.
I reckon this rifle is more like one of the Winchester slide-action shooting-gallery rifles that were so popular here in the US up through the 1960s. In Europe, where the laws governing shooting are more restrictive, a .22 rimfire is not allowed in many places but a model 30 Diana is welcomed.
Sights
The model 30 has finely adjustable sights, front and rear, as a gallery gun should.
The rear sight blade adjusts up and down for elevation.

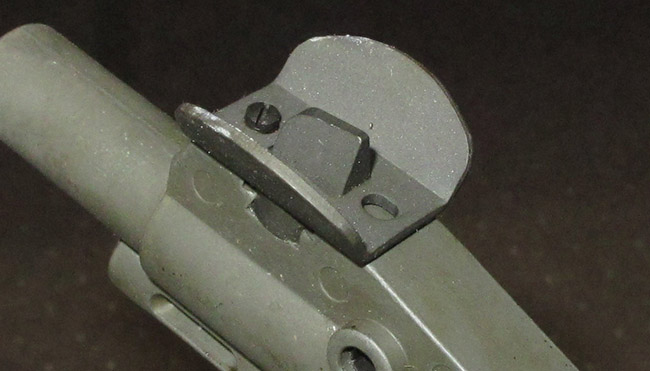

Loosen the screw and slide the front sight left or right for windage. Remember the shot will be in the opposite direction of the front sight movement.
The customers were not expected to adjust the sights. That was the responsibility of the gallery operator. And if it is like every shooting gallery I’ve been to, the sights would be off just a bit and the shooter would have to use Kentucky windage to hit the targets.
That’s it
I have you all caught up now, so hopefully in the next report I will shoot this rifle for velocity. I am oiling the synthetic piston seal today in preparation for that.
Summary
The Diana model 30 gallery rifle is a unique airgun. Few Americans have ever seen one and fewer still have shot one. I hope this one is robust enough for that to happen.
You UK and European readers can help me on this. I’m not familiar with the sort of distances a Diana 30 shooting gallery might entail. Here in the US I have seen everything from 10 feet (in a small trailer/caravan) to about 25 feet in a building. That’s 3 meters to 8 meters. What are your experiences, please?
