Air Venturi Mini Wingman, 100 cu in PCP tank, DOM 2023

Main Product Rating 4.04.0 (25 reviews)
Air Venturi Mini Wingman, 100 cu in PCP tank, DOM 2023

Air Venturi Mini, Image 1Air Venturi Mini, Image 2Air Venturi Mini, Image 3Air Venturi Mini, Image 4Air Venturi Mini, Image 5Air Venturi Mini, Image 6Air Venturi Mini, Image 7Air Venturi Mini, Image 8Air Venturi Mini, Image 9Air Venturi Mini, Image 10

Share your images


List Price $499.99Save $70.00(14%)

Select condition:
Select model:
DOM 2023
DOM 1/21
DOM 2/21
DOM 2021
DOM 2023
DOM 5/19
DOM 6/20
DOM 6/21
DOM 7/20
DOM 8/21
Select tank size:
100 Cu In
74 Cu Ft
98 Cu Ft
100 Cu In
  • 1-year limited warranty

  • 60 day money back guarantee
  • Estimate Shipping

Add to Compare
Add to Wish list

Excluded from coupons

Earn 430 Bullseye Bucks

Please Note:

Updated selection based on available products

Add to Cart


Sold & shipped by Pyramyd AIR

youTube video

See other products by Air Venturi

See manual
Item details

Sold & shipped by Pyramyd AIR

Air Venturi Mini Price


High pressure air has never been so portable!  The Air Venturi 100 cubic inch (cu-in) Carbon Fiber Tank is the perfect option for the airgunner on the go.  Weighing in at less than 5 lbs and being small enough to fit into a backpack means you can take this tank anywhere.

The unregulated valve allows for easy filling of any PCP in your arsenal (up to 4500 psi).  The rubberized hand wheel allows for precise fill control and the slow flow valve keeps your air cylinder cool while filling.

If you're looking for an air tank that is ready to go at a moments notice, the Air Venturi 100 cu-in carbon fiber tank should be at the top of your list.

The calculations below assume the Mini Wingman is filled to 4500 PSI. A "full fill" refers to the gun being refilled to the maximum operating pressure. It's important to understand that most rifles do not need to be filled to their max pressure to offer a good number of consistent, usable shots.

Airgun Max Fill Pressure Air Cylinder Size # of Full Fills
Air Arms S510 XS Carbine 3625 psi 186 cc 5 fills
Air Arms S510 XS Xtra 3625 psi 288 cc 3 fills
Air Force Aluminum Cylinders 3000 psi 490 cc 5 fills
Air Force Carbon Fiber Bottle 3625 psi 475 cc 2 fills
Air Venturi Avenger 4350 psi 180 cc 1 fill
Benjamin Marauder Rifle 3000 psi 215 cc 9 fills
FX Impact Compact 3625 psi 300 cc 2 fills
FX Crown MKII 3625 psi 480 cc 2 fills
FX Maverick Sniper 3625 psi 580 cc 1 fill
Umarex Gauntlet 3000 psi 213 cc 5 fills

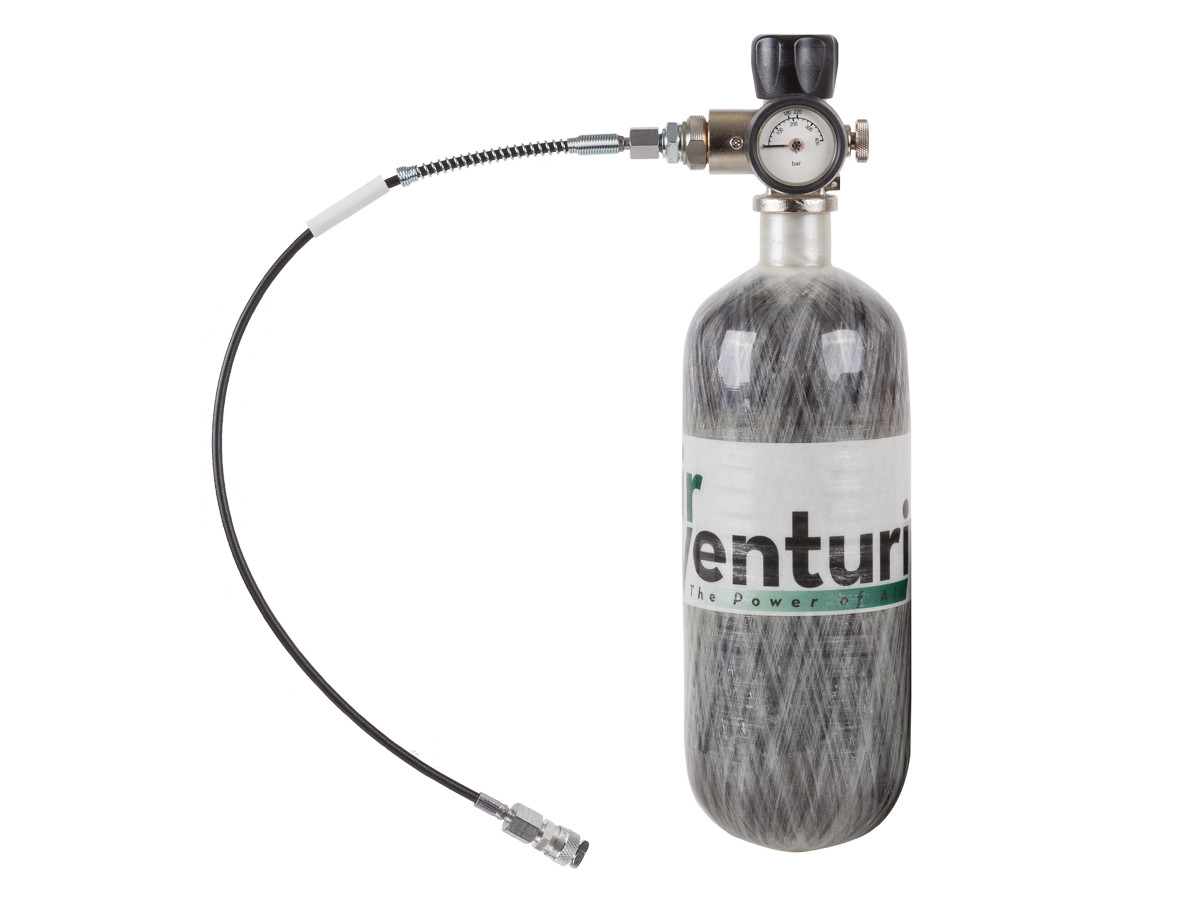

Air Venturi 100 cu-in Carbon Fiber Air Tank w/ Valve and Hose

  • 4,500 psi max fill pressure
  • 100 cu-in air capacity
  • Valve is unregulated
  • Integrated Pressure Release valve
  • DIN 300 Output Valve (Female threads)
  • Airflow restrictor (Slow Flow Valve)
  • Stainless steel female quick-disconnect coupling attached to output end of hose
  • Includes test plug for checking pressure remaining in the tank
  • 16" tall
  • 4.3" diameter
  • Empty weight 4.3 lbs
  • Filled weight 5.4 lbs
  • DOT-approved

In stock

This item is not eligible for coupon discounts

Item Code: AV-4516HPT-SS [PY-A-8955]

See other products by Air Venturi

See manual
Item details

Sold & shipped by Pyramyd AIR

Air Venturi Mini Price



Weight4.0 lbs

Air Venturi Mini Review

Rating 4.04.0 (25 reviews)
5 star
4 star
3 star
2 star
1 star
12 reviews
8 reviews
4 reviews
1 review

Create an online review

Customer images

Sort by Date: Newest–Oldest

Rating 4.04.0 4.0

Rating 4.04.0 4.0

Things I liked:

Size and weight make it very convenient to take along. Also, keeping it charged is a back up in case of emergency like power loss for days resulting from a hurricane.

What others should know:

Just took it into Hiller Systems Chesapeake for hydrostatic testing. I’ve owned it for 5 years and was told by the testers that it only has 2 more years of useful life.

Rating 4.04.0 4.0

Rating 4.04.0 4.0

Verified Purchase

Things I liked:

Small enough to throw in day pack

Things I would have changed:

PSI gauge instead of BAR, Needs to come with adapter to allow SCUBA shops to fill. None of them can fill because they don't have the right adapter. Needs gauge to show how much is in tank! Does no good just to mirror the gun gauge, There is some other package that can get you a hydro and such before shipping, I saw it once on website but never could find it again.

Rating 5.05.0 5.0

Rating 5.05.0 5.0

Verified Purchase

Things I liked:

Light and handy. Easier to use than my compressor, and virtually maintenance free till you have to get it tested again. The specs say that this fills an air venturi avenger once. From my experience that must be from dead empty because when I get close to the yellow line I always refill to keep my velocity consistent. Using it in this manner I get at least 3 top offs which is around 150 shots so I am really pleased. What I am saying is don't let the 1 refill statement for the avenger deter you unless you are an avid shooter putting lots of pellets down range. For a guy like me who needs to control squirrels and just get things sighted in once a week this is a great option.

Things I would have changed:

See below.

What others should know:

When I got this I called all 5 of the local dive shops in my area that fill tanks. None of them would fill it because the fittings do not match up. They wouldn't do it even if I bought the necessary adaptors. The good news is that the paintball place will fill it but I needed to buy a double male attachment to make that work and then still had to lightly sand down the adaptor to get everything to fit. The paintball place closes after Thanksgiving so that leaves a lot of time for me not being able to refill the tank. The good news is that since I don't shoot all that much in the winter except for squirrels and re-sighting this still served me through the winter. Additionally, you really can't fill this tank with the air venturi compressor from my experience. Filling a 4500 lb tank from a 3000 lb. compressor isn't going to work. Just something buyers should be aware of.

+ Load More

Got a question or answer?
Log in to participate

  • George from USA asked:

    what is the dot date

    • Kelan from USA answered:

      Generally with in a year of receiving your tank.

  • John from USA asked:

    This tank is "100 cu in (.06 cu ft)", but the next size up is "74 cu ft" ... are they being rated on the same scale or is something strange going on here? The 74 cu ft tank is NOT 1,300 times larger on the outside than the 100 cu in tank like the worst case math calculation might hint at ..... how is it possible for the 74 cu ft tank to hold 1,300 times more air, but be less than 10x the outer size?

    • Bob from USA asked:

      I have owned this 100 cu in bottle for several months now. Only issue is that it is very hard to fill. I think the flow restriction value keeps you from overfilling your guns but it takes forever to fill. Have access to several compressors but none can fill the bottle without over heating or shutting down due to the slow fill. I dont see an easy way to remove the restriction in the fill hose clamp. Can you attach a different hose or valve to the bottle that doesn't restrict the flow?.
