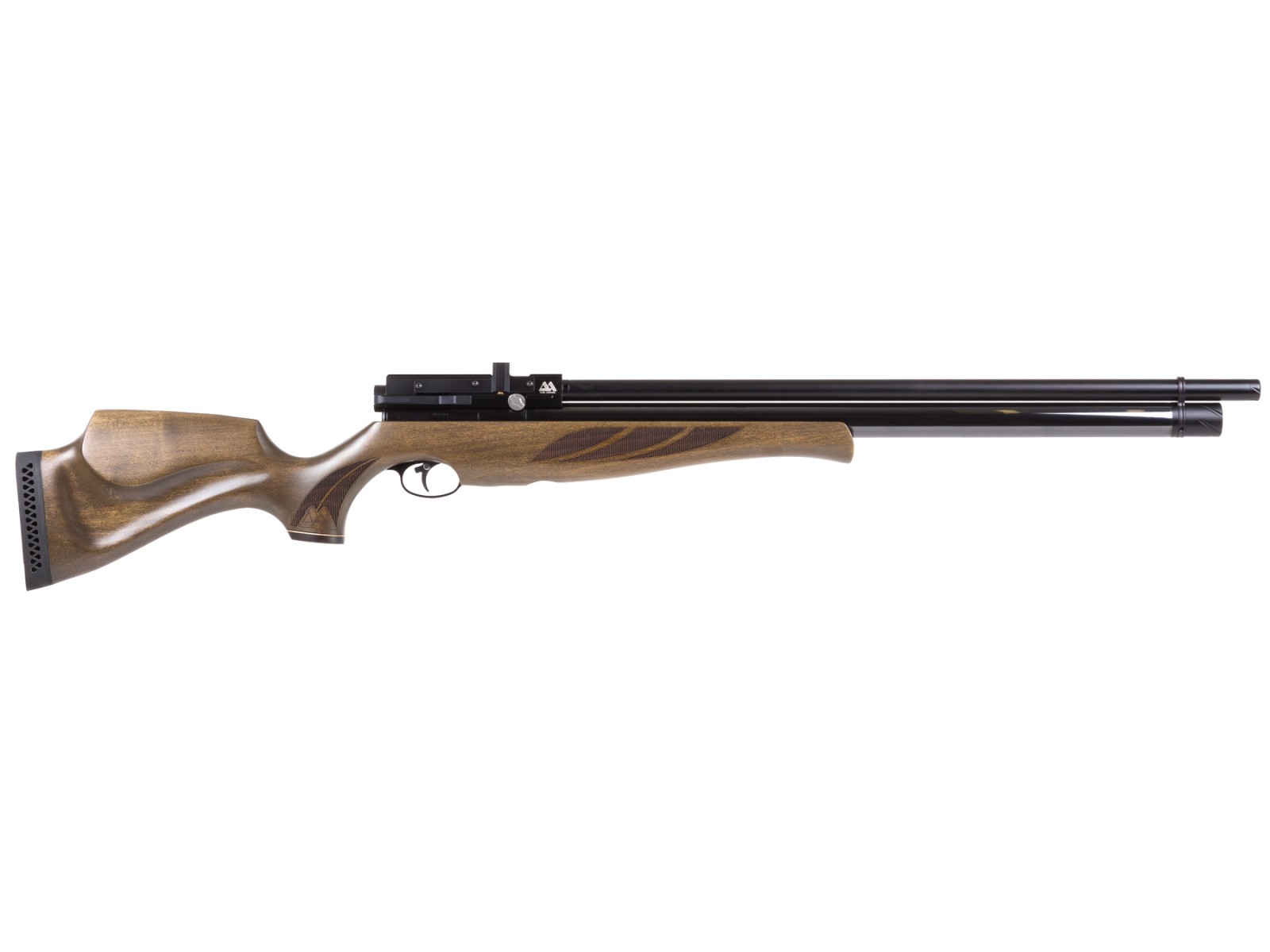

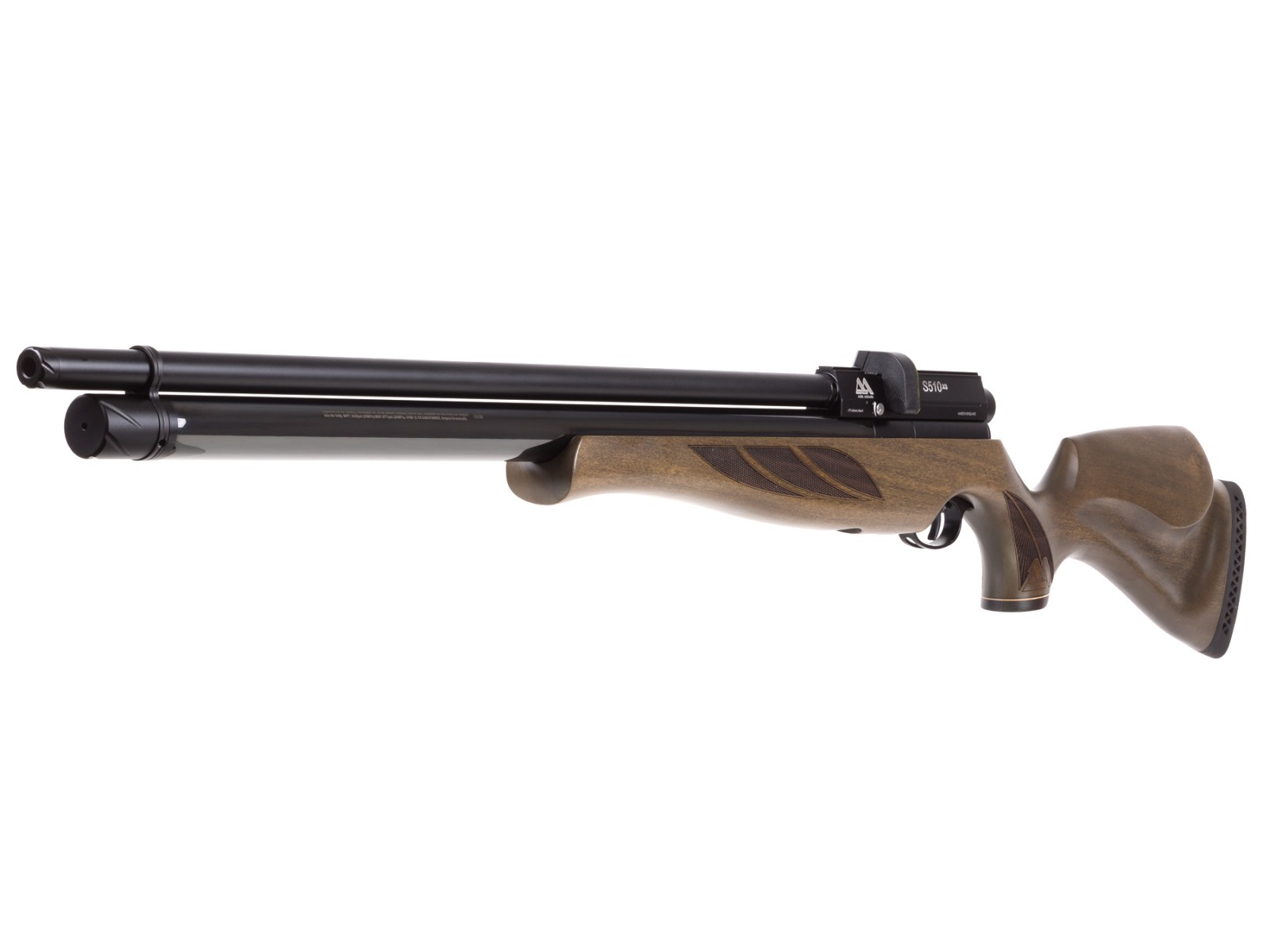

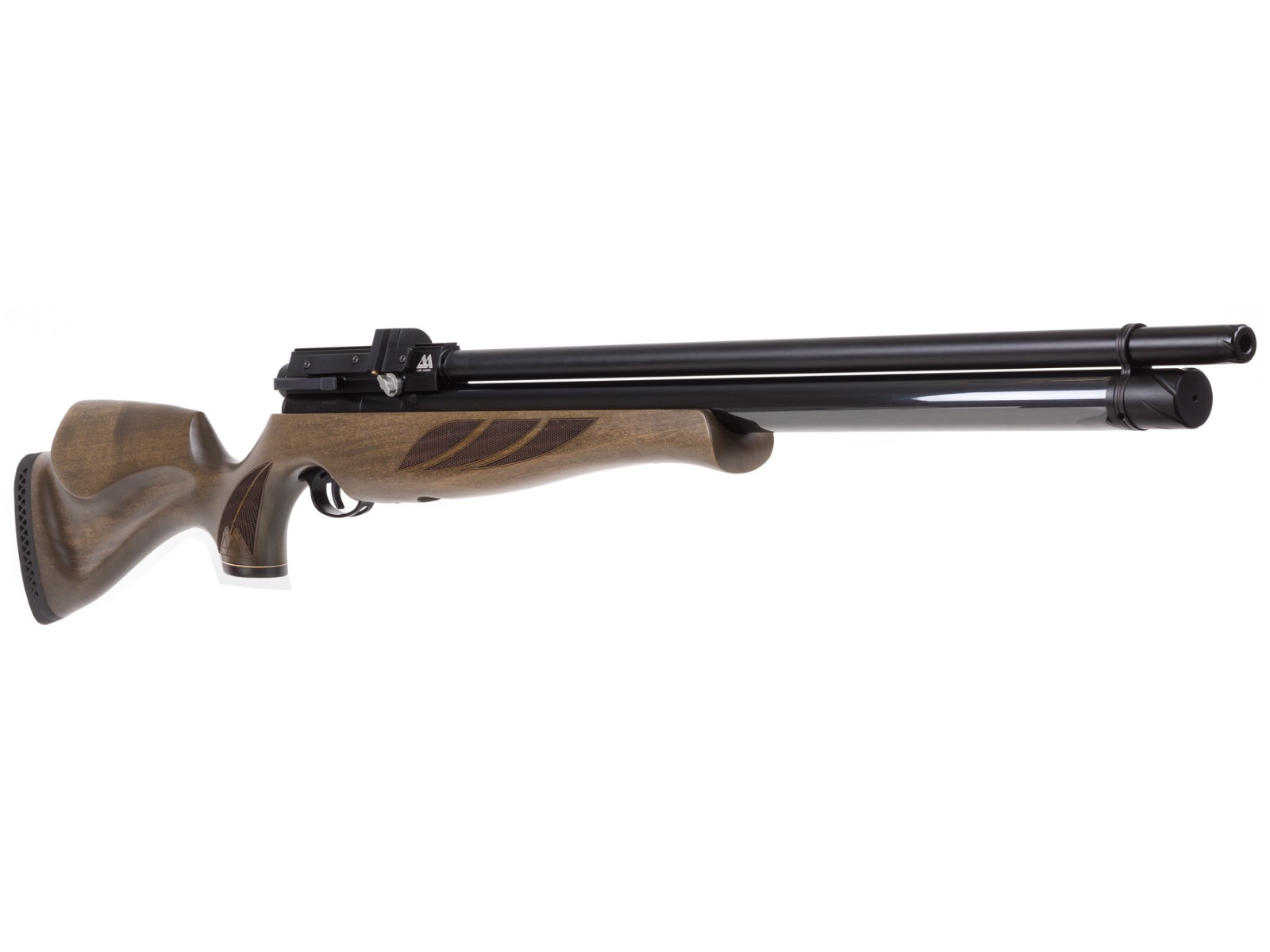

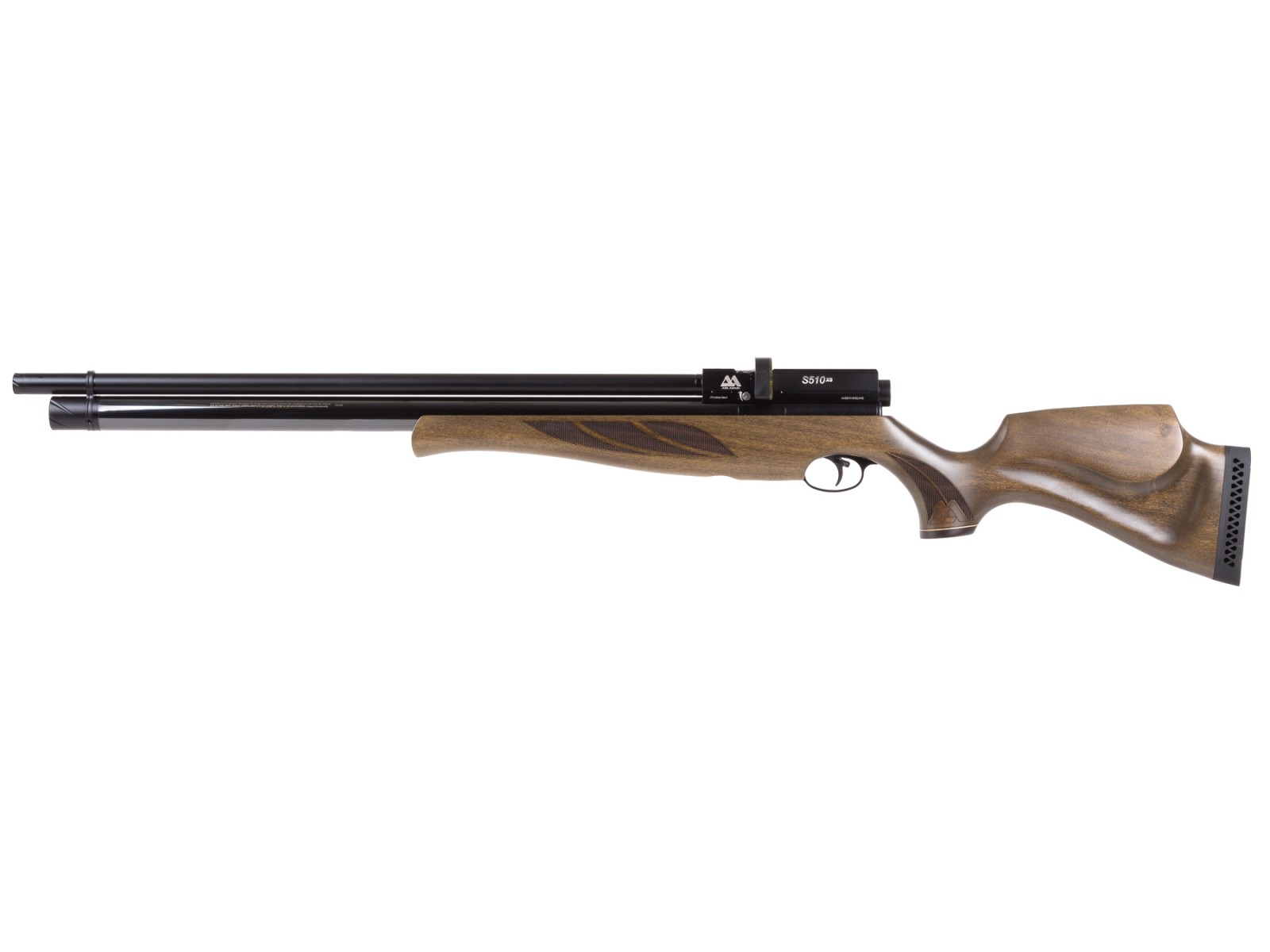

Air Arms S510 Xtra FAC PCP Air Rifle

5.06 reviews
Air Arms S510.

Roll over image to zoom in


Not Available

click to see more from this manufacturer

See also

  • Description
  • Specifications
  • Customer reviews
  • Questions & Answers
  • PCP Hookup
  • Air Arms S510 Xtra FAC sidelever air rifle
  • Precharged pneumatic

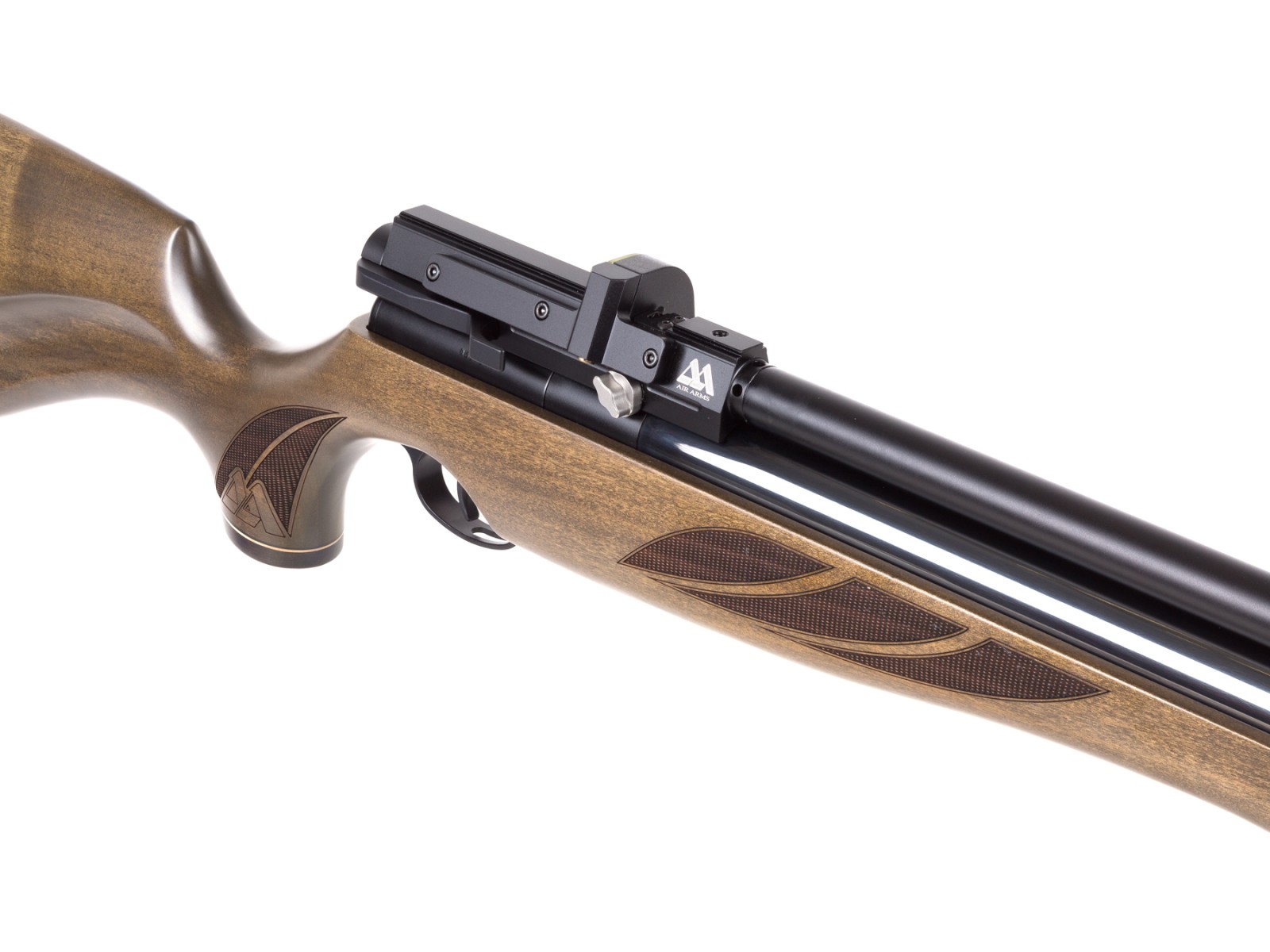

  • Sidelever cocking

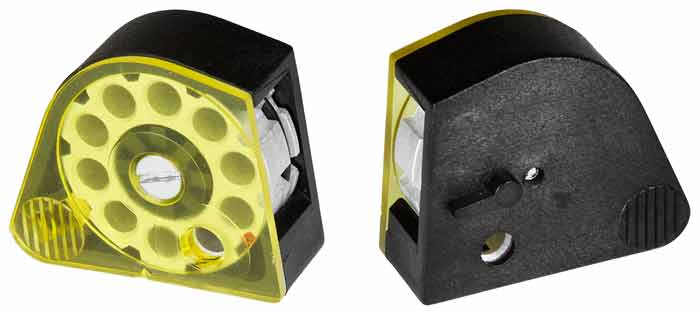

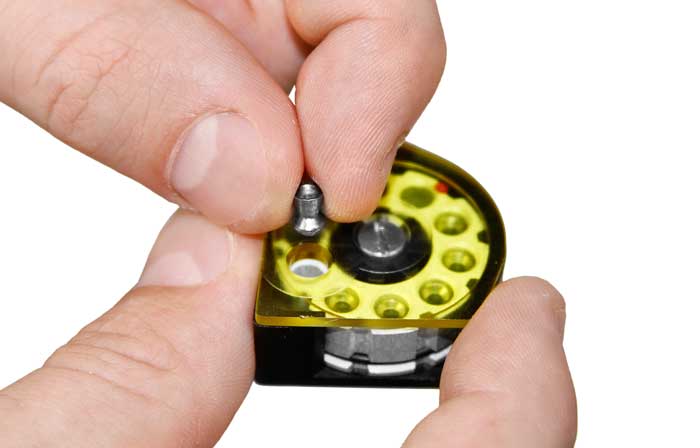

  • 10-shot repeater
  • 2-stage adjustable trigger
  • Adjustable power
  • 11mm scope grooves (no open sights)
  • 2900 psi fill pressure (200 bar)

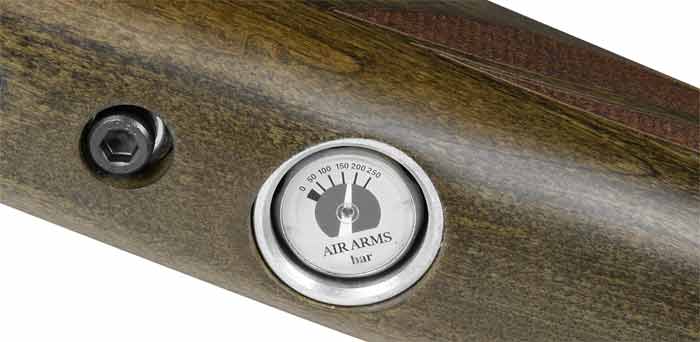

  • Built-in manometer (air pressure gauge)
  • 231cc air tank
  • Lothar Walther barrel
  • Shrouded barrel for extra-quiet shooting
  • Ambidextrous Monte Carlo stock
  • Poplar stock stained hunter green
  • Dual raised cheekpieces
  • Checkered pistol grip and forearm
  • Superbly blued
  • Magnificent stock finish
  • Ventilated rubber buttpad

Our specs show that this rifle has a 19.45" barrel. The shroud is much longer, and the exterior length from the action to the muzzle measures 24". The barrel is only the rifled portion of the gun.

Air Arms is known for its beautiful guns. And, the beauty is more than skin deep. As if the beautiful wood stock and deep, rich bluing weren't enough...there's the fantastic accuracy built into every gun.

If you believe that only accurate guns are interesting, then the S510 must be one of the most interesting guns on the planet! No matter what you've shot before or will shoot in the future, the Air Arms S510 Xtra FAC sidelever will leave an indelible impression!
youTube video
See manual
See schematics

other products by Air Arms

Caliber0.177" (4.5mm)
Max Velocity1050 fps
Barrel Length19.45"
Overall Length43.75"
Shot Capacity10
Front Sightnone
Rear Sightnone
Scopeable11mm dovetail
TriggerTwo-stage adjustable
ButtplateVentilated rubber
Suggested forSmall game hunting/plinking
PowerplantPre-charged pneumatic
Max Shots per Fill30
Body TypeRifle
Fixed/adj. powerMultiple settings
Weight7.55 lbs
See manual
See schematics

other products by Air Arms

Average Customer Review

5.0 (6 reviews)
3 star2 star1 star

Create an online review and share your thoughts with other customers

5.0 5.0

2.0 2.0

By David from USA on 2016-07-26
See all my reviews
Was this review helpful?
5.01 rating

Things I liked: My first PCP and I'm already trying to figure out how to add another! Beautiful design and finish, slick operation, great accuracy. I wasn't sure about the non-traditional hunter green stock but I really like it.

Things I would have changed: Yeah, the safety is a bit odd...but you get used to it.

What others should know: Expensive, yes, especially once you add a quality scope, but well worth it. As others have noted, you get what you pay for.


5.0 5.0

4.0 4.0

5.0 5.0

By Richard / Sami from USA on 2016-05-12
See all my reviews
Was this review helpful?
5.01 rating

Things I liked: Everything, beautiful,awesome rifle. Lot of fun last two years. Incredible accurate, knock down pigeons at 100 m with JSB 18 grains. I became a sniper , really nice airgun. 30 good shots in .22 , you can have almost 40, but 30 is the rigth number. Design, blued, wood, very nice

Things I would have changed: A little loud , maybe a shroud. The fill port its a pain in the ass, every time i have to refill its anoying. A regulator will be very helpful

What others should know: Fine airgun, its a winner


5.0 5.0

5.0 5.0

5.0 5.0

By john from USA on 2014-06-27
See all my reviews
Was this review helpful?
5.01 rating

Things I liked: This gun is amazing! Stock is top notch! Action is great! {just like all Air Arms} Im getting around 45 shots per fill and staying over 755 fps with .25 JSB Diablo pellets. Want the extra knock down power then you found the rite gun.

Things I would have changed: Nothing at all!

What others should know: This gun doesn't like H&N Hollow point pellets,{unless I got 2 bad cans of pellets} the head size is to big causing for a hard push for loading, which could bend the pin, the magazine springs etc. I tried several times but after kicking out the magazine I grabbed my JSB's.


Create an online review and share your thoughts with other customers.   Show Other Reviews

Got a question? Got an answer?
Log in, then enter your text.

  • martin from USA asked:

    what is used to charge this rifle?

    To fill your PCP gun:
    1.Pick a source of air shown at right
    2.If an adapter is needed, one will be shown
    3.Add both to your cart to get hooked up

    Air Arms S510 Xtra FAC PCP Air Rifle with 1/8" BSPP connector (2M)

    To start over click reset

    Airgun Academy Episode 38 - PCP Filling Systems

    Item Description

    AS510E17SX20AGO [PY-2390-4770]
    S510 Xtra FAC rifle, poplar stock/hunter green stain
    Caliber0.177" (4.5mm)
    Max Velocity1050 fps

    This item is not eligible for coupon discounts

    Compatible with Air Arms S510 Xtra FAC PCP Air Rifle

    Air Arms S410/510.
    Air Arms S410/510 Firing Valve
    Add to Cart
