Umarex Gauntlet: Part 1

by
↓ 154 comments

by Tom Gaylord
Writing as B.B. Pelletier

Gauntlet
Umarex Gauntlet.

This report covers:

  • A price-point PCP
  • Two calibers
  • Features
  • Trigger
  • Sling swivel studs
  • Description
  • Fill
  • Overall evaluation

Yes, Jonah, it is the Umarex Gauntlet on which I will test the Bug Buster 3-12 scope with sidewheel! I had planned on reviewing this rifle last summer, but things happened on the production side and that window closed. Then I wanted to review it before Christmas, but that never happened, either. So now I’m starting my report on an air rifle that’s already in many shooter’s hands.

A price-point PCP

The Gauntlet is not just a price-point precharged pneumatic (PCP). It’s the rifle that defined the class. A price-point PCP has to have a lot of desirable features and retail for less than $300. Umarex drew that line when they announced the Gauntlet last year, but while they were getting the first rifles ready several other manufacturers got their offerings out first. They all stuck to the under-$300 retail price and the features differ from gun to gun. I will test several other price-point PCPs for you but today is all about the Gauntlet.

Two calibers

The rifle comes in both .177 and .22 caliber. I chose the .177 for no special reason other than it seemed best to me.

Features

What does this rifle offer? For starters, it’s a repeater. The .177 version I’m testing comes with one 10-shot rotary magazine and one single-shot adaptor tray. In the past those trays were sold as options. It also has a regulator that many newer airgunners seem fascinated with. I will test this one for you thoroughly so you know what to expect.

The barrel is shrouded but not baffled. Instead it has what I would call an expansion chamber that contains the compressed air before releasing it to the atmosphere. I will report on the discharge sound, but Pyramyd AIR says it is fully moderated, so I’m expecting a quiet gun.

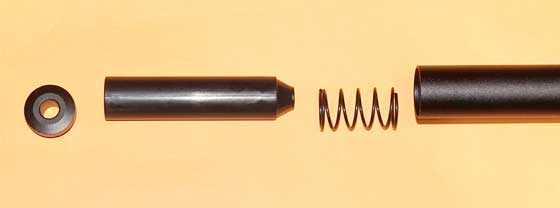

Gauntlet moderator
Umarex used an expansion chamber to quiet the Gauntlet. It’s similar to a motorcycle exhaust. The spring keeps the loose chamber from rattling.

The air reservoir is removable! This is a feature that used to only come on higher-priced PCPs, so Umarex has really raised the bar with the Gauntlet. You can fill the tank  while it’s installed on the gun or remove it and replace with another reservoir that’s ready to go. A degassing tool is supplied to exhaust the compressed air from the reservoir before removal. Just know that all the air will be exhausted.

The cheekpiece is adjustable up and down to suit different shooters. A thumbwheel in the stock makes this easy. The rear sling swivel stud locks the adjustment wheel, so use the degassing tool to unlock the stud before adjusting the cheekpiece.

Trigger

The trigger is adjustable, but to access the adjustments you must remove the air tank and forearm. Looking at just the outside of the trigger housing, the safety and the location of the adjustment screws, this looks like a variation of the Crosman 160 “crossbow” trigger that I wrote about. If so, you are in for a real treat. I will look at it closer in Part 2. I will say that it came from the factory adjusted very light, but I would tweak the overtravel screw to stop the trigger right after the gun fires.

I find the first stage of the trigger a bit sticky, but it’s brand new and I can tell that it will wear in. Once it does, stage two feels very crisp.

The safety works with the trigger and is manual. Thank you, Umarex! It is an upgrade to the original Crosman 160 safety because it is spring-loaded and can be released very easily — with just a touch of the trigger finger. It takes a little more effort to apply, but it’s easy just the same.

Sling swivel studs

The stock comes with sling swivel studs installed. You will need a sling because the Gauntlet weighs 8.5 pounds without a scope. As mentioned at the start of this report I plan to mount the BugBuster 3-12X32 scope with optional sidewheel for this test, so the weight will not increase by much more. Each sling stud also serves to lock something, so that degassing tools that also loosens both studs will be handier than you suppose.

Description

The Gauntlet is a large rifle — measuring 46-inches overall with a 14-inch pull. The barrel is 23 inches long. The stock has been well contoured for a shooter. The pistol grip is very vertical, making offhand shots feel good, and the forearm just in front of the triggerguard where you place your off hand is very narrow. It feels great! The rest of the forearm is fat, to contain that removable air tank, so you will feel it if you hold the rifle out there.

The stock is dark gray synthetic. It’s smooth on the surface but not slick. It doesn’t reflect light, nor does the rest of the outside of the rifle. Only the air tank is shiny, and it is mostly concealed inside the forearm.

The butt pad is soft grippy rubber that will cling to your shoulder. It does not adjust.

Pulling the bolt back to cock is hard, so you want to cock with the rifle on the shoulder. The bolt has a notch at the back of its stroke to lock it safely out of the way when installing or removing the magazine.

Fill

The Gauntlet accepts a fill to 3000 psi, as expected for a regulated gun. According to the manual the reg is set to 1150 psi, so you get nearly a 2000-psi power band. That’s going to give a lot of shots. I will plan on Part 2 of this report taking a long time to test! Of course you can fill the tank less full and get fewer shots. The reg should give the same velocity, regardless.



Umarex wisely used a male Foster nipple for the fill port. More and more manufactures are using this nipple which makes filling PCPs easier. The fill nipple comes with a protective cover to keep dirt out.

Overall evaluation

This is an entirely new PCP. It’s a shame it took so long to hit the streets, but Umarex wanted it to be right, and from first glance it would appear they succeeded. I can’t wait to shoot it for accuracy.

I remember shooting the gauntlet a year ago for “American Airgunner,” but we didn’t have the targets, the time or a decent shooting bench to do it right. This time I’m going to take the time to really get to know this air rifle.

author avatar
Tom Gaylord (B.B. Pelletier)
Tom Gaylord, also known as B.B. Pelletier, provides expert insights to airgunners all over the world on behalf of Pyramyd AIR. He has earned the title The Godfather of Airguns™ for his contributions to the industry, spending many years with AirForce Airguns and starting magazines dedicated to the sport such as Airgun Illustrated.
See Full Bio

154 thoughts on “Umarex Gauntlet: Part 1”

  1. BB
    Can’t wait to hear what you think about it once you get shooting. I do love my .177 Gauntlet. Really is a nice gun. And very accurate. It actually surprised me at how accurate it is.

  2. It’s on my list, I just haven’t jumped yet.
    The expansion chamber looks suspiciously like a one piece larger Marauder baffle.

    I wonder if the Marauder baffle stack will interchange with fewer baffles or a different spring.
    (In other words, please measure the diameter of the expansion chamber against the Marauder baffle diameter) when you get farther along in the review.

    I was chatting with one Gauntlet owner that has added a 4500 psi regulated carbon fiber bottle to his Gauntlet, and is getting over 275 shots per fill on his Gauntlet.

    Ian

      • B.B.,

        My one experience with an “LDC” tells me a simple hollow tube can be quite effective. I once received a used CO2 Hammerli 850 air rifle that happened to have a moderator friction-fit to its muzzle. I removed it and could see that it was simply a hollow aluminum tube (with carbon fiber looking applique outside and perforated end cap) of 14mm or so in diameter. Pushed onto the barrel it probably added five or so inches of air space in front of the muzzle.

        I shot the 850 in my basement both with the thing on and off. It quieted the rather loud 850 a lot. I was surprised how much quieter it was.

        Nevertheless, it was a removable silencer and not why I purchased the air rifle, so after I played with it for a couple dozen shots, I put it on my railroad track anvil, flattened it with a hand sledge, and chucked it into the trash basket.

        I imagine the expansion chamber of the Gauntlet is pretty effective.

        Michael

          • GF1,

            According to some stuff that I’ve seen on the internet that chamber has funnel shaped baffles in it like the Marauder except they are not individual or stacked. The actual muzzle also has an air stripper pressed onto it that directs much of the air back towards the shooter inside the shroud. I’ve seen mods ( using 3D printing) that replaced the single baffle assembly with a stacked arrangement and some holes had to be drilled into the shroud to let the stripped air escape. It made the gun read barely 3 db quieter on a sound pressure meter but it looked like a lot of work for the return, IMO. The gun sounded too quiet on the video, to start with, to go through all that rigmarole.

            • Halfstep
              That’s what I get out of the Gauntlet baffle also. One peice instead of the multiple baffles the Marauder uses.

              And the peice your referring to as the air stripper that’s pressed on the Gauntlet barrel looks like the one that is pressed on the Marauder barrel. It’s basically the diameter of the shroud with a o-ring on it and it has some holes around it to let it go back to the shroud area.

              Well unless it has changed on the Gauntlet or I’m remembering wrong.

        • Michael,

          If you don’t mind, what was your rationale for destroying the moderator? Instead of selling or giving it away to someone who might have used it to further protect their hearing?

          shootski

          • Shootski,

            I don’t mind at all. Why did I destroy them instead of selling or giving them away? I protect my hearing with foam earplugs, electronic earmuffs if it’s my Sheridan indoors. Anyone else could do the same, so silencers are not necessary to protect one’s hearing.

            But ultimately, selling or giving it away would be breaking federal law, and I am law-abiding.

            Michael

            • Michael,

              Is that your home state law or some local ordinance?

              This Case Law: http://caselaw.findlaw.com/us-1st-circuit/1527670 (although a convoluted case) appears to indicate that any moderator can be used on an airgun as long as it is designed for airguns only. I have seen reports of poor man’s suppressors made out of water or soda (pop) bottles and 100 MPH Tape for one time use.

              Every layer of ear protection is to the good; in most other countries that allow their citizens to shoot a suppressor Is de’rigur.

              shootski

              • Shootski,

                Suipressors in most other countries is indeed unregulated, but I live in the United States, where they are regulated.

                As for hearing protection and the effect of sound waves on human hearing, it is a subject I know a great deal about as an audiophile, sound reinforcement assistant, roadie, and musician. More layers of protection have no benefit over a single layer if the attenuation is sufficient to prevent hearing loss. As long as the sound is lower than 90 decibels, it is O.K., especially if it is in impulses, not prolonged and/or constant. Sound that is 80 decibels is no more harmful than sound which is 30 decibels, period. Therefore, earplugs plus a moderator is no better than earplugs alone, provided the attenuated sound introduced to the inner ear is lower than the minimum harmful level.

                Federal law requires any moderator which can be used on a firearm (and this one could have been), even only once, to lessen its report cannot be manufactured, transferred, or owned except by those with the appropriate federal license, which I do not possess.

                Anyone who decided to try to test this interpretation of the law could spend a lot of money on lawyers and risk prison time. They can be my guest as it makes no difference to me.

                Even so, suppressors are illegal to manufacture, transfer, or possess in my state regardless if one has a federal license.

                Earplugs, on the other hand, are perfectly legal. :^)

                Michael

              • Shootski,

                I almost forgot. I wrote “them” above because I recalled that I actually destroyed one other “LDC” a very long time ago when I first got into airgunning. It was a similar circumstance and a similarly constructed device, as I recall, anyway. That one was smaller and less robust, although it was a wider diameter and looked very spy-movie-like. It looked like something a professional assassin would use. that one I simply flattened in the middle and chucked.

                Michael

  3. B.B.,

    Thanks for the nice description of the features. A fine job indeed on Umerex’s part . I look forwards to seeing more on this one.

    Good Day to you and to all,… Chris

        • Chris USA,

          I wanted to get ahead of that right away since I introduced the notion here. I don’t remember where exactly I read it but it was a forum and not something I saw on YouTube. I took the top screw out of the rubber butt plate and swung it down. The stock is hollow and the comb is a separate piece but it just interlocks with tabs on the stock and is held in engagement by the butt plate. You can take it off and leave a gaping hole in the top of your stock but you can’t do any sort of adjustment. Can’t imagine why anyone would deliberately misrepresent a feature that way. Maybe just made an assumption ?

          • Halfstep,

            My favorite word in use again!

            A$$-U-ME… don’t you just love the mayhem that simple word introduces into conversations and activities!

            I second the no BS blog! B.B. certainly keeps to that and corrects himself or the blog when better information becomes available.

            shootski

            • Shootski,

              First off let me say that I’m so glad that now we understand why you are not polish, and secondly, I know I do my best to keep it real here as well. I am an absolutely fabulous BSer in my day job but I know folks here are making purchasing decisions and modding choices based on what they read in this blog and it’s comments, so I feel obligated, as everyone seems to be, to remain as factual as I can; which I can do when called upon, just not with the natural ease that I have with the ol’ BS. 😉

          • Halfstep,

            Perhaps a moveable cheek rest will be next? It is already a 2 piece affair. A good modder could probably get what is there to work. I really like the thumb wheel on the Gauntlet. That may come in handy when going from bench,.. to off hand. For most people, it would be a set it and forget it though.

  4. BB,

    I cannot say this particular air rifle is my cup of tea, but the Gauntlet is indeed most appropriately named. With all the features this PCP air rifle offers at a price of a mid level sproinger, it certainly has set a very high bar for the other companies to meet.

  5. Thanks, B.B., a lot of folks have been waiting for this one! I’ve got a Marauder and an Armada already…but can’t resist a bargain and this looks like a big one! The accuracy test will tell if the Gauntlet can play with the big boys. I’ve been reading some pretty impressive claims.

    • B.B.,

      My one experience with an “LDC” tells me a simple hollow tube can be quite effective. I once received a used CO2 Hammerli 850 air rifle that happened to have a moderator friction-fit to its muzzle. I removed it and could see that it was simply a hollow aluminum tube (with carbon fiber looking applique outside and perforated end cap) of 14mm or so in diameter. Pushed onto the barrel it probably added five or so inches of air space in front of the muzzle.

      I shot the 850 in my basement both with the thing on and off. It quieted the rather loud 850 a lot. I was surprised how much quieter it was.

      Nevertheless, it was a removable silencer and not why I purchased the air rifle, so after I played with it for a couple dozen shots, I put it on my railroad track anvil, flattened it with a hand sledge, and chucked it into the trash basket.

      I imagine the expansion chamber of the Gauntlet is pretty effective.

      Michael

    • Ahh! Somehow I double-posted.

      Hiveseeker,

      It seems to me the Gauntlet essentially IS a Marauder, except with removable bottle and an extra $200 in one’s wallet.

      Michael

      • Michael
        It’s more of a QB79 with a different stock and a repeater breech and shroud. Same trigger assembly, same air tube but correct threads for the regulated bottle like on my QB79 with out the drop down bottle adapter.

        Here’s a picture of my QB79. Look close at the bottle mounting area.

  6. Thanks BB. Been waiting for your blogs on the Gauntlet. My .22 is very accurate and prefers JSB 15.89 grain pellets (.353″ 10 shot 25 yds) and JSB 18.13 grain (.363″ 10 shot 25 yds). Both from bench in Lead Sled rest. Won’t say I can do it every time, but on the whole, get very good accuracy out to 50 yards if the wind is not blowing to hard at Buchanan Lake (blows most of the time). Generally, I’d say the Gauntlet is not quite as accurate as my .25 Marauder, but the Gauntlet will give the Marauder a good run for the money. And, the Gauntlet doesn’t cost near as much. I’m glad I have both. The Gauntlet will out shoot my Discovery every time. I have well over a 1000 rounds through my Gauntlet by now.

    The trigger will adjust below one pound, but blue loctite should be put on the little screws as they will move with the small vibration when shooting. The trigger return spring was replaced with one from a ball point pen.

    To answer 45Bravo, no the Marauder baffles will not work in the Gauntlet. But the Gauntlet is pretty quite. More of a burp.

    One thing you might address in the blog is POI change from leaning the Gauntlet against the shroud in the gun rack. I don’t have any changes on mine, but some people do say the POI moves when leaned against the shroud. Some people have a tendency to pick up the gun by the shroud and experience POI shift. But, you can get POI change if you pick up a Marauder by the shroud all the time. The rifles need to be picked up using the stock. That seems straight forward to me, but some people like grabbing the shroud to lift the gun.

    Can’t wait for all your blog entries on the Gauntlet.

    • Jonah
      Absalutly about the shroud. I lay mine on it’s side on a carpeted floor in my gun closet.

      Oh and I have a .177 Gauntlet. Here is some targets. You tell me if it’s accurate. This is when I first got it and was sighting it in. And I will have to say I shoot it out to a hundred yards and it’s a pretty flat shooting fun actually.

      • I would accept those groups at 50 yards any day. The comments I have seen on the web, have all indicated that the .177 Gauntlets are just as accurate as are the .22 Gauntlets. I seldom shoot on paper. I use paper targets to sight in and find the most accurate pellet for that gun. After that, my usual targets are metal spinners and small eye drop bottles all set up at various ranges out to 50 or 60 yards into any wind. I will on occasion shoot out to 100 yards, but I have to shoot across a portion of the lake I live on and its just not normally convenient. I have to shoot toward the east and the wind is usually blowing from southeast or south across the “range”. I have a few .177 airguns, but just prefer the .22s or .25. No reason, just like the larger calipers. In fact, any of my .177 guns that I could switch to .22 have be changed over. If I ever run across a FWB127 barrel, I’ll probably buy it and put it on my FWB124 like I did for my BSA Mercury.

  7. I agree with Michaels observation about the similarity of the form factor with a Marauder. I will add that I bolted on a jdsairman bottle kit for my PROD, it looks like a scaled down Gauntlet now, without the nice stock, or weight;) Seems like the manufacturers have settled on this sort of layout for a PCP action, and now I appreciate Airforces approach more with their bottle layout. A .177 Gauntlet may get me to venture out for some FT/ sporter class in the bay area, since the Mrod has way too much wack on it for targets! (and its a nickel a shot) Rob

    • 1stblue
      Read my comment to Michael above and see the picture I posted of my QB79. The Gauntlet more or less is a QB79 with what looks to be similar to a Marauder breech and shroud. It’s like they took a mix of guns to make the Gauntlet.

      And I will say that my .177 Gauntlet is definitely more powerful than my .177 QB79. So the different striker spring in the Gauntlet and I’m sure bigger inside diameter transfer port is what’s kicking the velocity up in it. So feild target definitely on accuracy. And mine is shooting JSB 10.34’s in the high 900 fps range. So it’s right on the same power level as the 3 different .177 Marauder’s I had over time.

      • Gunfun1,

        What I was getting at is that appearances and reservoir configurations aside, the Gauntlet and Marauder are almost the same air rifle, performance-wise. They are about the same size and weight. They have about the same velocity and the same fill pressure. They use identical magazines. They both have nice triggers and are quiet.

        The one really significant difference is $200., or forty percent, in price.

        Michael

        • Michael
          If the Gauntlet has a nice trigger that means the Marauder trigger is excellent.

          The trigger on my Gauntlet is indeed nice. But no way compares to a Marauder trigger.

          And I don’t think I would compare the two. I would say the Gauntlet is similar to the Marauder not the same. Or I can say it this way if I want to be bias. The Marauder is similar to the Gauntlet.

          What I think could be said about the Gauntlet though is it is a very nice gun for that price range.

          • Gunfun1,

            I wonder if the Gauntlet trigger, which adjusts in the same manner as the legendary Crosman 160, 167, 180, 187, and 400 triggers, can be adjusted gradually and carefully (the three adjustment screws are interactive with each other) to be just as crisp and light as a Marauder trigger, if not better. My 400 and 160 are adjusted as nice as I would want them to be, although it did take quite a bit of tinkering with my 400, which I acquired first, to get it just right. With that experience adjusting my 160 was easy. They are almost as nice as my FWB 124 trigger, which is definitely better than any Marauder one.

            The question for each potential consumer is if a slightly better trigger is worth spending $500 instead of $300. For some it would be, but not for most. This is not like the $200 difference between a $2800 Anschutz and $2600 Steyr.

            Michael

            • Michael
              No the Marauder trigger is not slightly better than the Gauntlet trigger. It is way, way, way better than the Gauntlet trigger.

              The Gauntlet trigger since we are comparing is close to the feel and build of a Discovery or Maximus trigger. So maybe that will help you understand the Gauntlet trigger better.

              And if you want to see how the Gauntlet trigger adjusts. Go to the Pyramyd AIR Gauntlet page and down load the Gauntlet manual. It’s highlighted on the page. At least that way you will see it’s definitely 100% different than a Marauder trigger.

              • Gunfun1,

                I checked the Gauntlet manual, and it is just like the Crosman 160 trigger. It is not like the Marauder trigger or Discovery/Maximus trigger at all. It’s a “crossbow” design (see below).

                You should take your Gauntlet action out and shorten its second stage and lighten its overall weight. It should get extra crispy! ;^) I saw in the manual that it even has an easy-to-adjust weight. The original ones were trickier.

                Michael

                  • Gunfun1,

                    My 160 and 400 triggers are adjusted for a light, medium length first stage followed by a slightly heavier (I’d guess by 10 ounces to a pound heavier) second stage, which is short and crisp. Its feel is similar to a Rekord or TX trigger. They are easily the best triggers of any CO2 guns of mine.

                    Michael

        • Michael,

          Don’t you think the adjustability /tune-ability of the Mrod sets it apart from the Gauntlet in a significant way? And the removable regulated tank of the Gauntlet is a striking feature that the Mrod lacks. Both of those things could be said to differentiate the two guns, performance-wise.

  8. B.B.,

    You piqued my interest in the differences between airguns that are regulated and those that are not. I believe I understand the basics and there are uses for both systems. I suspect those with unregulated guns have more need of a chronograph than those with regulated guns (although they can benefit from using a chronograph).

    Am I correct about this?

    ~ken

        • Ken
          True what BB said. But you don’t necessarily need a chrony for either. I can watch my air gauge on the gun and see when it drops off the regulator. And same with the unregulated guns. The gun can be filled and you can shoot and watch for POI raise or drop and where it stabilizes and drops again. You just have to watch the gauge.

          When I put the regulator in my Maximus that’s how I did it. And also on my Gauntlet. And just did my new .25 Condor SS like how I just described for unregulated guns. Did them all with out a chrony. I actually didn’t chrony the gun till later for velocity.

          So a chrony is not needed but does make it simpler.

          • Halfstep
            You know there are other ways to keep track of a gun health velocity wise.

            I did this before I got a chrony. Depth of penetration. A pine soft pine 2×4 works great for that. Of course unless you got a real week gun and the pellet doesn’t penetrate and bounces back at you.

            I guess some ballistic clay would be safer though. Anyway there are other options besides a chrony. Even a still paddle with a indicating needle could work. Heck you could just recover the pellet after it hit the spinner. Have you ever heard of splatology.

            • GF1,

              You can hollow out a log to fire a cannon ball but that is not the most practical way to shoot one through the air. The practical way that it’s done also yields the best chance that the ball hits where it’s aimed.

              There is a reason ballistic pendulums went the way of the buggy whip and natural materials vary in density and I don’t think the average shooter is going to be able to measure with the accuracy that would be required to compete with a chronograph. It really is the most practical and accurate way for the average person to measure projectile velocity. IMO

                  • Halfstep
                    If you do something enough you will be surprised how well you can learn to determine something.

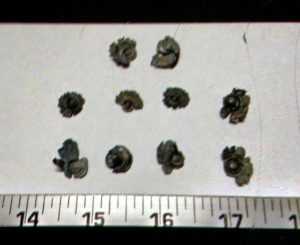

                    Here is a picture I took with this phone from my old phone with a cracked screen. It’s something splatology.
