Clean and lube the trigger
Okay, just a few more steps to complete this project. The Rekord trigger will be installed next, but let’s first take a look at how it’s lubricated. I have seen extremes of both over- and under-lubricating from the factory. Look at all the parts through the access holes and remove all the grease you can see. There’s only one point in a Rekord that can be lubricated for better performance, and it applies to all Rekords, whether they are the match type or the standard sporting trigger that you see here.
Rekord trigger uncocked.

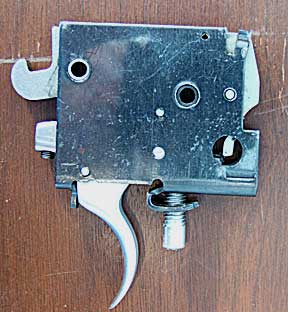

Rekord trigger cocked. The rear of the piston release has been pressed down until the sear caught.
Where these two pieces come together is the only spot where lubrication will do any good.
Once the trigger is cleaned and lubed it’s ready to install. First, install the safety button and spring. Hold in the safety as you install the trigger. It takes a little fiddling – no force – to slide the trigger housing into the large slot in the end cap until the pin holes align. I put the front pin (the longer one) in first, and I inserted the pins on the right side of the end cap. On most guns, I can push at least one of the pins nearly all the way through with my fingers. You can release the safety when both pins are through.
The pins slide in, and the trigger is fired.
I am very pleased with the results of my tuneup. The rifle now fires without a hint of vibration, plus it’s easy to cock. I’ll have to do a range test and share the results with you.
