by Tom Gaylord
Writing as B.B. Pelletier
The Diana Chaser is a new CO2 pistol.
This report covers:
- Trigger
- Piercing the CO2 cartridge
- RWS Hobby
- Sig Match Ballistic Alloy
- JSB Exact 8.44-grain dome
- Cocking
- Shot count
- Report
- Discussion
- Summary
Today is the day we find out about the velocity of the Diana Chaser air pistol. There are a couple other things to learn today, as well. Let’s go.
Trigger
The first thing I wanted to know was whether that trigger really is adjustable. So I got a fine Allen wrench and started adjusting. Turning the screw in the trigger blade counterclockwise did nothing at all. The pull remained where it was — two stage and around 4 lbs.
Then I turned it in — clockwise. Bingo! I got to the point that the gun couldn’t be cocked. That tells me the trigger is adjustable and also that the adjustment works on the sear contact area. I had to back the screw out several turns and then I got a single-stage trigger that fired at 8 ounces. That’s FAR TOO LIGHT for an inexpensive direct sear! I kept turning and testing until I got a great 2-stage pull. Stage one is 12 ounces and stage two breaks cleanly at 2 lbs. 4 oz. The trigger can’t be “bumped off” which is important for a light trigger — especially one that has a direct sear adjustment. I’m staying where I am.
Piercing the CO2 cartridge
Next came installing the CO2 cartridge. Remember that I told you that rod in the CO2 chamber cap wouldn’t be needed? Maybe not to get the cap off after the CO2 is expended, but certainly to screw the cap down tight enough to pierce the cartridge. The first cartridge was very hard to pierce and I needed the extra leverage of the bar. However, once pierced, the pistol was ready to go.
RWS Hobby
First up was the lightweight lead pellet — the RWS Hobby. These loaded stiffly, as if the edge of the flat nose was clipping something in the breech. Hobbys gave me a strange shot string, so I will show it and then talk about it.
Shot……….Velocity
1……………..513
2……………..525
3……………..535
4……………..543
5……………..546
6……………..545
7……………..549
8……………..547
9……………..547
10…………….547
11…………….546
12……………541
13……………534
14……………551
15……………551
I show the string because I didn’t just want to take the first 10 shots and average them. That wouldn’t be representative. But we can argue about where to start and stop the string all day long; what will it prove? The “average” with Hobby pellets seems to me to be something in the 540s, perhaps 545. I wanted to shoot some more pellets to confirm that this first CO2 cartridge had settled down. So that’s what I did.
Normally a CO2 gun has one or two extra-fast shots at the start of the new cartridge, then it settles down to shoot normally until the gas is exhausted. I think this is the first gun I’ve seen where the velocity actually increased as I went. And, I waited a minimum of 10 seconds between all the shots in today’s test.
By the way, at 545 f.p.s. Hobby pellets produce 4.62 foot-pounds of energy. Because this pistol is CO2, heavier pellets are going to be more powerful.
Sig Match Ballistic Alloy
Next I tried some Sig Match Ballistic Alloy pellets. You know I am going to test them for accuracy. They averaged 600 f.p.s. with a spread that went from 594 to 607 f.p.s. That’s a range of 13 f.p.s., which suggests that the CO2 cartridge and the gun have settled down.
At the average velocity, this pellet produces 4.2 foot-pounds. It’s following the rule that lighter pellets produce less energy in gas guns. And they also loaded hard at the breech, just like the Hobbys.
JSB Exact 8.44-grain dome
The last pellet I tested was the JSB Exact 8.44-grain dome. They averaged 512 f.p.s., with a low of 505 to 519 f.p.s. That’s a 14 f.p.s. spread. At the average velocity these pellets produce 4.91 foot-pounds of energy at the muzzle. This pellet loaded easily.
Cocking
Having the bolt on the left side of the receiver speeds things up a lot for a right-handed shooter. It’s the right way to go.
Shot count
After all these shots, plus a couple others for testing the trigger, this CO2 cartridge had 37 shots on it. I went back to Hobbys for what follows.
Shot……….Velocity
38……………555
39……………552
40……………547
41……………542
42……………540
43……………541
44……………539
45……………537
46……………535
47……………530
48……………528
49……………512
50……………515
51……………516
52……………Did not register
53……………498
54……………490
55……………483
56……………469
57……………464
58……………454
59……………437
60……………426
I stopped after shot 60, though you can see there were still a few more shots to be had. The Pyramyd AIR shot count of 50 seems to be realistic and conservative, though individual CO2 cartridges do vary somewhat.
Report
How loud is it? Well, when the CO2 cartridge is fresh it’s pretty quiet and when you get down to the final shots it starts to bellow. That’s common for CO2 guns. The Chaser is no louder or quieter than other CO2 pistols of the same power.
Discussion
The Chaser is certainly right there where it should be on velocity. The adjustable trigger can be adjusted very nicely and is one of this pistols best features. The pistol grip, on the other hand, is one of its worst features. That “fin” on the back of the grip gave me fits during this test. I will know more about that after the accuracy test.
Summary
Readers have asked me whether I think the Chaser is worth the money. As of this point in the testing, I do think it’s a great value. It still has to be accurate, so I will hold off my final thoughts, but this is one to consider.
“Readers have asked me whether I think the Chaser is worth the money. As of this point in the testing, I do think it’s a great value. It still has to be accurate, so I will hold off my final thoughts, but this is one to consider.”
Brave man, to offer any opinion so early.
Seantheaussie,
He’s hedging his bet.
Siraniko
Siraniko I just realized that he has probably watched Tyler’s review. I am now changing my opinion of his stance from brave for a hedged opinion, to cowardly for not nailing his colours to the mast 😉
I hope some of our readers know why nailing your colours to the mast requires bravery.
Sean.
Seantheaussie,
You ought to know by now that B.B. doesn’t trust anybody’s accuracy report unless it’s his own. Who knows he might have a lemon. 😉
Siraniko
Sean,
No, I haven’t watched Tyler’s report. But I have read comments about it and also comments about the pistol’s accuracy.
I purposely want to remain neutral on this one until I test it. But everything I have seen so far tells me the designers have done a good job.
B.B.
Ahoy Sean,
If by colors you mean the Ensign then that means you will give no quarter and will fight to the death of the vessel. If on the other hand you are referring to nailing your personal flag to the mast personal colors, then it means you yourself are not going to leave the ship. Striking (lowering) the colors means surrendering the vessel or leaving the vessel respectively.
shootski
Shootski, I never knew about personal colours. That must be part of the captain going down with his ship.
Sean.
B.B.
Why do CO2 powered airguns get louder as the cartage gets depleted?
-Y
B.B.,
Very nice on the trigger adjusting. I do suppose you gave the breech end a quick look-see for any burrs or such?
Looking forwards to the accuracy test on this one. I know your a pistol guy, but I would love to see the rifle version of this tested.
Good Day to one and all,….. Chris
Chris,
Watch the vid.
/product/diana-chaser-co2-air-rifle-kit?m=4613
Chris USA,
Dennis Adler reported his 0.177 Chaser accuracy results for Airgun Experience at this link.
/airgun-experience/diana-chaser-pistol-part-4/
Yogi,
I think it is because the valve remains open longer when the pressure gets low.
B.B.
I know that like me, some are just not into CO2 and have been thinking of ways to convert this. Well, we don’t have to.
/product/diana-bandit-pcp-air-pistol?m=4637
RR,
Just when I was thinking about a 2240 you drop this one on me – THANKS (I think 🙂 )
Now this is the way to go!!
Hank
Has anyone else noticed that all of the Diana ” Sporting ” guns, or whatever they are calling the China imports, all have their names printed in all lower case letters? Odd choice, I think.
Half
Totally off topic announcement…
Many know that I live in a rural area with lots of critters that are comfortable with me being close by.
We have several large snapping turtles in the beaver pond and this one decided to dig a nest in my driveway. The little ones hatched yesterday so I gathered up all 18 of them and escorted them to the pond. Not knowing any better, they had no issue with being fussed over and photographed.
Thought I would share the picture…
Hank
Hank
Nice. When they ate baby’s anyway.
We had them in the lake at the farm when I was a kid growing up. Seen them snap 2″ branches in half.
And my dad as a kid use to wade around the banks at the lake and take a old branch or pole and poke in the water. If it didn’t sink in the mud but made a solid thump. More then likely they found a snapper down in the mud. They use to get them and eat them. I never ate them. And knew what they did when they snapped.
All I can say is yep cute when their small. But know what they do when their big. They are dangerous.
GF1,
Yep, they are cute when they are small, once they have a shell more than a couple inches across they can give a nasty bite if provoked.
This one lives by what we call the “first bridge”. When I was building the bridge she used to come over to see what I was doing and followed me along the shore like a puppy. Guess she was watching for what ever food I might stir up. If she got in my way I would just push her aside – she never hissed or snapped at me. Known her for quite a few years. This is the first time I saw the babies hatching (was always at work before) and I was surprised on how many there were.
Hank
You probably saved a lot of them. Baby turtles get eaten by birds and predators on their way back to water. That’s the reason they hatch so many…only a few normally survive the trip from land to water. Good job. Hope you haven’t upset the ecosystem by allowing them to all survive. You’ll have more snappers than you know what to do with.
This is what I was thinking. If you fish that pond you won’t pretty soon. I would definitely think about harvesting them for meat.
Larry from Algona
Geo,
The raccoons devastate most of the nests with very few eggs surviving – never see more than a couple of baby turtles each year. I can only guess that with the nest being located in a high-traffic area that the raccoons missed it. Was real special to have a brood like that hatch.
My property backs on to a 55 acre spring fed beaver flood which is directly connected to a chain of large ponds. Don’t think that there is any danger in upsetting the ecosystem. You are right – the way mother nature works, it’s not likely that many of them would get to be adults.
There was a season for harvesting snappers but that was closed years ago and now there is a concern about the populations. Too many wetlands were being drained.
Anyway, I know a lot of shooters on the blog are also avid outdoors people so I though I would share the pictures.
Cheers,
Hank
Hank,
You live in an ideal area, sounds really nice to me. Thank you for the pictures you posted of the baby snappers and also the doe. I have a salt lick out back of the house and a couple of days ago a small fawn was out there licking on it. The fawn seemed pretty small for this time of the year and I did not see the mother anywhere. We’ve seen a pair of twins several times this summer in the back yard. I love to see the deer out there. I was a deer hunter for many years but gave that up a long time ago. Now I just enjoy watching them. I bought some sunflower seed at TSC today and while I was there I bought some deer corn to put out back by the salt lick too. Our does don’t normally get to 200#. Most are in the 125# to 175 # range I would guess.
Geo
Geo,
Like you I used to hunt deer but haven’t since I bought this property. It’s hardly sporting when the deer come right to you rather than run away.
The small fawn you saw probably is from a doe that was bred in the second rut (December) is is a month younger than the normal fawns.
We have four does that hand around all the time and an other half dozen or so that visit regularly. Yes, nice to watch them.
Hank
Hank,
Here in Michigan they give out permits to shoot does. When I was younger and a serious deer hunter, I wouldn’t think of using a doe permit to shoot a doe. I would always apply for the permit and then throw it away. I always enjoyed the hunt much more than the kill. But our family liked eating venison. A friend of mine at work would hunt deer and shoot whichever presented itself first. I used to tell him, “why don’t you just wait until she is close enough and then just hit her with you butt stock, and save the ammo”. I said that because does will often walk right up to you in the woods if you don’t move. I’ve had them come up to me within 10 yards and lie down.
Geo
Geo,
We have the same “apply for a doe tag and throw it away” thinking up here but it is really bad for the deer herd and managing it for quality bucks.
I have talked with a couple of deer biologists and their (expert) opinion is that there should be one buck for every two or three does in order to ensure that they are all bred during the first rut (in November around here).
If there is not enough bucks to go around a great many does will be bred in December or even January, their fawns will be dropped late in the summer and not have enough time to put on the bulk they need to survive the winter. As a result, the breeding potential of the herd is seriously impacted because most of those fawns die.
One of the biologists bought a 350 acre tract of deer bush in New York up near the Canadian border. It had a few small bucks and lots of does. He invited people to hunt but restricted them to does only for the first three years then for does and eight-point (or better) bucks for the next three years. He had had his property for ten years when I talked to him and said that there was three times as many deer as when he had started, the population is balanced and many of the bucks are trophy class ten-point or better animals. He had pictures he was showing of some VERY nice bucks.
When I first started hunting there was a 3 month season for bucks or does. Regardless of gender they were all very good at avoiding people. Then they brought in the bucks-only rule. I found that does are not stupid, its just that they learned that they are not being hunted and have the fear the bucks have of humans.
One of the guys I hunted with was a CO (Conservation Officer) and he preferred to take a fawn over a doe because the doe had a better chance to survive the winter. He also preferred take a doe instead of a buck because the bucks were over hunted and the does were better venison.
I loved the hunt and I like venison but now I get a huge amount of pleasure just watching the deer interact – burgers are good by me :-).
Hank
Interesting concept. Our deer season is only two weeks long, Nov 15 thru the 30th. My brother-in-law still hunts with a crossbow, then gun season, and then the whole month of Dec is for muzzle loaders only. He usually get one or two and gives us some of the venison for chili. We don’t care so much for the steaks or roasts, so most is ground into hamburger.
I like to watch a show on TV called “Northwoods Law”. It depicts real fish & game officers in New Hampshire and Maine performing their actual duties. A camera man rides with them and films in real time. Those guys are VERY serious about protecting their state’s animal life against poachers and such.
I don’t think I could bring myself to shoot a fawn. They are so cute, and it would be like shooting a dog…nope, could not do it. I guess we need to leave the management of the deer herd to the DNR.
Hank
That’s cool that the mother turtle followed you around. And I never seen much baby snappers on the farm as a kid but I know there was a good amount of adult snappers around. So yep cool to see them born.
Suppose to say are nice when baby’s. Not ate baby’s.
thought so. Becoming a grandparent is our reward for not eating our young.
Fred formerly of the DPRoNJ now in GA
Fred
🙂
I must admit I did not toy with the Chaser combo (cp2) in its pistol incantation very much. The heel insert certainly does intrude in the hand. The hard edge on inserting a pellet into the breech benefits greatly with a rubber point tip on a dremmel, the two tiny O rings often need replacement however each time the barrel is removed. As a Carbine however this kit works and shoulders very smoothly. Diana certainly has influenced improvemnts with the trigger adgustments and larger bolt.
Hucklbery
Nice set up on the gun.
B.B.,
I received my 0.22 Chaser pistol / rifle kit yesterday. The shipping box looked liked it hadn’t been handled very gently because the breech end of the rifle barrel was sticking out of the end of the Diana Chaser box.

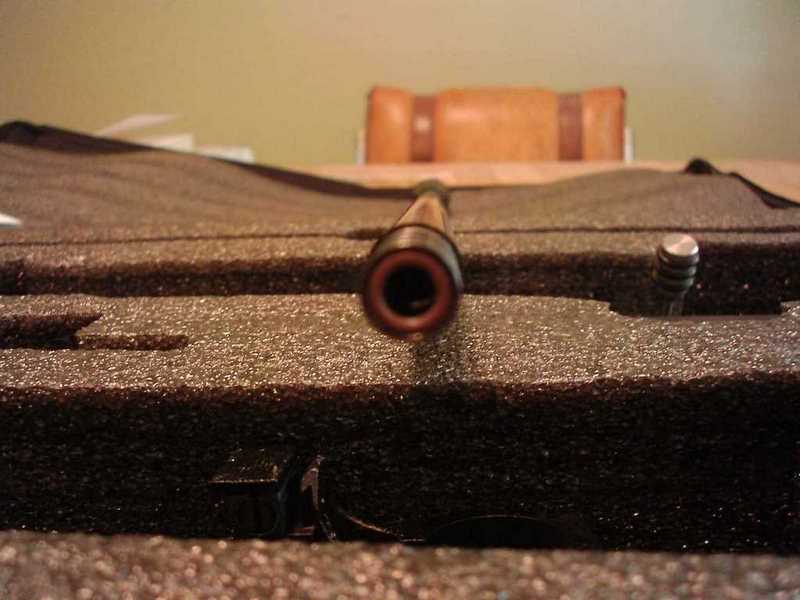

A word of caution is needed regarding the barrel o-rings. My rifle barrel o-ring had fallen out of the barrel. I found it in the shipping box among the paper packing material. Both the rifle and pistol barrels have an o-ring in the breech end of the barrel. These o-rings appear to fall out easily. So be careful not to lose them.

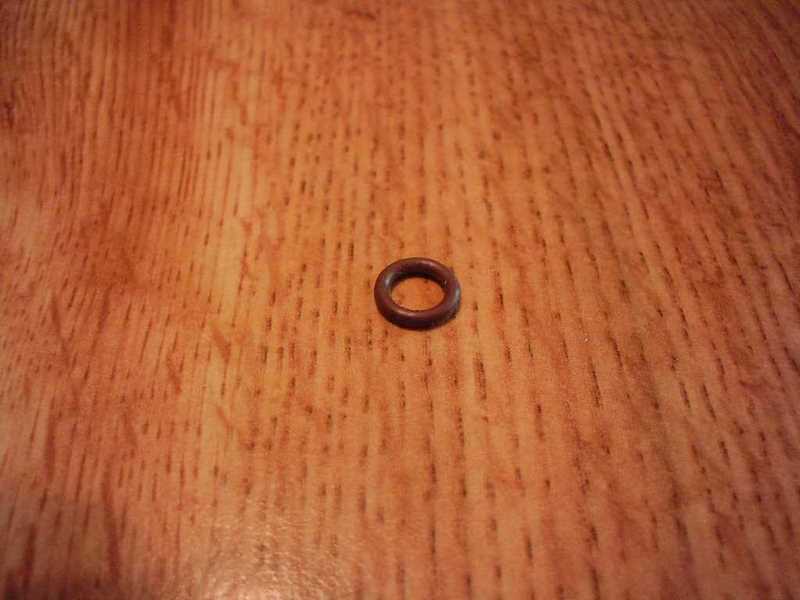

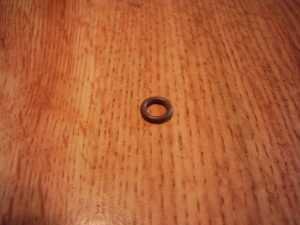

One of the pictures didn’t post. Here’s the o-ring by itself.
If you find loading pellets a bit of a struggle, briefly removing that O ring and inserting a rubber abrasive tip with a dremel helps to nock off the sharp edge. Also pressing on the back of the bolt with your thumb whilst working bolt handle helps to ease it in the breach.

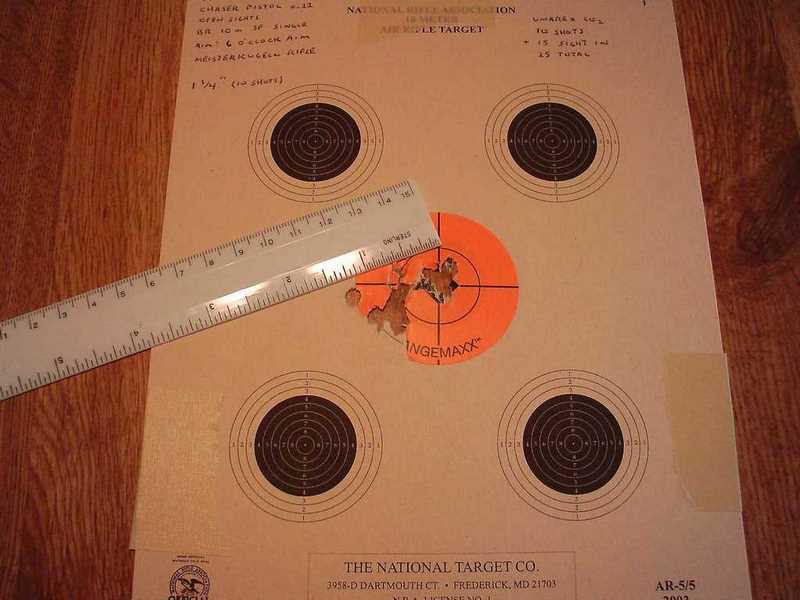

So far today I have shot 0.22 caliber Meisterkugeln Rifle, RWS Hobby, JSB Match Jumbo Diabolo, and Gamo Match Diabolo pellets. The JSB Match Jumbo Diabolo pellets loaded very easily. The other three required a little more effort, but not enough to require using a Dremel tool on the gun.
