Marksman model 70 breakbarrel rifle.
This report covers:
- How to proceed
- What did it do?
- Cocking effort
- What have we learned?
Today we do the last experiment of increasing the preload in the Marksman model 70 air rifle. The next report will be with a new mainspring.
We have discovered that the most powerful state this rifle was in has been the state after I cut off the end portion of the mainspring that was bent. Then I removed almost as much mainspring again to bring the rifle down to very little preload.
After adding in a half-inch of preload by putting 8 washers inside the piston the power did increase, but not to its previous high point. Here is a reminder of where we were. All these shots were with RWS Hobby pellets.
10-shot average with extreme spread
Fac. Vel………..Cant spring cut……..More spring cut……..half-inch preload
715 (15 f.p.s.)….746 (12 f.p.s.)……….606 (22 f.p.s.)………689 (12 f.p.s.)
28 lbs……………..22 lbs…………….………20 lbs……………..…….26 lbs.

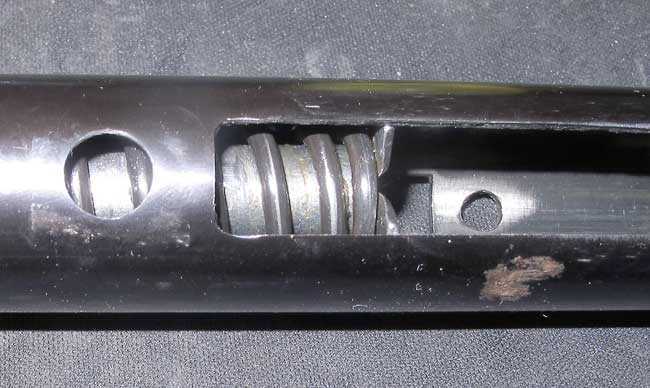

With most of the preload gone, this is where the threaded bushing is.
The 8 washers that I put in the rifle last time measured 0.456-inches in height. As you can see in the picture above, there was about 3/8-inches of preload on the mainspring at its shortest. The half-inch of the 8 stacked washers brought the spring out to what I am calling a half-inch of preload, but it’s clearly a little more that that.
With the half-inch of spacers, this is where the threaded bushing is.
How to proceed
Reader GunFun1 said I should use a lighter spacer to get more preload, because adding 8 more washers inside the piston would add weight that would change the performance characteristics. I had also thought about that and knew he was right. But my garage is not a machine shop. He offered to make a spacer for me, but I held off. I thought I could find something around here that would work. And I did.
I found a plastic part from which I was able to make a spacer. It isn’t perfect, but I was able to get it to go over the piston rod. This is not a tuneup. This is an experiment to answer the question of what happens when you increase the preload.
The plastic spacer is so bright that you almost can’t see the hole through its center. I drilled it out to fit the spacer over the piston rod.
How much more preload is there with the spacer and two washers? It’s a little over one inch. Let’s see.
I forgot to put the threaded bushing in this picture but it doesn’t take much of an imagination to see where it would be. Clearly more preload has been added.
What did it do?
This is the big question — the entire reason for this test. I would never leave an airgun set up this way. I just wanted to see what doubling the preload would do to the power.
The first three shots with Hobbys were 758, 740 and 728 f.p.s. Then I got a spread of 10 that went from a low of 731 to a high of 746 f.p.s. The average for the entire 13 shots was 740 f.p.s. The average for the last 10 shots was also 740 f.p.s. Only the spread of the 13 shots was higher (30 f.p.s.) than the spread for the last 10 shots (15 f.p.s.) I would say that 740 f.p.s. is a good average for the way the mainspring is preloaded.
The cocking effort is now 28 lbs. Let’s now look at what has happened over the course of all the work that has been done.
10-shot average with extreme spread
Fac. Vel………..Cant spring cut……..More spring cut……..half-inch preload…….one-inch preload
715 (15 f.p.s.)….746 (12 f.p.s.)……….606 (22 f.p.s.)………689 (12 f.p.s.)…………740 (15 f.p.s.)
28 lbs…………..…..22 lbs……………………20 lbs…………………….26 lbs……………………….28 lbs.
What have we learned?
From this simple series of tests we have learned that having the mainspring alone do the job of preloading gives the most power — by a slight amount. The best power with the spring alone was 746 f.p.s. with Hobbys.
The spring alone also gave us the lowest cocking effort, with the best power. The spring alone cocked with 22 lbs. of effort. The max preloaded spring (in this series of tests) cocked with 28 lbs. of effort — the same as the rifle from the factory.
What that tells me is that it’s best to use as much of the spring as you can, when trying for an optimum tune. You can get back most of the power when the spring is cut shorter by preloading, but at a cost of greater cocking effort. On the other hande, thin spacers can be added to nudge velocity up a bit. Keep them on the spring guide end and they don’t affect the weight of the piston.
This was just one simple test, and you see how much time and effort it took. Airgunsmiths learn these things the same way through their experience working on many similar airguns. They learn exactly what works best for certain models, which makes the time they spend to get what they want with one gun a lot less than the time you see here. But this kind of work is where they they got that experience.
I hope this series has been a learning experience for many of you. We still have things ahead of us with this Marksman model 70. The next step will be to find a good mainspring and tune this rifle nicely. We now have a chart of where it has been and what it is capable of, within reason, and I will use that as my guidline when I install the new spring.
Besides finding a good tune for the rifle I plan to install that other Perfekt trigger that came with the rifle. There is a whole story of why that trigger was in the box and I plan to share that with you in the future. Stay tuned.

100 thoughts on “Marksman model 70 breakbarrel air rifle: Part 11”
How did the rifle feel on firing? Did it surge forward as much as before you replaced the metal washers with the plastic spacer?
Yes, of all the various states of tune, which was the most enjoyable to shoot.? 28 lbs cocking effort is worthwhile if the gun shoots better.
I should have addressed that in the report. The rifle is still very smooth. I feel the surge has diminished, but with no way to test it, I can’t be sure.
That’s enough for me unless you want to make one of those test carriages those boffins make to demonstrate and record the actual amount of movement a rifle makes.
You forgot to put a smiley face after your comment.
You are aware that my woodworking skills are those of a rabid beaver? 😉
Well Denny does live close by? 😎
Wise decision not to tackle that job yourself. 🙂
I am wondering if in future reviews of break barrels if you could measure the approximate angle of the barrel when it is fully cocked? My $0.02 anyway…
Outside or in? 😉
That’s my way of saying it’s difficult to do.
Oops! BB may have misread your comment. Did you want the angle when the barrel is broken open?
I think that is where he was going. He may be trying to determine in part if it is a long or short compression stroke.
Maybe a picture of each springer broken open?
Yes, the angle when the rifle is broken open and the trigger sear is engaged. Cocking a Break Barrel with 28 lbs of force is much easier if you only need to cocking it 95 degrees vs. 150 degrees.
It would be easy to make a cardboard protractor with several angles premarked and then you just lay the open, cocked rifle on the protractor and take a picture. Load and shoot…
What a great idea! Thanks! I’ll get some cardboard and get on it.
LOL! OK, that’ll do it. We were trying to figure where you were going. Now we know.
The longer distance might have less spring resistance but for a longer time there is resistance.
Will be interesting to find out.
I find that as the angle becomes larger, the PERCEIVED force requirement becomes less.
As for the reduced harmonics, a more solid structure with more mass will tend to absorb the vibration better, though I personally believe there are better ways to reduce the harmonics.
I am not a big fan of long slots in the bottom of stocks either. To me, they create a weak point. You are anchoring a sproinger to the weakest points on the stock.
That should give him a good idea. If he really has to have the angle, he can break out the protractor and measure the picture.
Got my protractor in hand…
I believe that 28 lbs cocking force that only needs to be cocked 95-100 degrees is MUCH easier that 28 lbs cocking force that needs 120++ degrees to cock.
Plus the underneath fore-end groove is shorter, leaving more wood to absorb some harmonics.
That is my theory anyway….
Short and sweet saves the day,
I have Denny working on a special end table for my living room. I keep him occupied and I don’t want to overwork him. 🙂
Can we see an accuracy test with the extra preload? I’m rooting for this LNIB gun to duplicate it’s cloverleaf test group. Between the series on the HW30s, the HW50s, and this Marksman, I feel like you are spoiling us sproinger fans.
I really like the “Dark Side”, but these sproingers are it.
Maybe a picture of each springer broken open?
I don’t see why not. 🙂
I wish to thank you for all of those times you have given us a peek behind the curtain. You have saved me so much grief over the years by doing these series and giving us a place to share with each other. By paying close attention to what is going on here I have managed to avoid an awful lot of pain and agony during my learning.
I also wish to thank Pyramyd Air for supporting this, most especially since most often this is not a direct infomercial for their products. They are not only giving to you a stipend to occasionally review their products, they allow you free reign to share us your wealth of knowledge and allow us to share ours.
Many of “the others” are doing the “latest and greatest” reviews and some are even being honest with what they put out and show. They help us to keep current with what is happening.
Of course there are some who this is their livelihood. They work directly for or very closely with certain airgun manufacturers, distributors or dealers. It does not take long to spot them. They will rant and rave about an airgun and quickly gloss over its failings.
Golly gee whiz! That was a long spiel! Someone take this keyboard away from me!
I too have thought much about that Viper Express. The cost of the shot shells are prohibitive, but they can be reloaded. It uses #9 and that is OK, but I have also thought of #12.
It is a close range toy and would be fun to play with, but it is right expensive. If I could pick up a used one for about $100, I would.
I am very curious about its accuracy using slugs (pellets). I know how to make that trigger “decent”. A dot sight on there may make it pretty nice.
I suppose you have read my 3-part report?
I’m pretty sure I read those reports but I will check it out again.
I did not remember it, but I have now. Where is Part 4 where reloading these shot shells is described? 😉
No, I would never shoot an animal with this. Hunt squirrels?! It is a good thing I was not there. I would have used his butt cheeks as a pattern board to demonstrate to others why you should not hunt anything with it.
Now with #12 or Kosher salt it might be great for carpenter bees. 🙂
It looks like there never was a Part 4. But Part 2 gets into the shells pretty well.
I have to give you a hard time about something. 😉
I read the reports on the Viper.
From what I see the gun would make for a good salt shot gun like the Bug A Salt.
That’s where I would go with the Viper if I got one. But then again that might not be a good thing. I’m sure velocity would increase from the lighter salt and it would be like a dry fire when it shot. I bet the piston seal wouldn’t last long shooting salt.
I thought i was replying directly to your comment but stuff happened…
I ranted down a way below on your topic.
Saw it. Good rant.
Yep same here.
I just took delivery of a new Viper Express yesterday. I’m still giggling from my first sight of the shotshells. I’m working out a game to use this gun ‘productively’. It utilizes the Daisy Rocket Shot soda can thrower. It may require two shooters. One to trigger the trap and one to shoot the can with the Viper Express.
I also ordered a tin of lead .22 round balls. That will make my ‘spread’ of round ball shooting experience from .22 to .735 in my Land Pattern muskets.
LOL! A .22 smoothbore. You should be right at home with it. Please let us know how it does with the RB and other diabolos.
I am hoping to get my hands on a .58 or .62 replica Virginia “Poor Boy” rifle. Black powder is a “blast”. This Viper will help to make you smoothbore shooting a bit more economical.
Once you get it, get a 2.5mm x 8mm or 10mm to replace the sear engagement screw. Be careful not to turn it in too much or your trigger will become dangerous. Give it a good bump test.
Will check out some new screws for the sear. And good luck on a Po’ Boy. Right classic guns they be.
Cool. I would like to hear all about it.
If you can post some pictures of some patterns you shoot with it and at what distances.
I have debated getting one for the longest time but just never did.
Me and the kids do that with our rocket shot.
One of us would take and shoot at the rocket shot with a single shot air gun while me and the other daughter would shoot at the can in the air with our 1077 and WildFire.
Pretty fun stuff. You know what we need to try that with the Wingshot ll I got. Why and the heck haven’t I done that yet. Well now I know what I’m doing today. 🙂
Just because I don’t know any better, is there a way to put the spacer at the rear of the spring instead of the front (piston) end? Maybe between the spring guide and the threaded bushing?
The best way would be to make a new threaded bushing. Which would bring this project out most people’s capability.
To do that the hole through the spacer has to be as large as the spring guide, but also small enough to enter the piston. It ends up being a thin ring.
Tom I have so thoroughly enjoyed your writings on the Marksman 70. This combines two big contributing factors to me becoming an air gun collector. My adult experience with air rifles began with the gift of a well-loved marksman 70 in .22 caliber……. In post Katrina New Orleans. With that 19-in long barrel and it being well broken in….. I can cock it with my index finger. After having read this it seems high time I take a peek inside. Of course first we need a trip over the crony.
To bookend my interest in the Marksman 70, Derrick was wonderful enough to not only source me a marksman 70 l n i b, but also to do all his special tuning magic….. And to top it off blog at every step of the way. Thanks again Derrick! And of course thank you bb Pelletier.
Thanks for making my day. And of course Derrick writes a great review. His pix are the best! 🙂
The whole trick to this cutting the spring tuning is only cut as much spring off as needed.
What to do is only cut about a inch off at a time and watch for a velocity increase or drop.
If your velocity drops right off the bat then there is probably no reason to go any further. Other than if your velocity is higher than you want. Then the object is to cutting your spring to get the velocity you want. You should still end up with a smoother shooting and easier to cock gun.
But here’s the real trick. And this is starting with a different new gun that hasn’t had the spring cut yet.
The same applies is to cut a inch at a time off and see what happens and watch to see if the velocity stays the same or increases. The thing to do is cut another inch off till you see the velocity slow down or speed up. When it slows down then stop and put like only one washer in to bring the velocity back up.
Now if you keep cutting a inch off at a time and keep seeing a increase in velocity each time then cut another time and keep watching for the gun to slow down. If it does shim back up with only one washer and be done.
The whole idea is to get rid of the spring that isn’t making any power and stop cutting the spring when you see the velocity drop.
And don’t worry if you end up at zero preload or if you still have preload. The trick is getting gun to perform where you want without having to remove to much spring and drastically shim back up like what happened with this gun you just did. Just like to much preload isn’t a good thing. Neither is too much shims.
Forgot. This doesn’t sound right. How can the fpe be more with less velocity and the same pellets used.
“715 (15 f.p.s.)….746 (12 f.p.s.)…”
This at the begining of today’s report.
Oh never mind. That’s the velocity spread I suppose. Scratch that.
