Air Venturi Avenge-X classic wood.
This report covers:
- Scoped
- Filled the reservoir
- The plan
- The test
- The day
- First target
- Target two
- Target three
- Target four
- Where we are
- Summary
Today will look and sound like an accuracy test of the .177-caliber Air Venturi Avenge-X precharged pneumatic air rifle, but it isn’t. I will explain as we go. This is one of those “Learn how it works” days.
Scoped
I mounted a UTG 4-16X44 Compact scope on the rifle. Initially the scope was in UTG rings that had been shimmed in the rear, but I couldn’t get the rifle sighted in with that because it shot too high. I removed the shim and got sighted in right away. There is another reason to like the new Avenge-X rifle — it doesn’t droop!
Filled the reservoir
The next job was to fill the reservoir to 4,350 psi/300 bar. For that I used the RovAir compressor that I’m also reporting on. You may remember that filling this rifle twice before has resulted in two failed burst disks, but last time I discovered that the onboard fill control gauge on the compressor was reading low when it was set to its high end. A setting of 4350 psi on the automatic shutoff resulted in a fill that went to 4,750 psi on the Avenge-X reservoir pressure gauge. I said then that I would set the auto shutoff at 4100 psi on the RovAir, but today before filling I backed it down to 4000 even. It filled the rifle and shut off with no problem this time and the Avenge-X pressure gauge read 4,350 psi — as close as I can read it.
The plan
The plan for today was to shoot groups from 25 yards with the Avenge-X. But like I said in Part 3, “I’m an old man and probably won’t live long enough to test all the possibilities this Avenge-X offers, so I’m not going to try. Instead I’m going to try to find an accurate pellet and see what sort of tune it likes — in .177.” Nice plan, but just as there were many possibilities with velocity, there are also possibilities when it comes to accuracy. I decided to pick one pellet and follow it all the way.
The test
I shot 10-shot groups from 25 yards. The rifle was resting directly on a sandbag. I shot on high power and again on low power. I used the single-shot tray and I shot with the standard-capacity 10-shot rotary magazine. There is also a 20-shot high-capacity .177-caliber rotary magazine available for this rifle but Pyramyd Air was out of them when my rifle was sent, so I don’t have one to test. All the shots seen today were with the H&N Baracuda Match pellet with 4.50mm heads.
The day
And now you learn why this is not an accuracy test. I normally test accuracy of any airgun in the morning when I’m fresh. On this day, however, I had numerous other tasks and didn’t get to shoot the rifle until the afternoon. That taught me an important lesson. Always test accuracy in the morning! I will explain as we go.
First target
I shot the first target on high power and using the single-shot tray. After sighting in and discovering the scope shim had to be removed, then removing it and sighting in again, it was the middle of the afternoon before the first shot for accuracy could be fired. Shot one went where I wanted it (slightly to the left of the 10-dot on the target) and shot two went through the same hole. In fact the first four shots were so small I started thinking about using the gold dollar comparison coin for my groups.
Then shot five was a pinwheel (dead center in the bull) and my aim point was gone. After that I blew up and the first 10-shot group measures 0.309-inches/7.85mm between centers. I know that sounds like a good group and it really is, but from what I saw with the first four shots it’s at least twice the size it could be. With this Avenge-X there is really no reason to miss at 25 yards. I was having micro shakes that caused the pellet to wander about 0.125-inches/3.175mm from the desired aim point. Like most people I have these all the time, but this afternoon I couldn’t control them. Also the trigger was set too heavy for me and I had to fight it for the entire session.
On high power and using the single-shot tray the Avenge-X put ten Baracuda Match pellets with 4.50mm heads into a 25-yard group that measures 0.309-inches between centers.
After this group I adjusted the scope two clicks to the right
Target two
I switched to the rotary magazine for target two. The rifle was still set at high power. This time 10 shots went into 0.376-inches/9.55mm at 25 yards. The fourth shot from the mag landed lowest in the group and I remembered that in case the magazine has a bad chamber.
On high power and shooting from the magazine, the Avenge-X put ten pellets into a 0.376-inch group at 25 yards.
After this group I adjusted the scope two clicks to the right and two clicks down.
Target three
Now I switched to low power. Target three was shot from the single-shot tray, but the last two shots in this group were pulled to the right. Ten shots went into 0.426-inches at 25 yards.
On low power from the single-shot tray the Avenge-X put 10 Baracuda Match pellets into a 0.426-inch/10.82mm group at 25 yards.
Target four
The last target was shot on low power using the rotary magazine. Ten pellets made a 0.416-inch/10.57mm group. And the fourth shot hit lowest in the group, as it had the previous time the magazine was used.
On low power from the magazine the Avenge-X put ten pellets into 0.416-inches at 25 yards. Once again the fourth shot was the lowest on the target.
Where we are
As I said, today was not an accuracy test because I was too jittery to do my best. This rifle is clearly (to me) very accurate. Now I need to make it do its best for you.
The single shot tray is slightly more accurate than the rotary magazine, but only because the fourth shot from the magazine lands low. I find the single shot tray quite a bit more fiddly to load. Therefore I think going forward I will shoot from the magazine.
The Baracuda Match with 4.50mm head seems to be an accurate pellet in this .177-caliber Avenge-X. High and low power don’t seem to make much difference in accuracy at 25 yards.
Stage two of the trigger definitely needs to be lighter for me to do my best. I need to do that before the next test.
Summary
So far I am very impressed with the Air Venturi Avenge-X precharged pneumatic. It’s doing everything I want and more. Now I need to get me up to speed, so I can test the rifle at its best.
B.B.,
What did you have for lunch?
High or low blood sugar (hyperglycemia or hypoglycemia, respectively) may cause tremors or other involuntary movements. Now not to be an alarmist…
What are other causes result in small body tremors?
Liver and kidney failure may cause damage in certain brain areas that leads to tremors or jerky movements. Diabetes. Stress, anxiety, or fatigue may be associated with tremors.
IF the tremors are an irregular part of your afternoon you might note what you had for breakfast and lunch. If they get worse or become a regular part of your afternoons get them evaluated by a good doctor.
No messing around hoping it will go away!
Shootski
The groups may not be your best but more than adequate to reduce the tree rat population. Most of my shots are well within 25 yards though are frequently at a high angle up into the tree branches.
I find now days that the second cup of coffee, will occasionally cause an overdose of caffeine and induces some small shakes. Though, when I was still on active duty the lack of coffee / caffeine would cause shakes when I attempted to perform the fine motor work similar bench shooting. But we all age and things will affect us differently as time goes on.
I had known low blood sugar could cause tremors, but did not know high blood sugar would cause tremors also.
Mike
groups may have not been his best? those are fantastic groups for 25 yds with a rifle that can be shot many ways with all the settings and with many types of pellets
mildot52,
True, oh so very true!
That was a paraphrase of BB’s statement “As I said, today was not an accuracy test because I was too jittery to do my best.” I personally rarely shoot that well, and the second half of my paraphrase “but more than adequate to reduce the tree rat population” was to refer to the kill zone of my favorite target being larger than the largest grouping. Yes the Avenge-X is a very versatile rifle, but I only find out what works best and then make no further adjustments other than practice – practice and more practice.
In my case, the operator is the only portion of the firing solution / system that needs periodic adjustment.
Mike
B.B.
Sorry to be off topic, but I saw this over the weekend and thought it was interesting.
https://www.youtube.com/watch?v=zLEl6uG-aN8
Talk about long barrels and major recoil…
-Yogi
B.B.,
“The fourth shot from the magazine lands low.”
Remember when coaches of youngsters shooting Daisy 99s would determine which shot tubes were innacurate and return them, eventually ending up with just accurate ones? ;^)
https://www.pyramydair.com/product/air-venturi-avenger-magazine-177-cal-10-rds?a=8817&page=1&query=air+venturi+avenge-x&lang=en&searchConfigId=643645070c547549270ccc15
Michael
Those are some impressive shot groups to me, wow! Does the magazine operate similar to the Diana Chaser magazines? Those hold the pellets until the bolt pushes them one at a time into the barrel. And I have read that as the magazines get used they can get smoother. This I suppose would be due to normal wear. And it might mean less chance of the pellets getting deformed as they leave the magazine. Looking forward to the next report, thanks!
Hi everybody,
I think I need your advice:
I did the inevitable and took the Diana 27 apart. I noticed two things:
1. It has a synthetic piston seal
2. The piston doesn’t look 100% straight.
If you look at the gap between the two halves, it is wider at the front than it is at the rear.
Also the front metal “cap” doesn’t look 100% straight. What I mean by that is that the distance from the front cap to the rear cap isn’t constant around the circumference.
Is this piston damaged or is this within the tolerances for a 1967 Diana?
Stephan
CK,
How about you measure what the difference actually is?
From what I can see those collars look like they are pinned in place.
Since B.B. is the “Diana Whisperer”, perhaps you should send it to him and have him do a blog series on it?
-Y
Yogi,
sending it to BB isn’t very practical since I live in Germany and I suppose neither he nor I want to pay the postage.
I did “measure” two things, though.
I checked the width of the front cap and the rear cap with a caliper and the front one is slightly wider. That might explain the widening gap at the front.
Also I stood the piston on the seal, held a triangle ruler next to it and turned the piston. The deviation from “straight” at the rear cap was very minor and I suppose that is what counts.
Also, the only photo of a piston I found was in this German forum post: https://www.co2air.de/thread/91091-diana-mod-27-feder-wechseln/
I think I see the same widening gap, so I suppose it’s fine unless somebody says it isn’t.
Stephan
Stephan,

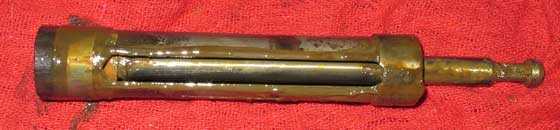

One pic of a Diana 27 piston from this blog.
