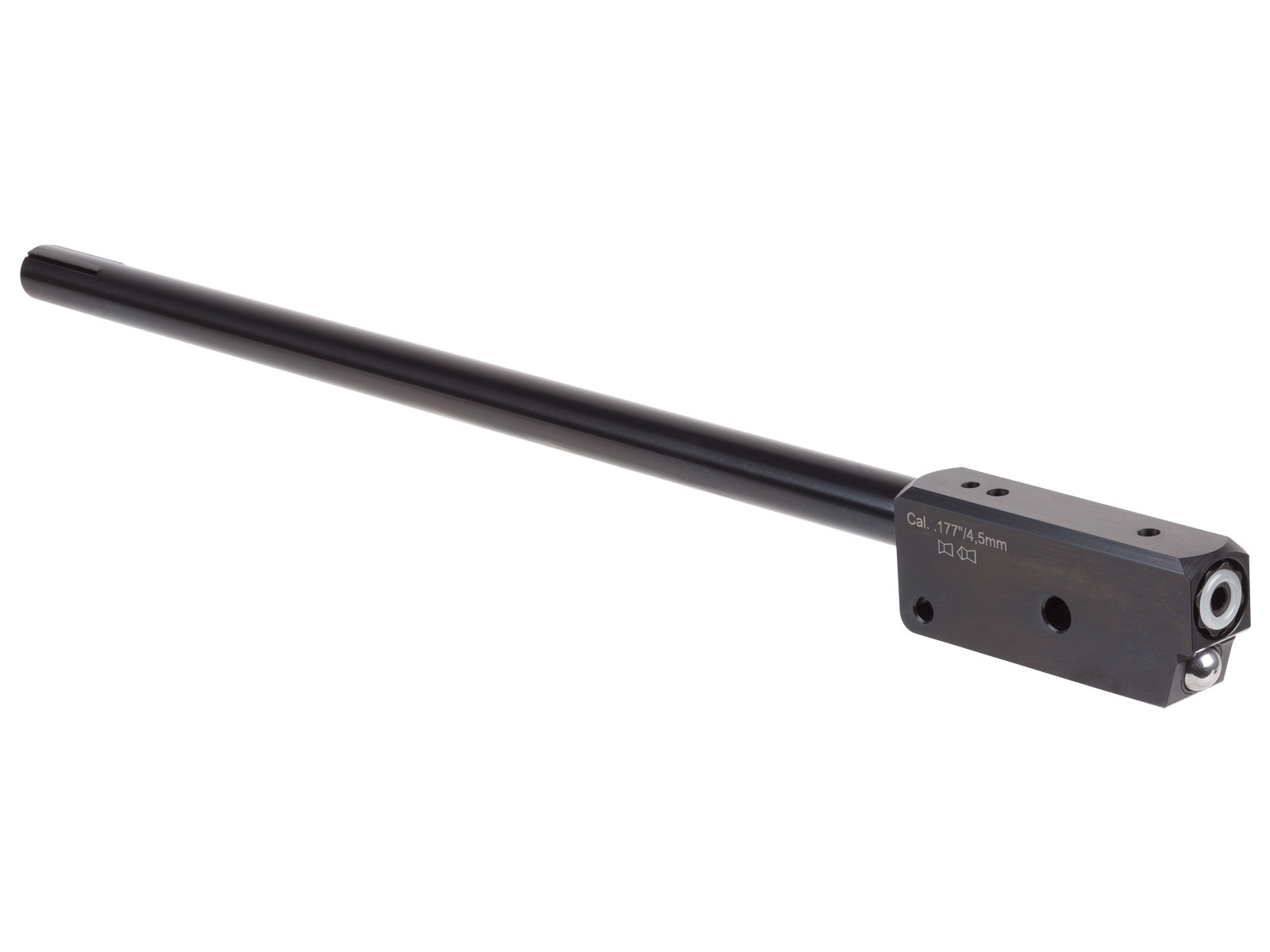

Beeman R7 / HW30S Barrel, .177 Cal.

5.0 (1 review)
Beeman R7 / HW30S Barrel, .177 Cal.

Beeman R7 /, Image 1Beeman R7 /, Image 2

See other products by Beeman


Replace a worn out .177 barrel for your Beeman R7 or HW30S with this OEM part.

Beeman R7 / HW30S Barrel, .177 Cal.

  • Fits Beeman R7 or Weihrauch HW30S Rifles
  • Has Holes drilled for mounting rear sight
  • Has dovetail for front sight on muzzle end
  • .177 Caliber


Item Code: BNP-9082 [PY-A-8372]

See other products by Beeman



Weight1.47 lbs

Average Customer Review

5.0 (1 review)
5 star
4 star
3 star
2 star
1 star
1 review

Create an online review

Customer images

Sort by Date: Newest–Oldest

5.0 5.0

5.0 5.0

Things I liked:

The barrel is excellent. The service from Pyramid air, is as usual, excellent. My R7 is an older model in caliber 5mm ( with safety ). The barrel change went easy, ..after I figured out what I needed to do. You will need a set of screwdrivers, a hammer, a good 16 penny common nail, and some motor oil ( to lube the joints). If anybody buys one of these barrels, be sure to put the gun on a work bench, with a blue, or pink blanket under, so to catch any stray parts. The pin under the barrel ( which holds the linkage ) needs to be driven out, by placing the gun down, on it's right side. The barrel change took about 30 minutes, and most of that was figuring what I needed to do. ........ The difference between the 5mm, and the .177 is night and day. The .177 shoots much flatter, and it's just as accurate ( or better ). ......I am really happy that I bought this part.

Things I would have changed:

The new barrel in caliber .177, is about 1.25 inches shorter than my old 5mm barrel. I am not sure why. I do wish both the new barrel was the same length as the old barrel. Overall, I am still very , very happy with my purchase.

What others should know:

When you do the barrel change, there is a little nut inside the trigger assembly .. which holds the rear trigger guard screw in place, be sure you do not loose it. When you change the barrel, ...cock the gun ( ! ) , unload it, and be sure it's on safe. A cocked gun, will take the spring pressure off the cocking assembly, and loosen up the parts. When you drive out the barrel pin; remember, it is peened in, so you will shave off some metal, but the pin goes back in pretty tight, so to re peen it, may not be necessary. Remember to oil all moving parts as you re assemble.

Got a question or answer?
Log in to participate

  • Paul from USA asked:

    does it come with a breech seal?

    • Wolverine from USA asked:

      How is the break attached?

      • Pyramyd from USA answered:

        Set screw

    • Matthew from USA asked:

      Does this muzzle brake make the already Quiet R7 Quieter? Thoughts?

      • Pyramyd from USA answered:


    + Load More

    Compatible with Beeman R7 / HW30S Barrel, .177 Cal.
