Element Optics Nexus 5-20x50 FFP, APR-1D MRAD Reticle, 30mm Tube

Be the first to review!
Element Optics Nexus 5-20x50 FFP, APR-1D MRAD Reticle, 30mm Tube

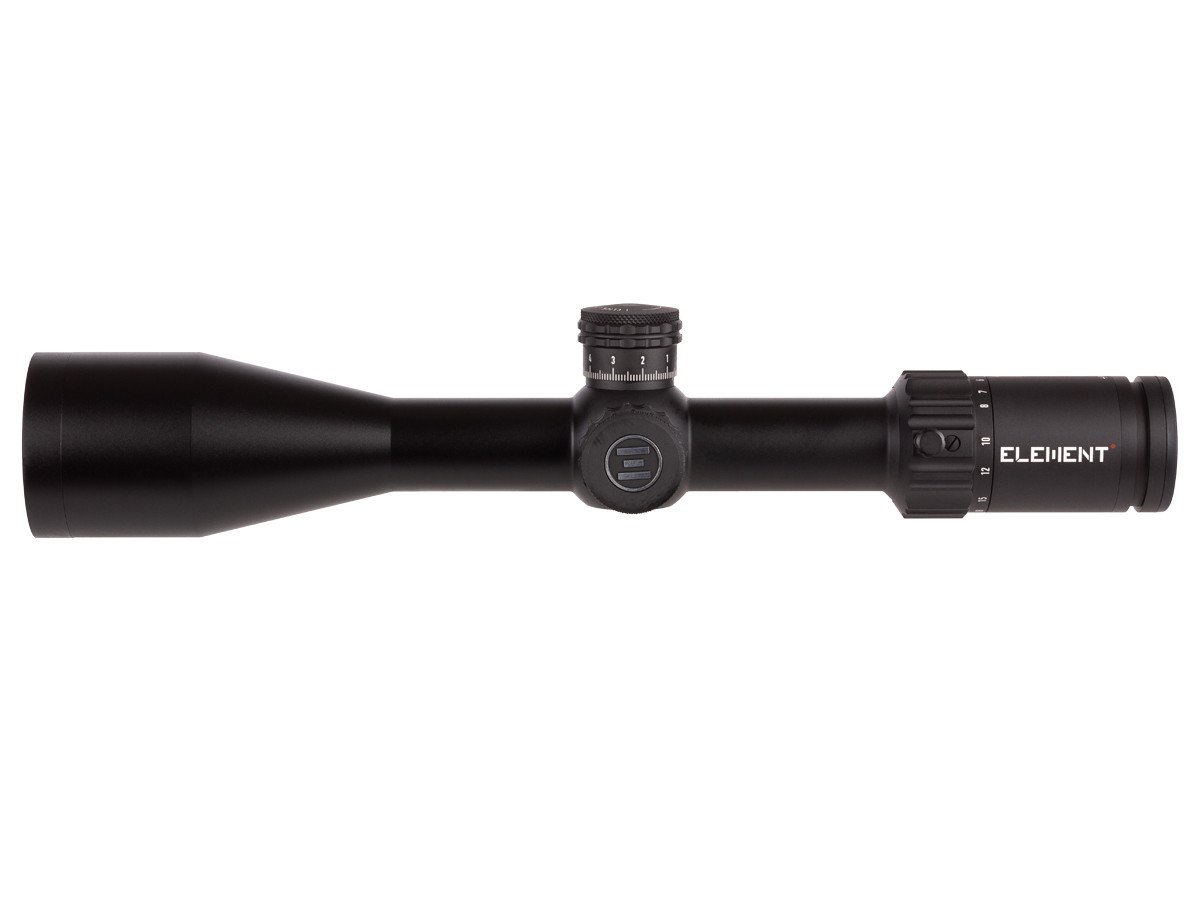

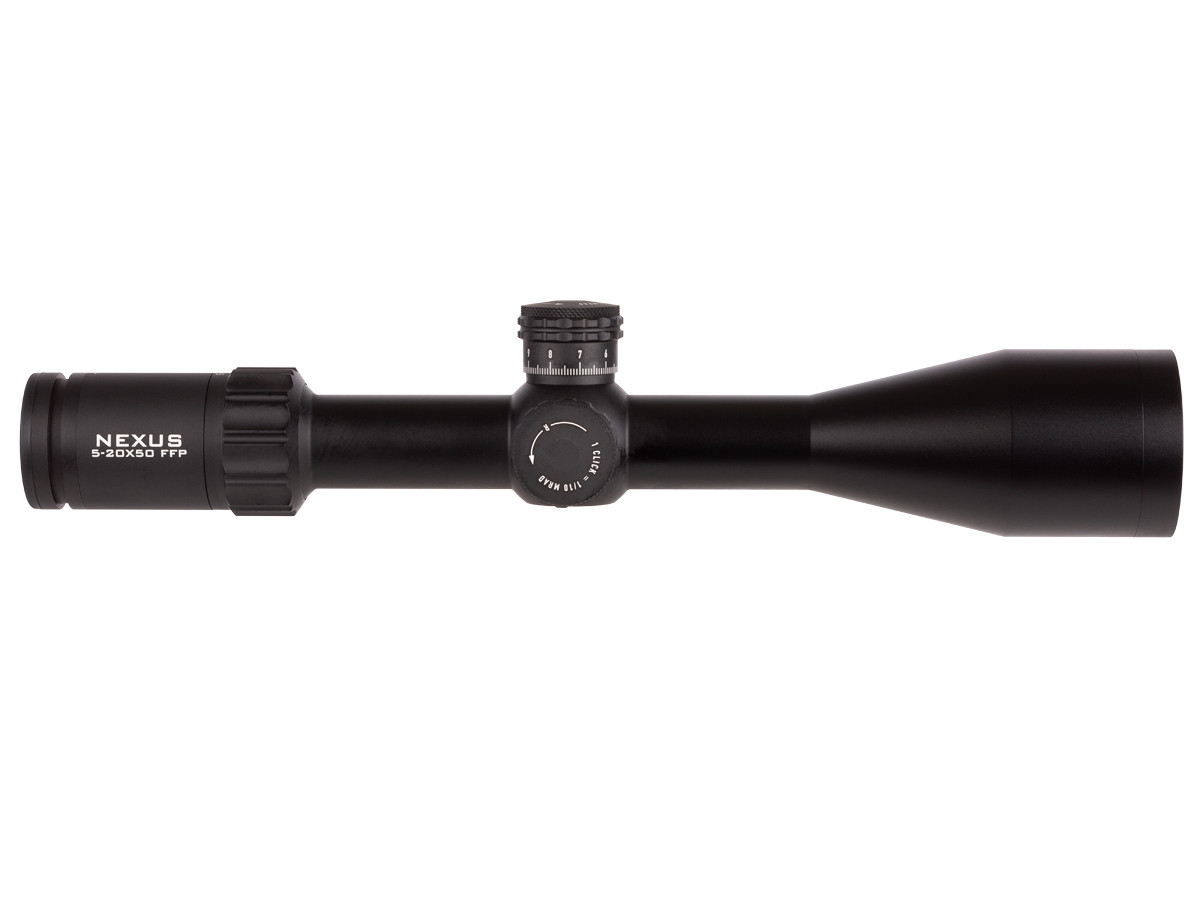

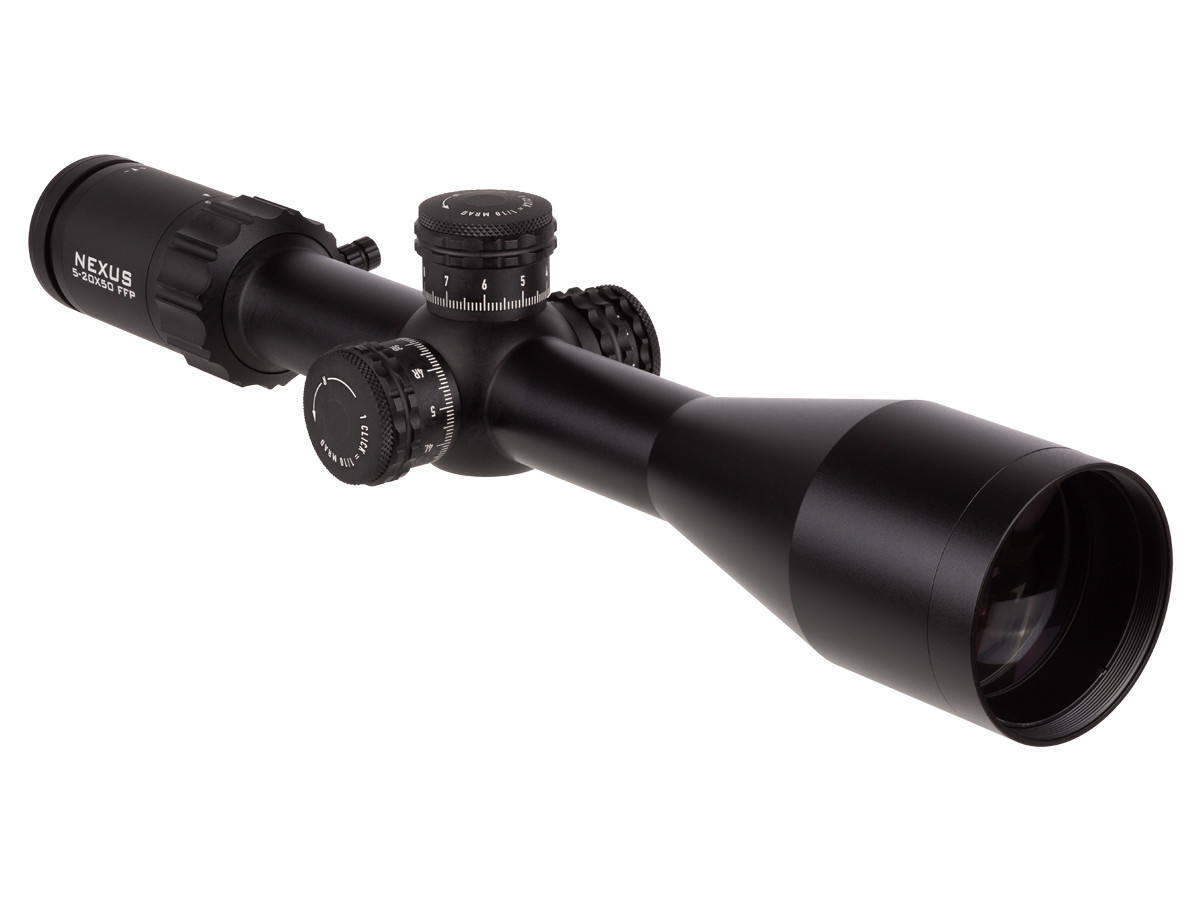

Element Optics Nexus, Image 1Element Optics Nexus, Image 2Element Optics Nexus, Image 3Element Optics Nexus, Image 4Element Optics Nexus, Image 5Element Optics Nexus, Image 6Element Optics Nexus, Image 7

Share your images


List Price $1,649.99

Select model:
  • Lifetime limited warranty

  • 60 day money back guarantee
  • Estimate Shipping

Add to Compare
Add to Wish list

Excluded from coupons

Earn 1500 Bullseye Bucks

Please Note:

Updated selection based on available products

Add to Cart

Only 1 left in stock

Sold & shipped by Pyramyd AIR

youTube video
youTube video

See other products by Element Optics

Item details

Sold & shipped by Pyramyd AIR



Designed by a team of world-class competitive shooters and hunters, the Nexus is the Element Optics flagship and they spared no pains to make it the ultimate 30mm rifle scope. Made in Japan, shooters can expect phenomenal glass quality and the ultimate in reliability and precision.

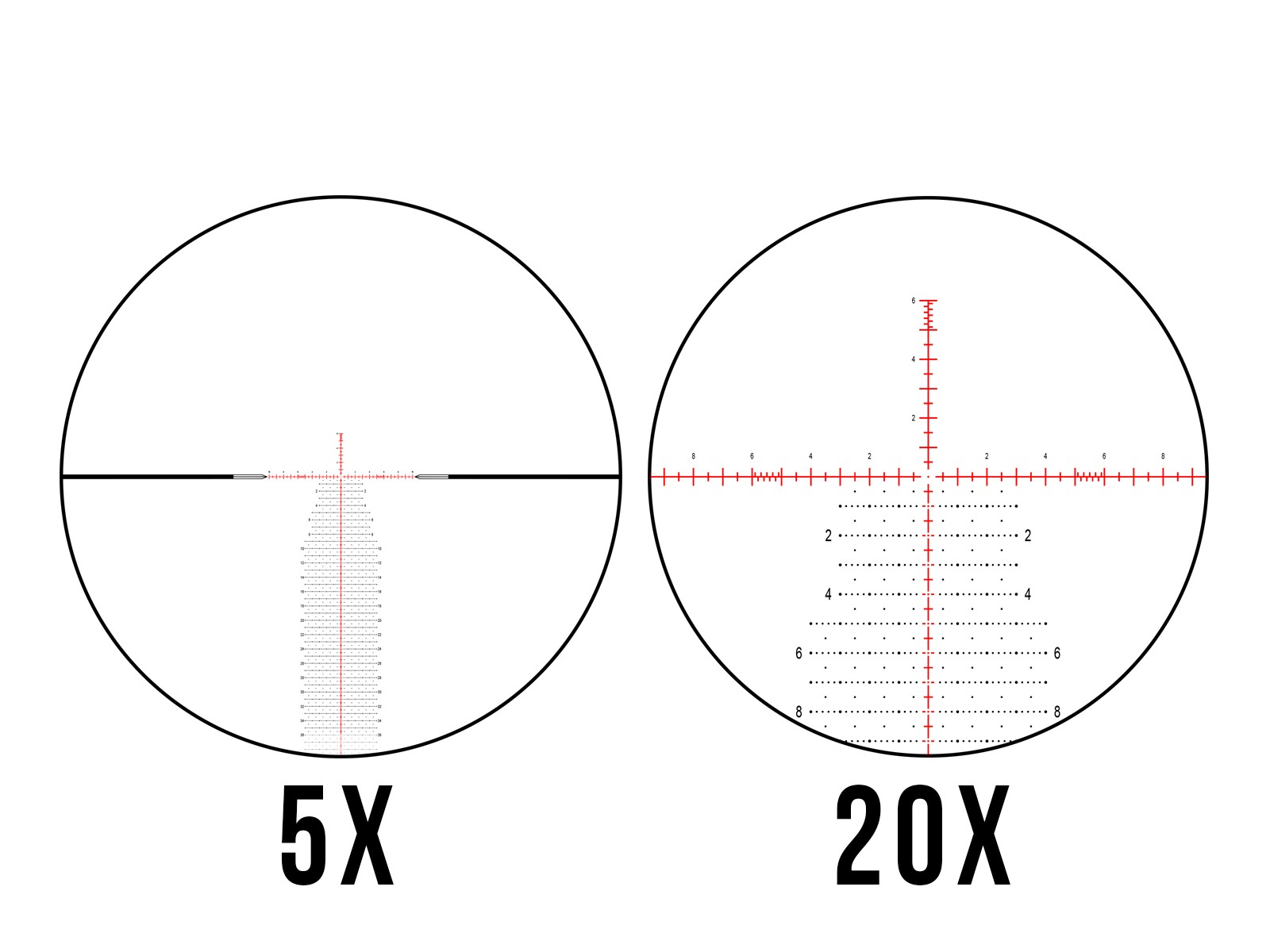

The APR-1D (All Purpose Reticle) is a "dirty" reticle that provides holdover hash marks extending to the bottom of the reticle in a Christmas-tree pattern for those who need to be able to instantly correct for holdover.  Designed by competition shooter, hunter and Youtuber Matt Dubber, the APR-1D is well suited for everything from long range hunting to PRS shooting and more!

Covered by Element Optics' Platinum Lifetime Warranty, you can buy with confidence knowing that in the unlikely event your scope doesn't keep up with you, it will be covered.  For those looking for a premium optics experience and all of the benefits that a quality scope provides, look no further than the Nexus!

Helpful resources:

Element Optics Nexus 5-20x50 FFP w/ APR-10 MRAD Reticle

  • Magnification Range: 5-20x
  • Tube Diameter: 30mm
  • Reticle Position: First Focal Plane
  • Objective Lens Diameter: 50mm
  • Illuminated Reticle
  • Springer Rated
  • Platinum Lifetime Warranty
  • Length: 13.8"
  • Weight: 28 oz
  • Eye Relief: 3.03-3.66"
  • Field of View @ 100yds: 23.3-5.8ft
  • Click Value: 0.1 MRAD (10 MRAD/REV)
  • Elevation Adjustment Range: 23.2 MRAD
  • Windage Adjustment Range: 14.5 MRAD
  • Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer

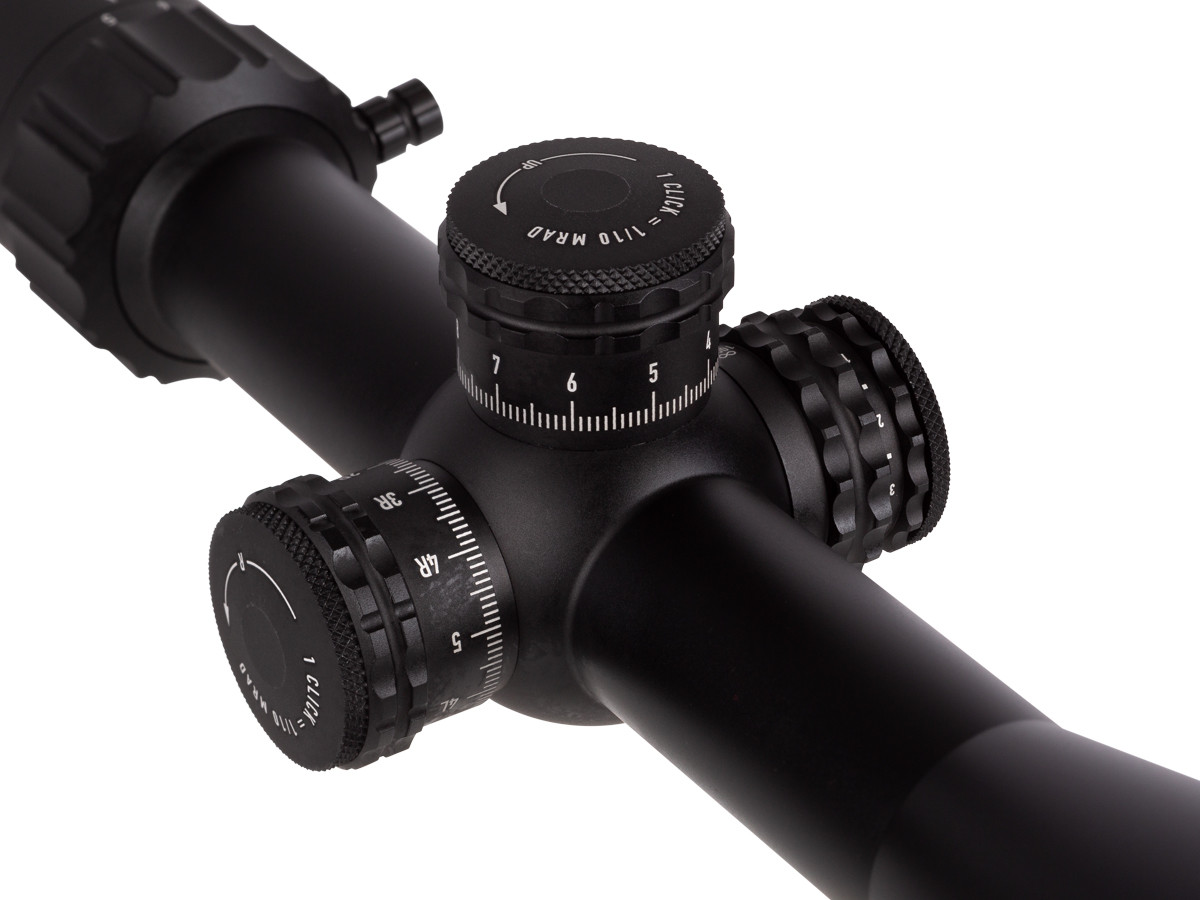

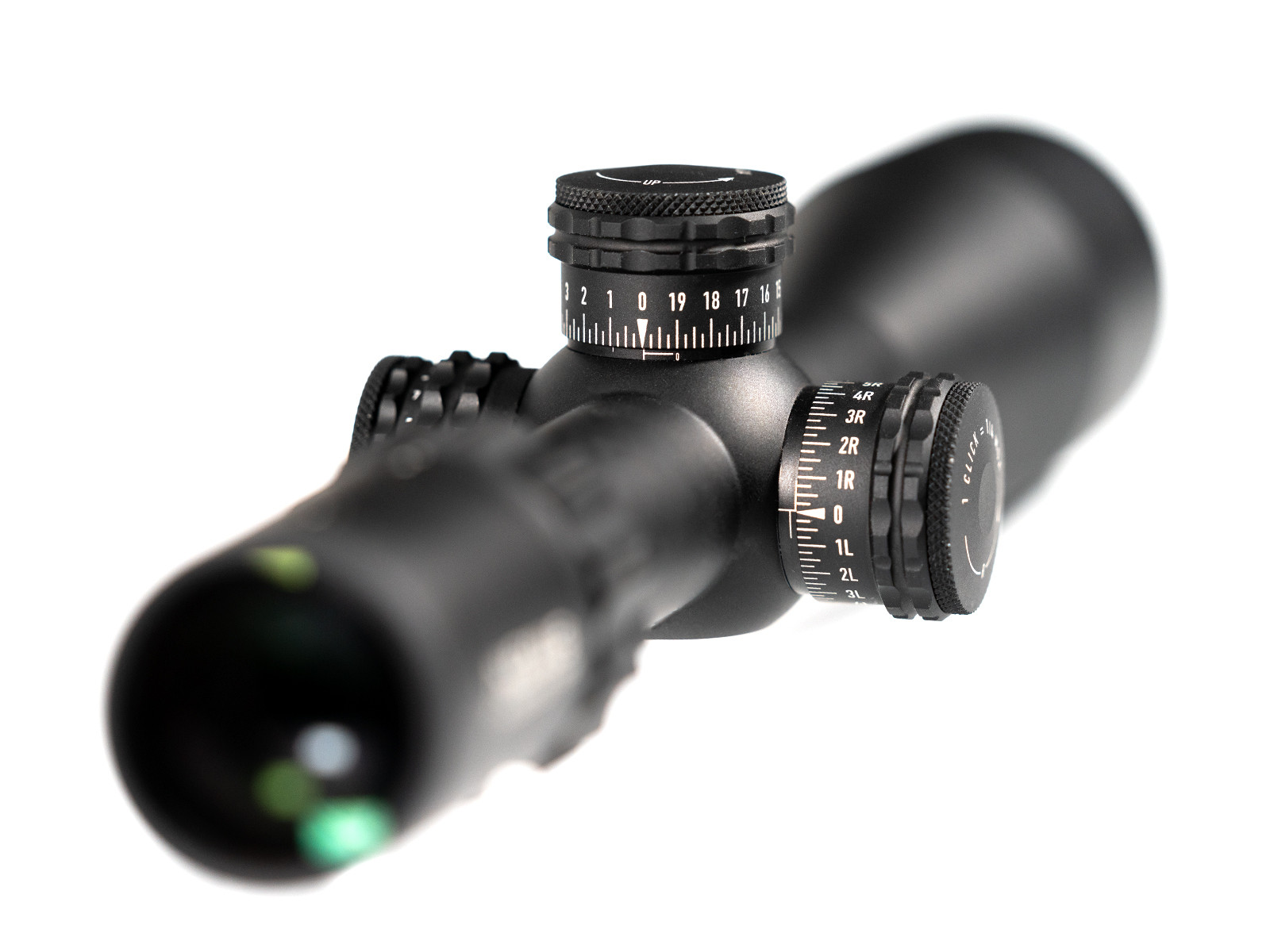

  • Tool-free Resettable Turrets
  • Adjustable Zero-Stop
  • Minimum Parallax Distance: 10 Yds
  • Removable Throw Lever
  • Includes Sunshade, Lens Cloth & Neoprene Cover
  • Made in Japan

Limited Quantities

This item is not eligible for coupon discounts

Item Code: ELE50002 [PY-A-9477]

See other products by Element Optics

Item details

Sold & shipped by Pyramyd AIR




Weight1.75 lbs
Max Eye Relief3.66 in
Min Eye Relief3.06 in
Max FOV at 100 Yards23.3 ft
Min FOV at 100 Yards5.8 ft
Focal PlaneFFP
Max Windage14.5
Max Elevation23.2
Click Value.1 MIL
Click Adjustment TypeMIL
Max Parallax
Min Parallax10 yds
Tube Diameter30
Objective Size50 mm
Max Magnification20 x
Min Magnification5 x

Create an online review

Customer images

Got a question or answer?
Log in to participate

  • James-M. from USA asked:

    Hmm..... this scope weighs 28oz in the description and 1.2 pounds in the specs.

    • Mark from USA answered:

      The weight is 28 oz.

What type of scope base is on your gun? What type of mount do you need? Weaver, Picatinny, 3/8″ or 11mm? Do you need 2-pc mounts or a 1-pc mount? 30mm or 1″? Scope mounts intro (Airgun Academy class)
