by Tom Gaylord
Writing as B.B. Pelletier
The Johnson Indoor Target Gun is a catapult BB gun that was made in the late 1940s for youth target practice.
This report covers:
- Who was Johnson?
- The M16
- Airgun
- The gun in hand
- Discussion
- Summary
Yes, I’m reviewing a Johnson again. For some reason I keep coming back to this one. I did a short piece on December 28 2015, and before that an article on December 22 2005. Finally I did an initial very short introductory piece on October 2, 2005. That’s a lot of articles. So, why am I writing about it again? Well, the gun we are looking at today is a nearly-new Johnson that I got in the box at the Texas Airgun Show this year. It has many thing that I can show you, plus I will do a complete report on this one. So grab your coffee, boys — this series should be good.
Who was Johnson?
Melvin M. Johnson, Jr. (1909-1965) was an Army Ordnance colonel (also a former Marine) who invented several famous battle weapons, the most famous of which was the Model 1941 Johnson rifle. He tried to interest the Army in his rifle over the Garand that had early teething problems, but by the time he got his act together in the late 1930s there was too much momentum (too much money had been spent and too many contracts signed) on the Garand program, and they did not accept his design. The Marine Corps did use his rifle early in the war because there were not enough Garands to equip them. And some rifles were purchased by other countries. I’ll stop here because this report is not about the Johnson rifle, though that rifle is worthy of such a report of its own because of all its design innovations and quirks.

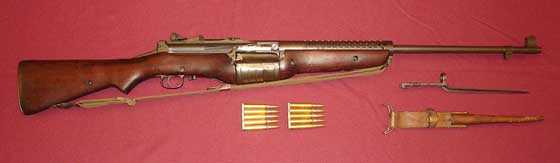

The M1941 Johnson battle rifle was Melvin Johnson’s most significant invention. In very good condition today an untouched example will bring over $5,000, and even rifles that have been modified into sporters will fetch $2,500 and more.
The M16
Johnson’s greatest contribution to the military, in my opinion, was the M16. He did not invent the rifle, but he was a major factor in its development in a roundabout way. He invented the cartridge (5.7mm Johnson, also called the .223 Spitfire) that prompted the U.S. Army to experiment with the .222 Remington and to get Remington to enlarge it into the .222 Remington Magnum, before they created their own 5.56mm (.223 Remington) cartridge that spawned the M16. That story also deserves a blog or two.

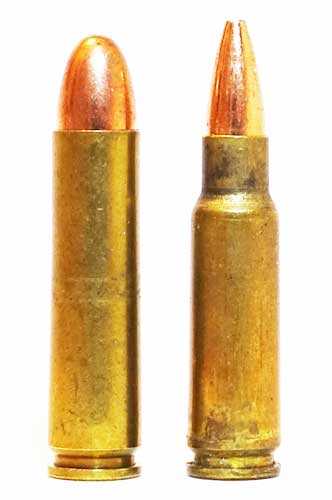

Johnson necked the .30 caliber Carbine cartridge (left) down to .22 caliber and called it the 5.7mm Johnson. It works perfectly in a converted M1 Carbine.
I own a Carbine that has been converted to shoot the 5.7mm Johnson and it’s cool to shoot the little cartridge that gets 3,000 f.p.s. from a tiny 40-grain .22 caliber bullet. It isn’t that practical, nor is it especially accurate, but it is cool.
Airgun
Today, however, we are looking not at a firearm but an airgun designed by Johnson — the Indoor Target Gun. The ad below is a page from the 1948 Shooter’s Bible catalog.

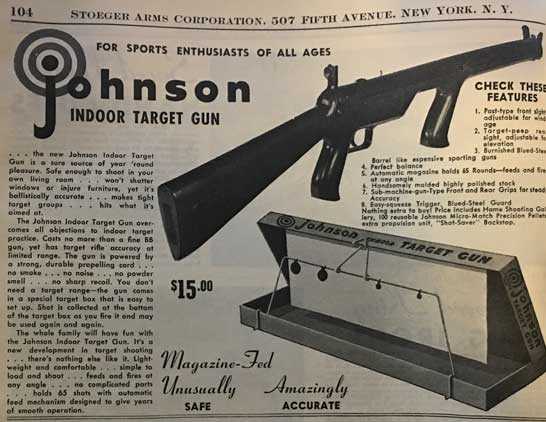

Ad from the 1948 Shooter’s Bible
Immediately after the war companies were gearing up to provide civilian goods that had been set on the back burner during the war years. Guns of all types were among the items in the greatest demand, because returning troop s wanted to continue to shoot, now that no one was shooting back.
As you can see from the catalog page, a Johnson cost $15 in 1948. That was when a single shot Winchester model 67 .22 rimfire rifle could be bought for $11.50 and a Daisy Red Ryder went for $4.50 I don’t know what the colonel was thinking with that high price, but it sure wasn’t sales! Imagine if a BB gun powered by a rubber band sold for $157.12 today. That’s what a Johnson would cost in today’s (2018) inflated money. Ironically a used Johnson in the box will fetch about $100+ today, so not much value has been lost over the years.
The gun in hand
I am going to tell you all about the features and performance of this strange gun, but right now I’m going to shift gears and tell you about the particular example that caused me to start this series.
About 20 years ago I was attending an airgun show in St. Louis when I saw a pile of Johnsons that were all new in the box. A single dealer had at least 20 and maybe as many as 30 guns at that show. The prices were affordable, but I have forgotten what they were. I was curious about the gun, but it was the poor condition of the boxes that interested me the most.
They were all deteriorating in similar ways. The lithographed outsides were breaking off in large pieces and the cloth “backstop” that’s glued to the inside top the box was turning to white powder.
The Johnson box was designed to turn into a shooting gallery that had a cheesecloth backstop for the BBs. In that respect it is not unlike the Sharpshooter pistols we looked at recently. A rack with two tiny metal spinners clipped to the front lip of the box, where they served as targets. Look at the picture in the catalog page to see how it works.
As I said in the beginning, I saw the one I’m reporting on at the Texas Airgun Show this year and the box was in the best condition I have ever seen. I have now seen about 40 of these in the box, though some of them may have been the same guns at different shows. This box is faded and coming apart, due to acid paper used in the construction, but it’s still the best one I have seen. This time I did not hesitate. I pulled the trigger, and here we are.

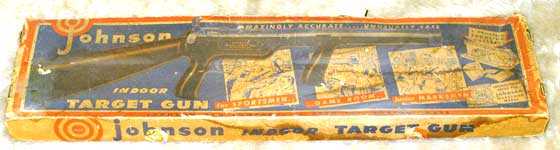

When new this box was bright and beautiful. Acid paper has deteriorated over time.

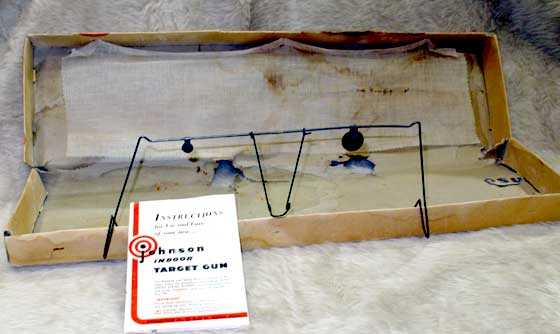

Compare this with the ad and you’ll see how the target works. The box is so far gone that the target stand can’t hold it up anymore.

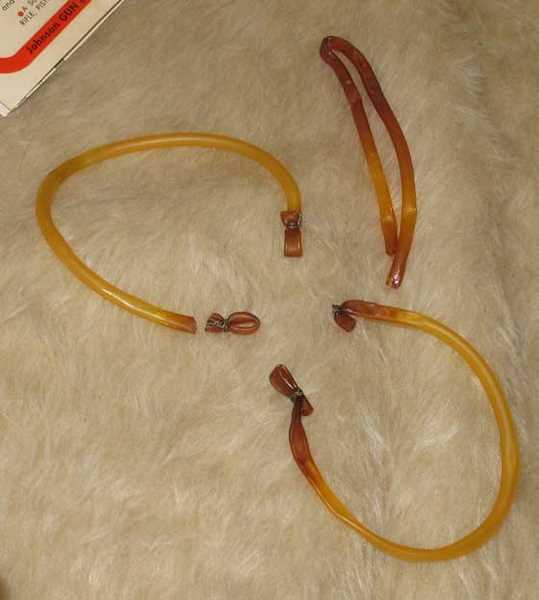

These spare rubbers were in the box. They can’t be used, but are useful as patterns for making new rubber.

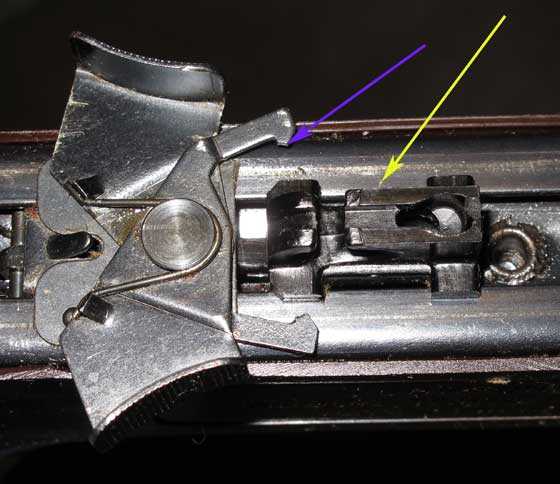

The plastic launcher (yellow arrow) is the Achilles Heel of this gun. The steel hooks on the cocking device (blue arrow) tear through the plastic launcher pretty quick! Either that or the thin hook arms break off. I will tell you how to avoid both problems and also what to do when they happen. New launchers are unavailable.
The rubber that is on the gun in this report is installed crossed for some reason. I’ve never seen it like this. Is this from the factory?

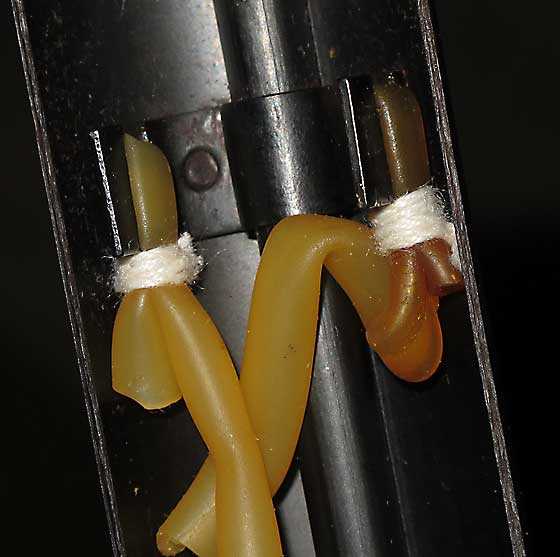

The rubber tubing is tied with thread at both ends. Nobody would do it this way today or even any time in the last 30 years. Is this the original rubber on the gun?
Discussion
The condition of my gun is pristine. It hasn’t even been opened much to get at the parts, because the bluing is still pristine. This may be a gun that’s still in factory condition.
The box came with an original manual inside. That, alone, is worth a lot, because how many of them still exist?
I haven’t started to describe how the gun works yet, or pointed out any of its many features. There is so much more to come!
Summary
I believe that my new/old gun has never been repaired since new. The overall condition, the condition of the box and especially the fact that the surgical rubber is attached by thread are all clues to its fine original condition. So this series should be an in-depth look at an airgun very few airgunners know about.
B.B.,
Staring at the pictures I can imagine the original owner trying this out then getting surprised when the rubber tubing suddenly let go. I surmise that he tried to approximate it best he could but ended up placing the tubing in the odd crosswise fashion. Just my conjecture.
Siraniko
BB
I’m going to say it’s not the original rubber on the gun.
Why would that rubber on the gun still be good but the extra rubber that came in the box not be good.
Unless the acid box deteriorated the extra rubber and the rubber that’s mounted on the gun some how protected that rubber. ???
B.B.,
Very interesting. As always, the function and mechanics and mechanisms are of most interest. I see that it is a repeater. 65 round magazine. That is interesting. “Fed” it says,…. as opposed to gravity. Magazine also implies force fed/advanced/pushed.
Also wondering,.. the plastics and rubbers of old had a propensity to deteriorate over time,.. as opposed to todays products. No issue here with this specimen? I am speaking of the stock (not the bands).
Good Day to one and all,….. Chris
Chris,
It is fed by gravity. The spring just forces the BBs back to the drop hole. In that respect it is the same as the Sharpshooter pistol.
B.B.
BB,
That manual could indeed be worth it’s weight in gold. It should tell you how the bands should be installed in the gun.
Is the band in the gun original? I question such only because of the whiteness of the thread it is tied with, though being in the gun it would be protected somewhat from the ravages of time. Are the other bands tied similarly?
It would indeed be tempting to shoot. You do realize you are once again enabling me. I do not see me buying one of these, but I just might have to pull out the old drawing board.
RR,
The ends of the old bands in the box are held by wire.
B.B.
B.B.
Instead of thread or wire many slingshots the bands are tied (to the slingshot and to the pouch) with pieces of elastic that are stretched, wrapped around and knotted.
The is a link to a young lads video that might be of interest… https://www.youtube.com/watch?v=j5eUhUPlDz8
Hank
Hank,
That video was excellent. And the young man is well-spoken!
Thanks,
B.B.
Tubing bands with a single crimped band of metal were in the boxes (I had 3) when I bought them so I assumed they were original. A staple like piece of crimped metal seems likely to be factory. the others with wire wrap or thread were made from surgical tubing from ebay while I was experimenting with various lengths and types of rubber. This type rubber deteriorates quickly so it is extremely unlikely that any originals would retain any elasticity. A tip: don’t leave any of the tubing in contact with something you value when storing the gun! as to the crossed rubber in the gun, that probably occurred at the gun show and was not from the factory.
RR,
I’m thinking the same thing.
Ever since B.B’s. blog on the catapult pistol I have been keeping my eyes open for suitable materials to make a catapult “rifle” powered by “Theraband Gold” bands (the same stuff that I use on my slingshots).
Happy Friday eh!
Hank
Hank,
I’d like to see a pic on one of your slingshots.
And if you do design and make a catapult “rifle,”
I hope you’ll either send it to B.B. for analysis
or do your own guest blog on it; thanks.
Have a pleasant weekend,
dave
Dave,
I don’t have any finished slingshots handy as I sold the last one a month ago and we are just approaching slingshot making season (winter 🙂 )

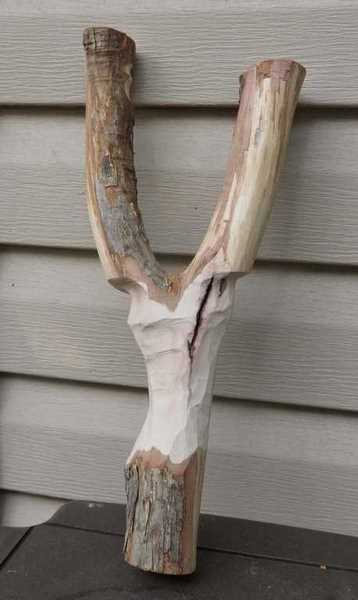

Here is a picture of one that I have started. The view is from the back of the slingshot (away from the shooter) and shows where I have (roughly) sculpted the forks to fit my hand. Like rifles and pistols, a well fitted grip is a real asset to shooting consistently.
