Sig Sauer P320 M17 CO2 pellet pistol: Part 1

by Tom Gaylord
Writing as B.B. Pelletier

Sig M17 pellet pistoll
Sig Sauer P320 M17 pellet pistol.

This report covers:

  • M17 differences
  • M17 pellet pistol
  • My grand plan
  • What’s up?
  • Lookalikes are coming to the top
  • Back to the M17 pellet pistol
  • Operation
  • Disassembly
  • Same heft
  • Summary

To all our American readers I want to wish a very happy Thanksgiving. Now, on to today’s report.

On January 19, 2017 it was announced that the U.S. Army had selected the Sig Sauer P320 pistol for their new Modular Handgun System. The full-sized gun is called the M17 and the carry-sized weapon is the M18. The rest of the U.S. armed forces also have or will have this sidearm. The nominal caliber for the U.S. military is the 9X19mm pistol cartridge that is best-known as the 9mm Luger.

M17 differences

The M17 is not just a P320 by a different name. The Army specified certain performance requirements for their pistol and they require Sig to maintain a strict separation in their plants between Army contract guns and similar civilian guns. This not only covers the finished guns but also all parts.

M17 pellet pistol

Today I begin the test of the Sig M17 pellet pistol — a 20-shot semiautomatic pellet pistol that closely copies the M17 service pistol. It comes in Coyote Tan — the same finish as the firearm, and, just like on the firearm, the metal slide is a little darker than the synthetic frame. On the firearm the slide is stainless steel. The pellet pistol slide is a non-ferrous metal. Both pistols have synthetic frames, though the firearm does has stainless steel inserts for wear resistance.

Sig M17 machining
On the tour of Sig we watched them machine solid billets of steel into finished firearm slides.

My grand plan

Sig says the pellet pistol weighs and hefts very much like the firearm and I decided to check out that claim. If you have read this blog for most of this year you know what I am about to say, but I restate it here to inform the newer readers. At this year’s Shot Show in January, Bob Li of Action Support Games (ASG) introduced me to the CZ75 SP-01 Shadow BB pistol. He was so taken with that BB gun because of how closely it copies the firearm. I have already done a 4-part report on the BB pistol, and in that report I informed you that I purchased a 9mm CZ75 SP-01 firearm so I could evaluate Bob’s claim.

That started the ball rolling, and when I visited the Sig booth at the same show, Dani Navickas put the new Sig P365 BB pistol in my hand (still not on the market as of this writing). I was blown away by the small size of the BB pistol. Because it is an exact copy of the firearm, I bought one in 9mm, as well, so I could test both of them side-by-side, as well. That firearm has turned out to be my new carry pistol and is also my new favorite all-around handgun. A HUGE report is awaiting the release of that BB pistol.

And then in July Sig sent out an email announcing a limited run of commemorative M17 pistols for civilians. I tried to place an order for one, but they were all sold before I could get my order in. They had been probably all been sold since the SHOT Show. But Sig did have a similar 9mm P320 M17 pistol that was available (it gets confusing, right?). Would I be interested in one of them? It is a close copy of the Army M17 and, since the Army pistol started out as a P320, I was interested. A third order was placed for a third firearm that has an airgun equivalent!

What’s up?

What am I doing? Have I lost my mind? Why am I buying firearms to go along with air pistols? Isn’t that backwards? The answer is one word — realism. Lookalike airguns have been around for decades, but this new crop is so realistic that it bears further scrutiny.

These new guns weigh the same, look the same, have the same controls, handle the same and fit in the same holsters. You will have an extremely hard time telling one from another when they are both in your hands, and I wanted to be on the ground floor of this movement.

Lookalikes are coming to the top

When people ask me what’s big in airguns these days I always say hunting, and more specifically, big bore hunting. That is where the sharp point of the principal market increase has been for about a decade.

BUT — and this is a really big but — lookalike airguns have also arrived and are heating up to become the next major theme. Shooters today don’t have the same background as people from my generation. They haven’t been exposed to firearms through many diverse channels while growing up, so a realistic sidearm that’s a pellet or BB pistol suddenly makes sense in a way it never did in the past. It provides a way for a shooter to train on something that is realistic yet far safer and less expensive to operate, and that multiplies their possible trigger time. This new Sig M17 pellet pistol fits comfortably into this exciting category and I now have the 9mm pistol to compare it to.

That’s what’s behind this mega-series that I’m writing. I haven’t even figured out all the tests I need to do with both the airguns and the firearms they copy. But I will! I love my job!

Back to the M17 pellet pistol

Sig showed us this pistol while we airgun writers were with them in July (to see the development of the ASP20 breakbarrel rifle) and I was amazed to see just how accurate it is. We all shot it at 10 meters and one of our number — John Bright of Highland Outdoors in the UK — shot incredibly small groups. I tried to keep up with him to no avail. That Brit can shoot!

Sig M17 shooting
John Bright used the M17 pellet pistol to school the rest of us on how it’s done.

Operation

The pistol operates in the conventional way, by a CO2 cartridge in the grip. The cartridge fits inside a removable drop-free magazine assembly that also houses a 20-round removable pellet magazine. I reviewed the Sig X-Five ASP pellet pistol for you back in June-August of this year. You might think, like I did, that the M17 is just the X-Five in a different color, but you would be wrong. The magazine assembly of the M17 is entirely different than the one found on the X-Five ASP. In the M17 both the pellet clip and the CO2 cartridges fit inside the same drop-free mag assembly, where in the X-Five they are separate.

Sig M17 mag piercing
The bottom of the mag assembly pops off and the back pulls down as a lever for piercing the CO2 cartridge.

Sig M17 mag features
The pellets and CO2 both fit in the M17 mag assembly. Push that button (yellow arrow) and the pellet clip (blue arrow) pops out of the assembly for loading.

Disassembly

One thing these lookalike guns do that appeals to everyone is disassemble. They don’t always have the same parts as the firearms they copy, but the method of disassembly is usually the same.

Sig M17 disassembled
The M17 pellet pistol comes apart in a way similar to the firearm.

Same heft

Like the firearm, the pellet pistol has a synthetic frame and a metal slide. It has full blowback, so you get the impulse of firing and the weight of the slide gives a good whack to your hand every time the pistol fires.

I have both the pellet pistol and the firearm. I will tell you this — the P320 M17 firearm is a little different than the straight M17. I won’t bore you with the minutia, but my P320 M17 firearm is single action only while the military M17 is DAO. The pellet pistol is DAO as well, so when you fire the gun the blowback action of the slide advances the magazine to the next pellet but the trigger is still double action. That said, this is the lightest double action I have ever encountered. The specs say 6 pounds to pull the trigger and I have to admit that it feels that light. I think the next-lightest double action pull I have ever measured was more than 9 pounds.

Sig M17 two pistols
The P320 M17 pellet pistol on top and the P320 M17 firearm below. The air pistol has an extended mag that’s also available for the firearm.

Summary

I have more to tell you about the pistol before we begin testing the gun, but this is where I stop today. Since I have already shot this gun for accuracy I know how this test is going to turn out, so if this pistol is on your gift radar, I say yes right now.

111 thoughts on “Sig Sauer P320 M17 CO2 pellet pistol: Part 1


  1. Friend Tom,

    Not Airgun related but rather life saving related. Apologies.

    My ccw has been a micro desert eagle for years. Primarily because of size. I understand .380 vs 9mm and capacity arguments but in my personal experience size matters because you may not carry. How do you carry the cz75 sp-01?


    • Kevin,

      The P365 is larger than the Micro Desert Eagle, no question about that. But the DE holds 7? cartridges, while the 365 holds 11. I carry in an ankle holster that works well for either pistol.

      The CZ75 SP-01 must be carried in an exposed holster as it is a very large handgun. So it’s not for concealed carry but for open carry that is legal here in Texas.

      B.B.



  2. “…a realistic sidearm that’s a pellet or BB pistol suddenly makes sense in a way it never did in the past.”

    B.B.,

    You nailed it there! When my Dad went for his training from a certified instructor to get the necessary letter to get a carry permit in his state, I offered him the use of my Crosman 357 pellet revolver. I said he hadn’t shot a pistol in a long time, and the air pistol functioned like a revolver and would be good practice for him.
    He laughed it off, saying it “wasn’t a real gun.”
    Lo and behold, at his course, the instructor was using…Crosman 357 CO2 revolvers (just like mine, hahaha!);
    he told the class, “these function and shoot like actual firearms and will allow us to train more of you quickly
    and without the need for an actual firearm range.
    So yes, lookalike airguns, realistic airgun copies of firearms, have a very legitimate place in the shooting world.

    Wishing a blessed and Happy Thanksgiving to all,
    dave


  3. A couple of questions (I have one of these already):

    1. Red dot mounting?
    2. Either on the Sig website, or the manual, there was a statement that BBs can be used also?

    And a few comments:

    – I see legislation coming soon to ban these…
    – I hope we don’t see any of these used in “suicide by cop.”
    – It is very realistic to my eye.


    • Richard,

      Welcome to the blog.

      For a red dot, use a wraparound mount that attaches to the rail in front of the triggerguard.

      BBs? They will fit in this magazine, but why would anyone do that? The pistol is designed for pellets so BBs will be inaccurate — even more than they normally are, because the barrel is too large.

      B.B.



  4. The question about BBs was in regard to doing transition practice, not shooting for accuracy on paper. It sure would be cheap practice at $7 / 4000 BBs…

    I read on Alder’s Blog that the slide plate is not removable, just there for cosmetic accuracy, so you can’t mount something like a Romeo on top. (There is a video on YouTube that says it is removable: https://youtu.be/MTzZnJBYBmg)

    Thanks for the reply.


  5. happy Thanksgiving to all.
    B.B., this is a very good report. to quote rigde runner,”you are the great enabler”. It seems like karma that I chose the Sig-MPX in FDE way back when it came out. The pistol would make it a set.
    Gerald


  6. Happy Thanksgiving to all who celebrate and to our foreign friends, take a moment to meditate on all you have to be thankful for (this blog is one for me!). BB, I’ve kind of fallen in love with Kahr’s line of pistols – the polycarbonate, DAO 9’s. I use the CM9 as my CCW and just acquired the p9 (if you watch Blue Bloods, that’s the sidearm the Danny Reagan character uses). Kahr was the back-up/off duty firearm of choice for NYPD but the brass decided the trigger pull was too light and removed it as an option . NYPD insists on a 12 lb trigger which is why the police there have a 20% accuracy score. My Kahr has a 7 lb, non-stacking pull and it’s very smooth. I wish now that there was a CO2 replica for me to train on but nothing available to date. Just wanted to let you know that there are other semi DAO’s with relatively light trigger pulls.

    Fred formerly of the DPRoNJ now Happily in GA (another blessing!)



  7. My comment about the look alike guns is positive overall. Umarexs line is appealing to me, I have a luger, and the Mauser broomhandle. I also have the Gamo PR 776 revolver. I have a airsoftTaurus 9mm, I got a great deal on it, its allot cheaper than a “real” Beretta, yuk yuk. What I have discovered is, practicing with a good lookalike, translates directly to firing a powder burner. I went to the range with my brother, to shoot .22’s, and his new Berretta.
    It took him a second trip to the range to get on the paper reliably.I had no trouble, after a sounding shot, with double taps and triples.I was aiming at a 1′ bull at twenty yds, and getting nice clusters. He’s getting a trainer for Xmas.
    Mechanical reliability is an issue with many lookalikes, I modded the gamo to shoot well but I wish it came from the factory made better. How do folks store their collections of co2 guns? They start to take up allot of space..
    Happy Turkey day folks!
    Rob



  8. Happy Thanksgiving everyone.

    And thought I would say what I just got with a Black Friday deal.

    But first this was kind of strange. Got a email saying PA was having a 11% off and free shipping on orders over a $149.00. so I hurried up and got my items in the shopping cart. Went to order on the PA site and the sale was gone off the top of the website. Still haven’t seen it anymore. So never did get a code.

    Then I got a email from AGD. They have the same sale all weekend long. And just say’n since I’m pretty sure they are a part of PA if I remember right. So ordered from them.

    But anyway back to what I ordered. And this had to do with what I have been trying to figure out. I want to get a spring gun or multi-pump gun to have in case my hpa compressor needs rebuilt or fails. That way I can keep shooting till I repair the compressor. And yep I do have a hand pump as a back up for the pcp’s too. Oh and I do have .177 guns already. The FWB 300 and HW30s. So what I want to do is get something in .22 caliber and .25 caliber so I have something to shoot in all calibers.

    Right now the gun I just got is in .22 caliber. The .25 caliber gun is going to need a bit more research before I get the one I want that will do what I want.

    And here’s what I got.
    https://www.pyramydair.com/s/m/Benjamin_392_pump_air_rifle/205

    And got this scope mount for it. I already got a extra Hawke 3-12 power sidewinder laying around. And I already got a idea what I’m going to do to the scope mounts for some extra attaching security.
    https://www.pyramydair.com/s/a/Air_Venturi_Intermount_Fits_Benjamin_Sheridan_Multi_Pump_Rifles/2015

    Just figured I would mention it if anyone was interested.

    Again. Happy Thanksgiving.


    • GF1,

      I really have to warn you about that scope mount. As it mounts on the barrel, it can place a strain on the solder joint and break it loose. That is a problem many have had with it.

      Baker Airguns has a mount that fits over the breech block, thereby avoiding that issue. It also allows you to use Weaver, Picatinney and dovetail mounts. You might reconsider that mount.


      • RR,

        I think he bought one that fits over the receiver assembly and includes the piccy rail. I, on the other hand, just received in the mail yesterday, the mount that you are warning about. I wasn’t aware of the other mount, darn it!

        Does it break the barrel loose from the pump housing because it wedges between them as you tighten it or is it because the weight of the scope twists the barrel left and right ’til the joint gives?

        Half


      • RR
        Nope your thinking of the Crosman barrel mounts.

        The Air Venturi mounts go on the breech.

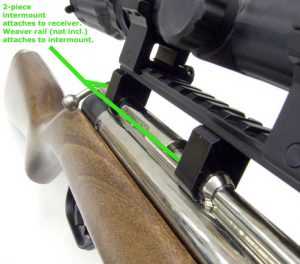

        Go to the link I gave for the Air Venturi
