by Tom Gaylord
Writing as B.B. Pelletier
Pioneer BB76 BB gun.
This report covers:
- 1976
- Getting ready to shoot
- This is a big gun!
- The firearm
- And the key!
- Look for them new in the box
- Broken
- Summary
I’ve got a strange one for you today. It’s a copy of a copy! This must be one of the strangest lookalike airguns ever made. And it copies a firearm that is itself just mimicking an era, without copying anything in particular.
1976
The American Bicentennial in 1976 was a gala year-long celebration. Grand parties were held and everyone was euphoric that the nation held together for 200 years. There were no end of special bicentennial commemorative items available. Even the airgun community had one — today’s topic gun, the Pioneer model BB76 BB gun. It is a 50-shot repeating spring-piston BB gun that cocks via a concealed underlever. It looks like a percussion rifle from a century earlier, and I think it was supposed to resemble a flintlock rifle of one additional century earlier. I guess most people don’t know the difference between a flintlock musket and a percussion rifle.
What makes this gun so unusual is that it is a copy of a firearm that itself was copying history. Many air gunners are aware of this BB gun, but have never heard all of the percussion rifle from Japanese company Miroku. I believe the same Japanese company that produced that firearm also made this BB gun, and I will offer proof in a bit.
The Pioneer BB76 BB gun (top) was patterned after the Miroku percussion rifle that was a copy of no specific percussion rifle.
At the heart of the BB gun is a mechanism that resembles the Daisy Number 25 slide-action (or “pump”) BB gun. It uses a similar 50-shot forced-feed shot tube, but has a completely different cocking mechanism that is one of the oddities of the BB gun world. It’s an underlever cocking mechanism that cocks the mainspring, but does not ready the gun to fire.
The concealed underlever pulls down and back to cock the BB gun.
The last step in getting it ready is to manually cock the plastic hammer on the right side of the gun. If you don’t do that the trigger will not budge. Once that has been done the gun is ready to fire. You could call the hammer a type of safety. though the way it operates is entirely different from any safety I have ever seen.
The hammer must be pulled all the way back to finish cocking the gun.
The Pioneer uses a copy of Daisy’s 50-shot forced-feed magazine.
Getting ready to shoot
After putting a loaded magazine in the gun, lower the cocking lever until it cocks the action, then return it to its stored position. You might think the gun is ready to go, but it isn’t. You also have to cock the external hammer before the gun will fire. This is a safety feature that also makes this BB gun that much stranger. The hammer is plastic and it cocks so easily you’d swear nothing is happening, but it really does make the gun ready to fire.
The hammer is also the gun’s one weak design spot. I’ve seen guns that wouldn’t fire at all because someone had done something to the hammer. I’ve also seen some that fired independent of the hammer. I always thought the former owners had forced it in some way and broke whatever is inside. Being plastic, it won’t stand much abuse. If you follow the procedure I give here, the gun works fine.
This is a big gun!
At 44.5″, this is a HUGE BB gun; at 4 lbs., it’s not that heavy. It could stand a few more pounds to steady it in the offhand position, but smaller shooters can also appreciate the gun at this weight. The light cocking effort makes this gun available to everyone.
The firearm
I owned the BB gun for 10 years before discovering the duplicate firearm on Gun Broker. They aren’t particularly rare, because they are among the least expensive of the modern percussion replica firearms. That’s true even though they are not really a replica of anything. It looks like a high school art teacher was asked to design a percussion rifle! The cap box is just a decorative plate held on by screws. A decorative brass band around the stock just in front of the triggerguard hides the fact that the forearm is a separate piece of wood — just like on the BB gun. That saves money on wood, because a longer blank is more expensive.
The rifle’s “patchbox” is just a decorative brass plate attached with screws.
The patchbox on the BB gun is even simpler.
And the key!
Here is how I am sure that both the firearm and the BB gun were made by the same company. Because both are marked with the Ultra-Hi name. And the firearm also says it was made by Miroku. Japan is not over-burdened with gun makers and Miroku is one of the biggies — making guns for Browning, Olin (Winchester) and Charles Daly.
The BB gun was made for the Ultra-Hi Corporation.
As was the rifle!
Look for them new in the box
Sales of the BB guns must have been disappointing because so many are still new-in-the-box today. But, the airgun community has now recognized this model as special, and you can expect to pay $200 for a good one (that’s like-new in the box). A shooter will cost between $100 and 150. Twenty years ago, they were selling slowly at $75 to $100 because nobody knew what they were.
Broken
Many of these quirky BB guns have broken because of the plastic hammer that is essential to their operation. People don’t understand how they work and either break the fragile hammers or the equally fragile metal triggers by pulling them when the hammer isn’t back. I’ve see them on tables at shows for nearly the same asking price and the words, Needs Repair, on the tag! Don’t fall for it. I know of nobody who puts them right and a good one costs so little more. All the broken ones I have seen, which is about 20, had broken hammers. The hammer wouldn’t stay cocked. I don’t know if I saw the same guns at different shows.
Summary
I will tell you more about this BB gun as the report advances. Next time we will look at the velocity, trigger pull and cocking effort. Any questions?
B.B.
I think a coon skin cap is the required attire to shoot this gun!
You can use the coon’s tail as a windage indicator…
-Y
Yogi
But of course that’s what the coon tail hat is for.
😉
B.B?
Definitely an odd one. Any particular reason why the velocity and accuracy would be very different from the Daisy 25? You did mention it as a copy of its feeding tube magazine. The designer really went all out to create a more complicated mechanism than necessary.
Siraniko
Siraniko,
We shall see very soon.
B.B.
B.B.,
No spoilers from me, but if you have any Marksman Premium Grade Steel BBs (not the Marksman Laserhawk BBs), would you try them in this gun? If you don’t have the Marksman Premium Grade BBs, could you get a rush order of them? :^)
/product/marksman-premium-grade-steel-bbs-5-1-grains-speedloader-1-300ct?p=439
Michael
Michael,
Got it.
B.B.
Michael
Why them?
Gunfun1,
Time will tell. Or not. :^)
Hey, I just came inside after shooting my TR5. I shot four clips with pellets that were not seated deeply, just dropped into the clip. I was careful to point the whole thing downward. Three clips fed perfectly, but one got just slightly hung up on the fourth pellet going in, and I had to jiggle and coax the clip out with the cocking arm pulled back. I think my problem before might have been a pellet coming up and preventing the clip from being inserted fully, although blowing out the breec with forceful air might have been the ticket instead
So I shot 20 pellets at 25 feet and they formed a 2 inch group. That was with the stock sights and my eyes are still dilated from an ophthalmologist appointment! That is much better than I expected, especially since I still haven’t cleaned the barrel yet. The trigger is so light and crisp, I don’t even mind it being just one stage, which mine is apparently adjusted to be.
If with my eyes not dilated, a 1377 barrel, and a red dot or peep sight, I could put ten shots into 3/4 to one inch at 10 meters, that would be incredible for a $130 air rifle shot by me.
Michael
Michael
Thanks for the update on your TR5.
I’ll start this way. Yep a $130 gun. If this gun costed $200 or more I think I would be somewhat upset. But not really. I have got air guns through time that have costed twice as much as the TR5 and they performed the same and worse.
And really the TR5 is not that bad once you learn the gun and what to do to shoot it. It’s no different than finding out about other air guns. Some are a little more challenging than others. And that sounds bad. But not really. I have had some pretty hard to shoot break barrels.
I’m going to say I have faith. You know in the end you and others will try to find out the best pellet and best way to shoot it. It just takes time.
And glad your finally getting to spend more time with your TR5.
🙂
BB
The learning never ends. First time I ever heard of it. Never would have guessed it was an air rifle even after glancing at it.
My mind went into overdrive. Lets see, open the patch box and drop in one or even two CO2 cartridges that automatically get punctured when closed and simply install a spring loaded air passage tube that pops out forward to insert a bb into the barrel and close off the feed port when fired. Same as a the one on a spring piston tip like the Daisy 1894 only CO2 operated. Or exactly like the one used on the Hellboy mag. Make the hammer functional and plink away. Great for hanging over the mantel.
Bob M
Bob,
Yeah — if the patchbox opened! 😉
B.B.
BB
Cool gun.
And was surprised that for how big it is that it’s so light.
Gunfun1,
i have one, and how light it is for its length is amazing. I don’t know if its balsa wood or what, but . . . I suppose it could be Paulonia (sp?) which is very light but has respectable strength. (It also is a decent tonewood, which is how I know of it.)
Michael
Michael
Really Balsa wood???
I know there’s different grades of Balsa wood from building RC planes. Some can be very strong. That’s usually the darker wood. Plus there was different ways we finished the wood that helped make it stronger too.
But it was definitely strong and light. Just would never imagine the at it would be used on a gun. But as it goes anything is possible.
BB once again comes up with an unusual air rifle.
I think Davy C would have approved.
Speaking of BB guns I have not been able
to access Daisy.com website for some time
BB,
I have seen several of these floating about over the years, mostly at very reasonable prices. I myself was never really interested in picking one up. They seemed too cheaply built and kind of cheesy to me. I can certainly understand why a true collector would want one of these though.
I can also understand why so many are broken. Given the fervor of the times, several young Dan’ls and Daveys would want one and would run about playing with them until they were broken due to their enthusiasm or ignorance.
I can also understand why so many “nearly” new in the box are available. It probably did not take long for young Davey to shoot something he shouldn’t have, whereupon it was promptly whisked away from his presence, never to be seen again.
This is a little off subject but is still in the vein of replica bb guns.
Umarex USA has teamed up with Up North Airgunner to create a replica of a well known syfy movie weapon. This replica is to be auctioned off on GunBroker this coming week. The proceeds are to benefit the Student Air Rifle Program. Here is what Hard Air has to say about it. There are links in their article to learn more.
https://hardairmagazine.com/news/this-one-of-a-kind-movie-prop-replica-can-be-yours/
In the airgun community I do believe this to be a worthy cause.
Ridgerunner,
Man! That is cool.
Now if they would convert the Brodax into a “Blade Runner” Dekard Blaster, I would have to wear a bib to catch all of my drool.
Michael
Michael,
Do it yourself. Make it into anything you want. The Brodax is way cool looking anyway. Add a dot sight and a laser.
Michael,
The Vigilante is not a bad looking honker either.
/product/crosman-vigilante-co2-revolver?m=3253
I have the Vigilante. It is a fun, low cost shooter. On mine I mounted a red lazer with light under the barrel with a pressure switch. I believe the term here is it is interesting as it can put a full wheel of eight pellets into two inches at twenty five feet.
Gerald
Gerald,
That is indeed interesting.
I myself have stayed away from replicas for various personal reasons. The selective fire models have been very tempting though. Now a CO2 pistol that I could make into something fantastically awesome cool looking to pull out and kill feral soda cans every once in a while just might be able to find a room at RidgeRunner’s Home For Wayward Airguns.
This has my attention at the moment.
/product/webley-nemesis-co2-air-pistol?m=4790
A few lasers, a dot sight, a muzzle brake, it would be cool.
A very interesting one to be sure. What a shame the hammer was plastic (easily broken). It looks like it would have been a fun one for kids back in the day
Good Day to one and all,………… Chris
BB—–Keystone Sporting Arms is making a “mini Moisin” .22lr rifle. They plan to make a variety of mini mil-surp rifles. The Moisin uses the Cricket action and a 20″ barrel. Perhaps Umerex or Gletcher should consider making the same kind of mini rifles, but as air guns, instead of firearms. ———Ed
Ed,
There is a British company that makes a full fledged SMLE bb gun.
Ed
Post some pictures or links.
I’m interested.
Ed,
I bet they’re looking at it.
B.B.
B.B.
This looks like it would be a fun gun to have; I could shoot it in the back yard and then hang it on the wall next to its sister, the Hawken replica my wife bought me; that rifle took down my first deer and many Florida hogs; it also allowed me to shoot many blackpowder matches…thanks for the memories. =>
Take care,
dave
P.S. Every time I walk out the back door, I wind up looking at the muzzle of this rifle and it reminds me of the first time I saw one in a store, and wondered out loud, “I wonder what caliber that thing is?”
My wife: “It’s .50 caliber.”
Me (being a jerk): “Yeah, right.” *yelling over to the clerk* “Hey, what caliber is this rifle?”
Clerk: “Fifty, pal.”
Me (to my wife): “Wow, Hon; you were right.”
My wife: “I only saw one EVERY DAY of my life growing up; my Granpa had a real .50 caliber Hawken that was given to him by the old Indian trapper who taught him all his woodcraft and hunting skills.”
If only I had inherited my wife’s granddad’s Hawken…that would have been too cool!
Ed,
Now, THAT is a story! Hurray for your wife!
B.B.
Yep; she’s pretty cool alright! Thanks. =>
But she won’t ride on route 666.
Hahaha! No, she’s too scared of that! *LOL* =)~
Dave
I do remember you talking about this before. Right?
Yes Sir! I think I just may have gone into more detail…but perhaps not…I’m sure your memory is much better than mine. =>
Dave
Thanks. I thought so.
My memory? Sometimes yes sometimes no. 🙂
Off topic,
For anyone that asked for new fire extinguishers involved in a recall from Kidde,…. update:
Got on line to ask for 2 new ones on April 20th.. Fed Ex just dropped off 2 new ones today. There was no conformation of anything on thier part other than an initial reply. No tracking #. No anything. There is supposed to be means to send the defective ones back free. Same boxes I presume? Not opened yet.
Overall,… a happy camper,………. Chris
Wishing a great weekend to all! =>
Here are some links I came across while looking for a Diana model 27:
https://www.leonardauction.com/auctions/auction-catalog-detail/?auctionID=124&lotID=6218
https://www.leonardauction.com/auctions/auction-catalog/?auctionID=124&view=#6218
https://www.leonardauction.com/buying-selling/buying-at-auction/
The first link is to a gun like B.B.’s model 27; the second link is to the overall auction (May 15th), but you have to scroll down to the 6000 series, which is the airguns; and there are some pretty cool ones there; but the last link is the particulars on how to buy and sell there; it seems a bit tricky, like there could be some hidden costs. However, there are some cool older airguns there, so I thought I’d share. =>
Lot 6281
https://www.leonardauction.com/auctions/auction-catalog-detail/?auctionID=124&lotID=6281&cat=c0&search=&view=0&coID=0
Yep; here’s a chance for someone to grab one. And I believe I saw one of those little Gamo carbines with the pistol grip stock that B.B. reported on some time ago. =>
Chris— My replacement Kidde fire extinguisher arrived yesterday. The return label and information is in the box. Return your old extinguishers in the same box. ——-Ed
RidgeRunner
That movie prop Mauser broom handle is available in Airsoft. It’s an AW Custom Limited Edition Mauser Broom Handle with Scope, over $200. ( Not weathered) Separate parts may be available too. I know the scope with mount is.
Bob M
B.B.,
You come up with things I have never seen before. Today is no exception.
Here is something of interest. It is not an air gun, but it looks like everyone wants to get into the act of shooting arrows.
https://www.americanhunter.org/articles/2019/5/2/traditions-releases-crackshot-xbr-arrow-launching-rifle/
~ken
Ken,
Very interesting. If not mistaken, some of the air gun arrow launchers (exceed) cross bow power. Still, very interesting and always like to see innovation on whatever front.
Thanks,……….. Chris
Chris,
I thought some would find it interesting. I have no idea how well this will sell. It is a firearm by definition and for me it is a curiosity.
~ken
Ken,
Thanks for the look. I’ll keep my crossbow.
B.B.
B.B.,
I absolutely agree with you. I know you have a great crossbow and I look forward to your review of the Ravin in the future. This rifle is a firearm by definition; I don’t know if it will succeed.
I think of it as being in the same box with the Weihrauch Barakuda and the attempted rifle that shot pellets using .22 blanks (I wish I could remember the name of it).
I do think it is interesting in that it shows one more attempted solution someone came up with.
~ken
Ken, that’s a pretty interesting piece alright; I had not seen one before; thanks for sharing. =>
Thedavemyster,
Thank you. I saw this and thought it would be interesting, mostly as a curiosity for folks here.
~ken
Ken, that’s what I love about this blog; B.B. writes interesting reports, and then you never know that with which others will spice it up with interesting tidbits. =>
Thedavemyster,
I couldn’t agree more. B.B. and Edith created a really nice space for all of us to learn and to share.
~ken
Kenholmz,
Interesting. They are reinventing the wheel. Then again this is aimed for those who don’t know anything about the modern PCP capabilities nor the advances in crossbow technology.
Thanks for the article.
Siraniko
Siraniko,
I just think this is interesting. And I agree, the customers for this one probably know little or nothing about modern PCP’s.
Besides, this one is a firearm by definition.
~ken
Ridge runner—-I know, I have been following the bb,co2 S.M.L.E. reports for more than a year. I plan on getting one as soon as P.A. has them. ———Ed
Gunfun1—I got my information from the Keystone sporting arms site.——Ed
Ed
Thanks I will check it out.
Ed
Just checked it out. Pretty cool. I bookmarked it. May just get one later on.
Some might be interested in this.
I mentioned the other day that the Daisy wadcutters I use was made in Spain. It said it on the original box that they shipped the pellet to Pyramyd AIR.
And I said I think the Winchester round nose pellets were made by Daisy and in Spain.
Sure enough I got a shipment of the Winchester round nose pellets. They came in the box that was shipped to Pyramyd AIR. Sure enough it said Daisy on the box and made in Spain.
Here’s the shipping label on the box to PA. It’s the Winchester round nose pellets.
Here’s the side of the box.
Well I just noticed something on the back of the tins of Winchester’s and Daisy wadcutters.
The Winchester round nose say made in Spain. The Daisy wadcutter tin says made in China.
Guess the tins are right?
Got something else.
The other day I posted a picture of some JSB 15.89 round nose and new JSB 15.89 Hades pellets shot at a aluminum can that I froze some water in. Basically to see how they mushroom at 50 yards.
Well I wanted to try a low velocity .22 long rifle round I have. They are a 40 grain 710 fps hollow point that is segmented into 3 places similar to the Hades pellets. But looking at the .22 round they look like a standard hollow point.
I should of included one straight from the box but forgot with the bullet I recovered. So I have a few pictures here to post. Oh and I just shot one round into the can. I had the opening facing me were you drink from. The bullet was still in the can but blew the whole bottom of the can open from the ice. And that was at 50 yards like the JSB .22 caliber pellets.
Here is the bullet from the box.
Here’s how the bullet looks after recovering it.
Here’s the other side.
Oh and yes these work good pesting also and are very quiet when shooting.

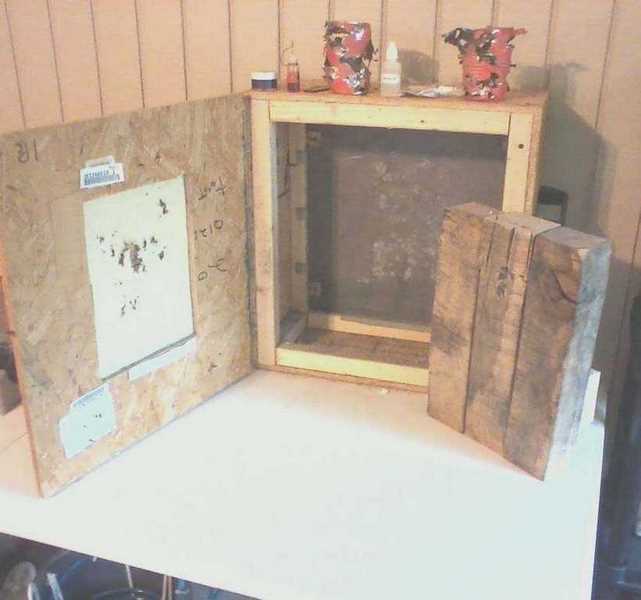

Here is my indoor trap. The cans on top are 15 oz. for size reference. In the open pic., you can see the 2×2 inside bracing, the 1/8″ steel plate in rear and cut out in door. On the closed pic., you can see how I hold the target backer. The 4×4 “wall” is to buffer pellets at close range when doing chrony, which I do with muzzle 5′ from the box. As for any “curtain” between the front and the plate, run a coat hanger from side to side about midway back,… use binder clips over the wire and hang whatever you want.

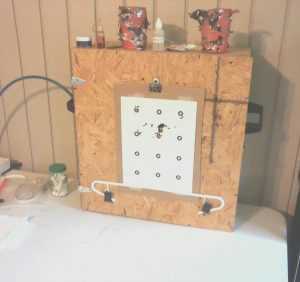

The other,…
