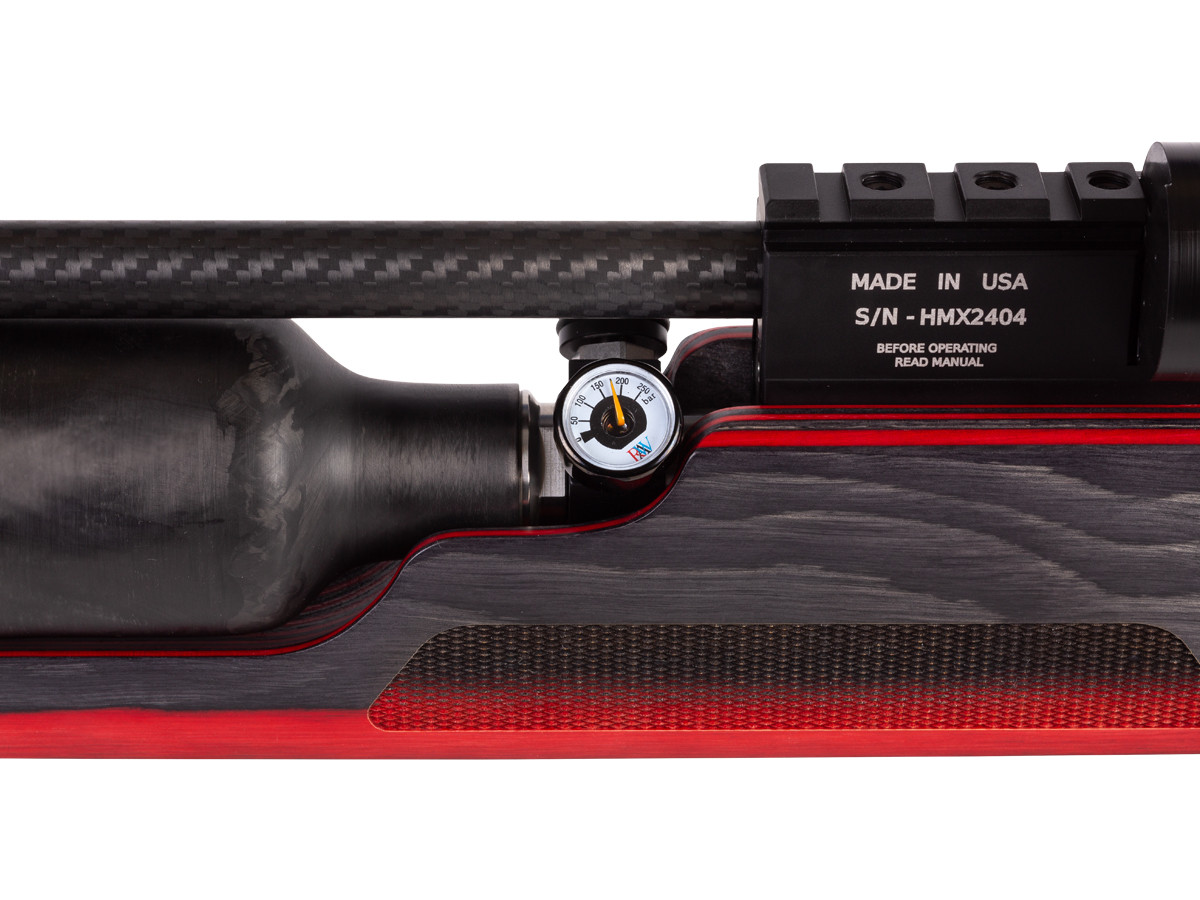

RAW HM1000x LRT PCP Air Rifle, Red Laminate Stock

rating
3.53 reviews
2 answered questions

$2,099.95

Caliber:.22 (5.5mm)

.22 (5.5mm)
.25 (6.35mm)
.30 (7.62mm)

Quantity:

1
Out of Stock

Notify Me

Estimated in stock date: 10-30-24

FREE Shipping

PY-4793-9557info icon Earn 2100 Bullseye Bucksinfo icon

Shipped & sold by Pyramyd AIR

1-year limited warranty

60 day money back guarantee

Add to Wish List
Compare

scissors iconExcluded from coupons

Description

For serious shooters seeking the ultimate in accuracy from a pre-charged pneumatic air rifle, it doesn’t get any better than this.

The widely acclaimed Rapid Air Worx (RAW) HM1000x LRT (Long Range Target) rifle achieves the kind of precision, reliability and consistency that have come to characterize the iconic RAW name.

The HM1000x’s factory high-power tune delivers muzzle energies of up to 50 foot-pounds (in .22, using JSB 25.39-grain pellets), 60 foot-pounds (in .25, using JSB King Heavy 33.95-grain pellets) and 75 foot-pounds (in .30, using JSB 44.75 grain pellets). Its fully regulated PCP power plant ensures consistent performance from the first shot to the last and the 480cc carbon fiber bottle packs enough capacity to put up to 50 rounds downrange per fill.

The LRT features an adjustable, match-grade target trigger with an added safety catch. And, thanks to its fully moderated Lothar Walther polygonal rifled barrel, backyard plinkers won’t intimidate the neighborhood with loud reports, while the two piece design of the muzzle shroud allows the user to choose the length configuration and sound signature that suits their needs best.

The RAW HM1000x LRT delivers elegant form along with precise function in a sub-9-pound package by integrating all of this industry-leading hardware into a richly appointed, red laminate stock. It comes stock with adjustable cheek rest and rubber butt pad for enhanced accuracy through a custom fit. The stock is checkered for a secure grip and its forend features five M-Lok slots for attaching accessories like bipods and Q.D. attachments. As an added bonus, the forestock’s underside is flat to provide bench shooters with an ultra-stable point of contact.

Hand-built and tested, the HM1000x LRT is billed by RAW as “the most accurate pre-charged pneumatic air rifle made in the USA... capable of sub 1-inch groups out to 100 yards.” It’s designed for everyone from serious plinkers and hunters to field target and benchrest competitors demanding the highest, most consistent levels of performance from their air rifles.

Helpful resources:


Rapid Air Worx HM1000x PCP Air Rifle, Red Laminate Long Range Target Stock

  • Red laminate LRT (Long Range Target) stock
  • Precision side-lever cocking mechanism
  • Ambidextrous breech with swappable sidelever
  • Lothar Walther polygonal rifled barrel
  • Fully adjustable, match-grade trigger
  • 480cc carbon fiber air bottle
  • Fully moderated, carbon fiber-wrapped barrel w/ two piece shroud
  • 12-shot rotary magazine (.22/.25), 9-shot (.30)
  • Fill pressure: 230 BAR (approx. 3,335 PSI)
  • Male quick-connect fill fitting
  • Overall length: 45.37”
  • Fully regulated
  • Easy access Hammer Spring Adjustment
  • 950 FPS (.22), 900 FPS (.25), 870 FPS (.30)
  • 50 FPE (.22), 60 FPE (.25), 75 FPE (.30)
  • MADE IN THE USA
  • Includes one magazine

Please Note: The rifle comes with the side lever set up for right hand use, and includes a left hand magazine.

feature iconfeature iconfeature icon

Specifications

Max Velocity
950 fps
Stock
Laminated
Grip
Ambi
Color
Red
Scopeable
Weaver/Picatinny
Overall Length
45.37"
Buttplate
Rubber
Function
Repeater
Weight
8.85 lbs
Safety
Manual
Suggested for
Small game hunting/target practice
Caliber
.22 (5.5mm)
Muzzle Energy
50 ft/lbs
Loudness
4-Medium-High
Barrel Length
24.0"
Shot Capacity
12
Barrel
Lothar Walther
Front Sights
none
Rear Sights
none
Trigger
Two-stage adjustable
Action
Sidelever
Powerplant
Pre-charged pneumatic
Max Shots per Fill
50
Body Type
Rifle
Fixed/adj. power
Multiple settings
Cylinder Size
480 cc
Shrouded
Yes
Operating Pressure
3335 PSI / 230 BAR

Ballistic & Conversion Calcs

PCP Fill Options

Find a compatible fill source for the RAW Rapid Air Worx HM1000x LRT Red

calculatorTank Fill Calculator

compressors

Compressors

Unlimited Air

tanks

Tanks

Fastest Refill Time

hand-pumps

Hand Pumps

Most Economical

Overall Rating

rating
3.53

Ratings

5 star
1
4 star
1
3 star
0
2 star
1
1 star
0

Review This Product

Tell us what you think

3 of 3 RAW Rapid Air Worx HM1000x LRT Red Reviews

Sort By:
Most Recent
Overall rating
rating
4
Value for money
rating
4
Accuracy
rating
5

Trigger & overall quality.

Moderator.

People who have shot & worked on these guns extensively prefer them to the FX Crown and Impact.
Simple, accurate & durable quality that will last decades.

Add a Comment
Helpfull Review?
Overall rating
rating
2
Value for money
rating
1
Accuracy
rating
3

Not what I expected. I've been an avid airgunner for over 10 years, and this is my 4th PCP airgun. I wanted something accurate, American made, with a left handed bolt that had the power to easily take down a rabbit. I also wanted something that I could pass on to my kids. The HM1000x LRT seemed like the perfect choice. Its a whole lot of money, but if I wanted to get a Rolls-Royce grade airgun, this seemed to be a great fit. I was wrong. A few years ago, this may have fit the bill, but things have changed. First, the gun came in a generic shipping box that was too small for it and didn't have a much-needed cutout in the foam for the airgun itself, but it came to me mostly unscathed. I tried to read the manual that came in the box with the gun, but the printer that it was printed on was so low on ink that all of the color sections were unreadable. I went online to find an electronic copy, but its unavailable on their website.

So, I look for articles online about the gun, and find that the max pressure is 230 bar, so I pump it up until my pump reads 225 bar. Then I look at the gauge on the gun, and its at almost 250 bar. Oh heck Turns out that the gauge on this $2100 gun is inaccurate. RAW sent me a new gauge that was within 5 bar of my other gauges, but should I have to do this with a $2100 gun? Finally, I try to shoot it, using 3 different JSB pellets (18.13gr, 25.39 gr and 34.0 gr). The heavy JSB pellets I bought for it (25.39 gr and 34.0 gr) are very hard to get into the RAW 12-shot magazines. I have to force the first one in with a 2nd pellet. So, I call RAW and they tell me they will look into it, but multiple emails asking for updates have gone unanswered. I ended up having to use a drill bit to open up the hole on the top clear part of the magazine. I shouldn't have to do this with a $72 magazine on a $2100 gun.

The trigger is excellent. Its accuracy is just OK its a little worse than my Benjamin Marauder (which I could buy 3 of for the price of this gun), and a little better than my Hatsan Nova QE. RAW has recommended that I turn up the hammer spring a bit to increase the power for better accuracy (they said that my chronograph speeds were a little low for the JSB 25.39gr pellet, which is their benchmark), but I havent had a chance to do so yet. Again, though, should I have to do this myself on a $2100 gun, or should RAW have done this before they shipped the airgun to me?
In summary, I think that the gun is fundamentally well designed, but ever since RAW was sold, it seems that someone has chosen to try to sell $2100 airguns with a customer support and QA budget befitting a $210 airgun. In retrospect, I would have purchased my 2nd choice, an Air Arms S510 XS. I would have saved more money than a new Benjamin Marauder costs, and I likely would have received a much better sorted out machine.

john Feb 16, 2023

I had this gun for a year and NEVER had 1 problem. It was by far the best airgun ive ever owned (and ive owned over 75 airguns) My reason for selling is it was just too loud.

Mark Jun 01, 2022

wow, i am in the process now of shopping for a new gun and this was on my list...until now. i am surprised at these ridiculous faults on a gun in this price range. thank you for saving me from making a mistake.

kirk Jan 26, 2021

Yeah Bryce, I received my Camo HM1000xLRT in October 2020 and was surprised with the Moderator, stock and butt pad changes. A pic of this updated RAW version hadn't even been published by on-line vendors when I ordered, hence didn't get the gun I ordered. - My gun's pressure gauge also reads 250 bar when my machine (pump) reads 230 bar? However, after making a new moderator, changing out the butt pad, making a SSG to eliminate hammer bounce, the gun gets 168 shots per fill (14 clips) at 920 fps using 18.13 JSB's. As you mentioned, otherwise the build quality is superb and the trigger is peerless. I would also mention, the gun is very simply designed and easy to work on. At this point, I couldn't be happier, but most folks wouldn't be able (or want to spend the time) to make the changes I did, .... restoring it.

Add a Comment
Helpfull Review?(1)
Overall rating
rating
5
Value for money
rating
5
Accuracy
rating
5

Wow, 50 yards like it's 50 feet. Makes me look like I can shoot.

Personally for me a piccatiny rail for bipod or even an add on with gun would have been nice. Not a big deal though.

Before getting rubber mulch for card board box took a few shoots at target mounted onto half inch plywood. Pellets went right through, leaving a pretty large exit hole. So backyard shooters be aware.

Add a Comment
Helpfull Review?(-1)
