Our tech department has provided these directions on how to change your 7-joule rifle to almost 16 joules (it's a 2-step process):

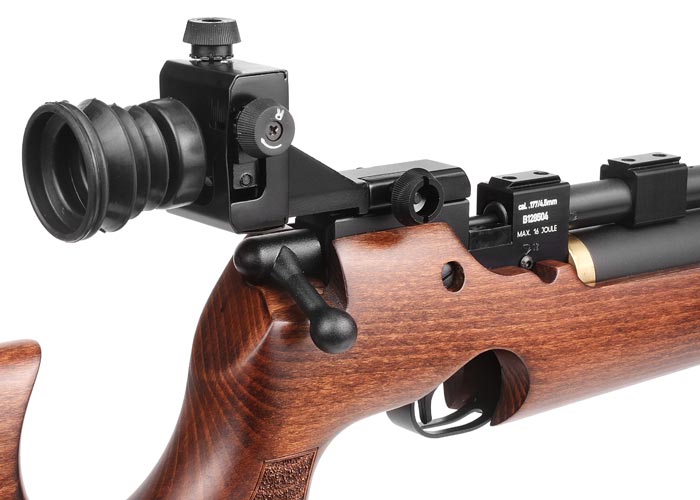

The air transfer port adjustment is right under the 16-joule max line in the 6th picture shown on this page. There's a small button head screw with a 2mm Allen head there. Once that screw is removed, you can get to an even smaller set screw that can be turned out with a 1.5mm Allen key. Turning the screw counterclockwise will increase the air flow from the valve to the barrel.

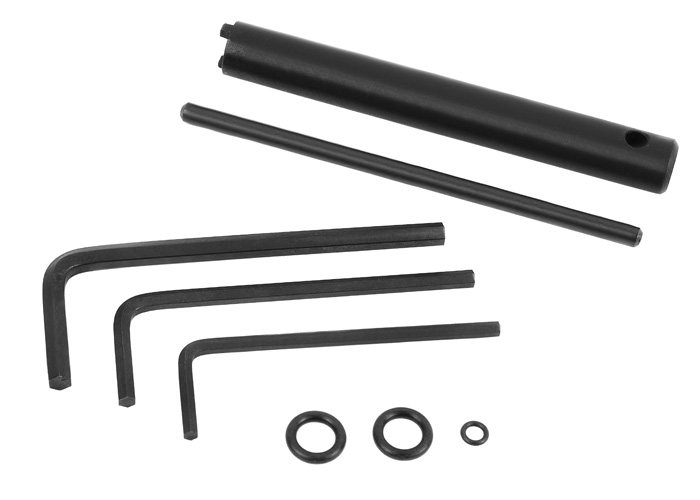

The second adjustment is in the rear of the receiver, located just below the bolt. The stock needs to be removed for this adjustment. It requires the use of a special tool that comes with your gun.
This screw is represented in the CZ manual (which is also linked on this page) as part number 22. Turning this screw clockwise adds tension to the hammer spring. Put the stock back on your gun. You're done!

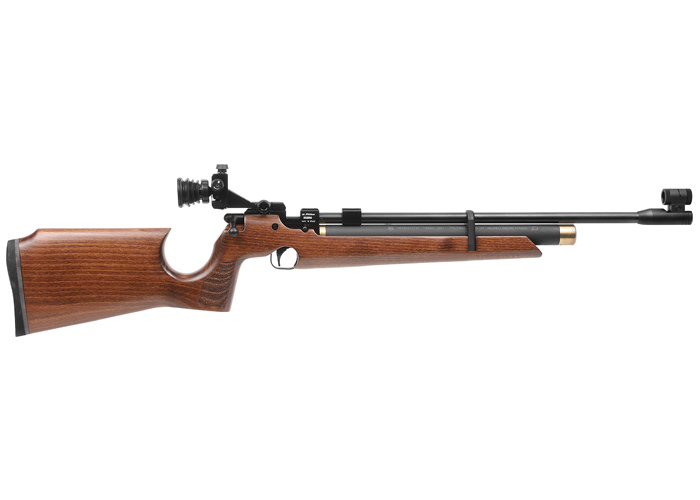

You'll never regret buying an Air Arms airgun! The guns are known for their quality and accuracy. The T200 Sporter will give you pinpoint accuracy...if you do your part, this air rifle will deliver spectacular results on target!
|Max Velocity||575 fps|

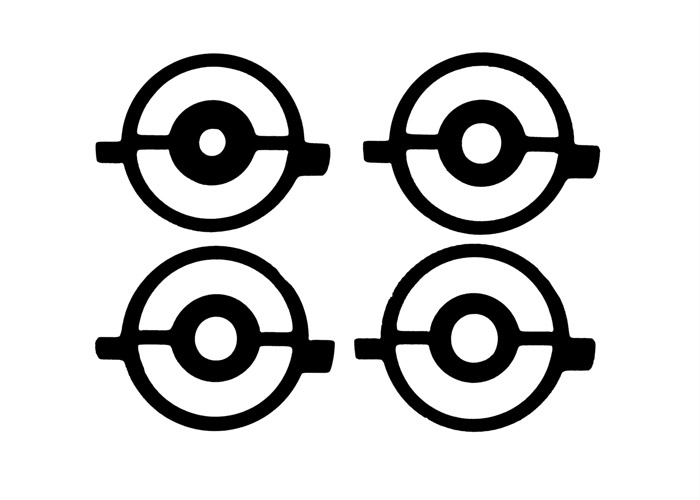

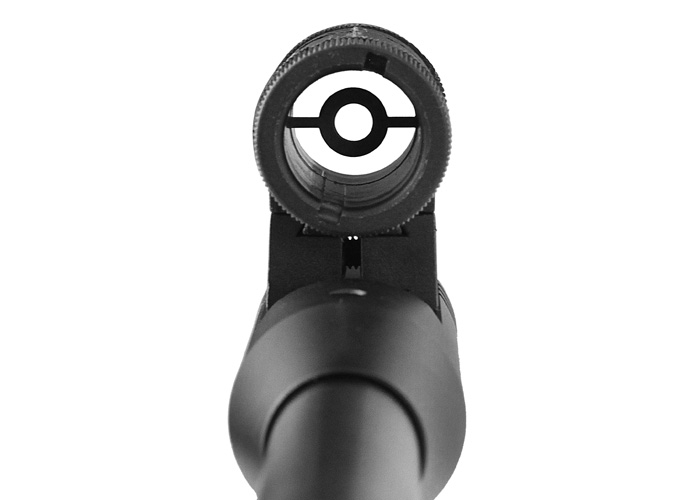

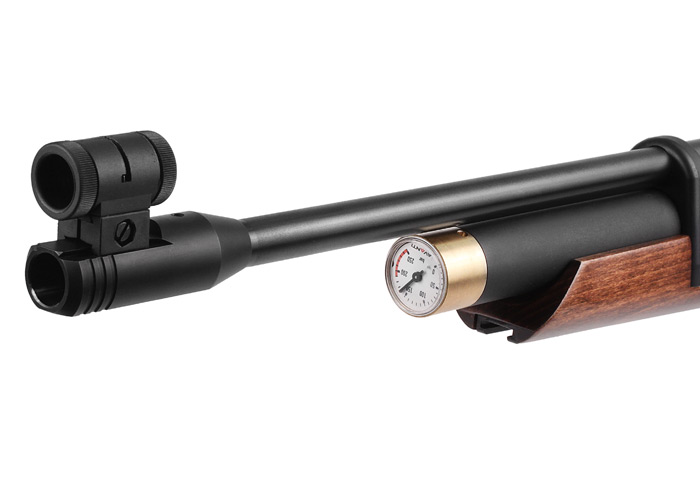

|Front Sight||Globe w/Aperture Inserts|

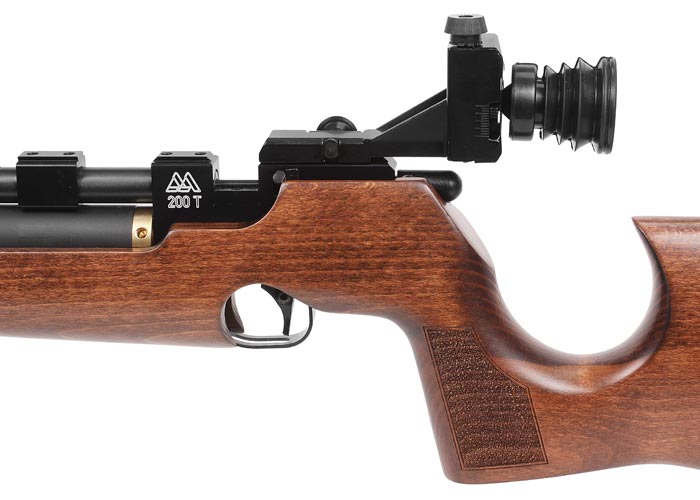

|Rear Sight||Diopter/micrometer adjustable|
|Cylinder Size||98 cc|
Create an online review and share your thoughts with other customers
Things I liked: This little rifle is awesome. For the price it's super accurate and easy to operate. I also got one for my younger brother and his grand kids are loving it as well as his daughter.
Things I would have changed: I don't think I would change anything. It's a great little rifle as is . Fits almost everyone and is very affordable.
What others should know: You do need to have your source of air for it by a hand pump would suffice nicely on this one.
Things I liked: Nice and easy to do business with. Great products and the website is user friendly and has all the info one would need.
Things I would have changed: Nothing
What others should know: Happy shooting and be safe!
Things I liked: Great value for money, super accurate and nicely manufactured.
What others should know: If you like CZ rifles, be prepared to be pleasantly surprised by the inner box!
Create an online review and share your thoughts with other customers. Show Other Reviews
what is the air tank (cylinder) size in cc?
Air Cylinder Size 98 cc
what is the tank size?
Cylinder Size 98 cc
what is the size of the rear sight aperture and can it be changed?
The Aperture 1.1mm. It could be replaced by a variable apetrure, hardly worth the money. You can drill the apeture larger.
To fill your PCP gun:
1.Pick a source of air shown at right

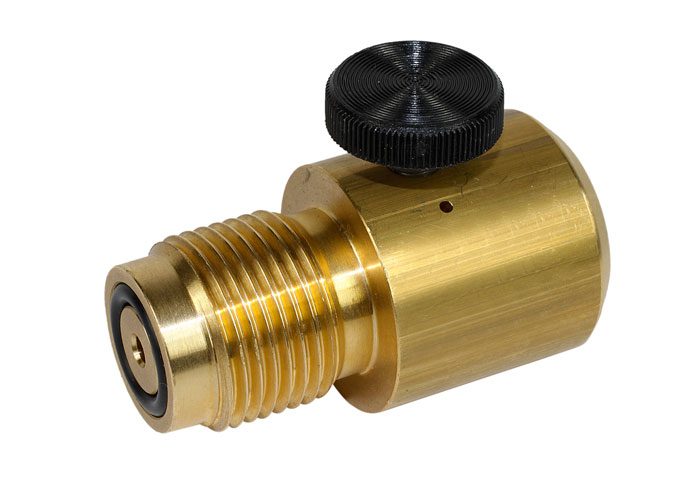

2.If an adapter is needed, one will be shown
3.Add both to your cart to get hooked up
Air Arms T200 Sporter Air Rifle, Target Sights with DIN connector (5M)
To start over click reset
|Max Velocity||575 fps|
