by Tom Gaylord
Writing as B.B. Pelletier
Haenel 310 is a different kind of trainer.
This report covers:
- How does the magazine work?
- Velocity
- Oiled the leather piston seal
- Re-test velocity
- Smart Shot lead BBs
- Conclusions
Today we look at the velocity of the Haenel 310 trainer. I was asked by one reader whether the Smart Shot lead BBs will work in the gun, so we will also look at that.
How does the magazine work?
Another thing I was asked by a reader is how the magazine works. You saw a picture of the mag in Part 1, but the angle was wrong for understanding how the balls feed. Here are three pictures that tell the whole story.

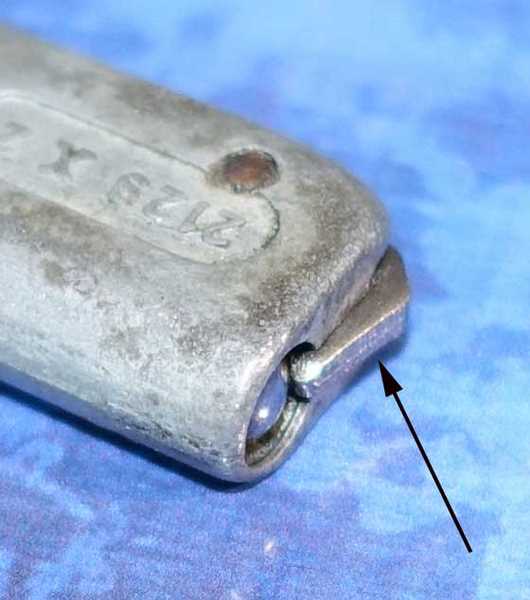

Here the steel ball follower is held down by the magazine feed pawl (arrow). This spring-loaded pawl is pushed down out of the way by the bolt as it passes.

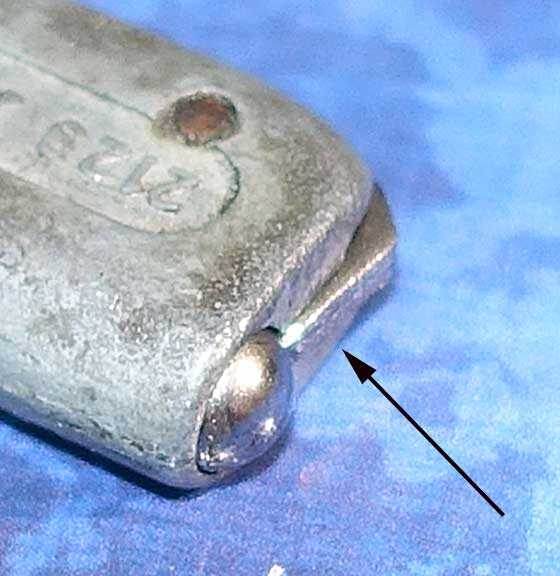

When the feed pawl is pushed down by the bolt (arrow), the steel ball magazine follower springs all the way up as far as it will go. The follower is too large to escape the top of the magazine.

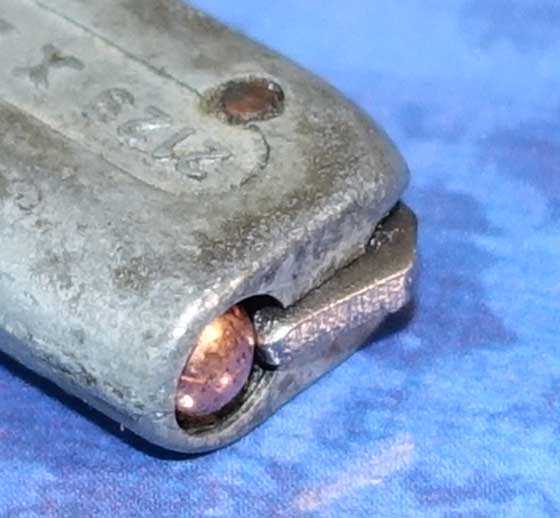

A 4.4mm copper-plated lead ball has been loaded into the magazine. It’s held down by the feed pawl, but when the pawl is pushed down (out of the way) by the bolt, the BB springs up and out of the magazine by a foot or more, unless it is captive inside the breech.
Velocity
I’ll begin with a test of the 4.4mm German-made copper-plated lead balls that I bought for the rifle. Most of these weigh 7.6 grains, but a sample was tested and ranged from 7.5 to 7.8 grains. They velocity averaged 326 f.p.s., which is on the low side for this particular rifle. The low was 237 f.p.s. and the high was 360 f.p.s., so a spread of 123 f.p.s.
Oiled the leather piston seal
I then dropped 5 drops of Crosman Pellgunoil down the muzzle and let the rifle stand on its butt for a couple hours. Following that I got these results.
Re-test velocity
After oiling and waiting a few hours, ten 4.4mm balls averaged 321 f.p.s. The low was 268 f.p.s. and the high was 355 f.p.s., so the spread was still large, at 87 f.p.s.
Smart Shot lead BBs
Now that you understand how the magazine works, you can see that the size of the ball is important. So our reader was wise to wonder whether Smart Shot BBs will work. But they do! Smart Shot BBs that weigh an average 7.6 grains averaged 341 f.p.s. The sprtead went from a low of 296 f.p.s. to 359 f.p.s. That’s 63 f.p.s., so Smart Shot BBs have a tighter spread than 4.4mm balls in this particular 310.
Conclusions
This was a valuable test that showed us several things. First, we learned out the balls feed through the magazine, and that helps us understand the operation i of the airgun a little better.
Next we discovered that the gun was not shooting slow without oil. Oil actually slowed it a little, though it did become more consistent.
Finally, we find that Smart Shot BBs not only work in ther 310 mechanism — they probably work better than the ammo that’s made for the rifle. Of course the accuracy test will be where that is confirmed.
This is a BB gun in the same category as other BB guns, so I will test it at 5 meters first. If it has enough accuracy I may back up to 10 meters, as well
Thanks for the top view of the magazine.
In the photo you posted in part 1, the feed pawl pivot pin looked like a BB , and that’s what threw me off.
With the low power was there any sign of dieseling with the pelgun oil?
Neat older rifle.
45Bravo,
No, dieseling was not a problem. It almost ver is in a BB gun action.
B.B.
Oh, is it just me, or does this remind you of a Mosin?
B.B., THANK YOU! For your time, testing and report which confirms my own theory! Accuracy! Semper Fi!
Tom,
I just wanted to get in early this morning to say thanks again for getting me in touch with Kevin Lentz. I contacted him last week and he invited me to come to his place to try out some of his guns. Saturday morning I drove to his house(10 blks. from my house) and met up with he and his good friend Eric. I was able to shoot several different styles of rifles and stocks(Tyrolian? That was a little different). We chatted and shot and I might just have learned a little bit! I mentioned to Kevin that I am amazed at the quality and quantity of information about airgunning you have made available to all of us out here. I don’t know how I would have been able to really get into airgunning without the help and knowledge of you and Kevin and all the others out there who are so willing to share with those of us who haven’t been there, yet. Thanks Tom
Bruce
Bruce,
I’m just glad the two of you linked up. Now you have someone to shoot with.
B.B.
You live 10 blocks from Kevin Lentz?! You are a lucky man. Even living in California, I got a free tin of Eley pellets from Kevin who refused to accept anything in return. Kevin is a great fund of information with quite a shooting set-up from the description. Maybe you can get him to make you his killer venison medallions he made as a professional hunting guide.
Matt61
What! He didn’t say anything about feeding me good stuff! I guess I’ll have to corner him on that one!
Bruce
BB,
I suspect that if the 310 was shot a bunch that the shot spread would tighten up. I suspect that there is corrosion, dust, etc that is getting in the way of good performance. I am not suggesting that you spend a day shooting the thing. I suspect you could find better ways (or more fun ways) to use your time.
I am excited about the Texas Airgun Show. Let me know what I can do to help.
David Enoch
David,
All you can do is reserve your table now. They are extremely limited and will sell out fast.
B.B.
OK, I have left a message to reserve a table. If tables become scarce, I could split my table with someone.
David Enoch
What’s the number and how much for 1 6′ table?
I know you posted the # before but don’t recall where.
Reb,
It’s a 8-foot table for $30. The number is 469-369-2539.
B.B.
Thanks B.B.
I bought a 6′ table but I think I have a 8′ board I can extend it with.I’ll call before 5:00 & get one reserved.
Reb,
What are you talking about? They provide the tables. You put your covering and stuff on it.
B.B.
I never heard of a venue furnishing tables.
Reb,
Turning a 6′ into a 8′ huh? Sounds like you got some BIG plans there! I wish you the very best in getting there and having a real fun time. 🙂
Reb,
That is the ONLY way it is done. Every gun show and airgun show does it that way. Maybe you have been to tailgate events, but at a formal event they furnish the tables.
B.B.
David,
Regarding the velocity spread: I have three different 310’s right now and all vary 10 fps or less for ten shots. They also average between 390 and 400 fps.
Paul in Liberty County
David,
it looks like you are right in this. In the three sets of shots I would expect than the mean is in the middle between the lowest and the highest score. In all three the mean is shifted towards the highest score (between 10 and 20 %) showing that some balls are slowed more than you would expect.
This is heavily dependent on the size of the shot group. If there were 10 shots per group I would be pretty sure about this, if the shot group is 5 it can be a freak accident.
Regards,
August
B.B.,
I have (unplated) lead shot that is a reasonably snug fit for the bore of my Haenel, but I’ll be excited if the Smart Shot BBs work well for you. I am assuming they are slightly smaller than your copper clad lead shot and therefore a loose fit in the rifle, but hey, that tighter velocity spread is promising. Apparently air blowing past the ball in the barrel isn’t an issue.
You have me starting to think it might be time to dust off my Haenel, although I’ll wait until after your next report to do so.
Michael
Michael,
I also have a few thousand unplated lead balls of 4.4mm size. If I can find them I will shoot them in the accuracy test. Cain’t wait to see what will happen.
B.B.
