Webley Senior spring-piston air pistol: Part Seven

Webley Senior
My new/old Webley Senior slant grip pellet pistol.

History of airguns

Part 1
Part 2
Part 3
Part 4
Part 5
Part 6

This report covers:

  • Not fiber
  • Velocity test
  • RWS Hobby — October 2022 test
  • RWS Hobby today — March 3, 2023
  • Eley Wasp — October 2022 test
  • Eley Wasp today — March 3, 2023
  • H&N Field Target Trophy — October 2022 test
  • H&N Field Target Trophy –March 3, 2023
  • Pellet sizes
  • Experiment
  • Discussion
  • Summary

Today we revisit an oldie and one from which we learned several valuable lessons — the Webley Senior spring-piston air pistol. Before we start there are several things to remember. First, this pistol was an eBay purchase that came to me without a breech seal. The seller didn’t tell me that, and I don’t think he even knew.

This pistol is a post-WW II pistol that was made between 1949 and 1955. Read Part 1 to find out how I know that. It came to me without a breech seal and I showed you a picture of that. You can see that if a person was not familiar with the pistol they might not even know.

I inspected the pistol before firing it and it looked great. I didn’t catch that the seal was missing. But a shot into my office pellet trap where the pellet bounced off the duct seal said otherwise and I looked closer. Read what I said.

“When I unpacked the pistol I was pleased to see it was even better than the web pictures showed. Wow, I couldn’t wait to shoot it. This one is a .22 so I loaded a pellet and noted that it bounced off my duct seal pellet trap in my office. Oh, oh! It wasn’t very powerful. Maybe it needs a new piston seal.

“But wait — these pistols don’t have conventional piston seals. They have a piston ring made from beryllium copper. This one has to either be broken or missing for the pistol to loose this much power. Okay, let’s check the breech seal.

“Well, the breech seal looks good. It’s nice and sharp. In fact it’s a little too sharp. These breech seals are made of fiber and should look mushroomed and crumbly after they are used. This one is razor sharp. And deep! In fact, it’s a little too deep. In fact there is no seal in the breech, whatsoever! Well, that will certainly make the pistol shoot slow!”

Webley Senior breech
Webley breech seals don’t look sharp and crisp like this And they aren’t that deep.

Not fiber

When I received my new breech seal from T.W.  Chambers I discovered that it wasn’t made from fiber. It was/is some sort of tough but pliable rubber compound. Okay, the world changed when BB wasn’t watching.

The new seal was much easier to install than a fiber one and once in it seemed to seal the breech fine. Time would tell if that assessment was correct, and today’s report is five months after that seal was installed.

Velocity test

Well, the new seal worked as it should. Let’s look at the three pellets I tested and what they did. I will show each pellet I tested, both back in October, 2022 and now. Hopefully that will help you understand what I’m saying.

RWS Hobby — October 2022 test

Ten RWS Hobby pellets averaged 378 f.p.s. The low was 372 and the high was 385. The spread was 13 f.p.s. The low was on the first shot and the high was on the last shot. This pistol feels like it is breaking in, and it is in such good cosmetic condition that it may not have been shot that much before.

The RWS Hobby weighs 11.9 grains in .22 caliber and, at 378 f.p.s., it produces 3.78 foot-pounds of muzzle energy. It’s well within the UK legal limit of 6 foot pounds for an air pistol.

RWS Hobby today — March 3, 2023

Today ten RWS Hobby pellets averaged 377 f.p.s. The low was 372 and the high was 382. The spread was 10 f.p.s. The low was on the fifth shot and the high was on the last shot.

The RWS Hobby weighs 11.9 grains in .22 caliber and at 377 f.p.s. it produces 3.76 foot-pounds of muzzle energy. It’s still well within the UK legal limit of 6 foot pounds for an air pistol.

This was not exactly what I expected. I thought the pistol might have increased in velocity by just a little. I say that because, after spring guns are tuned I often see some increase in speed. More to say on that in a bit but for now let’s look at pellet number two.

Stock Up on Shooting Gear

Eley Wasp — October 2022 test

The next pellet I tested was the 5.6 mm Eley Wasp. This is the one that produced a velocity of 339 f.p.s. soon after after the breech seal was installed. In today’s (October, 2022) test ten Wasps averaged 342 f.p.s. The low was 337 and the high was 347 — a difference of 10 f.p.s.

The Eley Wasp weighs 14.5 grains, on average. That means it produces 3.77 foot pounds at the muzzle.

Eley Wasp today — March 3, 2023

Today ten Eley Wasps averaged 334 f.p.s. The low was 327 and the high was 339 for a difference of 12 f.p.s. At the average velocity this 14.5-grain pellet produced 3.59 foot-pounds of muzzle energy.

H&N Field Target Trophy — October 2022 test

The last pellet I tested was the 14.66-grain H&N Field Target Trophy. In other airguns I have had no success with this pellet, but in the Senior they seem to fit better than most pellets other than the Wasps. They averaged 342 f.p.s. for 10 shots. That works out to an average energy of 3.81 foot pounds. The low was 336 and the high was 348 — a difference of 12 f.p.s.

H&N Field Target Trophy –March 3, 2023

Today ten FTT pellets averaged 336 f.p.s. for a muzzle energy of 3.68 foot-pounds. But the spread went from a low of 321 to a high of 348 f.p.s. — a difference of 27 f.p.s. That’s quite a bit up from the 12 f.p.s. spread the same pellet and pistol showed back in October of 2022. However, I had noticed something I thought might be the cause.

Pellet sizes

Some FTT pellets were falling deep into the barrel upon loading while others stopped flush with the breech. Neither of the first two pellets had shown this tendency. I realized this by shot number nine, so I watched where shot number ten went when loaded and, seeing it fall deep into the barrel, I wrote the word FAST before shooting that pellet through the chronograph. It went out at 346 f.p.s., which was the second-fastest pellet in the string. That led me to construct an experiment to see if my suspicion was right.

Experiment

I wrote two titles — Fast and Slow for the velocity columns I was surely about to record. I would look at how deep the FTT pellet went into the barrel and determine beforehand whether it was going to be fast or slow. Then I would enter that velocity in the appropriate column.

The first pellet seated flush with the breech so I figured slow. When it registered 342 f.p.s. on the chronograph (which would have been the fourth-fastest pellet in the string discussed above) I gave up right there! Apparently how deep the pellet goes into the barrel does not relate to velocity.

Discussion

Today’s velocity test is something I wanted to come back to after the pistol had more shots on it. I figured the shots fired in Parts 4, 5, and 6, plus the extra shots I fired while adjusting the sights, qualified as enough shots to affect velocity. However, instead of going slightly faster, today the pellets went slightly slower. And, with the FTT pellet, the velocity spread was rather large this time. But there was else something that I discovered.

Remember me talking about the new synthetic breech seal — how it differed from the old fiber one? Well, the barrel has been closed and locked for five months — pressing on the new seal. Look at the face of that seal now.

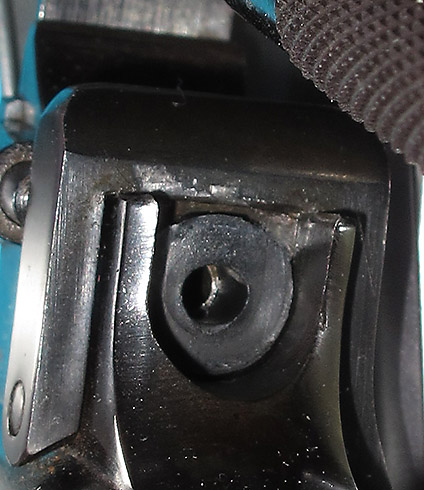

Webley Senior seal
The breech seal is unmarked after five months of the rear of the barrel pressed against it.

Seeing a breech seal uncrushed is unthinkable for an old Webley guy. It’s like a Harley Davidson motorcycle that doesn’t leak oil. But I know that modern Harleys don’t leak oil, and now I also know that modern Webley pistol seals don’t show marks from being under compression.

Summary

This won’t be the last report on this Webley Senior. Now that I have seen how well-made JTS pellets are I want to try them for accuracy and when I do I may as well try a couple of other pellets. Yes, I just want to have some fun with this air pistol, but this series can mean a lot to Webley pistol owners, so there is some redeeming value there, too.
