PY-A-16815

STUD Magazine for SKOUT Epoch, .22 (5.5mm)

Be the first to review!
STUD Magazine for SKOUT Epoch, .22 (5.5mm)

STUD Magazine for, Image 1STUD Magazine for, Image 2STUD Magazine for, Image 3STUD Magazine for, Image 4

Share your images

$79.99

Select caliber:
.177 (4.5mm)
.22 (5.5mm)
.25 (6.35mm)
.30 (7.62mm)
Select style:
Magazine
Loader & Mag
Magazine
  • 60 Day Return Money Back Guarantee

Add to Compare
Add to Wish list

Excluded from coupons

Earn 80 Bullseye Bucks

Please Note:

Updated selection based on available products

Add to Cart

In-stock


Sold & shipped by STUD Loading Solutions


  • FeatureIcon
    WARNING WARNING This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
youTube video
youTube video

See other products by STUD Loading Solutions

Item details

Sold & shipped by STUD Loading Solutions


STUD Loading Solutions STUD Magazine for Price

$79.99
  • Visual "Shots Remaining" indicator
  • Magnetic Lid
  • Works for both right or left hand shooters.
  • Rotorrides on (1) class 2RS, roller bearing
  • The magazine willnot feed "Flat top" pellets
  • Will feed pellets or slugs up to 14mm(.550")length

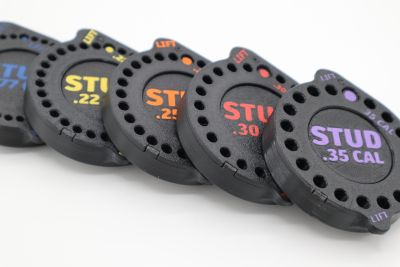

The new STUD Mags for the SKOUT Epoch.
Fits the STUD Loader/Feeder system for automatic pellet loading.

1) The STUD "Pocket":
Unlike the factory magazine, the STUD magazine positions the round precisely into the center barrel. This is because the final "shooting" position of the magazine has a geometry that removes the "slop" from the pellet/slug and centers it really well. Put a pellet into the SKOUT factory magazine and look at how much the round is NOT CENTERED with the hole. Try the same thing with the STUD magazine and you will see it perfectly aligned with the lid hole.

2) These new STUD SKOUT Epoch mags have a rotor with a stop:
We also use a stronger drive spring to drive pellets and slugs up to 14mm (.550) in length. We do not include a spare spring as it is not required. Unlike the factory magazine, our rotors are factory-sealed with the correct spring tension to feed any that will fit into it.

As the STUD magazines were specifically designed to fit and feed these larger rounds, they index correctly, and you can count on the magazine to do its job.

3) We have a nice "remaining rounds" indicator:
The STUD lid is not a solid piece like the factory mags. The STUD magazine has holes placed over each round position clearly showing the rounds remaining in the magazine. We produce the rotor with a colored circle on the "stop lug" that is easily seen by the shooter as the mag advances. We have also "cut out" the center of the lid, which exposes the rotating STUD logo (as you cycle the mag. the logo spins). Why did we do this simple, it looks cool.

4) Main Rotor, ball bearing drive system:
The STUD magazine features a class 2RS ball bearing. This bearing allows very stable and precise movement and positioning of the rounds. This is in contrast to the factory mag that only metal on metal can allow the rotor to bind, wobble, and be generally unreliable at times.

5) Easy On/Off Lid:
The STUD magazine features a slick lid that easily comes off and on. The lid is held on with ((2) pairs) of powerful, neodymium magnets. These magnets are positioned by the locating pin and interlocking uprights (the same points we use to interface with the STUD loading systems). When you get the lid anywhere near the locating features of the mag base, the lid basically sucks itself to the base. These magnets are strong enough to allow you to turn the mag lid down with it full of heavy slugs and the lid stays on (and the rounds stay in).

Note: The lid is designed to retain the slugs/pellets with normal handling of the magazine. If you drop the mag or really manhandle the magazine, the lid can come off. The design is a compromise for easy on/off and decent retention.

In stock

This item is not eligible for coupon discounts


See other products by STUD Loading Solutions

Item details

Sold & shipped by STUD Loading Solutions


STUD Loading Solutions STUD Magazine for Price

$79.99

Specs

Caliber.22 (5.5mm)
Weight1.0 lbs
Magazine Capacity28 rounds
StyleMagazine
