Gamo 126 single stroke pneumatic 10-meter target rifle: Part 2



by Tom Gaylord
Writing as B.B. Pelletier

Gamo 126
Gamo 126 single stroke pneumatic 10-meter target rifle.

Part 1

A history of airguns

This report covers:

  • RWS Basic
  • Sig Match Ballistic Alloy
  • RWS R10
  • Warmed up?
  • Second string of RWS Basics
  • Pump effort
  • Trigger pull
  • Discussion
  • Summary

Today is velocity day for the Gamo 126 target rifle we are testing. We learned a lot from the comments in Part 1 and I also learned a lot while researching the rifle for this report. Today we will see where this particular one is.

The Blue Book of Airguns said to expect a velocity of 590 f.p.s., but many owners say 550 is about as fast as they ever shoot and some even say less. The rifle also starts loosing velocity over time, so we should be able to assess the health of the gun I am testing right away.

RWS Basic

I will start with the lightest lead wadcutter anyone is likely to use — the 7-grain RWS Basic. I will warm up the action with several shots before starting to chronograph the results.

The first string of Basics averaged 434 f.p.s. The low was 415 and the high was 449 f.p.s. The spread from low to high was 34 f.p.s. I guess this 126 is getting tired again, following its reseal.

Sig Match Ballistic Alloy

Next to be tested were Sig Match Ballstic Alloy pellets They weigh 5.25-grains and should be the fastest that I test today. Ten of them averaged 496 f.p.s. The spread went from a low of 490 to a high of 501 f.p.s. That’s 11 f.p.s., so this pellet might be accurate. And the rifle may be warming up, so I need to test Basics again.

RWS R10

The next pellet I tested was the 7-grain RWS R10 Match Pistol pellet. I also tried a different way of pumping the gun. Instead of forcing the pump lever closed as fast as possible I went with a smooth motion that was decidedly slower. R10s averaged 454 f.p.s. with a spread that went from 449 to 460 f.p.s. That’s an 11 f.p.s. spread.

Warmed up?

It seemed like two things had happened as I shot this test. First, the rifle’s pneumatic mechanism had warmed up and second, the different way of pumping seemed to have given the shots more stability. So I wanted to try RWS Basics once more.

Second string of RWS Basics

This time 10 RWS Basics averaged 452 f.p.s. That’s faster than the fastest pellet in the first string (449 f.p.s.). So one or both of the things I said were working. The spread for this string went from a low of 432 to a high of 462 f.p.s., so a difference of 30 f.p.s. That is close to the 34 f.p.s. I got in the first string, so I think this Basic pellet is just not that stable in this rifle. But the rifle pump mechanism definitely did warm up a little!

Pump effort

The Gamo 126 and Walther LGR 10-meter target rifles both share a common flaw, in that their pump stroke is on the closing stroke when their levers move forward. This tends to make both rifles harder to pump than other single-strokes, though the Gamo has some kind of pump assist in its oil-filled piston and is actually easier to pump than any other 10 meter single stroke rifle.

The rifle I am testing requires 15 pounds of force to pump if you go steady and smooth. If you force the lever the effort spikes to more than 20 pounds. Only the awkward placement of the pump fulcrum at the rear of the action gives any hinderance at all.

Trigger pull

Now we come to the thing I am most interested in — the trigger pull. I told you in Part one that the 126 has a world-class trigger and now we will see how correct that was.

This is a two-stage trigger as all target triggers should be. I mean real target triggers — not just triggers that have the name target in their title. Stage one takes 3 ounces to complete and stage two breaks at 3.4 ounces. That’s an average of 5 pulls.

Discussion

The powerplant in my rifle is not performing to spec. But it is fairly stable if I pump it correctly. I can live with that long enough to get through the accuracy test that comes next.

Summary

It seems that reader Geezer was right about the Gamo 126. It apparently does have performance issues. I always heard that it did, but now I know what they are and why they exist.

Does a 126 belong in a collection of vintage 10-meter target rifles? At this point I think it does — warts and all. But I still need to see the accuracy to know for sure.

233 thoughts on “Gamo 126 single stroke pneumatic 10-meter target rifle: Part 2

  1. B.B.,

    I have always speculated about what happens when warming up both Single and Multipumps. Is the warm up perhaps also expanding the pump head material and causing the length of the stroke to be slightly longer and thereby decreasing the volume of the Headspace resulting in higher final pressure?

    I have ordered some lightweight pellets from PA to feed the SIG Target Pistol when it arrives; two are old standbys and two are light oddballs to add to a variety of .177 I have on hand.

    Also in:
    RWS Basic
    I will start with the lightest lead wadcutter anyone is likely to use(d) — the 7-grain RWS Basic. I will warm up the action with several shots before starting the (to) chronograph the results.

    shootski


  2. B.B.

    “Does a 126 belong in a collection of vintage 10-meter target rifles? At this point I think it does — warts and all. But I still need to see the accuracy to know for sure.”

    Well what else should be in the collection?

    -Y


  3. BB,

    “Does a 126 belong in a collection of vintage 10-meter target rifles?” That depends on the “collection”. Is it a collection of vintage 10-meter target rifles that are only looked at every once in a great while or is it a collection of vintage 10-meter target rifles that are enjoyed on a regular basis? We will see.




  4. B.B.

    Are the FWB 600 series rifles old enough to be considered to be classed as “vintage”?

    I just love plinking with my 10 meter rifles – they are just soooo accurate and nice to shoot. Besides being tasty, Cheerios or Froot Loops hanging on a string make fun reactive targets.

    Hank




      • Hi Don,

        Good suggestion for the JSB Redesigned Monsters – Santa brought me a couple of tins!

        Waiting (impatiently) for the new gun to be available. I plan on focusing on the sub-50 yard range for several tins of the 18 grn JSBs before re-tuning specifically for the Redesigned pellets to see how they do. Slugs are on the radar but I have a lot of work to do before I think I will be qualified to shoot at the ranges where they justify their costs.

        That being said, silly me is looking at molds for casting my own slugs.

        Please let us know your experiences with slugs!

        Hank



          • RR
            My .22 Maximus likes the Hades pellets but seems my. 22 Vectis likes them the best. Even better than the JSB and AirArms pellet of the similar weight.

            I want to try the .25 caliber Hades pellets in my Condor SS. I wonder if the .25 caliber Hades pellets or in stock yet. I’ll have to check.


          • RR,

            Santa brought a tin of Hades for the HW100 (she has been good all year!) specially for pesting!

            Looking forward to trying them out. The rifle is already tuned to the regular JSB 15.89 domed pellets so I will be able to do a direct side-by-each comparison.


            • Hank,

              They seem to be good. I have not tried them yet. The HN multi weight slug sample pack has my interest. 2 head sizes for .22. None in .25 that I am aware of. FPS,… along with a “preferable twist rate”,… seems?,.. to be a factor. Not so sure that anything in my stable is up to “snuff” for slugs.

              Much to learn and try to keep up with,… for sure!

              Chris


              • Chris,

                Yup! Lots of stuff to learn/try with slugs. Here are a couple of random thoughts on slugs…

                Fit to the bore and how it engages the rifling are considerations for the diameter and length of the slug. The slugs aren’t as ductile as a pellet so fit is more important.

                Slugs can be shot at higher velocities but will often be fine a typical speeds.

                Because of the (relatively) large contact area (slug to bore) friction is high and lubrication is a good idea. A slug will often shoot 30-50 fps slower than the same weight pellet but with its superior BC the slug overtake the pellet within 50 yards or so.

                The new FX Hybrid slugs are very interesting (except for the price) – a guy I know tried them in his Maximus with good results out to the 50 yards he was shooting starlings at.

                Anyway, I will need to do a lot of shooting before I get to trying slugs seriously – have to learn the gun and tuning. My supplier stocks the H&N sample packs so I might pick up one of those with the gun just for giggles. The owner shoots an Impact and mentioned that he was going to try out the .22/700mm barrel so he will be able to advise me which to try.

                Cheers!
                Hank


                • Hank,

                  Very nice that the supplier (shop owner) has one also. That will be a big benefit by being able to learn from what he tries and has success with. That should cut down your learning curve by quite a bit and maybe save you some $. Did him having one already influence your purchase decision?

                  On bore fit,… do you maybe? get the feeling that you will want to size (every) slug to an exact size? What would you use to do that? I say that because of what we find with pellets. What is on the tin is often not what they are. And,… variances within the tin.

                  My thinking in the end is,.. that I would not trust anything I bought (or) made if I were going for an known and desired exact size. I do agree with you 100% on size. With the much lower power pushing the bullet down the bore vs a firearm,… fit to bore (repeatedly done so) might in fact be “hyper critical” to consistent results at target.

                  I did look briefly at a Mc Master Carr catalog and there is some precision dies that might be good, offering a range of precision hole sizes. There might actually be pellet sizers that could adapt. On the T Robb,… I seem to recall that one of the benefits was that it sized the pellet head (only). Apparently other ones size both the skirt and head to the same size.

                  On lubing,.. I agree that it should be a good benefit to do so. Any thoughts on what to use? Dry or wet? Spray on that leaves a dry film? Etc..

                  Yes,.. much to learn,……. Chris


                  • Chris,

                    Yes, nice the the owner has one. He can “test” any rifle in his (substantial) inventory and that he has his own personal Impact that he is very fond of it says a lot. He mentioned that he had casually shot a magazine (28 pellets) at a 50 yard target and the hole was a bit bigger than a dime but would easily fit under a quarter. Seeing that he said that he needed to learn to relax more when target shooting – trying too hard was not helping his groups. He was shooting with a .25 barrel – wonder what his CTC was for that group.

                    Slugs are interesting but I think too many people think that they are a substitute for real skill. Under 60-70 yards, pellets rule, beyond that the slugs are in their element and the superior BC, higher velocities and better wind-bucking capability really stand out. That being said, if the shooter can’t hit a paint-pail at 150 yards with a laser shooting a slug isn’t going to improve his accuracy. For long range shooting you have to be right on your game because the slightest thing can throw the shot totally off target. The really excellent shooters can (regularly) achieve MOA (… MOP – minute of a pigeon?) accuracy out to 200 yards and they really know their stuff.

                    To me, MOA means nothing as I have always been hunting orientated and MER (Maximum Effective Range) with all shots consistently in a 1 inch circle is the gating factor to me. With current technology the maximum effective range is probably around 125 yards – that is what the technology might be able to do… not what I am capable of LOL!

                    Been thinking about sizing dies for slugs. They are reasonably priced and I might get a set from these people…
                    http://noebulletmolds.com/NV/index.php?cPath=564&osCsid=gaudgvdu237m9p0gnd40qdped6

                    Lubing is an interesting subject. Lots of options; there are commercially available products specifically for bullets/slugs but people are also using oils, silicone sprays and even Pledge furniture polish to reduce friction and lead fouling. Haven’t really looked into it yet. Mostly, the lubricant is applied to a pad of paper towels and then the pellets/slugs rolled on the prepared surface and let dry.

                    Anyway, the tinkering, tuning and learning for long range shooting is going to be a real adventure and I think that in spite of the high sticker price on an Impact the cost per hour for this entertainment is going to be very reasonable. A buddy was over visiting; he commented “it must be nice” to have that kinda $$$ for a “BB gun” – I replied that I don’t smoke or drink so that if he would give up his pack a day, case a week habit he could easily afford new toys. Guess that it was nasty of me but I had him shoot my .25 Royale …now he is thinking about quitting smoking LOL!

                    Cheers,
                    Hank


                    • Hank,

                      These (I would guess) are made to fit into some sort of hand press apparatus (without looking further)?? Link saved and will look into further.

                      A block gauge with some funnel effect added and a holder could make a good hand outfit. I would slug the barrel and get something that is precion +/- .001″ steps above and below. Kind of like pellet gage that has your target size somewhere in the middle.

                      Then, where does a choked barrel factor into this theoretical conversation?

                      Chris


                  • Chris,
                    Another good source of YouTube videos on slugs, and other airgun stuff too. This guy makes his own slugs and sells them on ebay. He demonstrates very good accuracy with an entry level Nova Liberty PCP at 100 yards. He has several videos regarding his slugs. He also has an interesting recent video about his experience with the Yong Heng compressor. Slugs are just now becoming more interesting…but really only for someone shooting longer ranges, 100+ yards. Because of the design of the new FX slug, large hollow area and lighter weight 22gr, they may work best in PCPs of lower power, and in choked barrels. Your RW could probably handle any of them. I have watched several video reviews by various airgun YouTubers and they have all demonstrated very good performance with slugs at those longer ranges.
                    Geo https://www.youtube.com/channel/UCGPuLw4384KuLzSkGSWLs2Q/videos


                    • Geo,

                      Thank you. Saved and will check out. I am most interested in .25 data as that is what the RW and M-rod are. Yes, reducing the weight should help to boost the fps. Hollowing it like they are also affects balance. Not so sure I want to start shooting alloy stuff down my barrels just yet,.. (cause you know),… that is the next place slugs for air guns are headed. Heck,… maybe there is even some out there already.

                      I am at the learning stage on bullets and slugs at this point. The better BC is the main interest and the benefits that it can (possibly) bring to my shooting.

                      Chris


                  • Chris USA,

                    My experience with bullets/slugs in Big Bores as well as a .25 PCP that gets 80 FPE out of a 45 grain bullet is that undersized by as little as .001 hurts accuracy. On the other end as long as your bolt of other feed system can push a bullet/slug into the bore that that basically is all the sizing needed for a custom fit. I have sized bullets/slugs with sizing dies mounted in a manual press and have found that much more than .003 oversized to actual bore size is not good for accuracy. I have taken them down in size with multiple precision sizing dies (smaller by .0010 each step) but more than three steps just hurts accuracy. I suspect that it may be that the swaging may cause some deformity that only the bore can detect and react to?
                    Do look for that trailing zero when you compare dies; it is significant!

                    shootski


                    • Shootski,

                      Thank you for the insight. So,… sizing is not the “be all/end all” magic bullet either? 😉 It has it’s own Gremlins lurking as well. Of course it does! It can’t be THAT easy. 🙂

                      Thanks again,….. Chris



            • Hank
              My Vectis is shooting faster than my Maximus. The Hades shot from the Vectis definitely do more damage when they hit.

              I already appointed my new Vectis with the Hades pellets as my new pesting gun.

              Let me know what you think about the Hades pellets when you try them.


              • GF1,

                I put a four magazines (56 pellets – domes/hades/domes/hades) through my .22 HW100 but can only say that I think that the hades were grouping a little bigger than the domes.

                I have to do a proper test because between a dirty barrel, the gusting wind and very cold temperatures neither the rifle nor myself were shooting well. I could see the groups spreading and shifting as the rifle got colder and numb-fingers me didn’t help at all.

                I’ll have to reserve my comments until I can give the hades a fair test.

                Hank


                • Hank
                  I wouldn’t mix them up like that.

                  I found that either pellet don’t group good if I do that. I guess what I call seasoning the barrel is what works for me.

                  My JSB 15.89’s work good if I only shoot them. Same with the Hades. When I switch to the other pellet I have to shoot about 4-5 shots for the gun to come back in.

                  And here’s what is funny that I found. My Maximus that I modified to accept the 3000 psi hpa 13 cubic inch 1200 psi regulated bottle will shoot pretty much everything I throw at it. Here is the ones I’m talking about. JSB 15.89 and 18 grain. The AirArms 15.89. RWS Superdomes, and Gamo match diabolo pellets. And the JSB Hades pellets.

                  Now here is what happens with the Vectis. The Superdomes are all over the place as well as the Gamo pellets. The AirArms and Jsb 15.89 are good. The 18 grain JSB’s throw fliers every once in a while. But the JSB Hades pellets make small clover leaf groups.

                  And both guns was at 50 yards. As you can see my Maximus seems to be not pellet picky but the Vectis is. So I don’t think we should say that a given pellet isn’t as good as a another. I think it should be more like we need to find the right gun for that pellet. How about that twist on the subject. 🙂


                  • GF1,

                    Wondering about the seasoning – can see that when switching brands and alloys but from the video tour of the JSB plant, all the lead is dipped from the same pot.

                    I shot a mag (14 pellets) of the domes then a mag of the hades then repeated that. Between the cold and being all bundled up I know that my hold wasn’t very consistent so I am not too surprised that the groups were not as tight as the normally are.

                    Think that I will stick to shooting my 10 meter guns indoors until the weather outside doesn’t require gloves, sweaters and ski-jackets.

                    I have quite a stock of different pellets. Like your idea of buying guns to suit the pellets… can I mention to my wife that you suggested that?


                    • Hank
                      I seen it going from different pellets of the same weight and same brand on many different guns. Don’t ask me why exactly it’s happening. I’m thinking it’s more of a fit thing.

                      And sure you can tell your wife. I even got a few guns for sale if you want to give it a shot and see what happens. 🙂


                    • Hank,

                      “Like your idea of buying guns to suit the pellets… can I mention to my wife that you suggested that?”

                      Uhhhh? You might want to hold off a “wee bit” on that (very inventive) way to acquire more air gun arsenal. I mean,.. with still having to get the brand new FX .22 Impact,… and all.

                      Just my most humble 2 cents on the matter,…………. Chris 😉


                • Hank,

                  As for GF1’s theory on “seasoning”,… I would say that for sure would apply to different alloy mixes. Regarding the same alloy,…. head sizes could play into the mix (if) one pellet is taking out more lead deposits (or) leaving more in the rifling. Maybe.

                  I did try that when I first got back into air gunning and can not say for sure that I could notice it. One “off” day can blow a BIG hole into what you “think” you have nailed down.

                  I will say,.. GF1 shoots a whole bunch,.. so I suppose that does warrant lending him some “street cred” on the theory. 😉

                  Chris


                  • Chris
                    “street cred” maybe a little anyway. 😉

                    But I think it’s more about size and fit. Maybe even heat. Maybe the different fit pellet does deposit lead different in the barrel.

                    I don’t know exactly why. But I do know that I have seen the change happen when going from one pellet to different pellet. Heck I have seen it in .22 rimfire guns using the same brand and bullet type but different weight or velocity projectiles. It’s almost gaurenteed that I have to let a few shots go by before the gun comes in and groups again after a switch.

                    All I know is what I seen happen throughout time.


                    • GF1,

                      Yea,… only a “little”. We can’t have you struttin’ around like some know it all Rooster,…. now can we? 😉 Got to keep you “in check”,.. after all!

                      😉 Chris



                  • Chris,

                    When seriously testing pellets I will clean and “prime” the barrel with a couple of shots to settle things down. Haven’t been doing that when checking different head sizes though.

                    No “reply” button on your previous post (again). Been thinking about selling off the guns that I don’t use a lot to fund other things that are becoming interesting. Figure that the Impact alone is going to keep me entertained for quite a while so it makes sense to focus my attention more closely.

                    Yup, “street cred” is something to pay attention to.

                    Hank



  5. Vana2,

    I have NO clue why you think this is “*OFF TOPIC*”
    I think you have done a service to airgunners who read B.B.’s blog! Especially the new ones! If they don’t get the message by watching the video they never will. I enjoyed the links Matt Dubber provided! The one almost made me feel like I was back in advanced Ground School! I fell asleep half way through it…joking! (Inside joke understood by almost anyone who was in the military and knows what happens when the lights are shut off!)

    shootski


  6. shootski,

    Off topic because it was not about a 10 meter gun??

    I thought that the subject of velocity (which is always close to a shooters’ heart) would be of general interest. I am reading a lot about airgun tuning and it is amazing how many people are tuning into the transonic range and are surprised that accuracy goes out the window.

    I know what you mean about trying to stay awake during those lights-off training sessions – having taught college for a couple of years – I was the one GIVING them LOL!

    Hank


  7. B.B,

    I am most curious to know why only about seventeen names (by my count, maybe a few more) were compromised because of this hack and not everyone who post here. What was the common denominator? Inquiring minds would like to know

    Bugbuster


  8. Going way off subject here.

    Had to post. I’m about ready to have a exciting weekend. My oldest daughter went to the hospital this afternoon to have her first baby and me to be a first time Grandpa. Man making me remember when she was born about 22 years ago January 2. They kept saying the middle of January for her baby. I kept saying it was going to be around her birthday. So a nice birthday present for her I would say. And can’t believe I’m actually a bit nervous right now.

    I think I’ll go shoot to take my mind off it a bit. Now I just wait. We was texting but they said she had to stop for now. There was no texting back when we had her. Anyway I’ll be quiet now. Had to say.


  9. This really is off topic, but I’m playing the “FRIDAY BLOG” card.

    I got a .22 caliber Seneca Aspen for Xmas and got some really different velocity results with mine, out of the box, than BB got with the pre-prodution .22 caliber one that he tested awhile back. I just want to share those results with anyone who may be interested. I thought I would do it on this current blog and also make a quick post of the data on part 5 of BB’s test to leave it tied to the topic.

    The first thing that you are going to see is the “TRUTH” as spoken by The Godfather many times throughout that report. That TRUTH is that with this gun you NEED a chronograph. My gun is not performing anything like BB’s was so it would be a mistake for me to base my charging/filling strategy on just what he reported at that time.

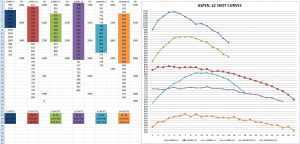

    I shot full strings at HI and Lo settings with Hobby pellets,as BB did, and I also shot JSB Monsters, which BB shot for accuracy but didn’t use during the velocity portion of his testing. I also included JSB Jumbos as a mid weight pellet. I use an FX Radar chronograph and I graphed everything and will just let you draw your own conclusions about what pellet weight the gun shoots best and at what power setting. I HIGHLY recommend this chrony, by the way
