Hatsan Proxima underlever repeater: Part 2

Hatsan Proxima underlever repeater: Part 2

by Tom Gaylord
Writing as B.B. Pelletier

Hatsan Proxima underlever repeater.

Part 1

This report covers:

• Why no single-shot tray
• RWS Hobby
• Teaching point
• JSB Exact RS
• RWS Superdome
• H&N Sniper Magnum
• Discussion
• Cocking effort
• Trigger pull
• Summary

Why no single-shot tray

I am usually sensitive to the questions of my readers, but in Part 1 I missed it completely. Reader HawkEye asked why the Hatsan Proxima doesn’t come with a single shot tray. I ignored his first comment, thinking he was just joking, but he persisted so I finally answered him. I said this.

“This rifle isn’t made to be shot single shot. No tray because it doesn’t work that way. Cocking is too hard and the loading space too confined.”

And I wondered why he would even ask such a question, until it dawned on me that he couldn’t envision the scale. I had shown him an enlarged picture of the feed probe and, looking at that, he could see plenty of room to load a pellet.

This is the picture I showed you when I talked about the probe. It looks like there is plenty of room to load a single pellet by hand, doesn’t it?

This is the Proxima probe with my thumb for scale. As you can see, the magazine slot is far too narrow for the fingers to feed a pellet.

Perhaps you had the same question as HawkEye. I hope I have cleared it up for you.

Today we look at the Proxima’s velocity. I’m testing a .22 that Hatsan rates at 720 f.p.s. We don’t know what pellet they tested to get that velocity, but today we will explore that question. Here is what I think, and I’m writing this before conducting the velocity test. I think Hatsan used a reasonable lead pellet for their velocity test, because they have a reputation for being conservative with velocity figures. Let’s say it weighed about 14 grains. The magic number is 671, at which velocity the weight of the pellet in grains is equal to the energy in foot pounds. So I am guessing the Proxima is in the 15 foot-pound range — 15 and change. And Hatsan is conservative, so it might top 16 foot pounds by a little. Let’s see.

RWS Hobby

I’ll start with the lightest pellet, the RWS Hobby. Hobbys weigh 11.9-grains and until lead-free pellets came along they were some of the lightest pellets you could get.

Teaching point

Okay, this doesn’t always happen but it did with the Proxima, so I’m going to use it. The first string of Hobbys looked bogus to me, and I will tell you why. Let’s take a look.

Shot………Vel.
1…………..829
2…………..823
3…………..824
4…………..815
5…………..808
6…………..796
7…………..792
8…………..780
9…………..788
10…………779

This is a brand new rifle and you can see what’s happening as I shoot. The velocity keeps dropping. The decline does seem to have slowed down by shot number 6. In an instance like this I wanted to see what a second string might produce. And, by the way, the average for this first string was 803 f.p.s. and the spread was 50 f.p.s.

Let’s look at the second string with the same pellet.

Shot………Vel.
1…………..797
2…………..797
3…………..797
4…………..801
5…………..808
6…………..794
7…………..786
8…………..783
9…………..775
10…………784

The average for this string was 792 f.p.s. and the spread was 25 f.p.s. You can see that the rifle is quieting down. It’s still a long way from fully broken in, but it’s a lot closer than it was on the first string. At the average velocity on the second string this Proxima is developing 16.58 foot pounds of energy at the muzzle. Let’s look at another pellet.

JSB Exact RS

The next pellet I tested was the JSB Exact RS. And I learned something with this one, too. The average with the RS pellet was 682 f.p.s. and the spread went from a low of 644 to a high of 694 f.p.s. That’s a difference of 50 f.p.s. At the average velocity the JSB Exact RS produced 13.87 foot pounds of energy. You can see that is way below the first pellet and this pellet is still varying too much in the shot string. I don’t think the RS pellet is suited to the Proxima.

RWS Superdome

Next to be tested was the RWS Superdome. They averaged 725 f.p.s., despite weighing 14.5 grains and the JSB Exact RS weighing 13.43 grains. The spread for Superdomes went from 701 to 753 f.p.s., so a difference of 52 f.p.s. At the average speed the Superdome developed 16.93 foot pounds of energy at the muzzle. So the rifle hasn’t settled down yet, however it does seem to like this pellet. I think it has to do with how well it seals the bore.

H&N Sniper Magnum

The last pellet I tested with the Proxima was the Sniper Magnum from H&N. This is a 17.9-grain domed pellet that I have never tested. It averaged 660 f.p.s. in the Proxima, which is good for 17.32 foot pounds of energy. The spread went from a low of 646 to a high of 665 f.p.s., a difference of 19 f.p.s.

Discussion

So — what do we have? The Proxima exceeded my estimate — producing energy of over 17 foot-pounds. I told you Hatsan is conservative!

This rifle needs to be broken in before it will perform like it should. And some pellets, like the JSB Exact RS, are not well suited to the Proxima’s powerplant.

The 12-shot rotary magazine functioned flawlessly throughout the test. I just had to remember to depress the cocking lever safety button to return the lever, after cocking the action. When you shoot the last pellet the empty magazine doesn’t permit the cocking to go forward all the way. It goes about halfway and then the probe stops it from going the rest of the way because it stops against the empty magazine.

Cocking effort

I measured the cocking effort at 53 lbs. at the start of the test. But as the shooting progressed the rifle seemed to get easier to cock. So I measured it again at the end of the test. And, I was shocked to see it has increased to 57 lbs.! Apparently, I got stronger as the test progressed. “I’m strong to the finishchk ‘cause I eats me spinishchk…”

Trigger pull

As the rifle came from the box the two-stage Quattro trigger released at 4 lbs. 4 oz. I was able to adjust it down to 3 lbs. 11 oz., but that was as far as the adjustment screw went.

Summary

This Proxima is turning out pretty good! The power is better than I expected and everything seems to work as it should. The cocking effort is on the high side, but I told you that in Part 1. I don’t think it matters that much for hunters, but know that the Proxima is not for casual plinking.

I’m excited to see how accurate it is. It has the same fat red dot bead on front with an open notch in the rear. This time I won’t make the mistake of shooting to the center of the dot, like I did with the Vectis.

Tom Gaylord (B.B. Pelletier)
Tom Gaylord, also known as B.B. Pelletier, provides expert insights to airgunners all over the world on behalf of Pyramyd AIR. He has earned the title The Godfather of Airguns™ for his contributions to the industry, spending many years with AirForce Airguns and starting magazines dedicated to the sport such as Airgun Illustrated.
Categories Education / Training, Hunting

31 thoughts on “Hatsan Proxima underlever repeater: Part 2”

1. BB don’t go crazy reveling in your new found strength, no arm wrestling with sailors in bars

I am glad we finally got one decent shot string.

Sean.

2. BB
My Hatsan Edge has the same fat dot fiber optic sight and with a globe that’s a little different than what the Proxima has. But similar.

I have actually been having good luck with the factory sights on the Edge. And that’s the way I decided I’m going to shoot it now. But I tryed the scope that came with it and my Tasco red dot sight. And I have to say I probably like the Tasco red dot the best. But the factory open sight have been working.

I just put the factory from post dot at the 6 o’clock position and I can see my target above the dot and below the top of the globe hood. The gun actually points pretty quick like that. And mine has the green fiber optic rear notch with the front post red. I can pick up on and center the sights real quick actually.

Just figured I would throw that out there.

3. B.B.

Typo-” I don’t think the RS pellet is suited to the JSB Exact RS.”

Was there any difficulty loading the Sniper Magnums into the magazine. They must be pretty long.

-Y

• Yogi,

Thanks, I fixed that.

The Sniper Magnums loaded the easiest of all the pellets I tried. There is plenty of room in the mag for them.

B.B.

4. B.B.

“Why no single-shot tray”

Why not something like one of these:

Or one like in the attached photo.

I like the half clothes pin idea that already has a trough, if I were to make one. Also, could you not remove the tray once the pellet has been “loaded/seated” into the breach by pulling the probe back, removing the loading tray, then push the probe back in? Or just shoot the gun with the loading tray in place. Or am I missing something?

One idea for a single tray would be able to shoot longer pellets which would not fit into the magazine. Such as Predator Polymag, sniper magnum pellets. Maybe a moot point for this gun and caliber. But, for the Hatsan BT65 the Eun Jin .25 Cal, 43.2 Grains, pointed pellet does not fit in the rotary magazine.

Looking forwards to the accuracy testing and breaking in period.

John

• John

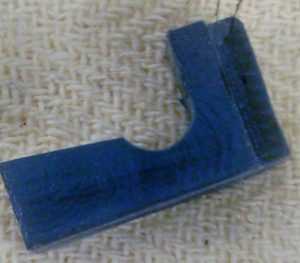

I made this some years back for a Hatsan at44qe I had. It had a deep and narrow opening for the mag to fit.
