Diana 34 EMS Break Barrel Air Rifle, Synthetic

rating
4.56 reviews
3 answered questions

$399.99

Quantity:

1
In Stock

FREE Shipping

PY-5179-10364info icon Earn 400 Bullseye Bucksinfo icon

Shipped & sold by Pyramyd AIR

2-year limited warranty

60 day money back guarantee

Add to Wish List
Compare

Description

The Diana 34 EMS Breakbarrel Air Rifle with synthetic stock is the first rifle that the German manufacturer has employed their Easy Modular System (EMS) on. The 34 EMS allows for parts to be swapped out to provide shooters with different capabilities. It reaches velocities of up to 1050 FPS in .177 and 950 FPS in .22, which makes it ideal for plinking and small-game hunting.

The biggest capacity for modular change on this air rifle comes from the capability to change the barrel, which has 1/2" UNF threading and a special locking system to provide a stable connection with the block, aiding accuracy. The 34 EMS manages to accomplish this while still maintaining a slender profile, a combination of features and usability rarely found on airguns in this price range.

Users have the ability to swap the spring-piston power plant for an N-TEC gas piston to gain its advantages, such as longevity, smoother and quieter shooting, and the ability to leave the air rifle cocked for longer periods.

The fiber-optic front sight can be changed, as can the micrometer adjustable rear sight, and the air rifle features a two-piece cocking lever that results in a more-even cocking effort. For greater flexibility than the different options for sights, an 11mm dovetails optics mount is also available for adding a scope. The barrel alignment is also adjustable, meaning shooters will no longer need to live with (or compensate for) barrel droop.

To get an air rifle with modular adjustability and accuracy at an affordable price, buy the Diana 34 EMS Breakbarrel Air Rifle with synthetic stock today at Pyramyd AIR.

Helpful resources:


Diana 34 EMS Break Barrel Air Rifle, Synthetic

  • Single-shot
  • Spring-piston power plant, convertible to N-TEC gas piston
  • Break barrel action
  • Thumbhole synthetic stock
  • 11mm dovetail optics mount

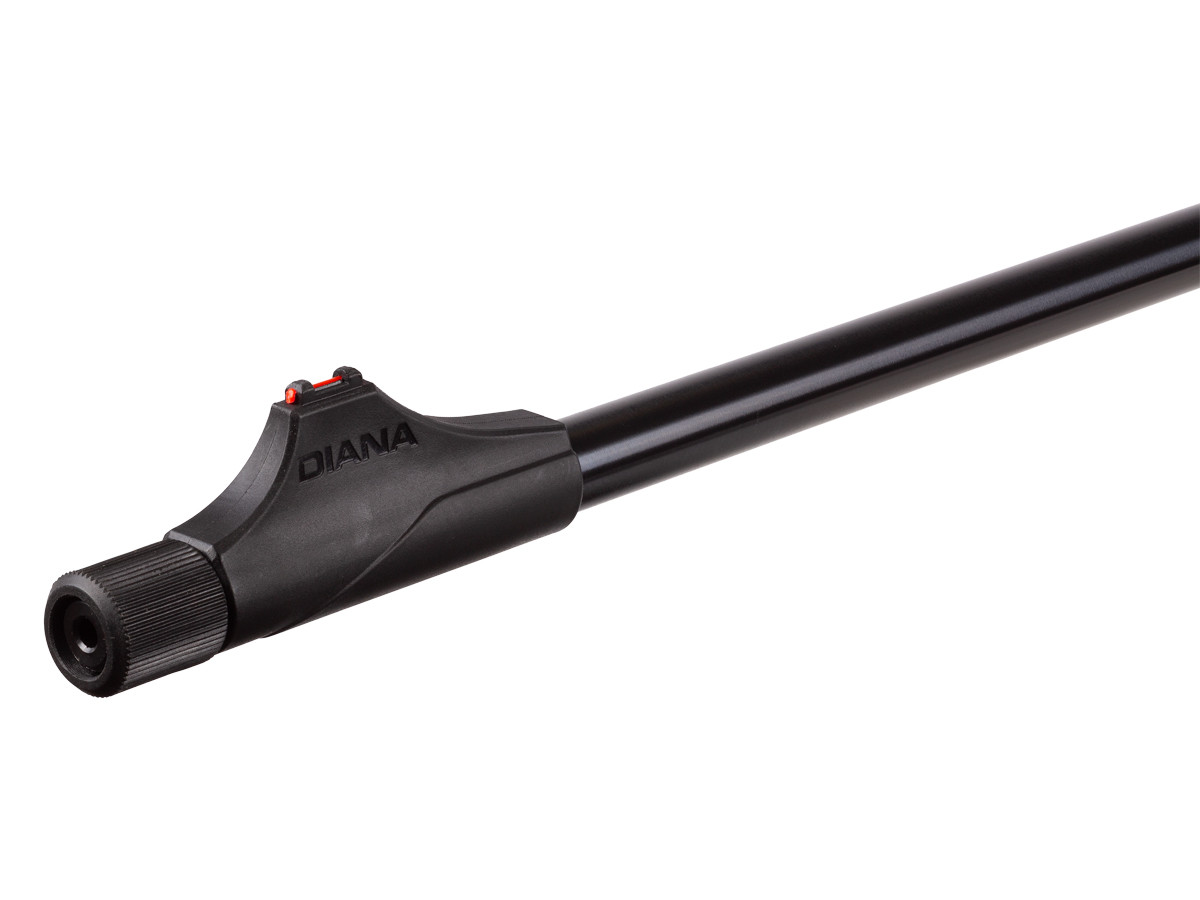

  • Fiber optic front sight
  • Micrometer adjustable rear sight
  • Two-stage, T06 adjustable trigger
  • Max. velocity with Alloy: 1050 FPS (.177), 950 FPS (.22)
  • Max. velocity with Lead: 900 FPS (.177), 800 FPS (.22)
  • Removable 1/2" UNF threaded barrel
  • Changeable front and rear sights
  • Adjustable barrel alignment
  • Overall length: 46.3"
  • Weight: 7.85 lbs.
feature iconfeature icon

Specifications

Brand
Diana
Caliber
.177 (4.5mm)
Max Velocity
1050 fps
Suggested for
Small game hunting/plinking
Powerplant
Spring-piston
Loudness
3-Medium
Weight
7.85 lbs
Function
Single-shot
Action
Break barrel
Shrouded
No
Scopeable
11mm dovetail
Front Sights
Fiber Optic
Rear Sights
Adjustable
Safety
Automatic
Trigger
Two-stage adjustable
Barrel
Rifled
Barrel Length
19.5"
Overall Length
46.3"
Capacity
1 round(s)
Cocking Effort
30 lbs
Body Type
Rifle
Stock
Synthetic
Grip
Ambi
Color
Black

Ballistic & Conversion Calcs

Expert Ammo Picks
Top Accessories & Gear

Overall Rating

rating
4.56

Ratings

5 star
4
4 star
2
3 star
0
2 star
0
1 star
0

Review This Product

Tell us what you think

6 of 6 Diana 34 EMS Reviews

Sort By:
Most Recent
Overall rating
rating
5
Value for money
rating
5
Accuracy
rating
5

Well made and very accurate.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5
Accuracy
rating
5

Is very accurate and perfect weight

Noting

Add a Comment
Helpfull Review?
Overall rating
rating
4
Value for money
rating
4
Accuracy
rating
5

This rifle has adequate power and feels good in your hands. Not too heavy and very comfortable to hold. Cocking effort is almost nothing. Trigger on my rifle had no first stage ant a lot of creep, was quite dangerous since you did not know when it would fire however that can be adjusted out.

Its awkward to push in the safety when ready to shoot since you have to take your thumb out completely from the hole. Redesign a dove tail groove at the back end so that the last stopper hole can be useable. The dove tail groove is not uniform in the last section so the mounts can not be installed using the last hole!!! The groove should be continued to the end like on the weihrauchs or Beemans.

The stock feels kid of cheap in your hands but its ok, accuracy makes up for it.

Rob Apr 09, 2022

Forgot to add, the crosman premier pellets fall out of the breach while closing like on almost all Diana's. The barrel inside diameter is too large, you have to use the 5.55 mm pellets only. Don't forget, in order for the air rifle to be accurate the pellets have to fit tight so that the pellet is able to spin via the rifled barrel before it comes out.

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5
Accuracy
rating
5

This is a superbly elegant rifle. It simply shouts German quality, from its real knurled steel safety to the overall buttery smoothness. It cocks easily. The trigger is crisp, and can be set frighteningly light, if that is your preference. It sends things downrange at a healthy clip, but not so quickly that it becomes a pellet snob. The stock just fits and is very comfortable to shoot over.

An adjustable cheek piece a la higher priced Hatsan would be a treat.

Diana doesn't try to win the game by posting up big specs. They offer an accurate, well-made rifle that is a treat to shoot because everything works in harmony.

Add a Comment
Helpfull Review?
Overall rating
rating
4
Value for money
rating
4
Accuracy
rating
4

Very satisfied

Add a Comment
Helpfull Review?
Overall rating
rating
5
Value for money
rating
5
Accuracy
rating
5

Oh my goodness where to start! This is an ENTRY level rifle!? This is the bees knees! I cannot believe how much you get for the price! As a convert from firearms; $350 is nothing for a rifle; but the quality on the Diana 34 is astounding! The trigger snaps like a glass rod, the cocking requires some strength but is very fluid and smooth; breech pops open with gusto and you can hear a nice pop so you know you have a good seal which I dont get on my other airguns; accuracy is there this thing goes where you point it; even shot off hand at 25 yards and couldnt believe the results! If you are on the fence about this rifle; get it before everyone else finds out and they sell out. Excellent product Diana and thank you Pyramyd Air for distributing!

So the optics rail according to the literature in the physical manual is really 12mm? Make sure you have a clamp style set of rings or a rail because your one piece 11mm will not fit (such as BKL industries with the spreader style dovetail mounts) as the will not fit and trust me you cant widen them without running the mount! There are stop pin holes in the receiver but you will have to make sure you dont extend too far as the tap holes are straight into the receiver; but if you choose iron sights only you do get a nifty set of cover plates which is a nice thought! Try your rifle out first to investigate whether or not barrel droop is an issue; they give you a set of shims to install to correct any issues and the UTG drooper rail; my sample didnt appear to have any droop though? Again just give it some testing and utilize the solution best for your gun. I do still wish there was a positive stop in the receiver recessed for a stop pin; estimating the depth of your pin is worrying work!

You will love this rifle; cost seems to be a concern with this level of air gun but you can use Pyramyd Airs wonderful Affirm financing and get a quality rifle! With a Diana ; you arent experimenting with the bargain quality hoping to find a gem; rest assured this is a great product! I got the .177 and shot 7.4s through 10.88s using Crosman Premiers, H&N Target Trophy and Barracuda and they all grouped well; preference for heavier loads it seems, but good enough accuracy in my use with a variety of loads which is great; you wont regret this rifle!
