FWB 110 target rifle: Part 2

by Tom Gaylord
Writing as B.B. Pelletier

Part 1

A history of airguns

FWB 110
FWB 110 target rifle.

This report covers:

  • Sliding compression chamber
  • Velocity
  • RWS Hobby
  • Vogel Match Green
  • Accuracy
  • How good is it?
  • Summary

Today I will finish the report on the FWB 110 target rifle. Some readers thought I was testing the rifle myself. Jerry and Tommy Cupples offered to leave it with me, but given its rarity and value, I declined. I would hate for anything to happen to it in shipping! So, they did the testing for me. Let’s take a look.

Sliding compression chamber

When you pull the sidelever back you also pull the sliding compression chamber back, which in turn moves the piston. The piston compresses the mainspring, and when the sear catches the piston, the rifle is cocked. I showed you the compression chamber open in Part 1, so link back to that (above) if you have forgotten.

Speaking of the sidelever, there has been a lot of discussion about not pulling on the sidelever locking latch while cocking the rifle, for fear of breaking it. The 110 and the 150 that followed had this latch, as well as a few of the early 300s (that’s plural for 300 — NOT the model 300S that came later). Feinwerkbau corrected the problem by changing the locking latch from a separate lever to an integral part of the sidelever. It’s less convenient to operate, but there is nothing to break because you can’t cock it wrong with this one-piece lever.

FWB 110 lever latch
The 110 sidelever latch pivots on a tiny pin. If you cock the rifle holding this latch, that pin will break.

FWB 110 lever latch open
This top view of the latch open shows the weakness of the latch design. If you continue to pull on the sidelever while holding the latch at this point, you put too much pressure on the small pivot pin.

FWB 300S target air rifle cocking lever latch
The new-style FWB 300S sidelever latch does not have a delicate pin to protect. It’s not as easy to operate but there is nothing to break.

Velocity

Tommy Cupples had Dave Slade rebuild the 110 powerplant. And, now that I have shot the rifle, I can verify that Dave did his usual great job. The rifle now shoots very smoothly. That is due to a combination of a good tune, the Feinwerkbau design and the weight of the rifle.

RWS Hobby

The first pellet tested was the 7-grain RWS Hobby wadcutter. They are often used to determine maximum velocity. In an FWB 300S with a good fresh tune, this pellet would be expected to average around 640 f.p.s. In the freshly-tuned FWB 110 they average 608 f.p.s. The spread is 49 f.p.s., going from 573 to 622 f.p.s. That seems large, but remember that this is a freshly-tuned spring gun. Tommy Cupples even remarked that it was visibly smoking a little when he shot it. I would expect the velocity spread to diminish to around 20 f.p.s. after several hundred shots have been fired.

Vogel Match Green

The second pellet they tested was the Vogel Match Green, which as far as I can tell is not a lead-free pellet. Green simply refers to the color of the label. These weigh 8.18 grains and average 532 f.p.s. The spread runs from 519 to 540, a spread of 21 f.p.s.

The light smoking that Tommy Cupples mentioned was not present when I shot the rifle at the Texas airgun show. Smoking is common right after a spring gun tune, but once the lubricants settle down it often goes away. Not always, but often. Nothing bad comes from it.

Accuracy

Now, what can she do? Tommy shot five targets with Vogel Green pellets. He mentioned that they were shot from a rest at 10 meters. He took a couple groups to settle down, then shot two good groups.

FWB 110 Vogle group 1
Mickey Mouse blowing a bubble! The first good 5-shot group is centered on the 10-ring. No measurements were given but from the target I can estimate 0.375 to 0.475-inches between centers.

FWB 110 Vogle group 2
This last 5-shot group was the best one he shot at 10 meters. He didn’t give a size but I would guesstimate 0.30-0.40 between centers.

How good is it?

This is a slightly different test than I usually do, but you can interpolate these results from the dozens of past tests you have seen me do. I would say this FWB 110 is right there with a Walther LGV Olympia or an HW 55 — two of its closest competitors. Remember, we don’t know if the pellet that was used for the accuracy test is the best one for this particular rifle. I would have tested several different pellets for that. I also would shoot 5-shot groups with a 10 meter rifle, so that part remains the same.

Summary

The bottom line in this report goes in two very different directions. On the one hand, you have just witnessed a test of one of the rarest air rifles ever produced. Fewer than 200 of these are thought to have been made and I am sure there are fewer than that remaining. We agreed that the value is whatever two parties can agree upon.

On the other hand, as far as performance goes this 110 is very much in competition with the HW55 series of target rifles and the Walther LGV of the 1960s (not the ones made a few years ago). I feel it holds its own with both of them, in terms of power, accuracy, good trigger and smooth behavior. If it wasn’t such a rare collectible I would want one just for the pleasant way it works. What a strange test —an FWB sidelever target rifle that recoils!

93 thoughts on “FWB 110 target rifle: Part 2

  1. B.B.,

    I imagine the weight of the rifle to be about 10 pounds or less since it doesn’t have the recoilless carriage of the 300S. With a power output of 6fpe I cannot imagine a trained shooter missing his/her target within it’s normal range.

    Siraniko


  2. B.B.,

    What a lovely air rifle! I suspect that the FWB 110 heavily influenced Diana with the design of their Model 48/52 sidelever.

    You have never done an accuracy test of the 48/52 on this blog, as far as I know. Any chance of you doing a complete series on that overlooked classic?


    • Bob,

      I’m with you. I, too, would like to see a full report on the RWS 48/52. It holds even more interest now that we have seen this gun. How ’bout it BB?

      Half




          • BB,

            The first link seems to be to a review of the Pro Guide system.

            The second link was the one that I found and it left me wanting. It was from “back in the day” when you apparently didn’t do the systematic 3 and 4 part reports that this blog has matured into. I would like to see a full treatment on the gun, since you refer to it as accurate, but without quantifying that accuracy. I’d also like to know more about the hold sensitivity that you refer to in that little piece. How did you come to that conclusion? How sensitive is it? What ended up being the best hold? If you used a .177 Model 48 as the test bed, perhaps you could try some of the super heavyweight pellets that we can buy now, but weren’t available at that time, to see if they impacted that caliber’s shootability. Maybe some more info on how you would go about lowering their power by 10% as mention near the end of that report. Maybe see how similar the design is to the FWB110. You have, no doubt, shot a number of new guns since then, how does it stack up against them. Is it still a relevant design in this day and age. Who would you recommend it to.

            Give us the FULL MONTY!! 🙂 🙂 🙂

            Half



              • BB,

                I did read all 4 parts before I made the above comment and I stand behind my characterization of it being more of a How To and review of the drop in tuning system. All of the questions that I listed in my last comment were left unanswered. If you don’t have the time or interest in reviewing the the gun, I understand, but to say that it has been reviewed in the style and level of thoroughness of your more resent blogs is just not true, in my opinion, respectfully.

                Half


                • Half,

                  I’m not saying that it was a traditional review. But the velocity with the factory spring was given, which is one of the things I thought you were after.

                  I have owned and reviewed so many 48s and 52s that I guess I have lost interest in them. They are great airguns, don’t get me wrong, but they are nothing new — at least to me.

                  I guess maybe I better reconsider, if there are others who are interested, as well.

                  B.B.


                  • BB,

                    Thank you for reconsidering, and I wouldn’t expect you to do the report if I am the only one that is interested. I think Bob Ryan might be interested , but I’ll let him speak for himself.

                    Half


                    • If you want a couple of good reviews try Paul Capello airgun reporter episode on the 48. Also Rick Eustler did one also.


                  • BB,

                    Please, please give the 48/52 the full treatment.

                    Here’s why I think it deserves it: It’s the only spring piston air rifle I know of that beats the Beeman R1 for power, while matching the TX200 for accuracy.

                    The 48/52 is still a big seller in the US, but in the UK, alas, it has largely disappeared down the memory hole. That is partly due to the rise of PCPs as the instrument of choice for those wishing to go down the FAC route, but largely, in my opinion, due to an import business called SMK which acquired distribution rights to Diana products some years back and jacked up the price of a Diana 52 to a level approaching double that of a HW80, an air rifle which it shared a price bracket with back in the 1980s.

                    Even though it has been around for over 30 years, the 48/52 is still close to springer perfection, to my mind at least. I just wish Diana would replace the plastic parts (trigger blade, cylinder end cap, safety catch, muzzle break) with the steel parts a fine air rifle like this deserves.

                    The overly chunky open sights could likewise do with improvement, ideally being replaced with a peep at the end of the receiver and a tunnel with multiple inserts up front. The 48/52 also needs a proper scope mounting system, à la Weihrauch. Oh, and Diana needs to get rid of that blasted barrel droop from all of their air rifles that can go over 7.5 joules – no one, I repeat, no one uses them for 10m competition.

                    I am sure there are many more out there, BB, besides Halfstep and me who would relish the thought of you treating us to a full series on this classic air rifle, preferably in 52 Superior (walnut stocked) guise, as the furniture on the 48 is a wee bit bland.


                    • Bob,

                      Please don’t hold back like that! How will we ever know what you really mean? 😉

                      Okay, I guess you got me. The 52 is not walnut, but checkered beech is being imported into the US again after a lapse.

                      B.B.


                  • BB,

                    Sorry for labouring the point 🙂 The 52 was my very first air rifle though and I still have a soft spot for the old girl!

                    The standard 52 has a chequered beech stock, yes, but the 52 Superior wears walnut (pic attached). Perhaps that version is not available in the US though.



                    • Bob,

                      I think I have heard of the walnut stocked 52, though I never saw one. I bet it was imported here at one time. I will just make do the best I can.

                      I have owned several of these rifles — both 52s and 48s. My favorite is a .22 caliber rifle. Whaddaya think?

                      B.B.




                  • BB,

                    Diana 48/52 in .22 cal? Me likey likey! 🙂

                    .22 is the calibre which maximises the potential of the rifle’s power plant.

                    The .177 48/52 was popular for field target back in the day though and I bet they were very smooth at sub-12 ft lbs. I tried a friend’s .177 Diana 52 during a visit to Luxembourg once. It had just a sub-7.5 J spring, but was a blast for backyard plinking with open sights.

                    My own 52 was a 12 ft lb .22. It too was a lovely gun to shoot – smooth as silk, very easy to cock and far more accurate than me. Over 20 years later, I still regret parting ways with it.


                  • Chris, Geo,

                    That walnut stock is lovely, isn’t it?

                    I have just checked the latest Diana catalogue though, and to my horror it appears they no longer offer the walnut stocked 52!

                    Will have to keep an eye out for one on the secondhand market.




  3. BB,

    I don’t suppose there is much chance of one of these gals showing up at the door of RidgeRunner’s Home For Wayward Airguns looking for a room. It’s just as well as I would have to shoot it and I would be afraid of dinging it.



  4. B.B.,

    In the 3rd picture at the top, the end of the cocking arm appears to be a 2 prong “fork” of sorts and a pin can be seen. Between the fork is another piece of metal with what appears to be a disc like shape at the muzzle end.

    Does that move somehow, and does it have some sort of purpose?

    Good Day to you and to all,….. Chris


    • Chris,

      That is the latch mechanism. You push down on the round end and it unlatches the cocking arm. As you hold down the round end, typically with your thumb, you pull out on the arm.


      • RR,

        Thank you. Much obliged. Good eye yesterday on the high rear mount shimming by the way. I missed that. I do not know how much it was, but it looked way extreme.

        As I have mentioned in the past, I use a cut piece of toothpaste tube in the rear when mounting a conventional sized scope and fixed height mounts. .011″ I believe, without checking.


      • Regarding the cocking mechanism:

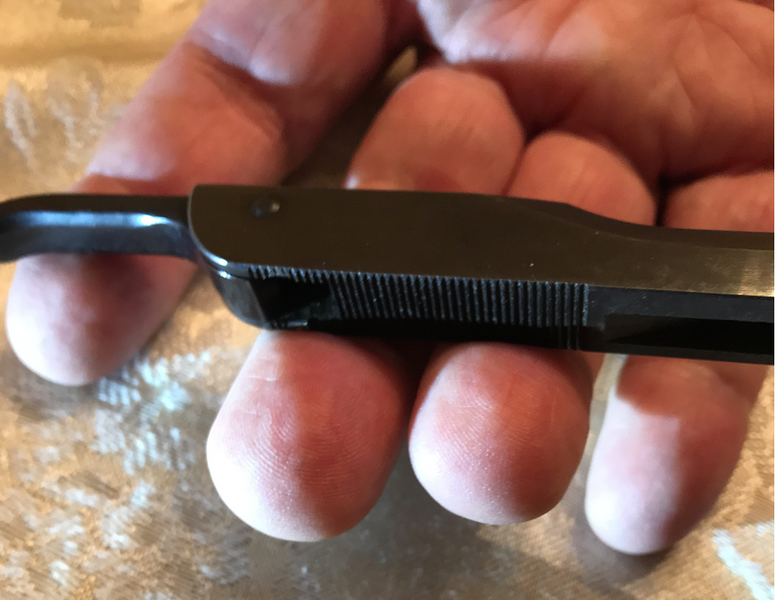

        Notice in the earlier photos posted that the underside of the cocking lever, below the latch and latch pin, has machined grooves to improve grip. The mechanism is meant to be unlatched with a light flick of the thumb on the beveled top side of the latch, which lets the cocking lever open enough to slip 2 or three fingers under the cocking lever, and on to the grooved surface. The greater force (torque) intended to cock the spring mechanism can then applied to the solid shaft of the cocking lever, at a right angle to the lever’s grooved surface, not at a more backward angle, against the latch mechanism. With just a bit of practice, this is a very natural and smooth operation — flick open the latch with the thumb, slip fingers under the lever, cock and load, push forward with the heel of the hand against the bulge on the top side of the lever until the latch engages the notched post of the locking mechanism, then gently push the latch lever down to engage the lock.
